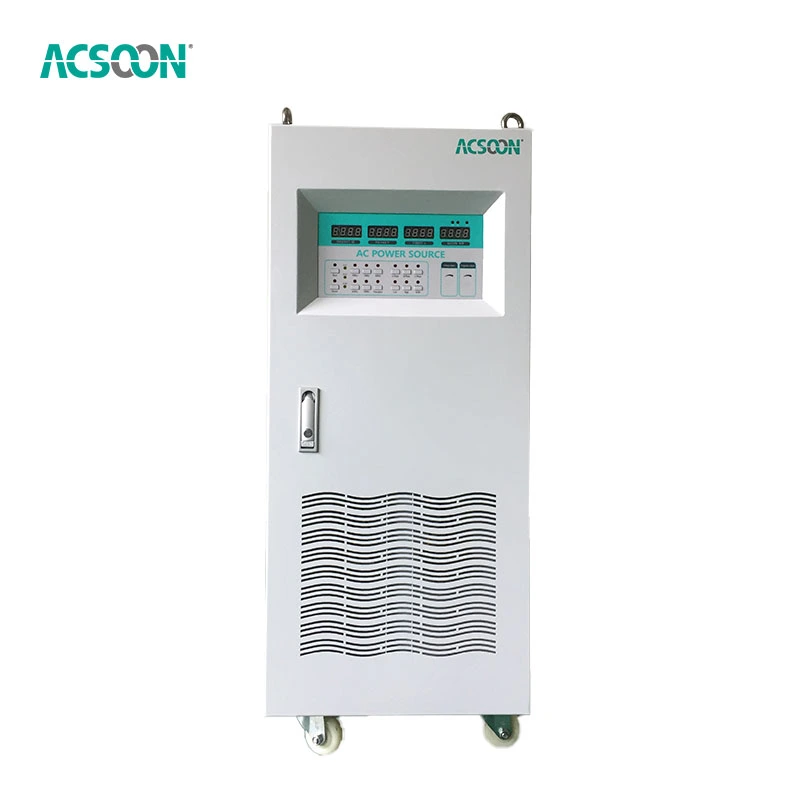

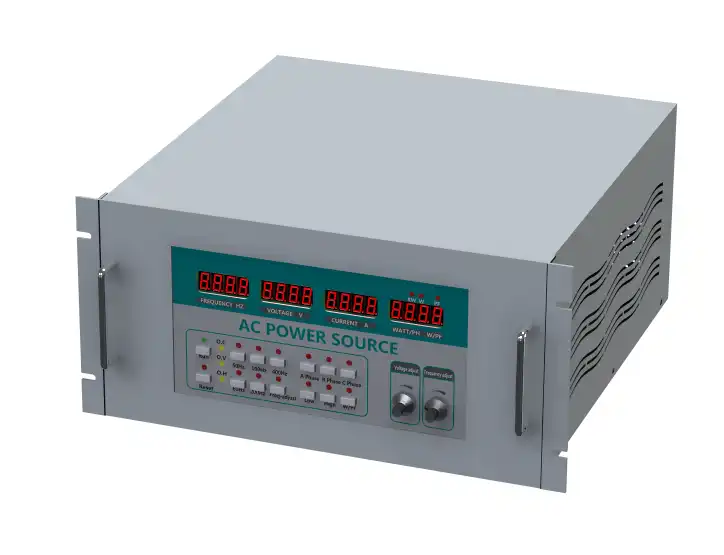

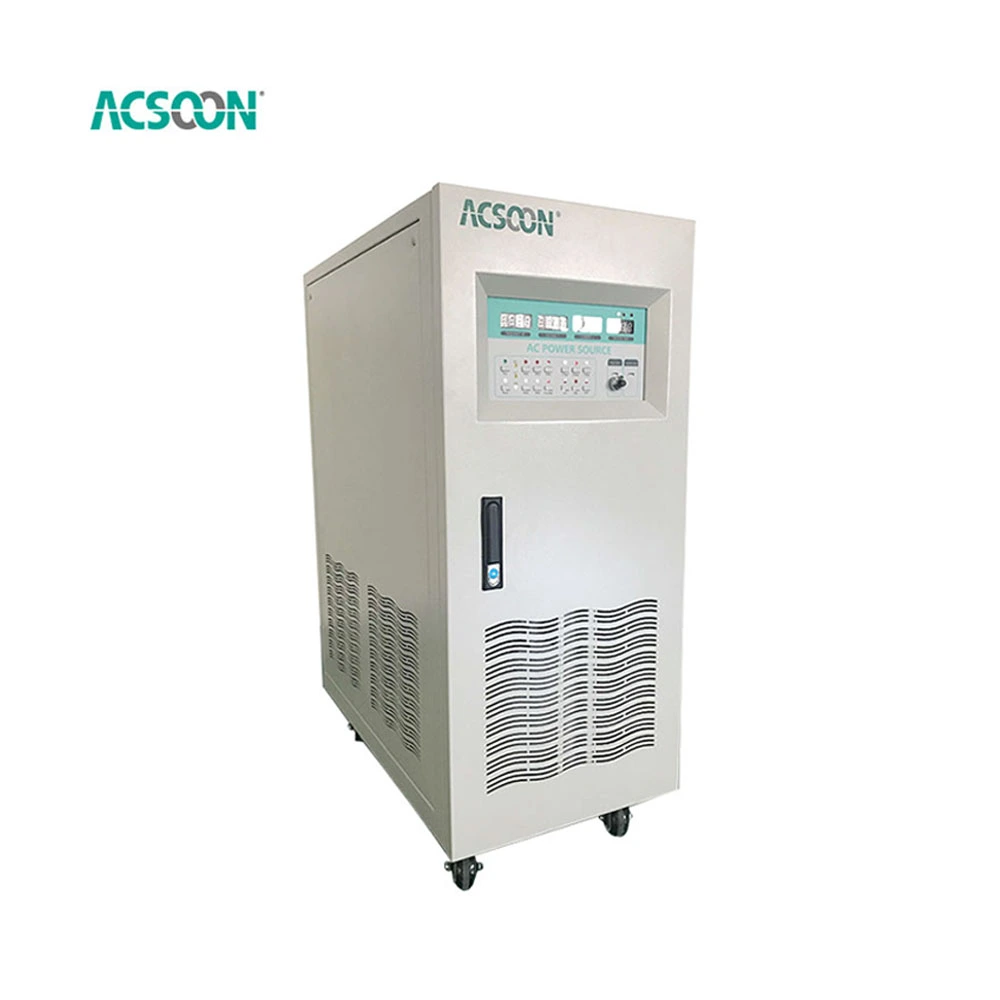

High Voltage DC To AC Inverter
2. Power Rating: 100kVA
3. Input Voltage : 540VDC
4. Output Voltage & Frequency: 0-300V,0-520V, 50HZ - 60HZ
5. Type: Pure Sine Wave Inverter
6. Ingress Protection Grade: IP21
7. Applications: Electronics tests,home appliances
8. Brand: ACSOON (support OEM)
9. Features: Thoroughly proven advanced SPWM and IGBT technology，EMC compatible,low noise.
- Product Description
ACSOON High Voltage DC to AC Inverter: Powering Tomorrow's Energy Solutions
XI'AN JERRYSTAR INSTRUMENT CO., LTD is a leading manufacturer and supplier of high voltage DC to AC inverters. With over 15 years of expertise, our ACSOON brand inverters deliver unparalleled performance for renewable energy, industrial, and utility applications. Our advanced inverters combine efficiency, reliability, and smart grid compatibility to meet the evolving needs of the global power industry.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Single Phase) | 1kVA - 200kVA |
| Capacity (Three Phase) | 1kVA - 500kVA |
| AC Input (Single Phase) | 110-230VAC (L-N) |
| AC Input (Three Phase) | 200-440VAC (L-L) |
| Input Frequency | 50HZ / 60HZ, 40-70HZ |
| DC Input | 48V - 600VDC (customizable) |
| AC Output (Single Phase) | 0-300VAC (L-N) (customizable) |
| AC Output (Three Phase) | 0-520VAC (L-L), Delta or Wye |
| Output Frequency | 50/60HZ or 40-400HZ adjustable |
| Voltage Regulation | +/-1% |
| Output VTHD | <3% @ Linear load |
| Response Time | ≤2ms |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 30 seconds |
| Communication | Modbus RS232 / RS485 (Optional) |
| Cooling | Forced air |
| MTBF | 30,000H |
| Operating Temperature | -10°C to 50°C |
| Altitude | <1800m |
Why Choose ACSOON High Voltage DC to AC Inverters?
Application Areas
Renewables Integration: Convert solar/wind DC to grid AC.
Industrial Power Quality: Stabilize power for sensitive equipment.
EV Charging: Enable fast, reliable charging infrastructure.
Telecom Backup: Ensure uninterrupted power for critical comms.
Grid Storage: Integrate large-scale batteries with the grid.
Microgrids: Support independent remote power systems.
Data Center Power: Deliver clean, consistent power for critical ops.
Marine/Offshore Power: Supply power for ships & platforms.
Rail Auxiliary Power: Convert DC traction to AC for systems.
Aerospace GSE: Supply reliable ground support power.
Quality Control
Rigorous component selection and testing
Advanced production line quality checks
100% burn-in testing before shipment
ISO 9001 certified quality management system
R&D Results
Patented high-frequency switching technology
Advanced thermal management systems
Intelligent monitoring and control algorithms
Modular designs for easy maintenance and scalability
After-Sales Service
24/7 technical assistance
Comprehensive warranty coverage
On-site commissioning support
Regular software updates and performance optimization
Qualification Certification
FAQ |
|---|
| 1Q: What is the warranty period for ACSOON products? |
| A: We offer a standard 5-year warranty, with options to extend up to 10 years. |
| 2Q: Can ACSOON inverters handle variable DC input voltages? |
| A: Yes, our inverters feature wide DC input ranges and can be customized to your specific requirements. |
| 3Q: Are ACSOON inverters suitable for off-grid applications? |
| A: Absolutely. We offer both grid-tied and off-grid inverter solutions to meet diverse project needs. |
| 4Q: How does ACSOON ensure inverter reliability in harsh environments? |
| A: Our inverters undergo extensive environmental testing and feature robust enclosures with advanced cooling systems. |
| 5Q: Can ACSOON provide turnkey solutions for large-scale projects? |
| A: Yes, we offer complete system design, integration, and commissioning services for major installations. |
Contact Us
Ready to power your project with ACSOON high voltage DC to AC inverters? Reach out to our expert team at acpower@acsoonpower.com for personalized assistance and quotations.
