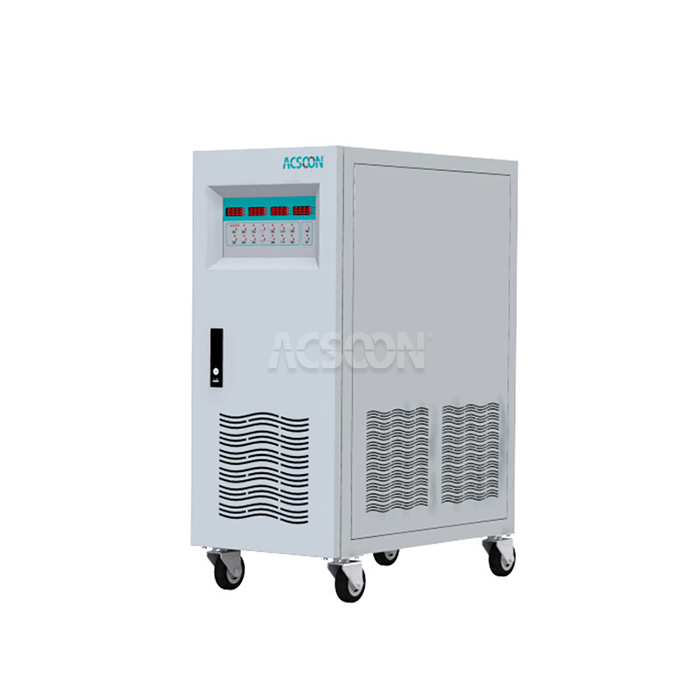

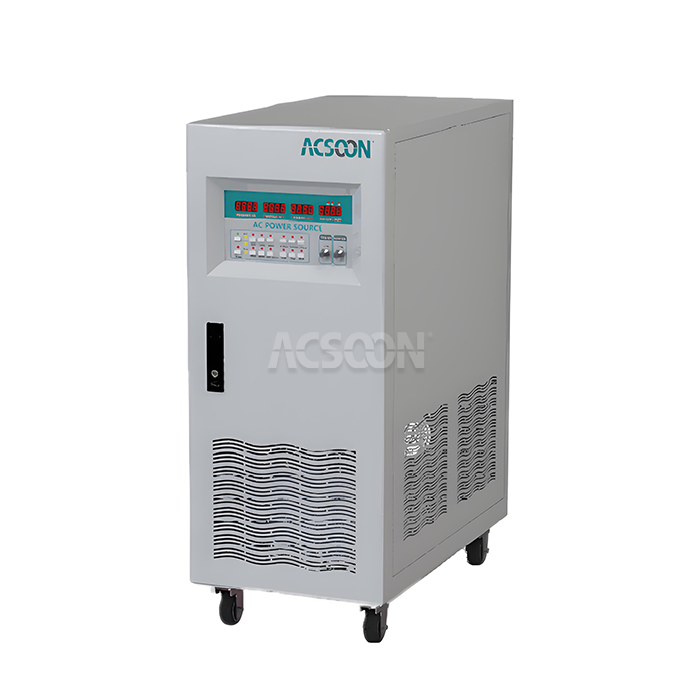

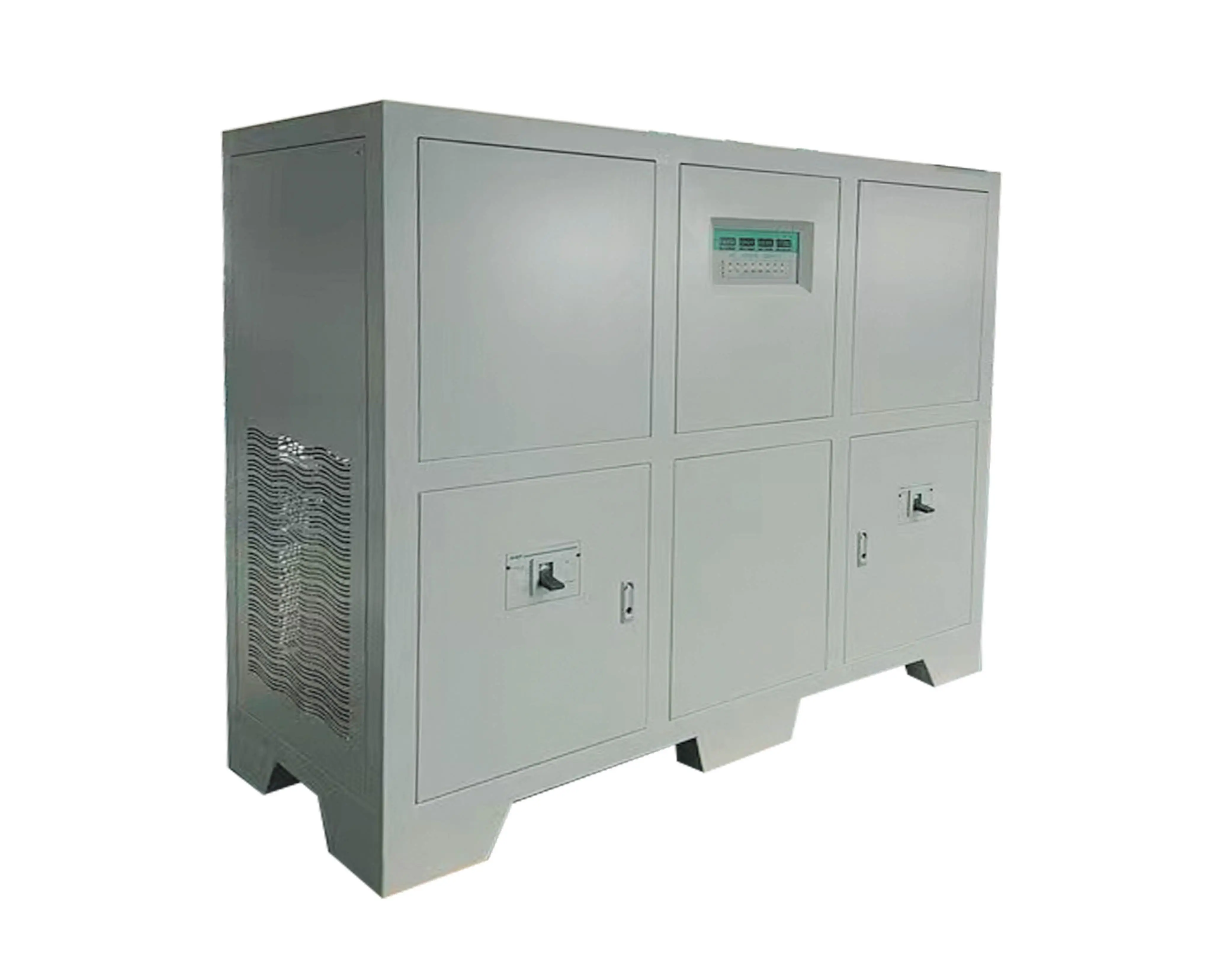

International AC Power Source Simulator

1.Power Range: 1kVA to 600kVA (Single & Three Phase)
2.Technology: IGBT-based Static Frequency Converter with Isolated Transformer
3.Input: 1-Phase 110-240V or 3-Phase 208-480V, 50/60Hz Mains
4.Output: Programmable Voltage (0-520V) & Frequency (45-200Hz), Simulates Global Standards
5.Applications: Export/Import Compliance Testing, Appliance Validation, R&D of International Products
6.Core Features: Simulates Any Country's Mains Power, Pure Sine Wave, High Precision, Rugged Design
7.Brand: ACSOON (OEM/ODM Supported).

Send Inquiry Download

Product Description

International AC Power Source Simulator | Global Voltage & Frequency Converter

XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the International AC Power Source Simulator, a versatile static frequency converter engineered to solve global power compatibility challenges. This simulator accurately replicates the voltage and frequency standards of any country, providing a reliable test bed for manufacturers, quality labs, and service centers to ensure their products operate flawlessly anywhere in the world.

Datasheet

Parameter	Specification
Model Series	ACSOON AF60W / ACSW Series
Input	Voltage: 1-Phase 110-240V or 3-Phase 208-480V ±15% Frequency: 50/60Hz (40‑70Hz range)
Output	Voltage: 0-150V (L-N), 0-300V (L-N), 0-520V (L-L) adjustable Frequency: 45Hz to 200Hz adjustable Configuration: 1-Phase or 3-Phase + N Power: 1kVA to 600kVA models available
Regulation	Voltage Stability: ≤ ±1% FS Frequency Stability: ≤ ±0.1% FS
Output THD	<3% @ linear load
Efficiency	≥85%
Overload Capacity	125% for 1 minute
Display	4-digit LED or LCD (V, I, F, P, PF)
Protections	Over Voltage, Over Current, Short Circuit, Over Temperature
Cooling	Forced Air
Operating Temp.	-10°C to 45°C

International AC Power Source Simulator Main Features

Wide Voltage/Frequency Range: Output freely adjustable within 0-150V/300V (L-N) and 45-200Hz to match any utility specification.
Isolated & Robust Output: Galvanic isolation via transformer handles unbalanced loads and protects the unit and load from transients.
Precise Regulation: Excellent voltage stability (±1%) and frequency stability (±0.1%) ensure consistent and repeatable test conditions.
Comprehensive Monitoring: Digital display shows real-time voltage, current, frequency, power, and power factor.

International AC Power Source Simulator Application Areas

Manufacturing & QA Testing: Validating the performance and safety of household appliances, IT equipment, and industrial devices for target markets.
Compliance & Certification Labs: Conducting pre-compliance tests for standards like IEC, UL, CE, which require specific input power conditions.
Aerospace & Defense: Testing equipment designed for use with various military and aircraft power standards (e.g., 400Hz, 115V, 208V).
Service & Repair Centers: Diagnosing and servicing imported equipment that operates on foreign voltage/frequency.

Why Choose ACSOON International AC Power Source Simulator?

Global Power Simulation: Accurately generates output from 45Hz to 200Hz and voltages up to 520V, covering North America, Europe, Asia, and other regional standards.
Superior Power Quality: Delivers a clean, pure sine wave with low harmonic distortion (THD<3%), critical for testing sensitive electronics and motors.
High Reliability & Safety: Features an isolated output transformer, robust protection suite, and stable operation for continuous testing cycles.
User-Centric Design: Intuitive controls, digital readouts, and adjustable parameters allow for quick setup and simulation of various power conditions.

Our Services

Quality Control

Component Verification: All IGBTs, control boards, and transformers are tested upon receipt for specification compliance.
Functional Testing: Each unit undergoes a comprehensive operational test, verifying all output ranges and control functions.
Load & Stability Test: Units are tested at various load points (25%, 50%, 100%) to ensure stable performance and accurate regulation.
Final Safety Inspection: Includes dielectric strength testing and verification of all alarm and protection circuits.

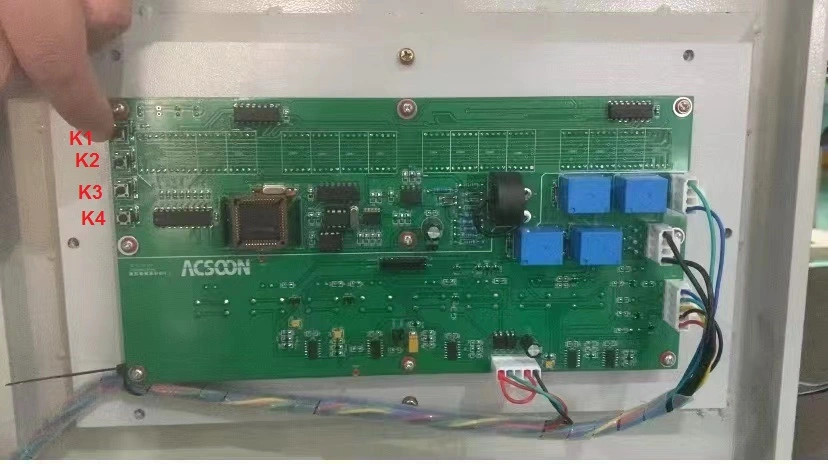

R&D Results

Advanced Control Architecture: Implementation of high-speed DSP controllers for precise and rapid adjustment of output parameters.
Enhanced Waveform Fidelity: Optimized SPWM modulation techniques to achieve a near-perfect sine wave with minimal distortion across the entire frequency range.
Thermal Performance Optimization: Improved heatsink design and intelligent fan control for reliable operation during prolonged high-power testing.
Global Compliance Design: Engineering focused on meeting key international safety and EMC standards (EN, IEC) from the ground up.

Packaging and Transportation

Secure, Tailored Packaging: Units are packed in sturdy wooden crates or reinforced cardboard (for smaller models) with custom-cut foam inserts.
Complete Documentation: Each package includes the user manual, test certificate, and warranty card in a protective pouch.
Clear Handling Instructions: Packaging is marked with handling icons, product details, and our contact information.
Flexible Shipping Options: We arrange reliable shipping via air or sea freight, handling export documentation for smooth delivery.

After‑Sales Service

We provide an 18-month warranty, responsive technical support via email and phone, access to operation manuals and software, and a network for spare parts supply.

Qualification Certification

ISO 9001:2015 Certified: Our manufacturing and quality management processes adhere to this international standard;CE Marking: The product complies with the relevant EU Low Voltage and EMC Directives;Test Report: A detailed factory test report documenting the unit's performance is supplied with each shipment.

FAQ
Q1: What is the primary purpose of an International AC Power Source Simulator?
A: It allows you to test how a device behaves when powered by the electrical grid of a specific country (e.g., 120V/60Hz for USA, 230V/50Hz for Germany) without physically being there, ensuring compatibility and compliance.
Q2: Can it simulate power disturbances like sags, surges, or harmonics?
A: The standard model provides clean, stable power. Simulation of specific power quality disturbances typically requires a more advanced programmable AC source, which we also offer in other product lines.
Q3: Is this suitable for testing motor-driven appliances?
A: Yes. The pure sine wave output and robust current capability make it ideal for testing inductive loads like refrigerator compressors, fans, and power tools.
Q4: How do I choose between a single-phase and a three-phase model?
A: This depends on your Device Under Test (DUT). Use a single-phase model for standard appliances and electronics. A three-phase model is needed for testing industrial equipment, large HVAC systems, or three-phase motors.
Q5: Can the output frequency be set below 45Hz or above 200Hz?
A: The standard adjustable range is 45-200Hz. Frequencies outside this range (e.g., 400Hz for aerospace) are available through custom configurations in other series.

Contact Us

For technical specifications or global solutions for the International AC Power Source Simulator: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
