Laboratory Grade AC Power Source

1.Power Capacity: 15kVA (precision benchtop design)
2. Technology: DSP-controlled linear amplification technology
3.Input: 1-phase 220VAC ±10%, 50/60Hz
4. Output: 0-300VAC, 40-500Hz fully programmable
5.Key Applications: Precision instrument testing, calibration laboratories, R&D facilities
6. Key Features: Ultra-low noise (<0.5% THD); high accuracy (±0.1%); programmable sequences; GPIB/LAN connectivity
7. Brand: ACSOON (calibration services available)
8. Brand: ACSOON (support OEM)
9. Ingress Protection Grade: IP21/54

Send Inquiry Download

Product Description

Laboratory Grade AC Power Source | Precision Testing & Calibration Power

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures precision laboratory grade AC power sources for critical testing and calibration applications. Utilizing advanced linear amplification technology, our systems provide exceptionally clean and stable power for sensitive laboratory instruments, calibration equipment, and research applications where power quality is paramount.

Technical Specifications

Feature	Specification
Capacity (Single Phase Output)	1kVA to 200kVA
Capacity (Three Phase Output)	1kVA to 2000kVA
Input Voltage (Single Phase)	110-230VAC ±20%
Input Voltage (Three Phase)	200-440VAC ±20%
Input Frequency	50/60HZ or 40-70HZ
Output Voltage (Single Phase)	0-300Vac
Output Voltage (Three Phase)	0-520Vac
Output Frequency	50/60/100/200/400HZ or 40-800HZ adjustable
Frequency Stability	≤0.1%
Voltage Stability	±1%
Output VTHD	<3% @ Linear load
Power Factor	≥0.8 (Standard), ≥0.9 (12 Pulse Optional)
Overall Efficiency	≥85%
Overload Capacity	125% for 60s, 150% for 30s
Cooling	Forced air
MTBF	30,000H
Operating Temperature	-10°C to 50°C

ACSOON Laboratory Grade AC Power Source Main Features

Isolated output transformer;suitable for any unbalance loads, each single phase can be used independently
EMC compatible
Compatible with both 50Hz and 60Hz power supply network
Low harmonic distortion
Pure sine wave,sinusoidal output
Completely protection and alarm for over voltage, over current and overheating, etc
Display real-time data:voltage,current,frequency, power / power factor

Why Choose ACSOON Laboratory Grade AC Power Sources?

ACSOON delivers unmatched precision for laboratory applications:

Ultra-Low Distortion: <0.5% THD for pristine power quality
High Accuracy: ±0.1% voltage and frequency stability
Advanced Programming: Multi-step sequence capability
Comprehensive Interfaces: GPIB, LAN, RS232 connectivity
Low Noise Operation: Ideal for sensitive measurements

Application Areas

Our laboratory grade AC power sources are essential for:

Calibration Laboratories: Reference power source for meter calibration
Research Institutions: Precision scientific experiments
Medical Equipment: Diagnostic device testing and validation
Semiconductor Testing: IC and component characterization
University Labs: Engineering education and research
Quality Control: High-precision product testing
Metrology: Measurement standard applications
Aerospace Testing: Avionics calibration and verification

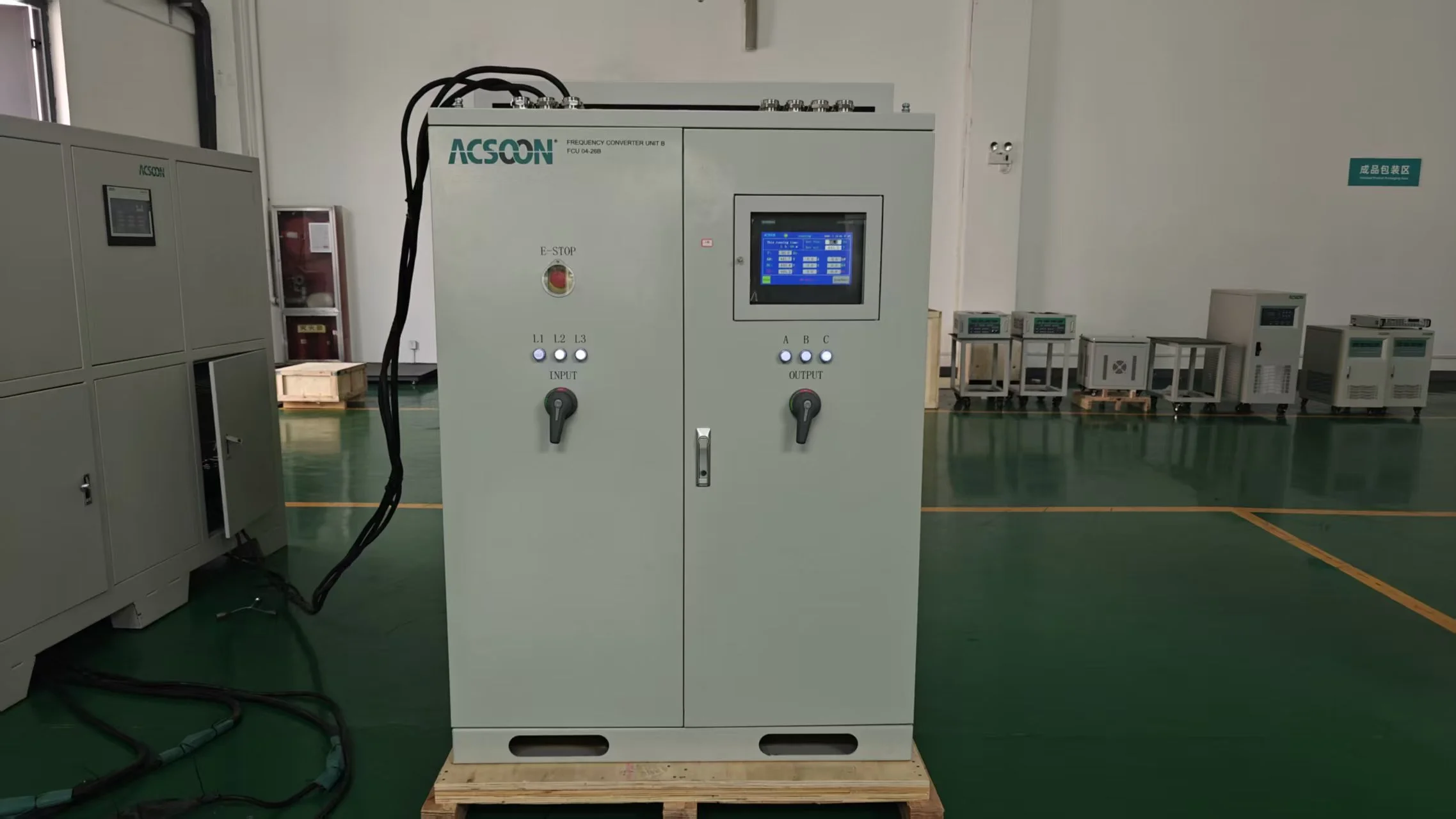

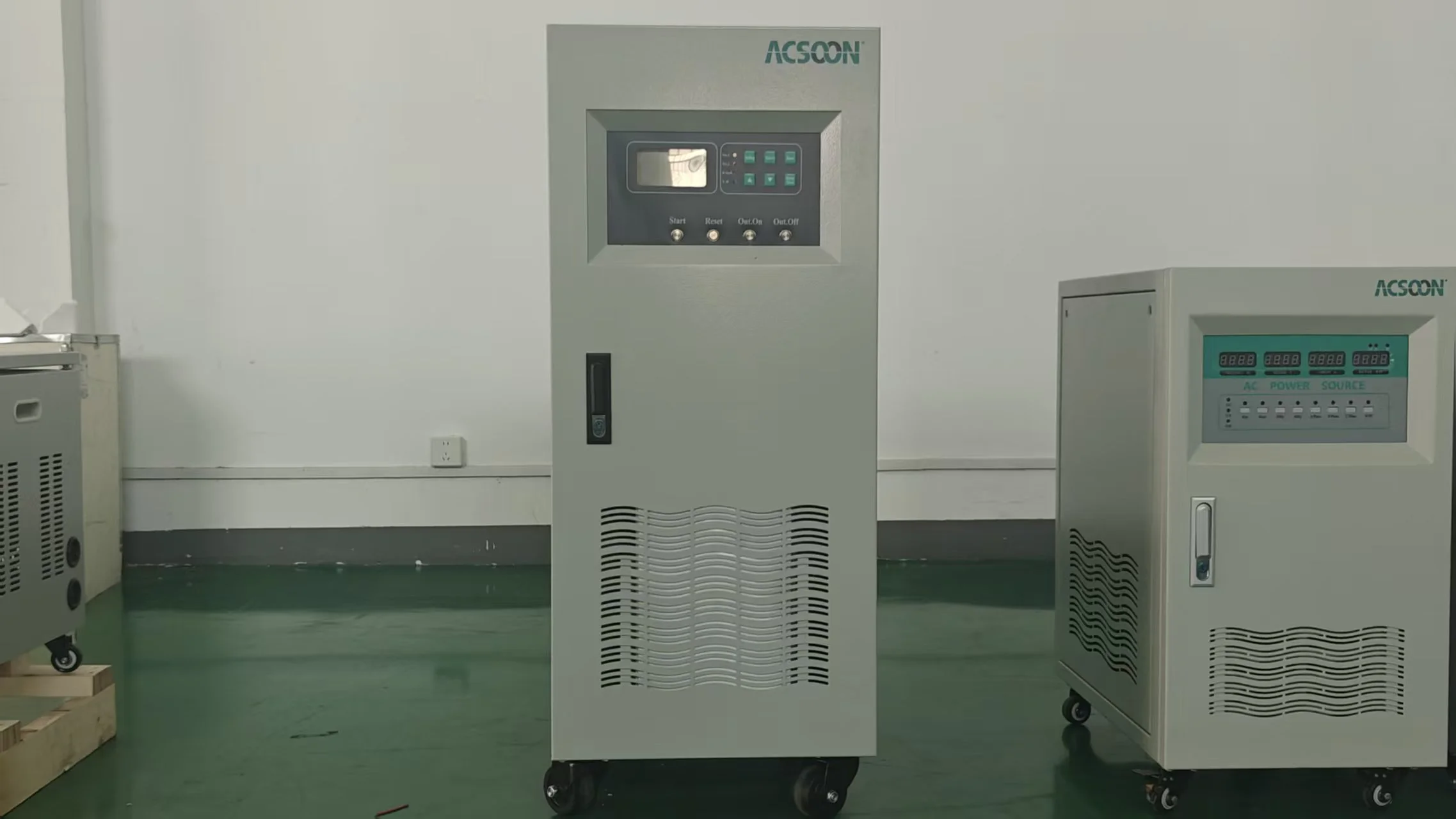

Details display

Quality Assurance

Each laboratory grade AC power source undergoes rigorous validation:

48-hour burn-in testing
Precision calibration verification
Environmental stability testing
EMI/EMC compliance testing
Metrological certification

Technical Features

Our laboratory grade AC power source incorporates:

Linear amplification technology
16-bit precision DAC systems
Multi-layer noise suppression
Temperature-compensated circuitry
Advanced thermal management

Packaging and Delivery

We ensure laboratory-grade packaging:

Anti-static protective packaging
Environmental monitoring during transit
Calibration certification included
Professional installation support

After-Sales Service

Precision support package includes:

Annual calibration services
Technical support hotline
Firmware updates
On-site training
Calibration certification

Certifications

FAQ
Q1: What makes laboratory grade AC power sources different from industrial units?
A: Our laboratory units offer superior accuracy, lower distortion, and higher stability for precision applications.
Q2: Can the system generate precise power anomalies for testing?
A: Yes, with programmable sequences for voltage dips, surges, and frequency variations.
Q3: What calibration certifications are provided?
A: We offer ISO/IEC 17025 compliant calibration certificates with traceability.
Q4: How is noise minimized in these systems?
A: Through linear amplification technology and advanced filtering techniques.
Q5: Do you provide custom programming interfaces?
A: Yes, we support custom SCPI commands and programming interfaces.

Contact Information

For technical specifications or calibration requirements: acpower@acsoonpower.com ,or submit your requirements using the form at the bottom of our website.
