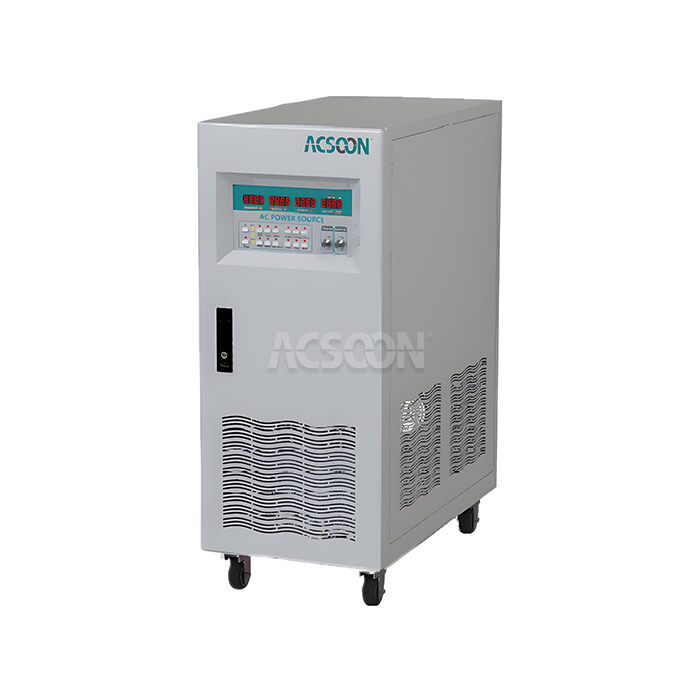

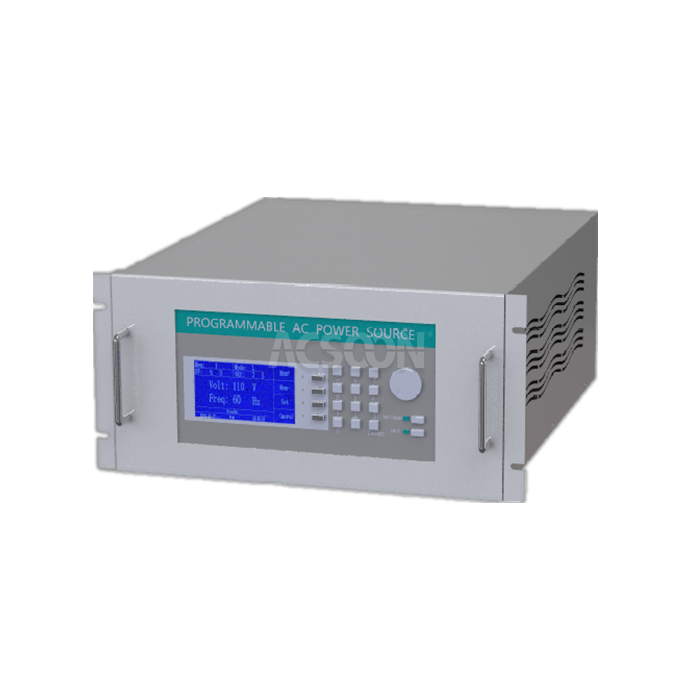

Medical Equipment AC Test Power Supply

1.Power Range: 1kVA to 30kVA (Single & Three Phase)
2.Technology: Low-Noise IGBT-based Static Frequency Converter with Galvanic Isolation
3.Input: 110V/220V/380V, 50/60Hz Standard Mains
4.Output: Pure Sine Wave, Voltage & Frequency Programmable for Global Standards

5.Key Applications: Testing Medical Devices, Laboratory Instruments, Diagnostic Equipment, Safety Certification
6.Core Features: Ultra-Low Harmonic Distortion (THD<2%), High Precision Regulation, EMC/EMI Compliant, Patient Safety Isolation
7.Brand: ACSOON (IEC 60601 Compliance Consultancy Available).

Send Inquiry Download

Product Description

Medical Equipment AC Test Power Supply | Safety-Certified AC Source

XI'AN JERRYSTAR INSTRUMENT CO., LTD designs the specialized Medical Equipment AC Test Power Supply, a precision power source engineered for the rigorous testing and certification of medical electrical equipment. Meeting stringent international safety and performance standards, this supply provides clean, stable, and programmable AC power to verify device operation, safety isolation, and electromagnetic compatibility (EMC) under simulated real-world power conditions.

Datasheet

Parameter	Specification
Model Series	ACSOON MPS Series
Input	1-Phase: 110V/220V; 3-Phase: 220V/380V/400V, 50/60Hz
Output	Voltage: 0-150V/0-300V (L-N) programmable Frequency: 45Hz – 500Hz (47-63Hz typical, extended for testing) Power: 1kVA, 3kVA, 5kVA, 10kVA, 15kVA, 20kVA, 30kVA
Output Quality	THD: <2% @ linear load (typically <1.5%) Waveform: Pure Sine Wave
Isolation	Galvanic Isolation, Test Voltage: 4000V AC (1 min)
Regulation	Voltage: ≤ ±1.0% FS Frequency: ≤ ±0.1% FS
Compliance	Design assists testing to: IEC/EN 60601-1, IEC 61000-4-11/4-13/4-14, AAMI ES60601-1
Communication	RS232, RS485, LAN (Optional) for remote control and data logging

Medical Equipment AC Test Power Supply Main Features

Precision Output: Voltage regulation better than ±1%, frequency stability better than ±0.1%, essential for repeatable tests.
Wide Programmable Range: Output voltage (0-300V) and frequency (45-500Hz) adjustable to simulate global power grids and abnormal conditions.
Comprehensive Monitoring: Real-time display of V, I, F, P, Power Factor, and harmonic analysis for detailed test documentation.
Robust Safety Protections: Includes over-voltage/current, short-circuit, and earth leakage simulation features for safe destructive testing.

Why Choose ACSOON Medical Equipment AC Test Power Supply?

Safety & Standards Compliance: Engineered to facilitate testing per IEC 60601-1, ANSI/AAMI ES60601-1, and other key medical equipment safety standards.
Ultra-Clean Power Output: Exceptionally low harmonic distortion and noise ensure accurate performance testing without introducing power quality artifacts.
Galvanic Isolation & Patient Safety: Integrated isolation transformer provides necessary separation, critical for testing patient-connected equipment (BF/CF type).
Simulation of Abnormal Conditions: Allows programming of voltage sags, surges, and frequency variations to test device immunity and safety under fault conditions.

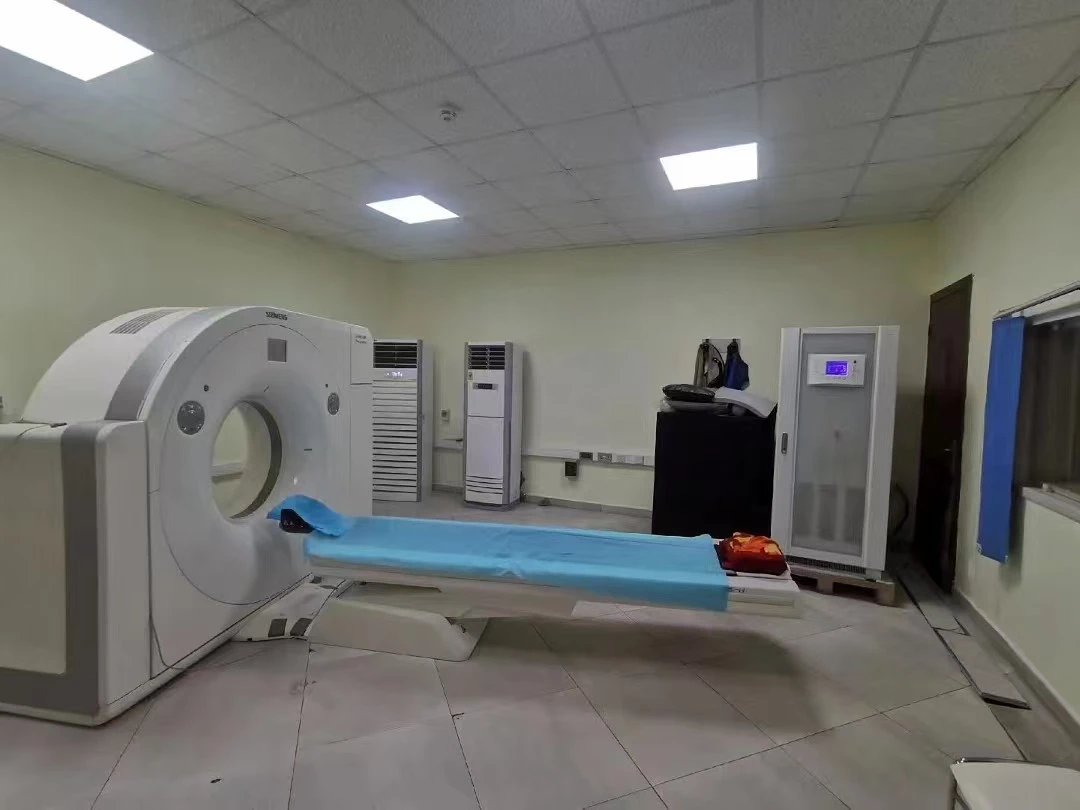

Medical Equipment AC Test Power Supply Application Areas

Medical Device Manufacturing: Production line end-testing and burn-in of patient monitors, infusion pumps, ventilators, and surgical tools.
Certification & Compliance Labs: Used by test houses to verify medical device safety and EMC compliance with global regulatory standards.
Hospital Biomedical Engineering: Performance validation and preventive maintenance testing of critical care and diagnostic equipment.
R&D for Medical Technology: Developing and validating new medical devices under various international power line conditions (110V/60Hz, 230V/50Hz, etc.).

Our Services

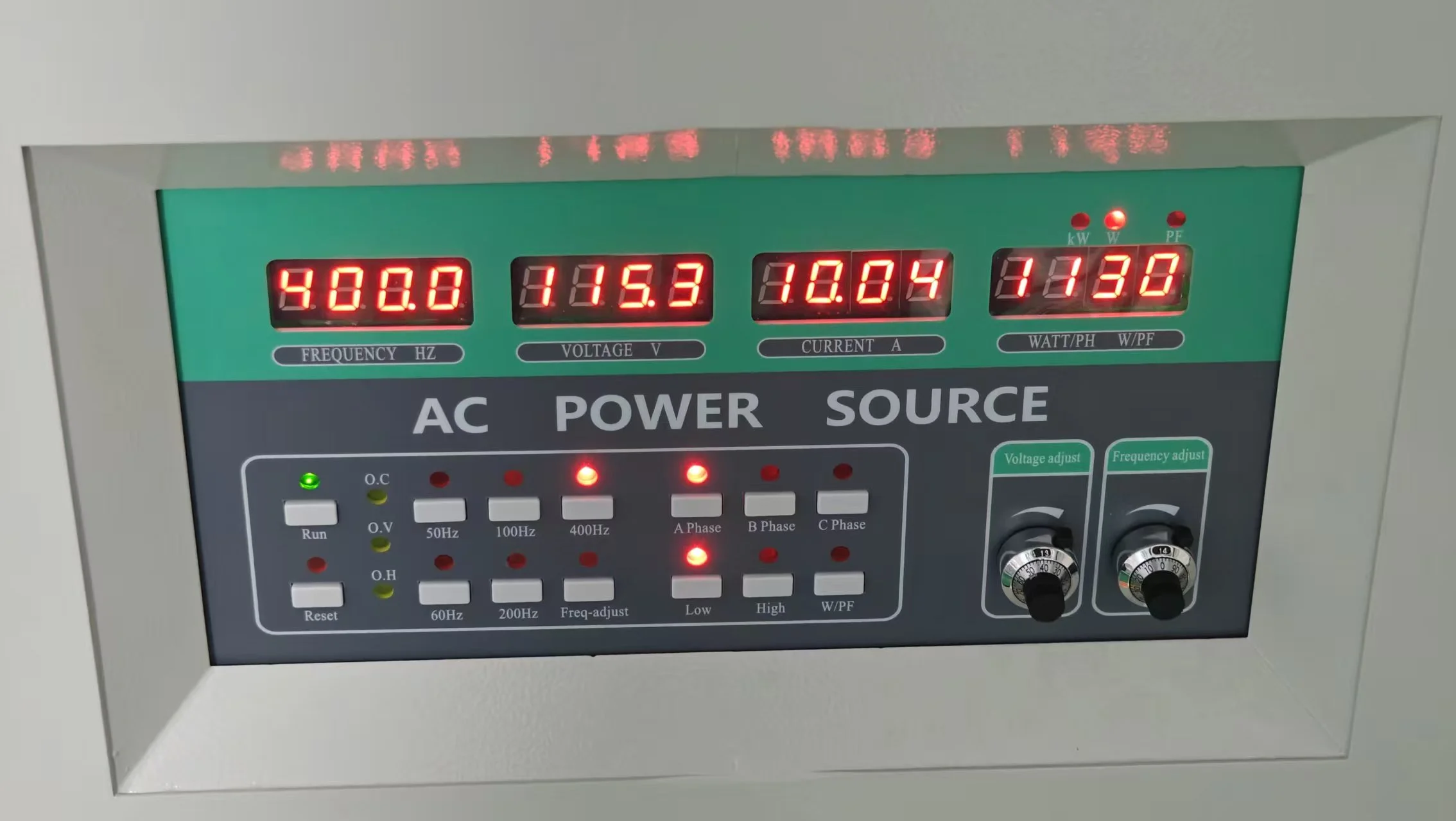

Quality Control

Rigorous Safety Testing: Each unit undergoes dielectric strength testing (Hi-Pot) and insulation resistance testing at levels exceeding medical safety standards.
Precision Output Calibration: Voltage and frequency outputs are calibrated using traceable standards to ensure measurement integrity for compliance testing.
Low-Noise Verification: Conducted in a shielded environment to verify that conducted and radiated electromagnetic noise from the supply itself is minimal.
Software & Function Validation: All programmable functions, including fault simulation modes, are thoroughly tested for accuracy and reliability.

R&D Results

Ultra-Low Noise Circuit Design: Developed specialized filtering and layout techniques to minimize switching noise, crucial for sensitive medical electronics testing.
Advanced Leakage Current Monitoring Interface: Created optional interfaces to integrate with external leakage current meters for automated safety tests.
Test Profile Automation Software: Developed companion PC software that allows users to create, save, and execute complex power line simulation sequences.
Enhanced Thermal Management: Designed a silent, fan-cooled system that maintains stable operation without introducing acoustic noise into sensitive test environments.

Packaging and Transportation

ESD-Safe & Clean Packaging: Units are packaged using anti-static and low-linting materials to prevent contamination of sensitive medical testing environments.
Secure Transit Assurance: High-density foam custom-molded to the unit's shape prevents movement and protects front panel controls and connectors during shipping.
Compliance Documentation Package: Includes a detailed calibration report, test certificates for key safety parameters, and a comprehensive user manual with application notes.
Global Logistics with Tracking: Shipped via reliable carriers with full tracking and insurance, handled by experienced export documentation specialists.

After‑Sales Service

We offer an extended 24-month warranty, priority technical support from engineers familiar with medical standards, optional on-site calibration services, and guaranteed long-term availability of spare parts.

Qualification Certification

CE Marked: Fully complies with the EU Low Voltage Directive (LVD) 2014/35/EU and EMC Directive 2014/30/EU;ISO 9001:2015 Certified Manufacturing: Ensures consistent quality and process control;Design Informed by Standards: Product specifications and features are defined to facilitate testing according to IEC 60601-1 and related collateral standards;Traceable Calibration: Provided calibration certificate is traceable to national standards.

FAQ
Q1: How does this power supply help with IEC 60601-1 testing?
A: It provides the stable, variable, and measurable AC source required for tests like Power Input (Clause 7.2), Voltage/Current/Energy Limitation (Clause 9), and allows simulation of abnormal power conditions specified in the standard.
Q2: Can it simulate specific power line disturbances for EMS (Immunity) testing?
A: Yes, it can be programmed to generate voltage dips, short interruptions, and voltage variations per IEC 61000-4-11, and can interface with systems for surge and flicker testing.
Q3: Is it suitable for testing both BF and CF type equipment?
A: The power supply itself provides the isolated source. Testing BF/CF classifications requires measuring leakage currents through the device under test using a separate medical safety analyzer, which this supply can seamlessly integrate with.
Q4: What is the advantage over using a standard variac or variable AC source?
A: This supply offers precise digital control, programmable sequences, ultra-low distortion, built-in measurements, and safety features specifically designed for standardized, repeatable, and documentable medical safety testing, which a simple variac cannot provide.
Q5: Do you provide application support for setting up our test procedures?
A: Yes, our technical team can provide guidance on configuring the supply for common medical device tests and can discuss custom solutions for unique testing requirements.
