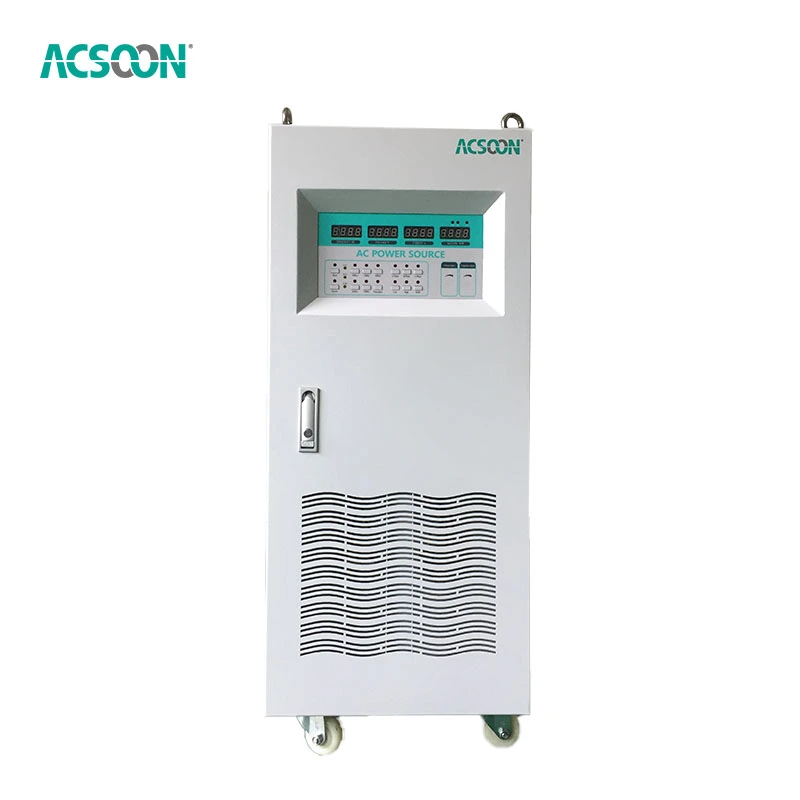

Multi-Standard AC Power Supply

1.Power Capacity: 60kVA (modular expandable design)
2. Technology: IGBT-based with advanced DSP control
3. Input: 3-phase 380-480VAC ±15%, 50/60Hz auto-sensing
4.Output: 0-300V (L-N), 0-520V (L-L), 45-65Hz programmable
5. Key Applications: Export/import equipment testing, military systems, marine power simulation
6. Ingress Protection Grade: IP21
7. Key Features: Worldwide voltage/frequency simulation; pure sine wave output; isolated transformer; RS232/485 communication
8. Brand: ACSOON (support OEM).

Send Inquiry Download

Product Description

Multi-Standard AC Power Supply | Worldwide Voltage & Frequency Simulation

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures advanced multi-standard AC power sources for global equipment testing and verification. With proven expertise in power conversion technology, we provide comprehensive solutions that simulate electrical standards from around the world. Our systems deliver clean, stable power for testing equipment designed for different international markets, ensuring compliance and performance validation.

Multi-Standard AC Power Supply

Technical Specifications

Feature	Specification
Capacity (Single Phase)	1kVA - 200kVA
Capacity (Three Phase)	1kVA - 2000kVA
Input Voltage	Customizable (110V-440V)
Output Voltage	0-300V (Single), 0-520V (Three)
Frequency	40-800HZ adjustable
Voltage Regulation	±1%
VTHD	<3% @ Linear load
Overload Capacity	125% for 60s, 150% for 30s
Efficiency	≥85%
Communication	Modbus RS232/RS485 (Optional)
Cooling	Forced air
MTBF	30,000H

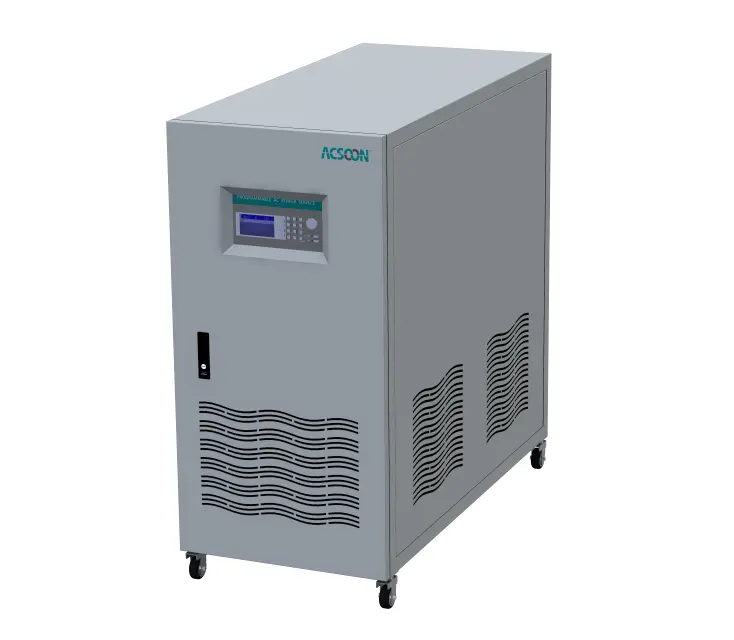

ACSOON Multi-Standard AC Power Supply Main Features

ACSOON Multi-Standard AC Power Supply

Main Features

Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
EMC compatible
Compatible with both 50Hz and 60Hz power supply network
Low harmonic distortion
Pure sine wave,sinusoidal output
Completely protection and alarm for over voltage, over current and overheating, etc
Display real-time data: voltage,current,frequency, power / power factor

ACSOON Multi-Standard AC Power Supply

Why Choose ACSOON Multi-Standard AC Power Supply?

ACSOON delivers unparalleled versatility in power simulation technology. Our systems offer:

Global Compatibility: Simulates voltage and frequency standards from all major countries
Exceptional Power Quality: <3% THD pure sine wave output
Advanced Control: Programmable voltage and frequency settings
Robust Design: Isolated output transformer for unbalanced loads
Comprehensive Protection: Complete overvoltage, overcurrent, and thermal protection

Application Areas

Our multi-standard AC power supply are essential for:

Export/Import Testing: Verification of equipment for international markets
Military Systems: Testing of defense equipment for different power standards
Marine Applications: Shipboard power simulation and testing
Manufacturing Quality: Production line testing of global products
Research Institutions: Electrical standard comparison studies
Automotive Industry: Testing of vehicles for different markets
Aerospace Equipment: Avionics testing under various power conditions
Telecommunications: Network equipment compliance testing

Application Areas

Details Display

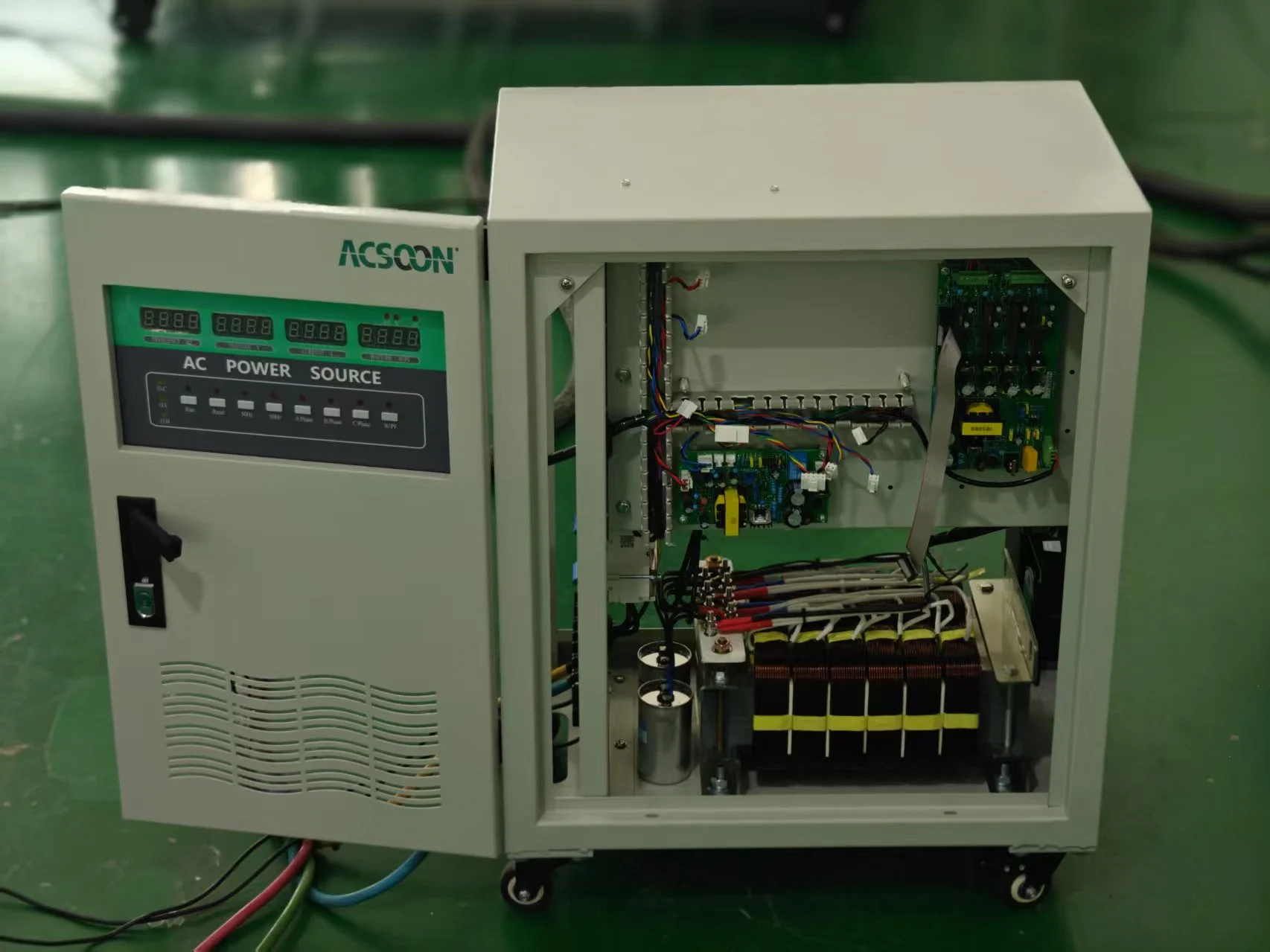

Quality Assurance

Quality Assurance

Each multi-standard AC power supply undergoes rigorous validation:

Component-level testing and verification
Full-load endurance testing (48 hours)
Environmental performance validation
Safety standard compliance testing
Final calibration and certification

Technical Features

Our multi-standard AC power supply incorporates:

Advanced DSP control technology
SPWM modulation for clean output
Isolated transformer design
Multi-layer protection system
Intelligent cooling with temperature-controlled fans

Technical Features

Packaging And Delivery

Packaging and Delivery

We ensure secure worldwide delivery:

Heavy-duty industrial packaging
Environmental monitoring during transit
Global logistics coordination
Professional installation support

After-Sales Service

Comprehensive support package includes:

24/7 technical support hotline
Preventive maintenance programs
Firmware update services
On-site training programs
Global spare parts network

After-Sales Service

Certifications

CE Certification

ISO Certification

FAQ
Q1: What makes the multi-standard AC power supply suitable for international testing?
A: Our systems can simulate all major international voltage and frequency standards, making them ideal for testing equipment destined for global markets.
Q2: Can the system handle unbalanced load conditions?
A: Yes, the isolated output transformer design allows each phase to operate independently under unbalanced load conditions.
Q3: What communication protocols are supported?
A: Standard interfaces include RS232 and RS485, with optional Ethernet connectivity available.
Q4: How is thermal management handled?
A: We use intelligent forced air cooling with temperature-controlled fans for optimal thermal performance.
Q5: Do you provide custom voltage and frequency ranges?
A: Yes, we offer customized solutions to meet specific testing requirements and standards.
