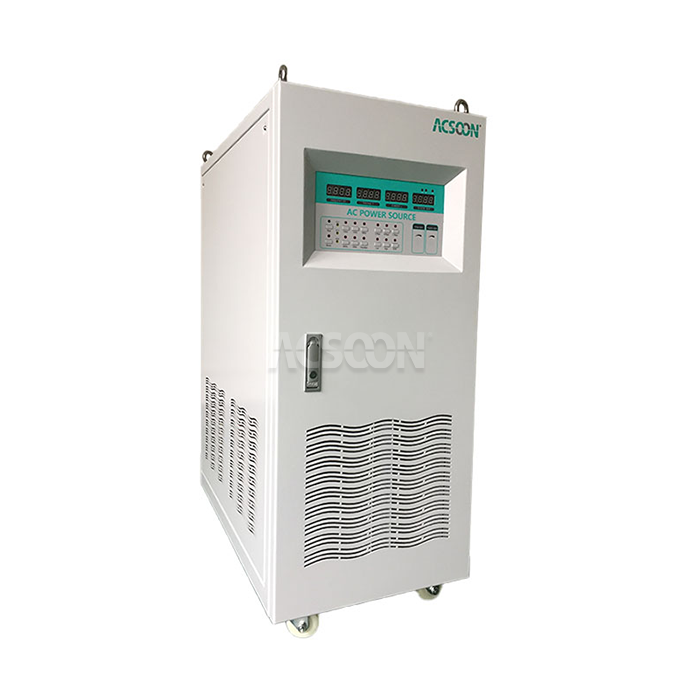

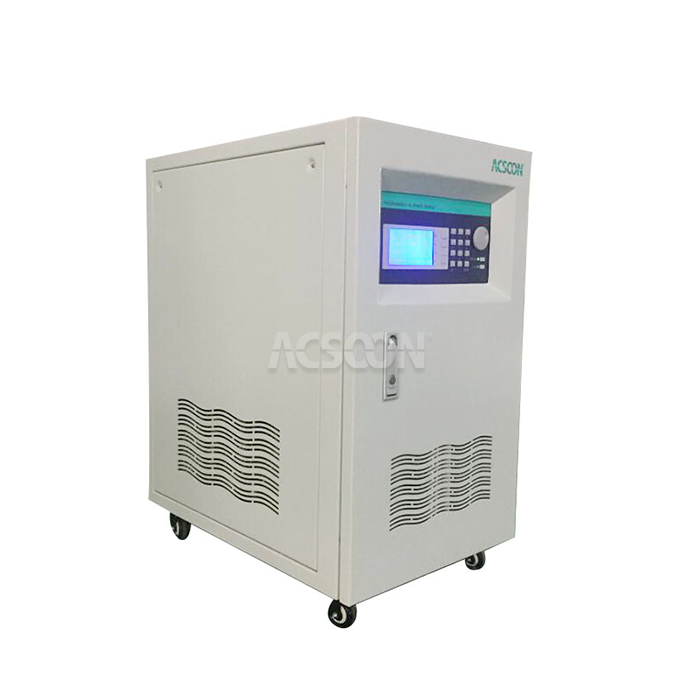

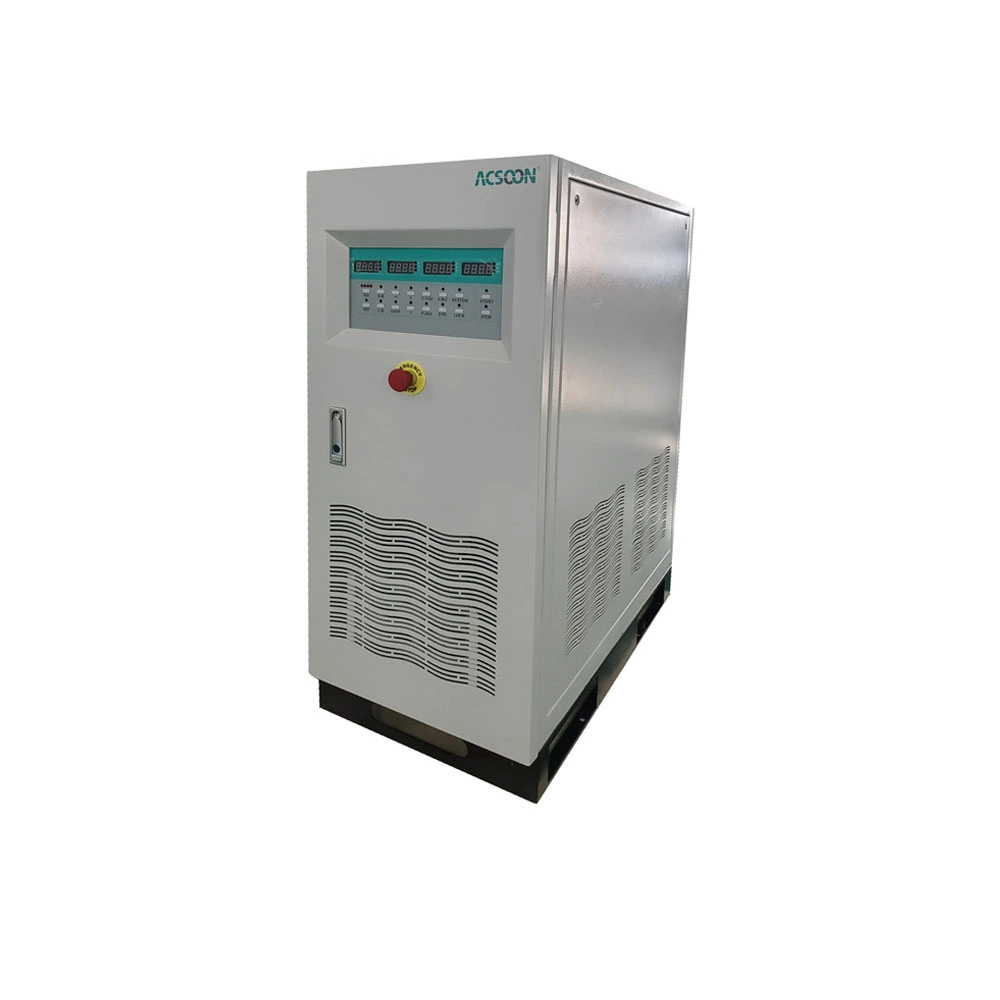

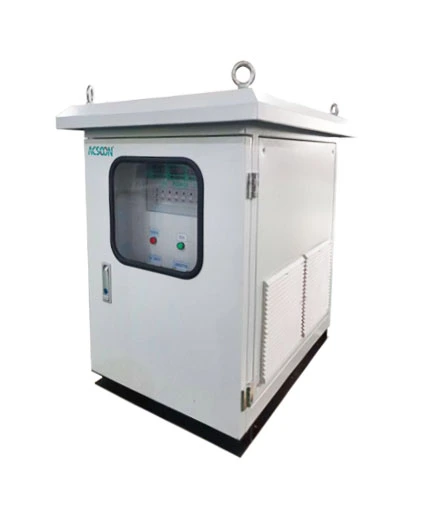

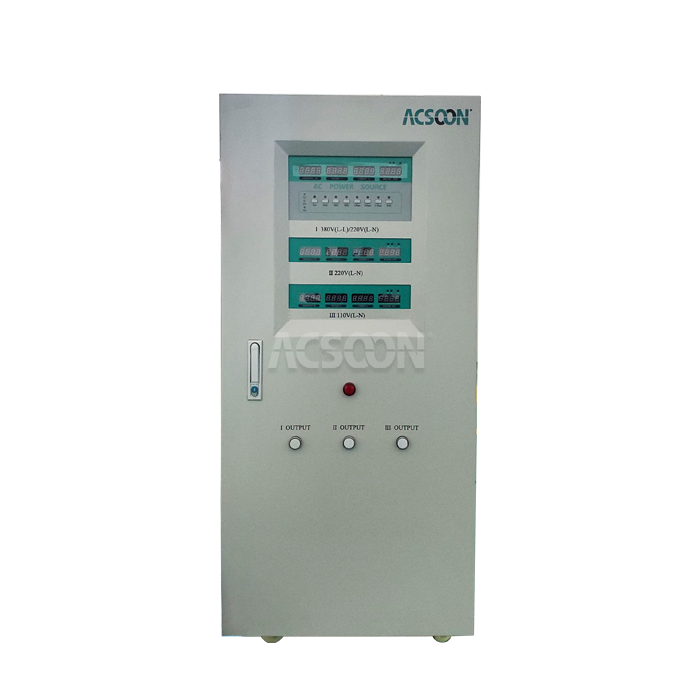

Power Supply 115v 400Hz 3 Phase

1.Output Specifications: 115V 400Hz, 3 Phase, 4-wire system
2.Power Capacity: 1kVA to 300kVA, customizable ratings
3.Input Voltage: 208V/380V/400V/415V/440V, 3 Phase, 50Hz/60Hz
4.Voltage Stability: ±1% under line and load variations
5.Frequency Stability: ±0.1% with precise crystal control
6.Applications: Aircraft ground power, avionics testing, aerospace equipment, marine systems
7.Features: Pure sine wave output (THD<3%), isolated transformer, unbalanced load capability
8.Brand: ACSOON (OEM customization available).

Send Inquiry Download

Product Description

Power Supply 115v 400Hz 3 Phase | Aircraft Grade AC Power Source

XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in manufacturing high-performance Power Supply 115v 400Hz 3 Phase systems for aviation and military applications. Our Power Supply 115v 400Hz 3 Phase delivers clean, stable power that meets stringent aerospace standards, ensuring reliable operation of critical aircraft systems and test equipment.

Technical Specifications

Feature	Specification
Capacity (Three Phase Output)	1kVA to 2000kVA
Input Voltage	200VAC to 440VAC (L-L) ±20%
Output Voltage	0-260Vac, 0-520VAC (L-L)
Frequency Range	40-800HZ adjustable
Voltage Regulation	±1%
Output VTHD	<3% @ Linear load
Overload Capacity	125% for 60 seconds, 150% for 30 seconds
Efficiency	≥85%
Protection Features	Over/under voltage, overload, overheat, short circuit
Communication	Modbus RS232 / RS485 (Optional)
Operating Temperature	-10°C to 50°C

Power Supply 115v 400Hz 3 Phase Main Features

Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
EMC compatible
Compatible with both 50Hz and 60Hz power supply network
Low harmonic distortion
Pure sine wave,sinusoidal output
Completely protection and alarm for over voltage, over current and overheating, etc
Display real-time data: voltage,current,frequency, power / power factor

Why Choose ACSOON Power Supply 115v 400Hz 3 Phase?

ACSOON Power Supply 115v 400Hz 3 Phase units are engineered to exceed the demanding requirements of aerospace and defense applications:

Aerospace Compliance: Meets MIL-STD-704F and ISO6858 standards for aircraft power quality
Exceptional Stability: Voltage regulation ±1%, frequency stability ±0.1%
Clean Power Output: Low distortion sine wave (THD<3%) for sensitive avionics
Robust Construction: Industrial-grade components for 24/7 operation
Advanced Protection: Comprehensive safeguards against overloads, shorts, and overheating

Application Areas

Our Power Supply 115v 400Hz 3 Phase is essential for numerous high-reliability applications:

Aircraft Maintenance: Ground power units for aircraft servicing and testing
Avionics Manufacturing: Production testing and burn-in of aircraft electronics
Aerospace R&D: Laboratory power source for developing aircraft systems
Military Applications: Powering and testing military aircraft equipment
Marine Electronics: Shipboard systems requiring 400Hz power
Test Facilities: Certification and validation of aerospace components

Our Services

Quality Control

Every Power Supply 115v 400Hz 3 Phase undergoes exhaustive quality validation:

Component-level screening and testing
Full-power burn-in testing for 48 hours
Environmental stress testing (-10°C to 45°C)
Vibration and shock resistance verification
Compliance with EN60204-1 and IEC 62321 standards

R&D Results

Our continuous innovation in Power Supply 115v 400Hz 3 Phase technology has achieved significant advancements:

Enhanced power density through advanced thermal management
Improved dynamic response for varying load conditions
Integrated smart monitoring with fault prediction capabilities
Reduced acoustic noise for quieter operation
Modular design for easy maintenance and serviceability

Packaging and Transportation

We ensure secure delivery of every Power Supply 115v 400Hz 3 Phase unit:

Heavy-duty export packaging with custom foam inserts
Climate-controlled storage and shipping options
Comprehensive documentation and installation manuals
Worldwide logistics support with real-time tracking

After-Sales Service

We provide unparalleled support for all Power Supply 115v 400Hz 3 Phase installations:

24/7 technical support with rapid response
On-site commissioning and operational training
Preventive maintenance programs and service contracts
Software updates and performance enhancements
Global spare parts network for minimal downtime

Qualification Certification

CE Certification

ISO Certification

FAQ
Q1: What makes 400Hz power special for aircraft applications?
A: 400Hz allows for smaller, lighter transformers and motors in aircraft systems, which is critical for weight savings in aerospace applications.
Q2: Can your Power Supply 115v 400Hz 3 Phase handle unbalanced loads?
A: Yes, our design includes an isolation transformer that allows each phase to be used independently with unbalanced loads.
Q3: What communication interfaces are available for remote monitoring?
A: Standard RS485 interface with Modbus protocol for system integration and remote control.
Q4: Do you offer customized output voltage and frequency ranges?
A: Yes, we can customize output from 300Hz to 500Hz and voltage ranges to meet specific requirements.
Q5: What is the typical delivery time for a standard unit?
A: Standard models ship within 3-4 weeks, while custom configurations may require 5-7 weeks.
