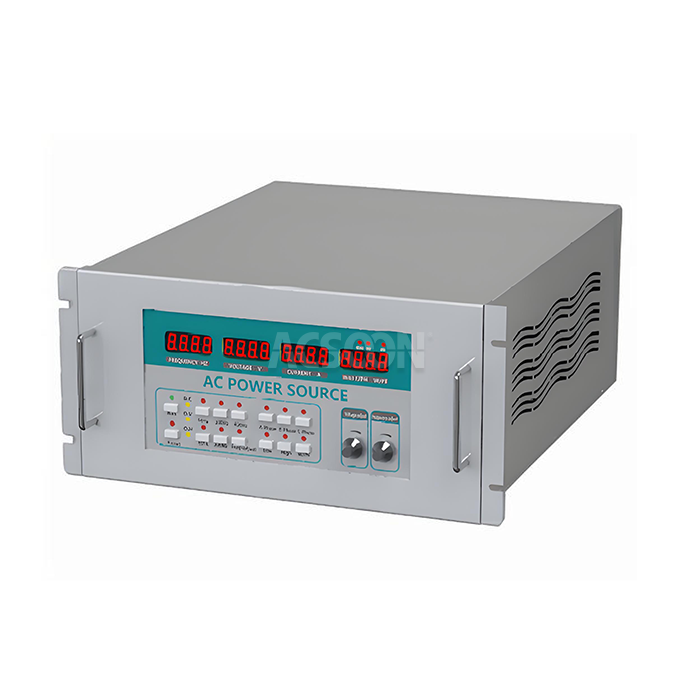

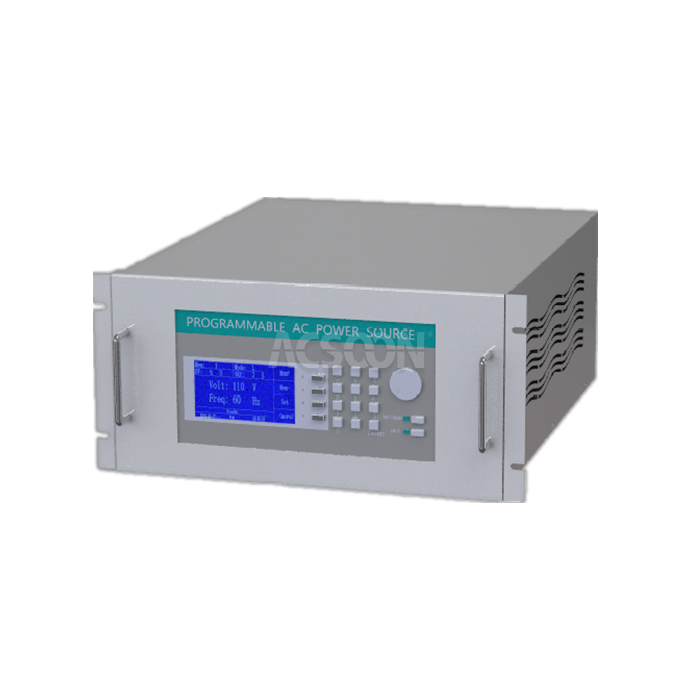

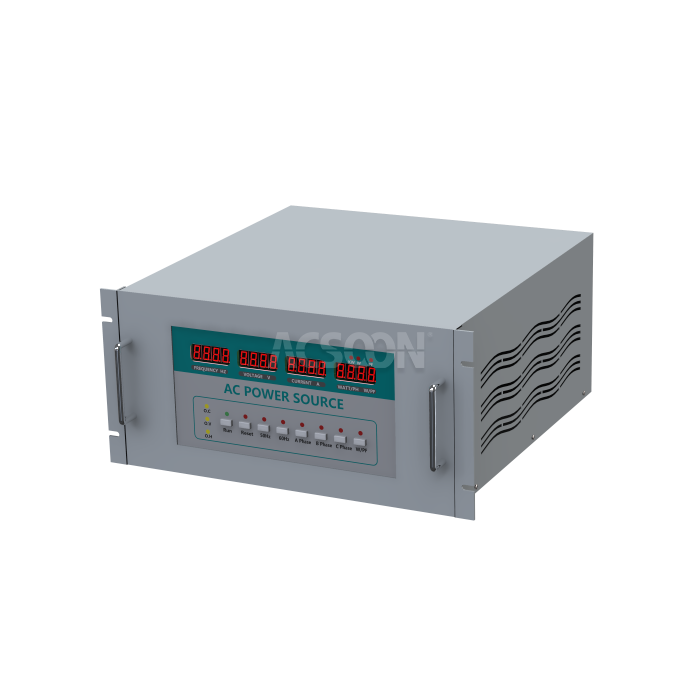

Rackmount AC Power Supply
2.Technology: IGBT-based Static Frequency Converter with DSP Control
3.Input: 1-Phase 220V or 3-Phase 380V, 50/60Hz
4.Output: 0-300V Adjustable, 45-400Hz Variable Frequency, Pure Sine Wave
5.Applications: ATE Systems, Server Racks, Industrial Control Panels, Laboratory Integration
6.Core Features: 19" Rackmount Chassis, High Power Density, Remote Control, Easy Integration
7.Brand: ACSOON (Custom Rack Configurations Available).
- Product Description
Rackmount AC Power Supply | 19" Programmable AC Source for ATE & Industrial Racks
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the Rackmount AC Power Supply, a compact and powerful AC source designed for seamless integration into 19-inch equipment racks. This programmable power supply delivers clean, stable AC power in a space-saving form factor, making it ideal for automated test equipment (ATE) systems, industrial control cabinets, and laboratory setups where space is at a premium. With advanced digital control and communication interfaces, it enables remote operation and system automation.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON ACSW Series |
| Model Number | ACSW-330015 (15kVA Three Phase) |
| Input | 1-Phase 220V or 3-Phase 380V/400V/415V ±15%, 50/60Hz |
| Output | Voltage: 0-300V (L-N) adjustable Frequency: 45-400Hz adjustable Power: 3kVA, 6kVA, 10kVA, 15kVA, 20kVA, 30kVA (Three Phase) |
| Output THD | <3% @ linear load |
| Regulation | Voltage: ≤ ±1% FS, Frequency: ≤ ±0.1% FS |
| Efficiency | ≥85% |
| Form Factor | 19" Rackmount, 2U (3-6kVA) / 4U (10-15kVA) |
| Display | LCD Digital (V, I, F, P, PF) |
| Communication | RS232, RS485 (Modbus) |
| Protections | Over Voltage, Over Current, Short Circuit, Over Temperature |
| Operating Temp. | -10°C to 45°C |
Rackmount AC Power Supply Main Features
- Standard Rack Form Factor: 19-inch width, available in 2U (up to 3kVA) and 4U (up to 15kVA) heights.
- Programmable Output: Adjustable voltage (0-300V) and frequency (45-400Hz) for global standard simulation.
- Remote Control: RS232/RS485 Modbus interface for full control and monitoring from host system.

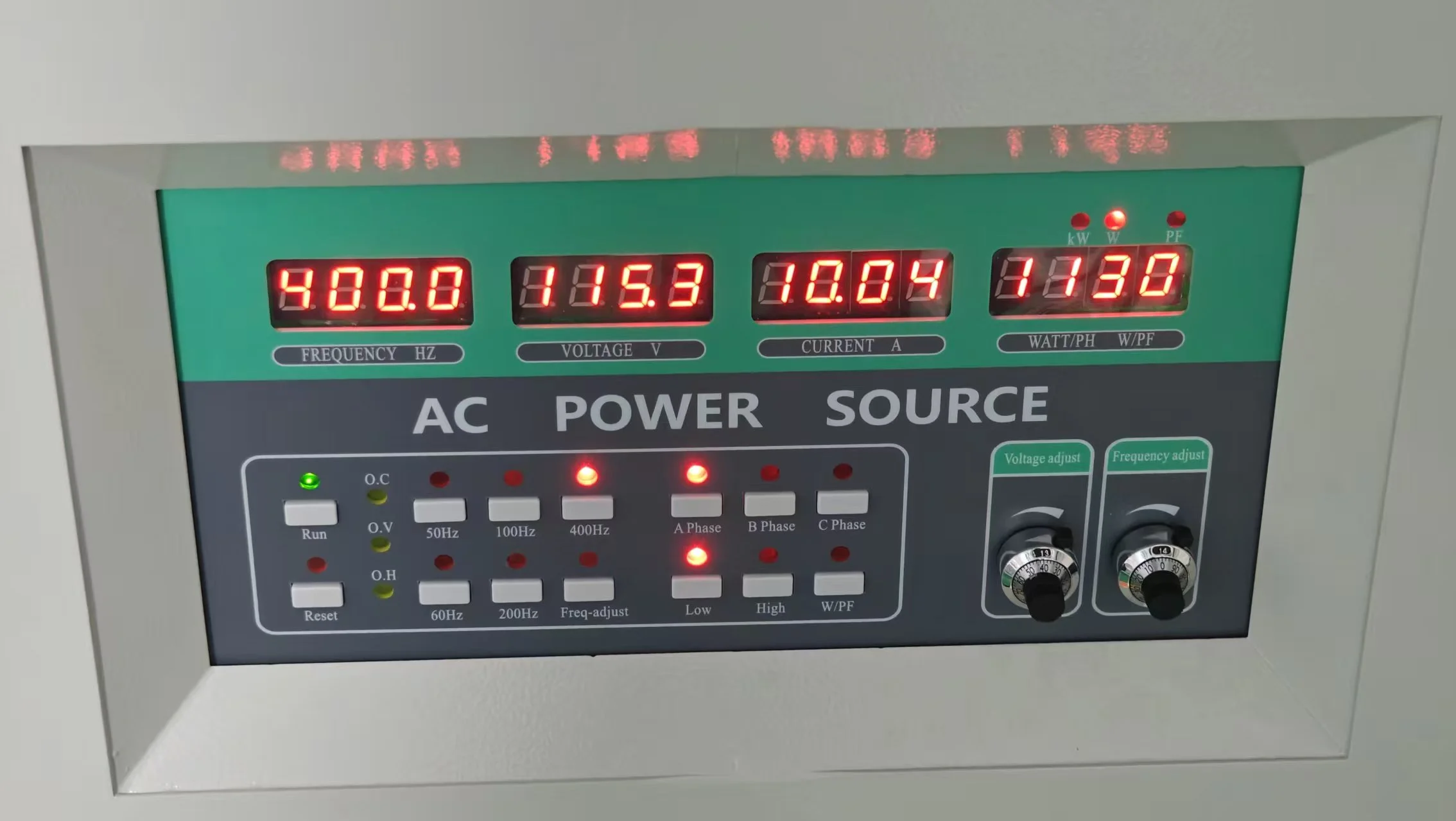

- Built-In Measurements: Real-time display of voltage, current, frequency, and power for test verification.
Why Choose ACSOON Rackmount AC Power Supply?
- Space-Saving Design: Standard 19-inch rackmount chassis (2U to 4U) optimizes panel space in test systems and equipment cabinets.
- High Power Density: Delivers up to 15kVA in a compact 4U enclosure, maximizing power per rack unit.
- Easy System Integration: Standard communication interfaces (RS232/RS485) and SCPI commands for seamless ATE integration.
- Versatile Power Quality: Pure sine wave output with low distortion ensures reliable testing of sensitive loads.

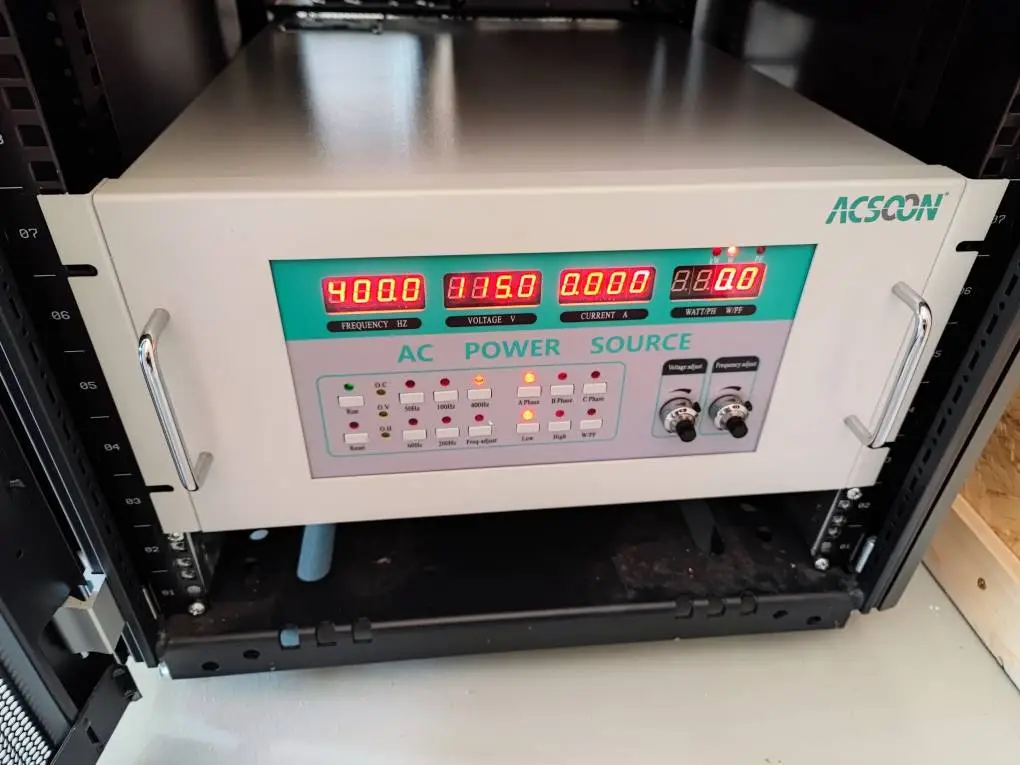

Rackmount AC Power Supply Application Areas
- Automated Test Equipment (ATE): Integrated into manufacturing test systems for powering products during production testing.
- Rack-Mounted Industrial Controls: Providing clean AC power to PLC racks, HMIs, and control systems.
- Laboratory Research: Space-efficient power source for multi-channel test setups in research labs.
- Telecommunication Systems: Powering rack-mounted communication equipment with stable AC supply.
Our Services
Quality Control
Rack Compatibility Testing: Units are verified for proper fit and cooling in standard 19-inch enclosures.
Full-Load Burn-In: Extended operation at rated power to ensure thermal stability in rack configurations.
Communication Protocol Validation: All remote commands tested for reliability in ATE environments.
Final Functional Audit: Comprehensive check of controls, displays, and safety features.

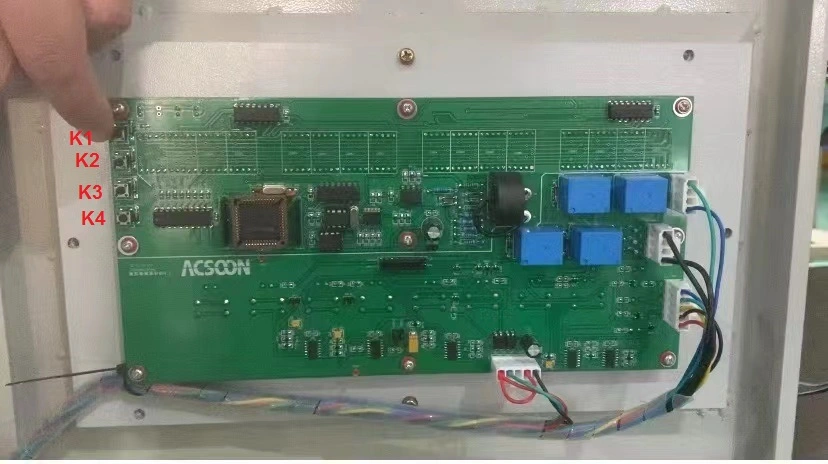

R&D Results
Compact Thermal Design: Optimized airflow and component layout for high power density in limited rack space.
Advanced DSP Architecture: Developed precision control algorithms for stable output in demanding test applications.
Seamless Rack Integration: Designed mounting hardware and cooling orientation for easy installation.
Enhanced Remote Control: Implemented SCPI command set compatible with major test software platforms.

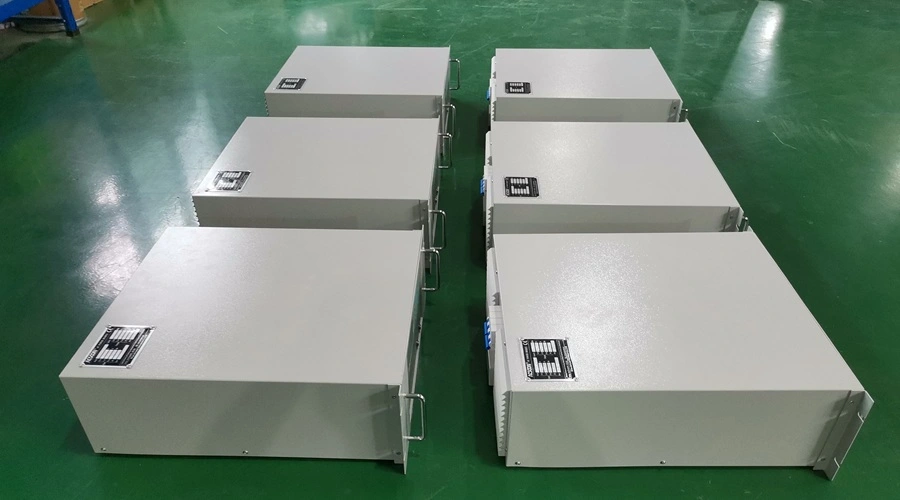

Packaging and Transportation
Rack-Ready Packaging: Unit packed with rack-mount ears and hardware; secure foam cushioning.
Complete Accessory Kit: Includes communication cable, user manual, and calibration certificate.
Clear Documentation: Quick-start guide, programming manual, and warranty card.
Global Shipping: Reliable carriers with full tracking and insurance.
After‑Sales Service
We offer an 18-month warranty, technical support for integration, firmware updates, and spare parts availability.
Qualification Certification
ISO 9001:2015 Certified manufacturing；CE Marked for safety and EMC；Factory Test Report: Provided with detailed performance data.
FAQ |
|---|
| Q1: What rack heights are available? |
| A: Models are available in 2U (up to 6kVA) and 4U (up to 15kVA) configurations, with custom heights for higher power on request. |
| Q2: Can this power supply be controlled via computer? |
| A: Yes, RS232 and RS485 interfaces support Modbus/SCPI commands for full remote control and data acquisition. |
| Q3: Is it suitable for both single-phase and three-phase loads? |
| A: Yes, models are available for single-phase output (1-15kVA) and three-phase output (3-30kVA). Please specify when ordering. |
| Q4: How does it handle rack cooling? |
| A: Front-to-back airflow design ensures compatibility with standard server rack cooling systems. |
| Q5: Can multiple units be synchronized for higher power? |
| A: Yes, parallel operation is available for select models, allowing power expansion while maintaining rack integration. |
