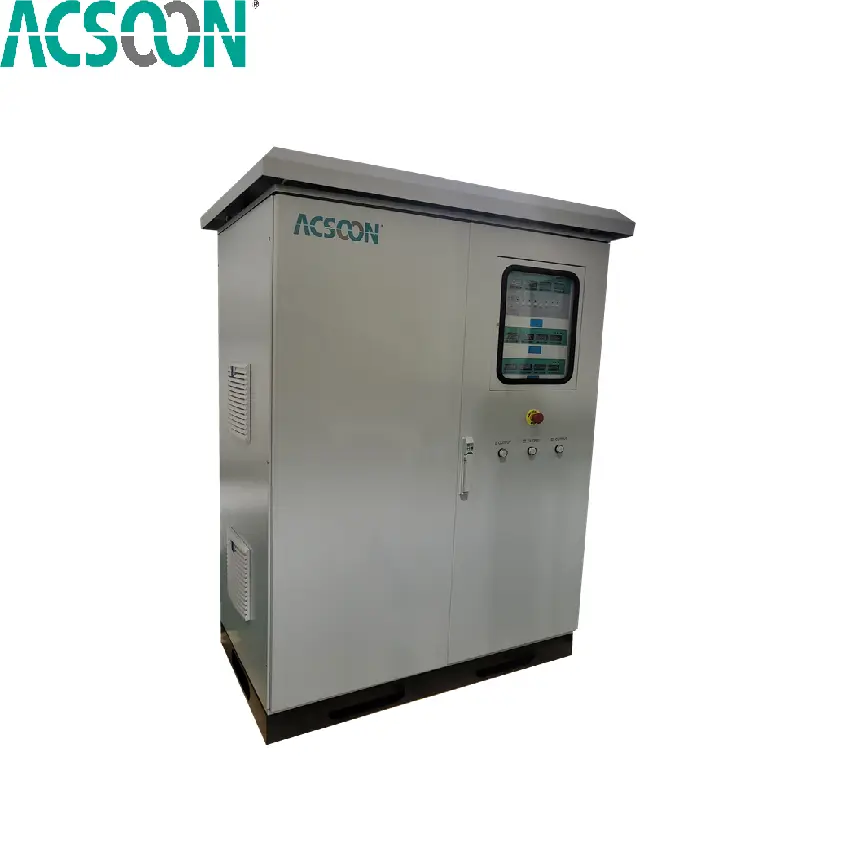

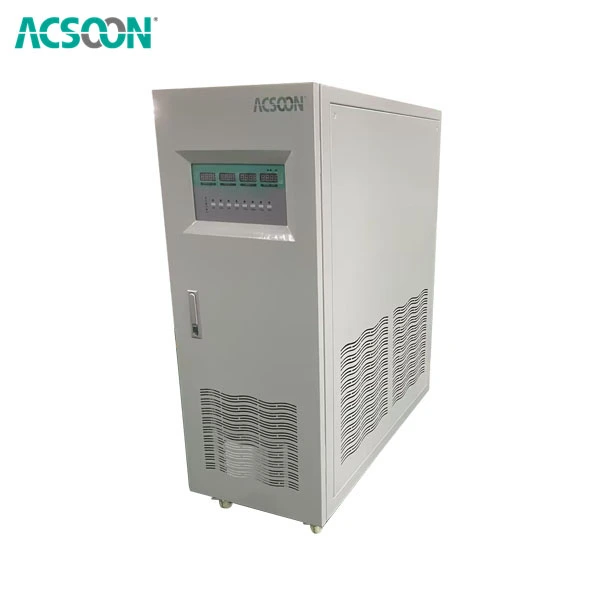

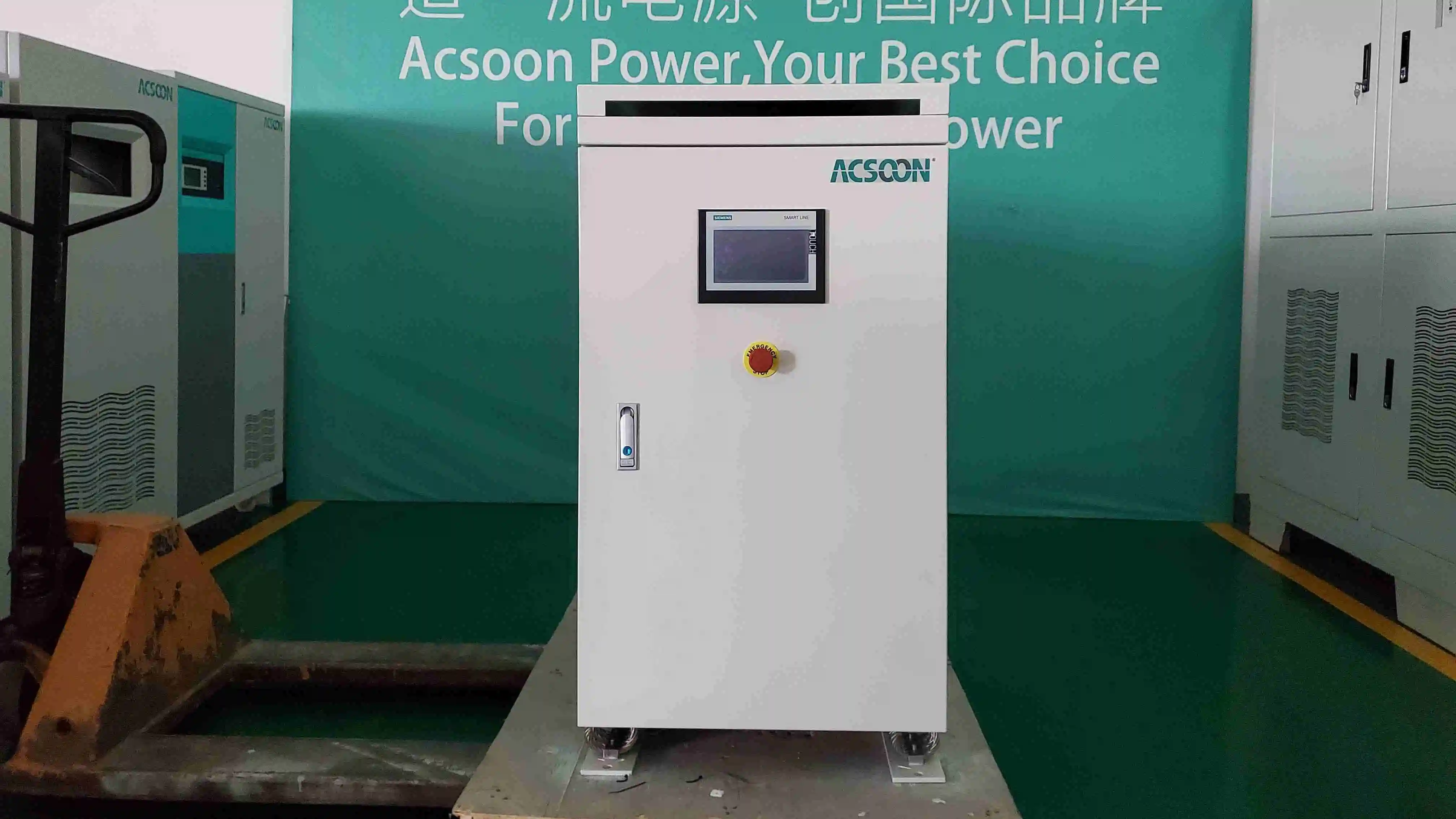

Ruggedized AC Power System

1.Power Capacity: 60kVA (heavy-duty industrial design)
2. Technology: IGBT-based with reinforced construction
3. Input: 3-phase 380VAC ±20%, 47-63Hz wide range
4. Output: 0-520VAC, 45-65Hz adjustable
5. Key Applications: Mining operations, oil and gas, heavy manufacturing
6. Key Features: Shock-resistant design; wide temperature operation; enhanced cooling; dust protection
7. Ingress Protection Grade: IP21/54
8. Brand: ACSOON (custom ruggedization available).

Send Inquiry Download

Product Description

Ruggedized AC Power System | Heavy-Duty Industrial AC Power

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures durable ruggedized AC power systems for the most demanding industrial environments. Our systems are built to withstand harsh conditions including extreme temperatures, vibration, and dust, providing reliable power for critical operations in mining, oil and gas, and heavy manufacturing applications.

Technical Specifications

Feature	Specification
Capacity (Single Phase Output)	1kVA - 200kVA
Capacity (Three Phase Output)	1kVA - 2000kVA
Input Voltage (Single Phase)	110-230VAC ±20%
Input Voltage (Three Phase)	200-440VAC ±20%
Input Frequency	50/60HZ or 40-70HZ
Output Voltage (Single Phase)	0-300Vac
Output Voltage (Three Phase)	0-520Vac
Output Frequency	50/60/100/200/400HZ or 40-800HZ adjustable
Frequency Regulation	≤0.1%
Voltage Regulation	±1%
Output VTHD	<3% @ Linear load
Response Time	≤2ms
Power Factor	≥0.8 (Standard), ≥0.9 (12 Pulse Optional)
Overall Efficiency	≥85%
Overload Capacity	125% for 60s, 150% for 30s
Working Temperature	-10°C to 50°C
Altitude	<1800m

ACSOON Ruggedized AC Power System Main Features

Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
EMC compatible
Compatible with both 50Hz and 60Hz power supply network
Low harmonic distortion
Pure sine wave,sinusoidal output
Completely protection and alarm for over voltage, over current and overheating, etc
Display real-time data: voltage,current,frequency, power / power factor

Why Choose ACSOON Ruggedized AC Power Systems?

ACSOON delivers unmatched durability and reliability:

Reinforced Construction: Heavy-duty components for harsh environments
Wide Operating Range: -25°C to +55°C temperature range
Vibration Resistant: Designed for high-vibration applications
Enhanced Protection: IP54 rating for dust and moisture protection
Reliable Performance: Continuous operation in tough conditions

Application Areas

Our ruggedized AC power systems are essential for:

Mining Operations: Underground and surface mining equipment
Oil and Gas: Drilling rigs and refinery operations
Heavy Manufacturing: Steel mills and foundries
Construction: Site power systems
Transportation: Railway and port equipment
Utilities: Remote substation applications
Defense: Military field operations
Emergency Services: Disaster response equipment

Details display

Quality Assurance

Each ruggedized AC power system undergoes extreme testing:

Vibration and shock testing per MIL-STD-810
Thermal cycling from -25°C to +55°C
Dust and moisture ingress testing
Extended burn-in testing
Safety certification validation

Technical Features

Our ruggedized AC power system incorporates:

Reinforced chassis construction
Vibration-resistant component mounting
Enhanced thermal management
Sealed connectors and enclosures
Robust cooling system design

Packaging and Delivery

We ensure maximum protection:

Heavy-duty industrial packaging
Shock-absorbent cushioning
Environmental monitoring
Professional installation support

After-Sales Service

Ruggedized support package includes:

24/7 emergency support
Field service capability
Rapid parts dispatch
Maintenance training
Remote diagnostics

Certifications

CE Certification

ISO Certification

FAQ
Q1: What makes ruggedized AC power systems suitable for mining applications?
A: Reinforced construction, vibration resistance, and dust protection designed for harsh mining environments.
Q2: What temperature range can the system operate in?
A: -25°C to +55°C operating temperature range.
Q3: How is vibration resistance achieved?
A: Through reinforced mounting, shock absorbers, and component selection.
Q4: What dust protection is provided?
A: IP54 rating protects against dust ingress and water splashes.
Q5: Can systems be customized for specific environments?
A: Yes, we offer custom ruggedization for unique application requirements.
