Value AC Power Supply
2.Power: 1kVA, 2kVA, 3kVA, 5kVA single‑phase
3.Input: 220V ±15% single‑phase, 50/60Hz
4.Key specs: ±1.5% voltage regulation, THD <3.5%, isolation transformer
5.Applications: Small shops, school labs, hobbyists, basic product test
6.Features: Simple knob controls, analog meters option, overload protected
7.Brand: ACSOON (1‑year warranty, built in Xi’an).
- Product Description

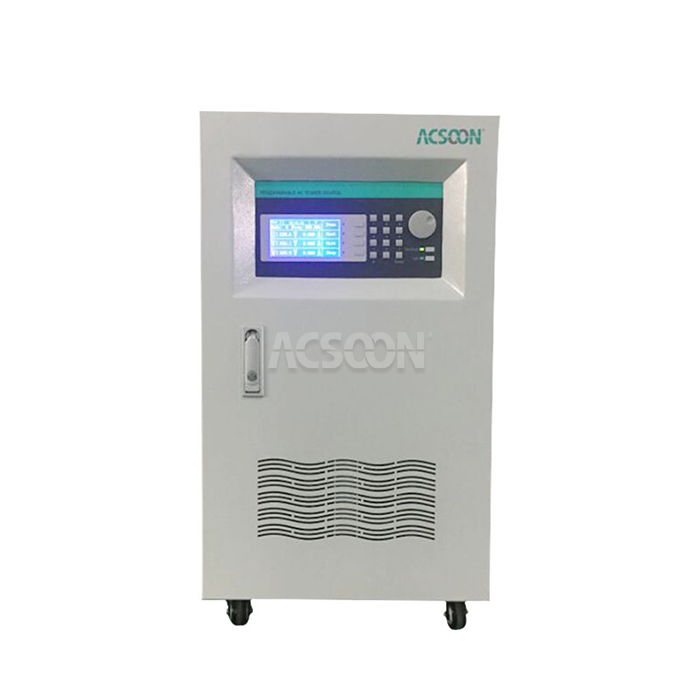

Value AC Power Supply | Affordable Variable AC Source for Basic Testing
Not every project needs lab‑grade precision. Sometimes you just need adjustable AC power without spending a lot.The Value AC Power Supply is our budget model. We kept the essential features – variable voltage and frequency, pure sine wave, isolation transformer – and left out the expensive extras like digital interfaces and high‑accuracy metering. The result is a simple, reliable AC source that costs about half what our standard model runs.We built this for schools, small repair shops, and hobbyists who don't need to log data or write test scripts. Turn the knobs, read the analog meters, power your device. It works.
| Parameter | Specification |
|---|---|
| Model Series | ACSOON AF60W Series |
| Input | 220V ±15% single‑phase, 50/60Hz |
| Output Voltage | 0‑150V / 0‑300V (L‑N) switchable |
| Output Frequency | 45‑200Hz, continuous |
| Output Power | 1kVA, 2kVA, 3kVA, 5kVA |
| Output THD | <3.5% at linear load |
| Voltage Regulation | ±1.5% FS (line & load) |
| Frequency Stability | ±0.2% |
| Efficiency | ≥83% |
| Overload | 125% for 30 seconds |
| Display | Analog meters (V, A) + digital Hz (optional) |
| Protections | Over‑current, short circuit, over‑temp |
| Cooling | Passive up to 3kVA, fan on 5kVA |
If you need it,Contact us at Email: acpower@acsoonpower.com
Value AC Power Supply Main Features
Dual voltage range – 0‑150V and 0‑300V. Switch on front.
Frequency from 45 to 200Hz – Covers 50Hz, 60Hz, and light motor speed control.
Overload protection – 125% for 30 seconds. Resets automatically.
Output enable lamp – Lights when output is active. No guessing.
Why Choose ACSOON Value AC Power Supply?
Lowest price – No frills. You pay for power conversion, not features you'll never use.
Simple to operate – Two knobs, one output button. No menus, no manual required.
Analog meters standard – Easy to read at a glance. No backlight to burn out.
Still isolated – Same output transformer as our more expensive models. Safe for scope work.
Value AC Power Supply Application Areas
School electronics labs – Students learn AC theory without breaking expensive gear.
Small motor repair – Run shaded‑pole and universal motors for diagnosis.
DIY projects – Test power supplies, dimmers, and small appliances.
Basic production test – Functional test of simple AC‑powered products.
Our Services
Quality Control
Every unit tested – 2 hours at 80% load. Check for hot spots.
Output verified – Voltage accuracy at five set points. Record kept.
Isolation test – 2kV between input and output for 1 minute.
Knob cycle test – 500 full rotations on each pot. No crackling.
R&D Results
Cost reduction – Replaced digital display with analog meters. Saved $30 per unit.
Transformer – Used a standard off‑the‑shelf toroid instead of custom wound. Still meets specs.
Enclosure – Switched from powder coat to painted steel. Same protection, less cost.
Feedback from schools – Teachers wanted bigger knobs. Added oversized knobs for easier handling.
Packaging and Transportation
Shipped from Xi'an – Cardboard box with foam. Fits in a courier box.
Included – Power cord, output cable with universal socket, printed quick start.
Manual – Full manual on USB. Simple PDF.
Pallet – 8 units per pallet.
After‑Sales Service
1‑year warranty – Return to Xi'an for repair.
Spare parts (transformer, fan, pots) kept in Xi'an.
Email support – We'll help. Include a photo of the issue.
Qualification Certification
CE – LVD and EMC；ISO 9001:2015 – Our Xi'an facility；RoHS – All components.
FAQ |
|---|
| Q1: Why is this cheaper than your other models? |
| A: Fewer features. Analog meters instead of digital, no remote control, no programmable memory, wider regulation tolerance (±1.5% vs ±1%). The core power electronics are the same. If you don't need the extras, this is a good choice. |
| Q2: Can I add remote control later? |
| A: No. This model doesn't have the communication hardware. If you need RS485 or computer control, buy our standard ACSW series. |
| Q3: Is the output isolated? |
| A: Yes. Same isolation transformer as our standard units. Fully floating output. |
| Q4: What's the difference between this and a variac? |
| A: A variac doesn't regulate. Line voltage drops, output voltage drops. This unit actively regulates to ±1.5%. Also gives you adjustable frequency and isolation. A variac does none of that. |
| Q5: What's the lead time from Xi'an? |
| A: Usually 2 weeks. We keep stock of the 2kVA and 3kVA models. The 5kVA takes 3 weeks. |
Contact Us
For technical specifications or global solutions for the Value AC Power Supply: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
