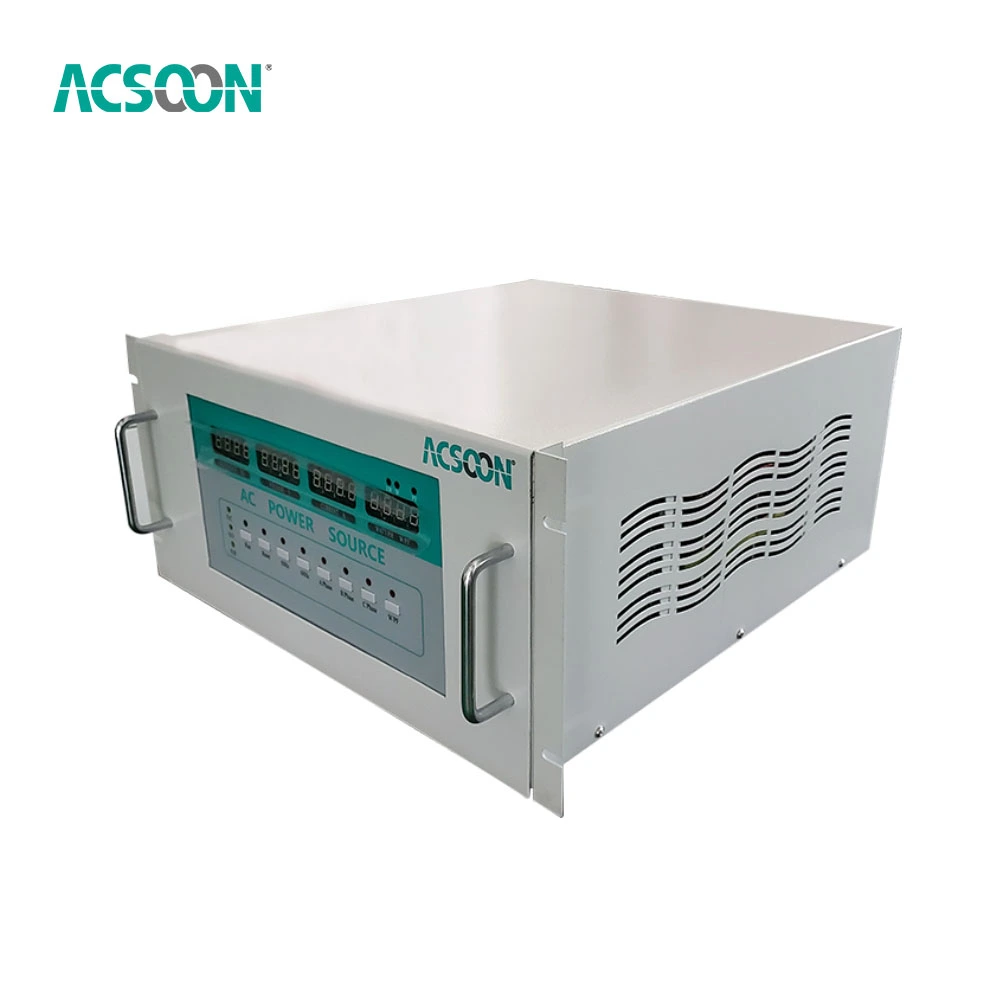

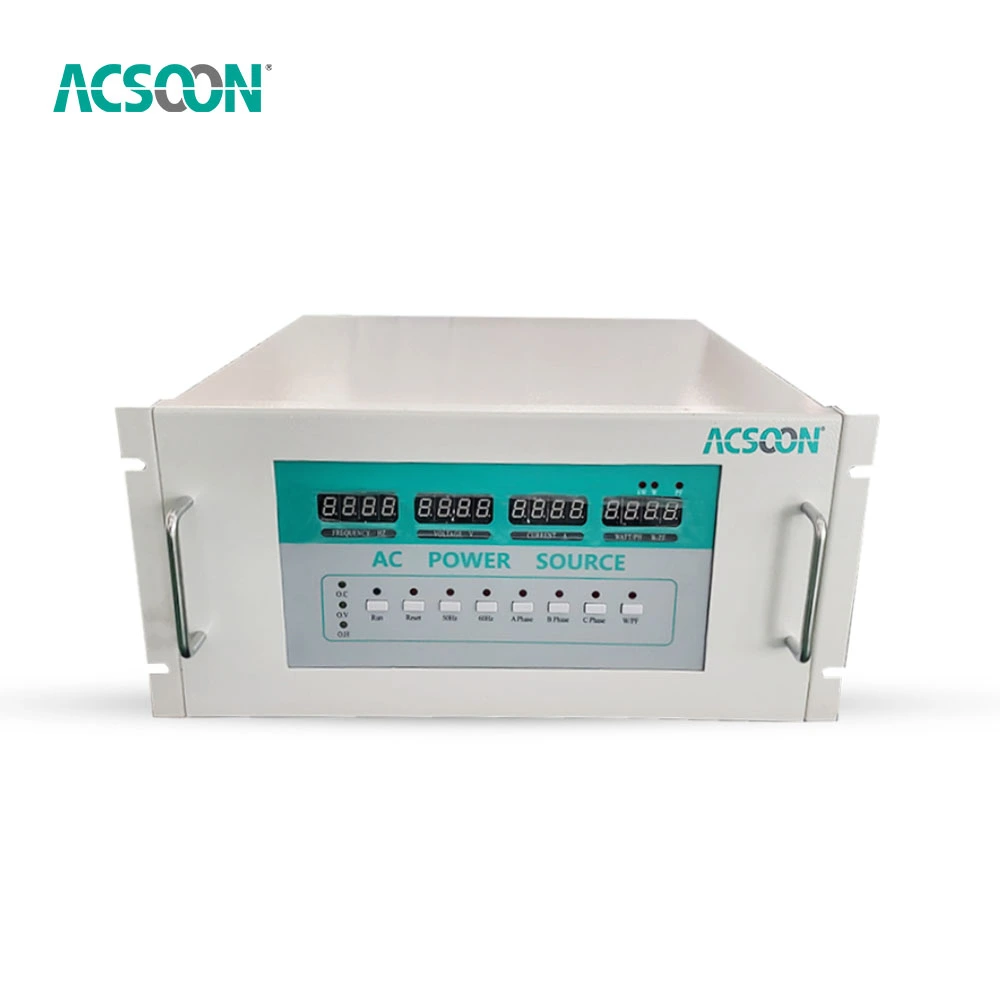

Variable Frequency AC Power System

1.Power Capacity: 30kVA (compact rack design)
2. Technology: Digital signal processing with IGBT technology
3.Input: 3-phase 380VAC ±15%, 50/60Hz auto-ranging
4. Output: 0-300VAC, 40-500Hz fully adjustable
5. Key Applications: Motor testing, appliance certification, power quality testing
6.Key Features: Pure sine wave output; programmable sequences; remote monitoring; LCD display
7. Brand: ACSOON (custom solutions available).

Send Inquiry Download

Product Description

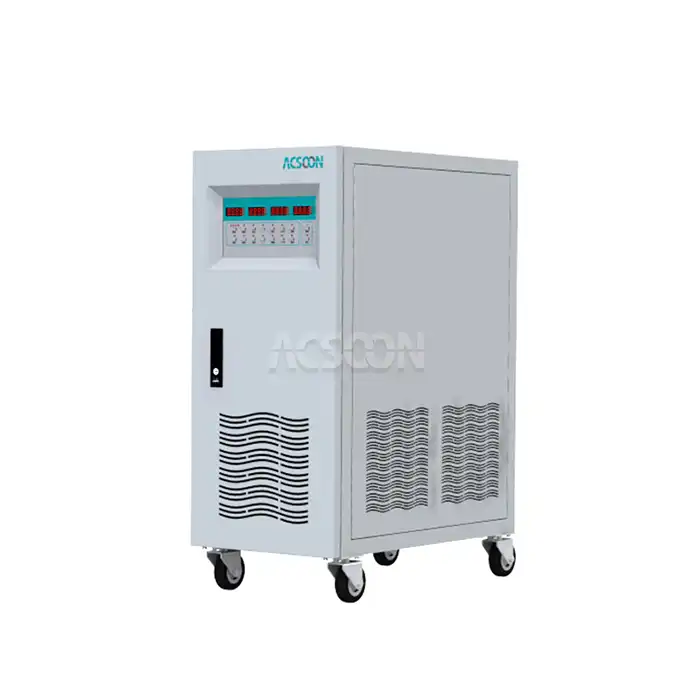

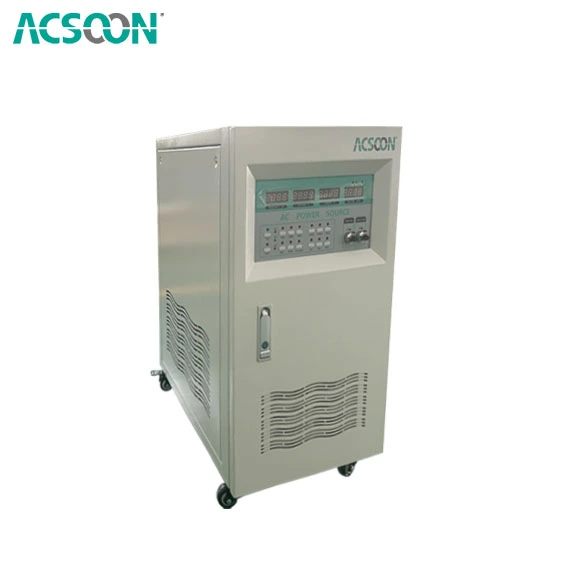

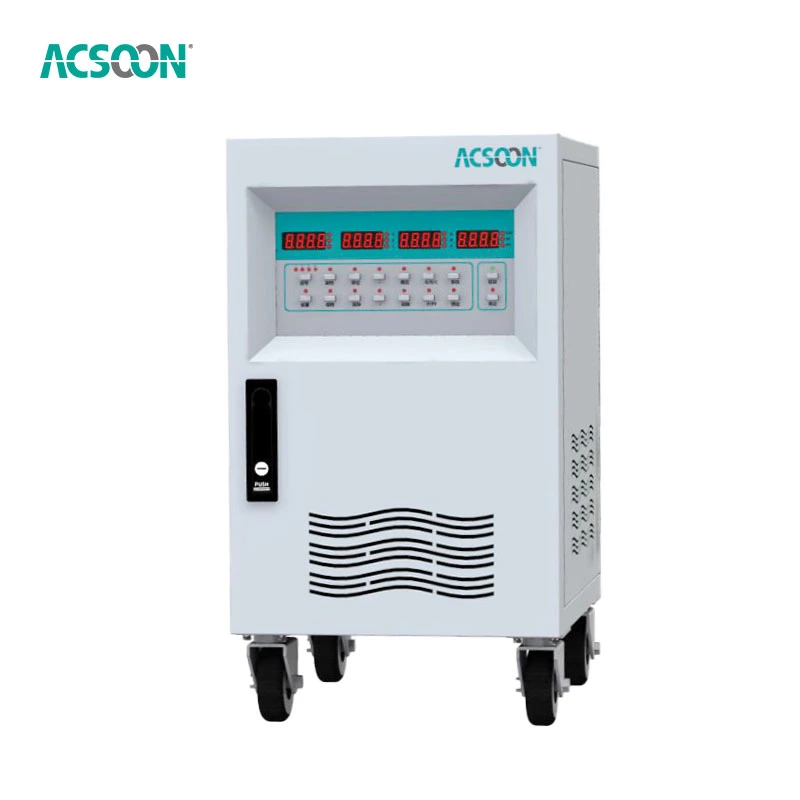

Variable Frequency AC Power System | Adjustable Frequency Power Supply

XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in manufacturing variable frequency AC power systems for versatile testing applications. Our systems provide flexible frequency and voltage output for motor testing, appliance certification, and power quality analysis, offering reliable performance for various industrial and laboratory applications.

Technical Specifications

Feature	Specification
Capacity (Single Phase)	1kVA - 200kVA
Capacity (Three Phase)	1kVA - 2000kVA
Input Voltage	Single Phase: 110-230VAC ±20% Three Phase: 200-440VAC ±20%
Input Frequency	50/60HZ or 40-70HZ
Output Voltage	Single Phase: 0-300VAC Three Phase: 0-520Vac
Output Frequency	50/60/100/200/400HZ or 40-800HZ adjustable
Frequency Stability	≤0.1%
Voltage Stability	±1%
Output VTHD	<3% @ Linear load
Response Time	≤2ms
Power Factor	≥0.8 (Standard), ≥0.9 (12 Pulse Optional)
Overall Efficiency	≥85%
Overload Capacity	125% for 60s, 150% for 30s
Cooling	Forced air
Working Temperature	-10°C to 50°C
Altitude	<1800m

ACSOON Variable Frequency AC Power System Main Features

Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
EMC compatible
Compatible with both 50Hz and 60Hz power supply network
Low harmonic distortion
Pure sine wave,sinusoidal output
Completely protection and alarm for over voltage, over current and overheating, etc
Display real-time data: voltage,current,frequency, power / power factor

Why Choose ACSOON Variable Frequency AC Power Systems?

ACSOON delivers flexible and reliable power solutions:

Wide Frequency Range: 40-500Hz adjustable output frequency
Clean Power Quality: <2% THD pure sine wave output
Programmable Operation: Multi-step sequence programming
Precision Control: ±1% voltage and frequency stability
User-Friendly Interface: Intuitive LCD display and controls

Application Areas

Our variable frequency AC power systems are essential for:

Motor Manufacturing: AC motor testing and certification
Appliance Testing: Household appliance performance validation
Power Quality Analysis: Grid simulation and testing
Research Laboratories: Electrical parameter testing
Educational Institutions: Engineering training and experiments
Quality Assurance: Product compliance testing
Automotive Industry: Component testing and validation
Service Centers: Equipment repair and diagnostics

Our Services

Quality Assurance

Each variable frequency AC power system undergoes strict validation:

48-hour continuous operation testing
Full-load performance verification
Environmental condition testing
Safety standard compliance testing
Final calibration and certification

Technical Features

Our variable frequency AC power system incorporates:

Advanced DSP control technology
IGBT-based power conversion
Isolated output design
Comprehensive protection circuitry
Intelligent thermal management

Packaging and Delivery

We ensure professional packaging:

Protective industrial packaging
Careful handling and shipping
Global logistics coordination
Installation guidance provided

After-Sales Service

Comprehensive support package includes:

Technical support services
Maintenance guidance
Software updates
Operational training
Parts supply support

Certifications

FAQ
Q1: What is the main advantage of a variable frequency AC power system?
A: Our systems offer flexible frequency adjustment for testing equipment under different power conditions.
Q2: Can the system simulate different grid conditions?
A: Yes, with programmable voltage and frequency settings for various scenarios.
Q3: What communication interfaces are available?
A: Standard RS232/485 interfaces for remote control and monitoring.
Q4: How is system cooling managed?
A: Automatic temperature-controlled cooling ensures reliable operation.
Q5: Do you provide custom frequency ranges?
A: Yes, we offer customized solutions to meet specific requirements.
