One Power Source, Multiple Test Conditions

Consider a manufacturer exporting equipment to several markets.

One product may be designed for:

220V / 50Hz

while another customer requires:

230V / 60Hz

and a specialized test may require:

400Hz AC power.

Building separate test power systems for each condition is inconvenient.

A programmable AC source allows engineers to reproduce different conditions from the same test platform.

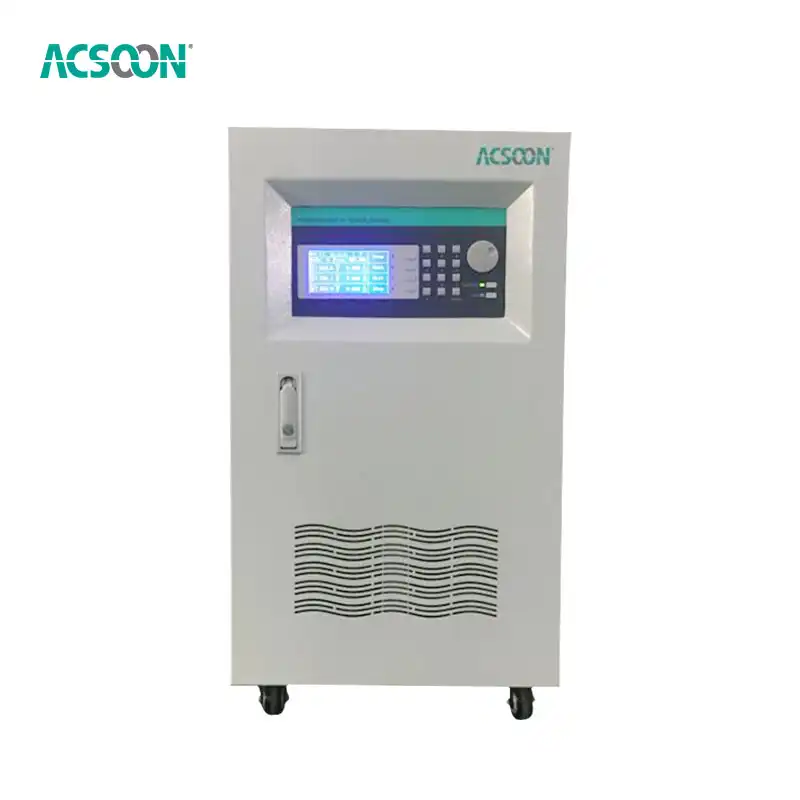

That is where the ACSW Series is useful.

50Hz to 60Hz Testing

For manufacturers in countries where the local grid is 50Hz, exported products may still need to be validated under 60Hz conditions.

The ACSW can provide a controlled 60Hz AC output for the test.

Typical users may include:

electrical equipment manufacturers, laboratories, transformer manufacturers, motor and pump manufacturers, and production testing facilities.

60Hz to 50Hz Testing

The same issue occurs in reverse.

Equipment manufactured in a 60Hz market may need testing before shipment to a 50Hz destination.

Instead of relying on the local mains frequency, the test team can configure the required output frequency through the AC power source.

400Hz AC Testing

400Hz power is associated with specialized electrical and avionics test applications.

The ACSW technical specification specifically lists avionics test AC power source among its applications and provides an adjustable frequency range covering 400Hz.

This makes the system suitable for engineering environments requiring controlled high-frequency AC output.

Stable Output for Repeatable Testing

According to the ACSW technical specification:

Voltage Regulation & Stability: ±1% FS
Frequency Stability: ±0.1% FS
THD: <3% with linear loads
Overall Efficiency: ≥85%
Input Power Factor: ≥0.8 ASOON ACSW Series Static Freque…

These specifications matter when the power source itself needs to remain controlled during a test.

Remote Monitoring and Communication

For test benches and industrial systems, communication capability can be as important as the electrical output.

The ACSW Series includes:

RS232 / RS485

and the specification identifies a Modbus communication interface for monitoring and integration. ASOON ACSW Series Static Freque…

Available Power Ratings

The ACSW family is not limited to one cabinet size.

Single-Phase Output

1 / 2 / 3 / 5 / 10 / 15 / 20 / 30 / 45 / 60 / 75 / 100kVA

Three-Phase Output

1 / 3 / 6 / 10 / 15 / 20 / 30 / 45 / 60 / 75 / 100 / 150 / 200 / 300 / 400kVA

This allows the same product family to cover small test systems as well as considerably larger industrial requirements.
