28VDC & 400Hz GPU for Helicopters

1.Power Configuration: 28.5VDC (up to 600A) & 115V 400Hz AC (up to 20kVA) Combined Output
2.Technology: Solid-State Dual-Output Inverter/Rectifier with High-Frequency Switching
3.Input: 3-Phase, 208V-480V, 50/60Hz or optional integrated Diesel Generator
4.Output: Simultaneous 28VDC for systems start & 115V 400Hz AC for avionics

5.Key Applications: Civilian & Military Helicopters, General Aviation, Remote Helipads, Emergency Services
6.Core Features: Compact Towable Design, Rapid Deployment, MIL-STD-704 Compliant, Low Noise Operation
7.Brand: ACSOON (Configurable for Fixed-Wing Aircraft).

Send Inquiry Download

Product Description

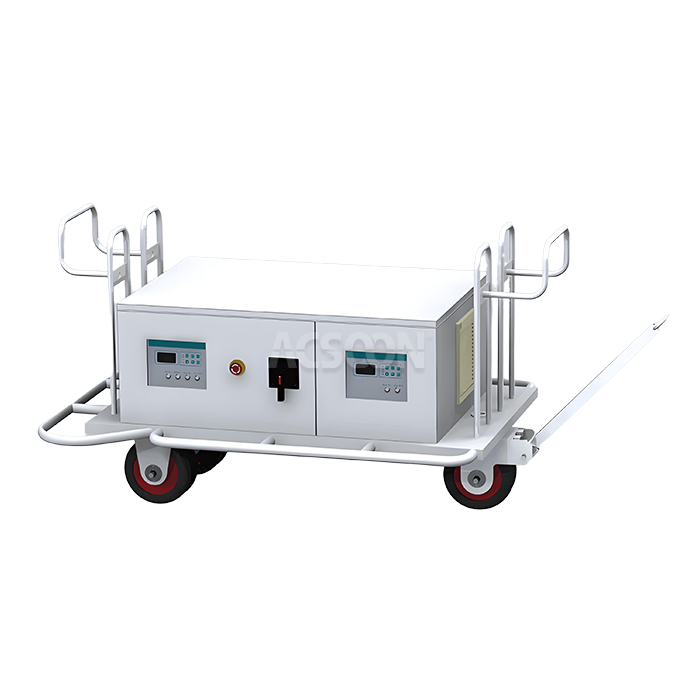

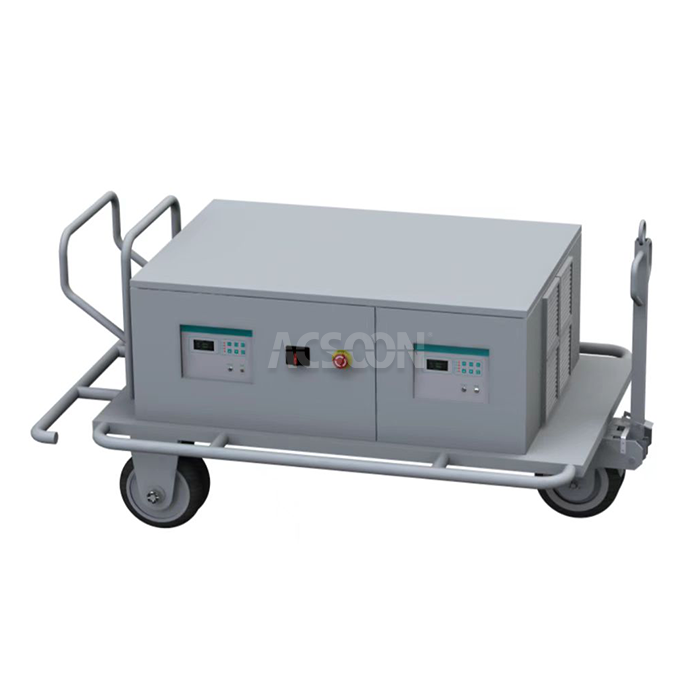

28VDC & 400Hz GPU for Helicopters | Dual-Output Ground Power Cart

XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the Portable 28VDC & 400Hz GPU for Helicopters, a versatile and compact ground power solution engineered for rotary-wing aircraft. This uniquely integrated unit provides both critical 28VDC for engine start and system checks and 115V 400Hz AC for cockpit avionics and instrumentation. Mounted on a maneuverable towable cart, it delivers reliable power in confined spaces at helipads, hangars, or remote operational sites.

Datasheet

Parameter	Specification
Model Series	ACSOON HGPU Combi Series
Input	Voltage: 3-Phase 208V, 400V, 480V ±15% Frequency: 50/60Hz Optional: Integrated Diesel Generator
DC Output	Voltage: 28.5VDC (20-32V adjustable) Current: 400A / 600A Continuous Ripple: ≤ 0.2V
AC Output	Voltage: 115V/200V, 400Hz Power: 15kVA / 20kVA Configuration: 3-Phase, 4-Wire THD: <2%
Cart Chassis	Towable design with pneumatic tires, parking brake, and lighting
Efficiency	≥90%
Display	Digital Meters for DC (V, A) and AC (V, A, Hz, kW)
Standards	MIL-STD-704 for AC & DC characteristics, GJB181A
Operating Temp.	-20°C to 50°C

28VDC & 400Hz GPU for Helicopters Main Features

Simultaneous Dual Output: Independent and stable 28VDC and 115V 400Hz AC outputs can be used at the same time.
Flexible Power Input: Can be powered from a standard 3-phase hangar supply or an optional onboard diesel generator for complete mobility.
Advanced Control Panel: User-friendly interface with dedicated meters and controls for both DC and AC sections, plus system diagnostics.
Comprehensive Safety Systems: Includes interlocks, over-voltage/current protection for both outputs, and secure cable storage with automatic reels.

Why Choose ACSOON 28VDC & 400Hz GPU for Helicopters?

Dual-Output Convenience: One compact unit replaces the need for separate DC and AC power sources, simplifying ground support logistics for helicopters.
Superior Portability: Lightweight, towable cart design with a tight turning radius allows easy positioning around aircraft in crowded hangars or on small helipads.
Helicopter-Optimized Power: Output ratings specifically tailored to meet the simultaneous DC and AC power demands of modern civilian and military helicopters.
Rugged and Reliable: Built to withstand harsh environments and frequent movement, with robust construction and components rated for continuous duty.

28VDC & 400Hz GPU for Helicopters Application Areas

Helicopter Maintenance Hangars: Primary power source for servicing, testing, and pre-flight checks on a variety of helicopter models.
EMS & Air Ambulance Bases: Ensuring immediate power availability for rapid turnaround of emergency medical service helicopters.
Offshore Oil Rig Helidecks: Providing essential ground power for helicopters supporting offshore operations.
Military Forward Operating Bases: Deployable power support for utility, attack, and transport helicopters in field conditions.

Our Services

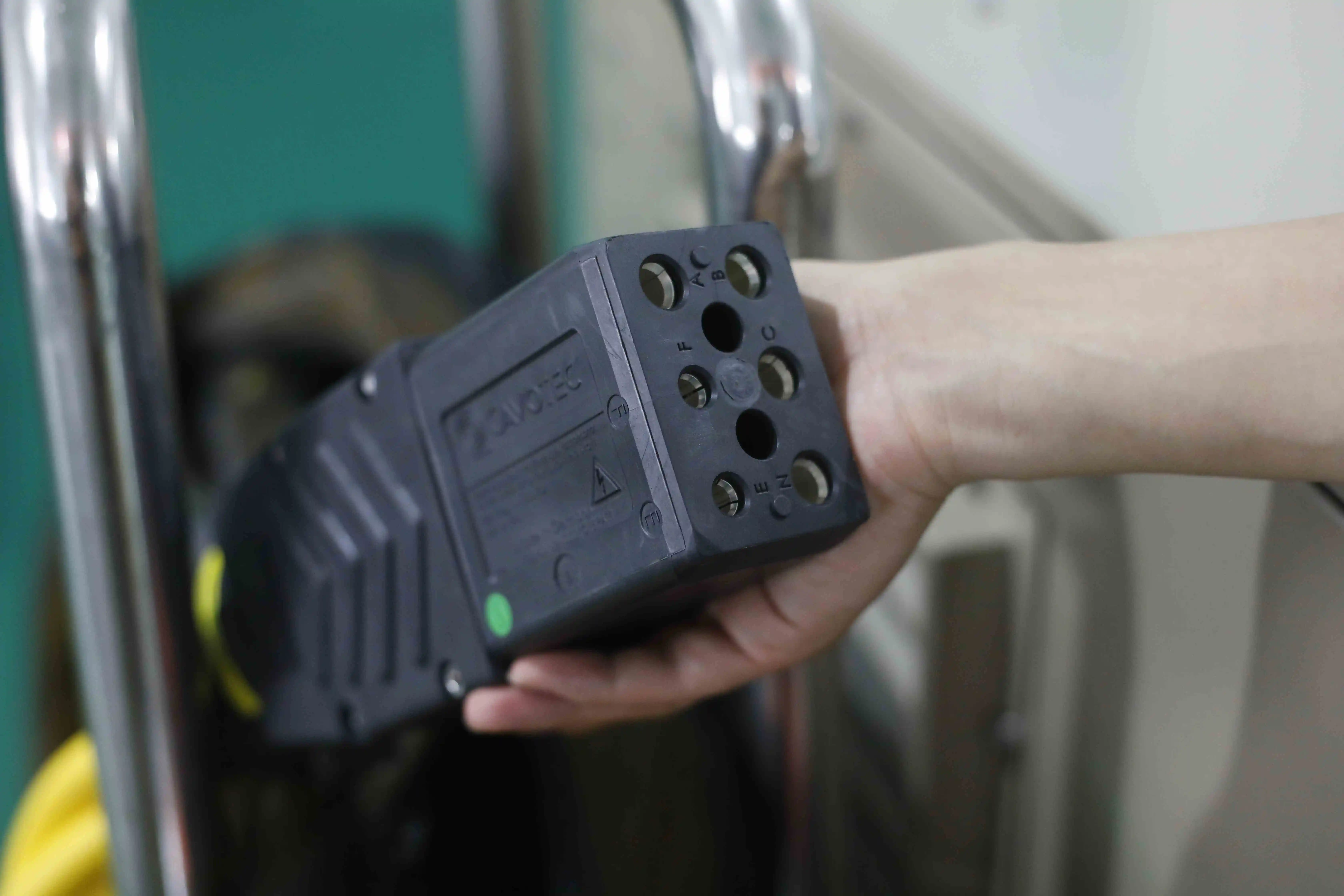

Quality Control

Dual-Circuit Validation: Both the DC rectifier and AC inverter power stages undergo individual full-load and overload testing prior to integration.
Integrated System Burn-In: The complete unit operates under a combined simultaneous load profile for an extended period to ensure stability and thermal performance.
Vibration & Transit Testing: The assembled cart undergoes simulation to verify that all components remain secure and operational after transportation over rough terrain.
Final Functional & Safety Sign-off: All operator controls, safety interlocks, protection circuits, and emergency stops are rigorously tested and documented.

R&D Results

Compact Power Density: Achieved through a custom, shared cooling system and optimized component layout to fit dual power converters into a minimal footprint.
Intelligent Load Management: Developed control logic to prioritize and manage power distribution between the DC and AC outputs under high-demand scenarios.
Enhanced Environmental Sealing: Implemented improved gasketing and sealing techniques for the enclosure to achieve a high IP rating against dust and moisture.
Ergonomic Human-Machine Interface (HMI): Designed a single, intuitive control panel that clearly displays the status and controls for both power systems without confusion.

Packaging and Transportation

Ready-to-Operate Shipping: The unit is shipped fully assembled, tested, and fueled (if generator-equipped), requiring only minimal setup upon arrival.
Secure Transit Fixing: The cart is professionally secured to a shipping pallet or within a container using heavy-duty straps and blocking to prevent any movement.
Complete Documentation Dossier: Includes operator manuals, maintenance guides, parts lists, wiring diagrams, and international compliance certificates.
Door-to-Door Logistics Service: We manage the entire shipping process, including export paperwork, customs clearance, and final delivery to your site.

After‑Sales Service

We offer a comprehensive 24-month warranty on the power conversion modules and a 12-month warranty on the cart and generator. Our global support includes remote troubleshooting, on-site technician dispatch, and an efficient spare parts supply chain.

Qualification Certification

Aircraft Standard Compliance: Engineered to meet the environmental and performance requirements of MIL-STD-704 for aircraft electrical power;Quality Management System: Manufactured in an ISO 9001:2015 certified facility, ensuring process control and traceability;Emission Standards (if equipped): Optional generators comply with relevant EPA Tier or EU Stage emission regulations;Full Test Documentation: Each unit is delivered with a detailed Factory Acceptance Test (FAT) report.

FAQ
Q1: Can this GPU power both a helicopter's DC systems and its AC avionics at the same time?
A: Yes, that is its primary design purpose. It provides independent, simultaneous 28VDC and 115V 400Hz AC outputs, allowing technicians to energize all aircraft systems from a single point.
Q2: Is special training needed to operate it?
A: Basic familiarization is recommended. The control panel is designed for clarity, and comprehensive manuals are provided. We also offer optional on-site operator training.
Q3: How is it different from a standard fixed GPU?
A: Its key advantages are portability (towable cart) and dual-output capability in one unit. Fixed GPUs are typically stationary and often provide only AC or only DC power.
Q4: What if there is no electrical power available at the operating site?
A: You can specify the unit with an integrated diesel generator option. This makes it completely self-contained and capable of operating anywhere, independent of the local electrical grid.
Q5: What types of helicopters is it suitable for?
A: It is suitable for a wide range of medium to heavy helicopters in both civilian (EMS, offshore transport, utility) and military sectors that utilize 28VDC and 115V 400Hz AC power systems.
