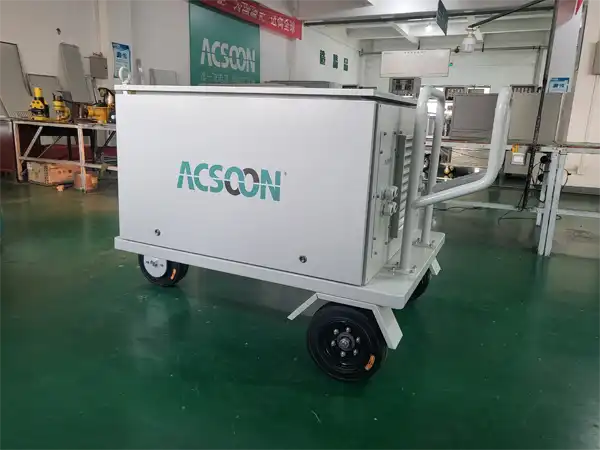

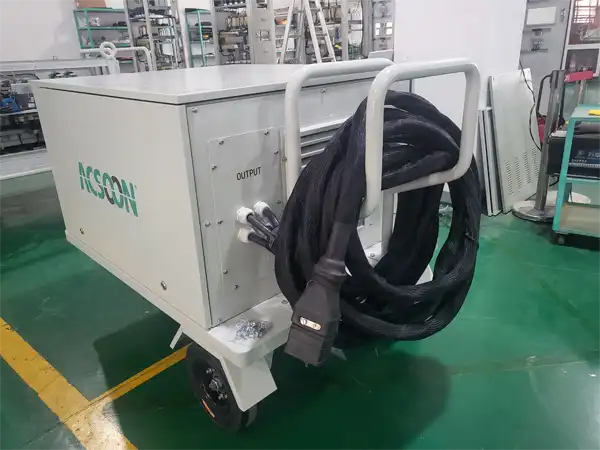

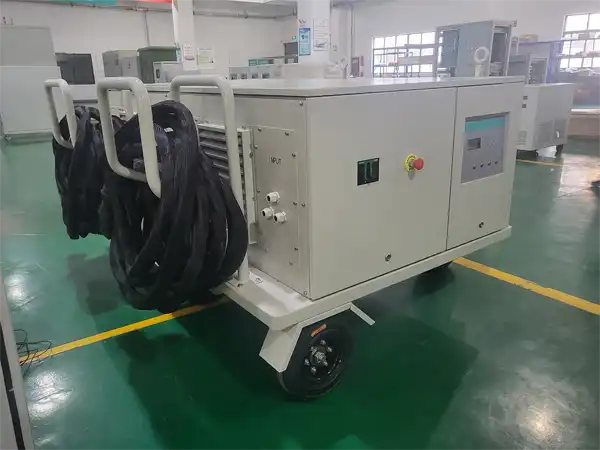

90Kva Frequency Converter
2.Power Rating: 90kVA
3.Input Voltage & Frequency: 3 Phase 380V-480V, 50-60HZ
4.Output Voltage & Frequency: 3 Phase 115V/200V, 400HZ
5.Type: Solid state GPU, floor mounted
6.Ingress Protection Grade: IP21
7.Applications: helicopters and jets, widely used in aircraft engine start and daily maintenance, flexibly to be used at hangar and apron.aviation R&D and military equipment
8.Brand: ACSOON (support OEM)
9.Features: It integrates IGBT with PWM switching technology and combines micro controller (digital signal control) design for quick response and higher reliability.
- Product Description
90kVA Frequency Converter: Powering Industrial Innovation
XI'AN JERRYSTAR INSTRUMENT CO., LTD is a leading manufacturer and supplier of high-quality 90kVA frequency converters. With over 15 years of experience, we've established ourselves as industry pioneers in power conversion solutions. Our products stand out for their reliability, efficiency, and adaptability to diverse industrial applications.
Why Choose ACSOON 90kVA Frequency Converter?
- Unmatched Quality: Our products are built to last, ensuring consistent performance in demanding environments.
- Cutting-Edge Technology: Incorporating the latest advancements in power electronics for optimal efficiency.
- Customization Options: Tailored solutions to meet your specific industrial requirements.
- Global Compliance: CE certified, adhering to international safety and performance standards.
- Expert Support: Backed by our team of experienced engineers for seamless integration and maintenance.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity | 90kVA (Three Phase Output) |
| Input | 200-440VAC (L-L) ±20%, 3 Phase Delta or Wye |
| Input Frequency | 40 - 70HZ |
| Output | 200/208VAC rated, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300-500HZ adjustable |
| Circuit Breakers | MCCB installed |
| AC Output | One terminal strip (Two optional) |
| DC Output | Available on Combi GPU (28V) |
| Frequency Stability | ≤0.1% |
| Voltage Stability | ±1% |
| VTHD | <2% |
| Power Factor | ≥0.8 (≥0.9 optional) |
| Efficiency | ≥85% |
| Display | LCD (voltage, current, frequency) |
| Noise Level | <65dB at 1 meter |
| Protection | Comprehensive (short circuit, overcurrent, etc.) |
| Communication | Modbus RS485 |
| Overload Capacity | 125% for 10min, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| MTTR | < 30 minutes |
| Insulation | 500VDC above 20MΩ |
| Withstand Voltage | 1800Vac/5mA/1 min |
| Max Altitude | <1800m |
Application Areas
Our products are versatile powerhouses, finding applications across various industries:
- Manufacturing: Powering CNC machines, robotics, and automated assembly lines
- Aerospace: Ground power units for aircraft maintenance and testing
- Energy Sector: Integrating renewable energy sources and stabilizing power grids
- Marine Industry: Shipboard power systems and offshore platforms
- Oil and Gas: Powering pumps, compressors, and drilling equipment
- Data Centers: Ensuring clean, stable power for critical IT infrastructure
- Medical Facilities: Supporting sensitive medical equipment and imaging systems
- Research Laboratories: Providing precise power for experimental setups
- Transportation: Powering railway signaling systems and electric vehicle charging stations
- Telecommunications: Ensuring uninterrupted power for network equipment
Quality Control
At XI'AN JERRYSTAR INSTRUMENT CO., LTD, quality is our cornerstone. Our rigorous quality control process includes:
- Stringent component selection
- Automated testing at multiple production stages
- Burn-in testing for reliability assurance
- Final performance verification under simulated load conditions
- ISO 9001 certified manufacturing processes
R&D Achievements
Our commitment to innovation drives continuous improvement:
- Patented cooling system for enhanced efficiency
- Advanced control algorithms for superior output stability
- Modular design for easy maintenance and upgrades
- Eco-friendly materials and energy-efficient components
Packaging and Transportation
We ensure your 90kVA frequency converter reaches you safely:
- Custom-designed shock-absorbing packaging
- Moisture-resistant wrapping for protection against environmental factors
- Secure palletization for easy handling
- Global logistics partnerships for efficient worldwide delivery
After-Sales Service
Our commitment doesn't end with delivery:
- 24/7 technical support
- Comprehensive warranty coverage
- Rapid response for on-site service
- Regular maintenance programs
- Software updates and performance optimization
Qualification Certifications
Trust in our globally recognized standards:
- ISO 9001:2015 Quality Management System
- CE Certification for European market compliance
- UL Listed for North American safety standards
- RoHS compliant for environmental responsibility
Exhibitions
Meet us at leading industry events:
- Hannover Messe, Germany
- CIPPE (China International Petroleum & Petrochemical Technology and Equipment Exhibition)
- IEEE PES T&D Conference and Exposition, USA
- Middle East Energy, Dubai
Frequently Asked Questions
Q: What's the warranty period for your product?
A: We offer a standard 2-year warranty, with options to extend up to 5 years.
Q: Can the output frequency be adjusted beyond the 300-500HZ range?
A: Custom frequency ranges are available. Please consult our sales team for specific requirements.
Q: Is remote monitoring available for these converters?
A: Yes, our units support Modbus RS485 for seamless integration with your monitoring systems.
Q: How quickly can you deliver a product?
A: Standard units are typically ready for shipment within 2-3 weeks. Rush orders can be accommodated upon request.
Q: Do you offer installation services?
A: Yes, we provide comprehensive installation and commissioning services worldwide.
Contact Us
Ready to power up your operations with our 90kVA frequency converter? Reach out to our expert team at acpower@acsoonpower.com for personalized solutions and quotations.
