Aircraft Maintenance Hangar Power Supply
2.Technology: Static solid-state DC rectifier with advanced power conversion technology
3.Input: 380V three-phase, 50/60Hz ±15% AC input
4.Key feature: Compact trolley-mounted design with low ripple DC output and high voltage stability for mobile aircraft maintenance operations
5.Applications: Southeast Asia airports, Middle East aviation bases, aircraft hangars, helicopter maintenance stations and remote service locations
6.Compliance: Designed according to aviation power standards including MIL-STD-704F, GJB572A-2006 and ISO6858
7.Applications: Aircraft battery charging, avionics testing, aircraft maintenance and aerospace equipment ground power supply
8.Brand: ACSOON (OEM and customized solutions supported)
9.Features: Digital display with voltage/current monitoring, fault alarm and multiple historical event records memory
- Product Description

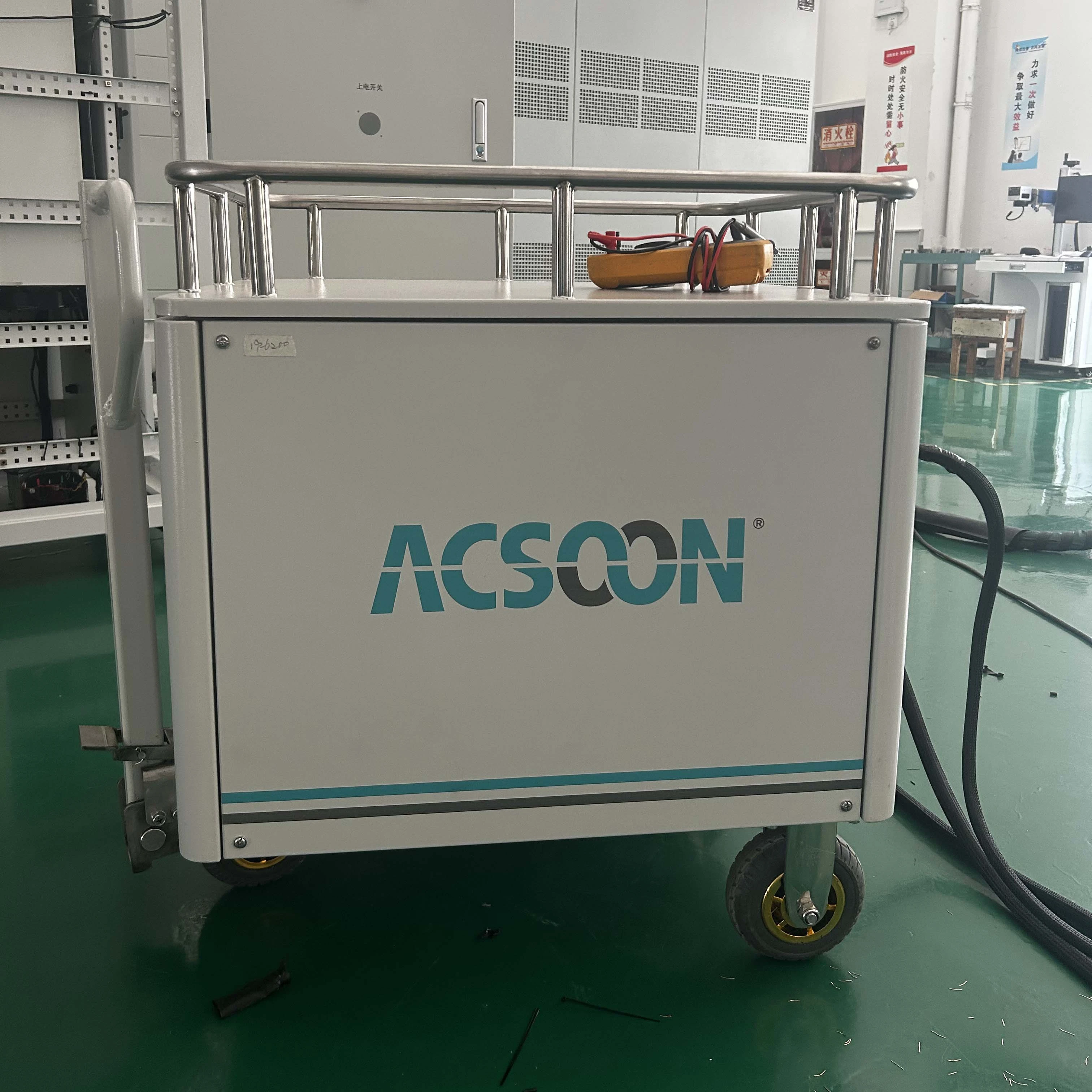

Portable Trolley-Mounted DC Power Supply for Aircraft Maintenance and Aviation Support
Aircraft maintenance teams need reliable external DC power during inspections, testing and servicing operations. Depending only on onboard batteries can increase downtime and limit maintenance efficiency.
The ACSOON GPU28200 28V DC Aircraft Ground Power Unit provides a stable 28.5V DC power supply for aircraft maintenance, battery charging, avionics testing and ground support operations.
Designed with a compact trolley structure, GPU28200 offers flexible movement between hangars, ramps and maintenance areas. It is an ideal solution for airports, MRO facilities, helicopter operators and aviation service companies requiring dependable DC aircraft power.
Stable 28V DC Aircraft Power for Ground Operations
Aircraft electrical systems require clean and stable DC power during ground maintenance.
GPU28200 converts standard AC mains power into regulated 28.5V DC aircraft power, helping technicians perform:
Aircraft inspection
Battery charging
Electrical system testing
Avionics maintenance
Ground support operations
Compared with temporary battery solutions, an external aircraft ground power unit provides longer operating time and more stable voltage performance.

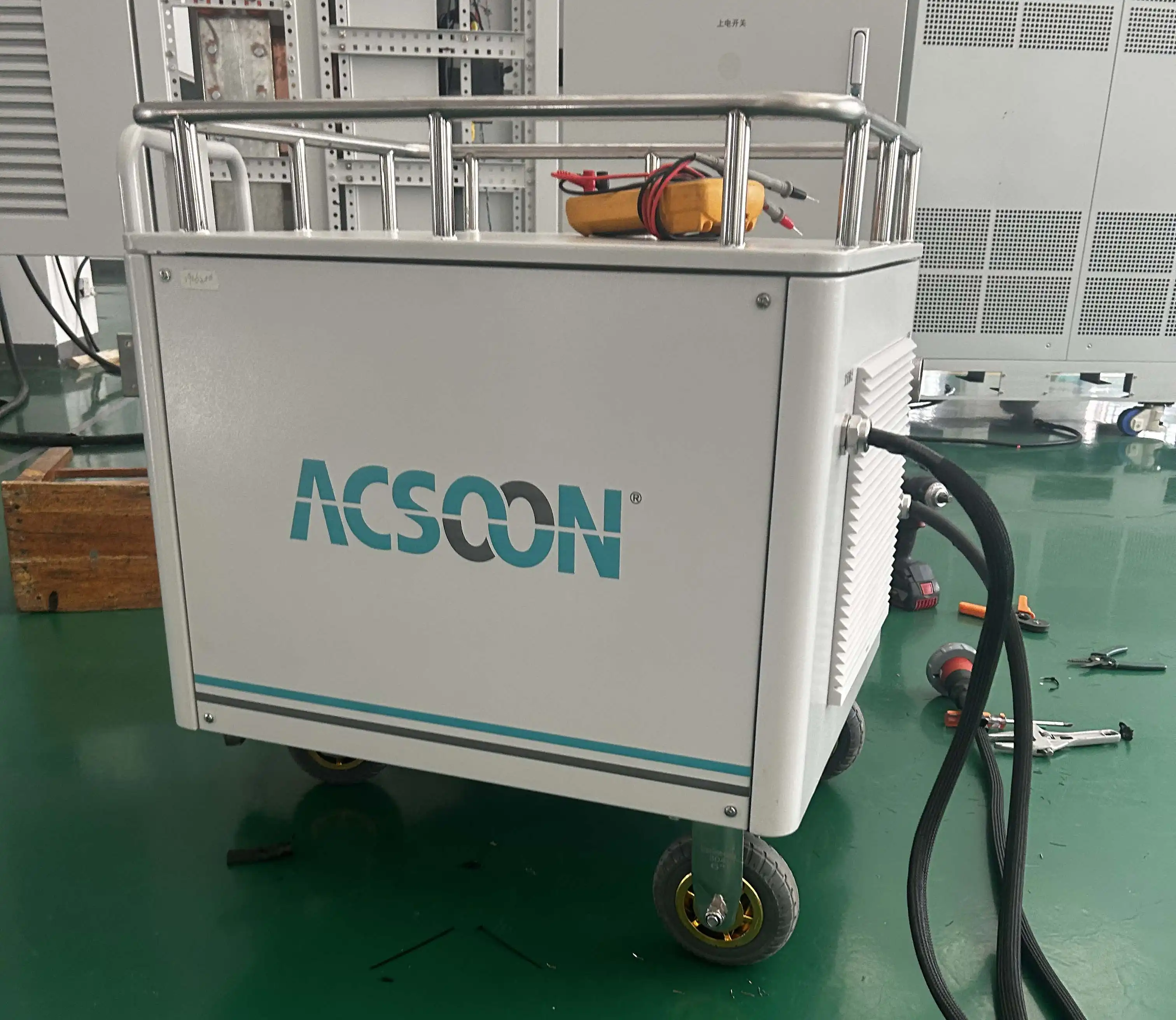

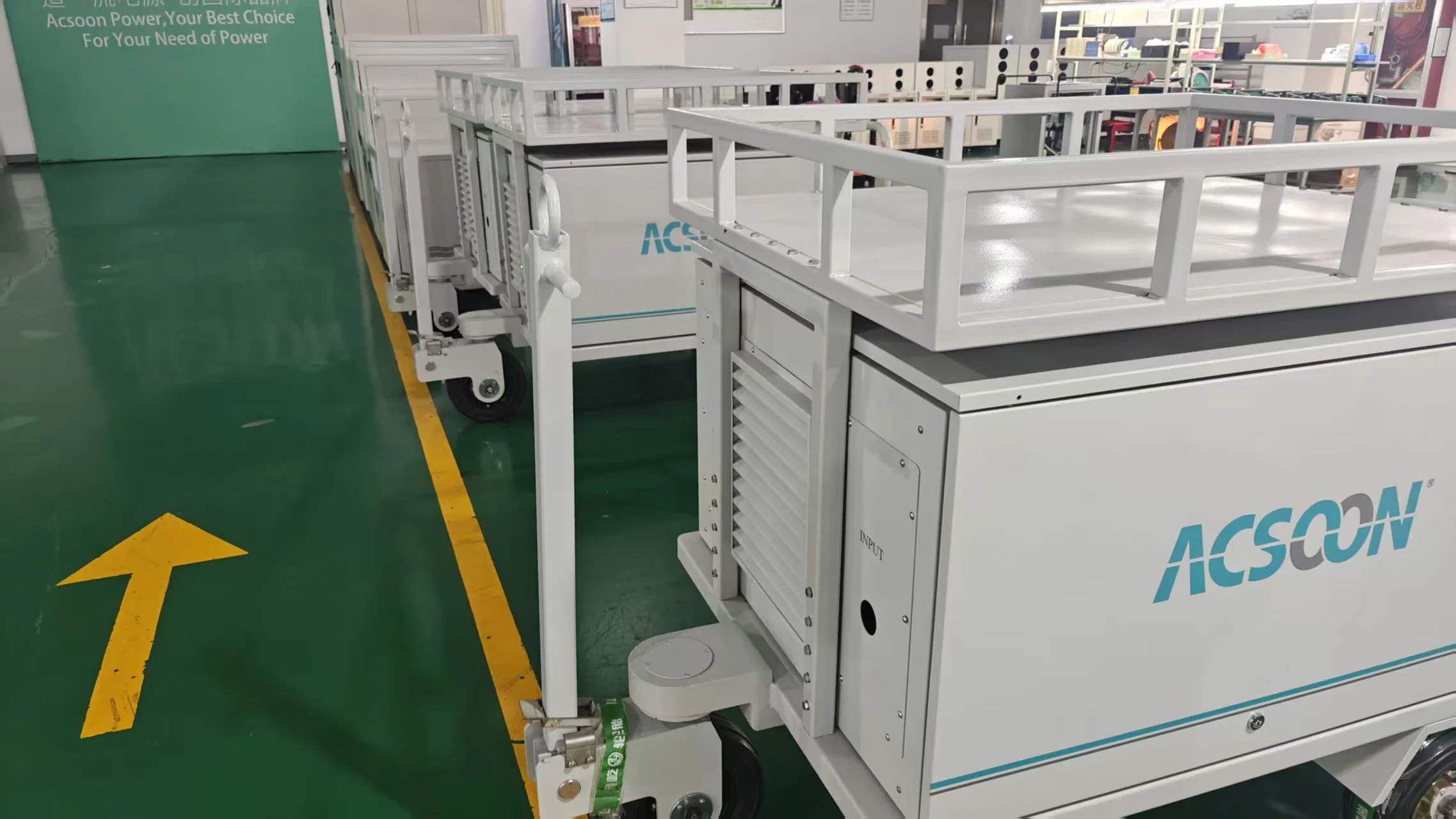

Compact Trolley Design for Flexible Maintenance Support
Many regional airports and aviation service facilities need equipment that can be moved easily between aircraft positions.
The GPU28200 trolley-mounted design provides:
Easy Mobility
Operators can move the unit between:
Aircraft parking stands
Maintenance workshops
Helicopter service areas
Training facilities
Space-Saving Structure
The compact design is suitable for:
Small airports
Private aviation facilities
MRO workshops
Remote aviation locations
Faster Ground Connection
Technicians can quickly provide external DC power without installing complex fixed systems.
GPU28200 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GPU28200 |
| Product Type | 28V DC Aircraft Ground Power Unit |
| Rated Power | 6kVA |
| Output Voltage | 28.5V DC |
| Voltage Adjustment | 20-32V DC |
| Output Current | Approx. 200A |
| Input Voltage | 380V Three Phase AC |
| Input Frequency | 50Hz / 60Hz |
| Voltage Stability | ±0.5% FS |
| Ripple | ≤0.25V |
| Efficiency | ≥93% |
| Display | Digital VFD display |
| Communication | RS232 / RS485 Modbus |
| Protection | Over current, overload, overheating, short circuit |
| Installation | Portable trolley type |
Application Areas
Aircraft Maintenance and MRO
GPU28200 supports:
Line maintenance
Aircraft inspection
Electrical system testing
Battery charging

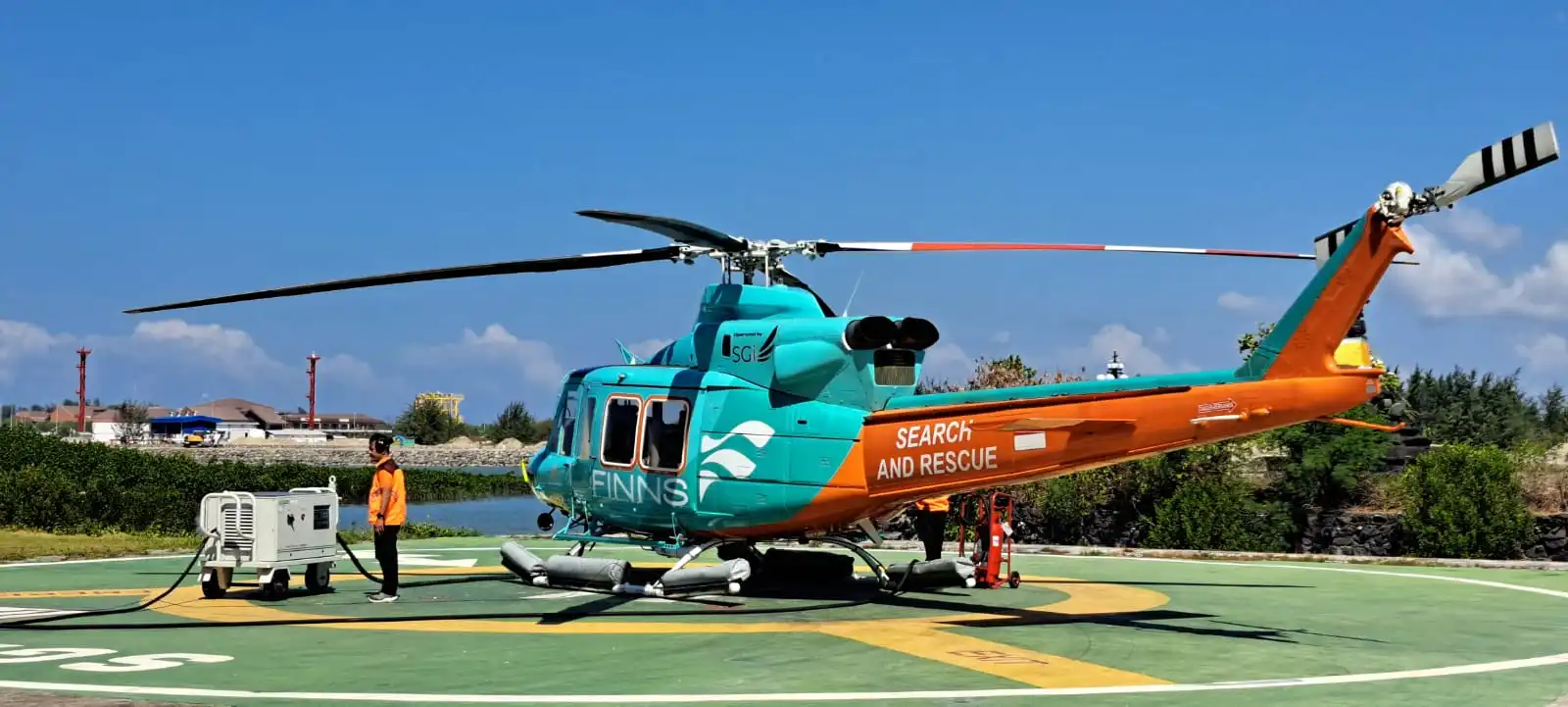

Helicopter Operations
Suitable for:
Helicopter maintenance stations
Offshore aviation support
Remote service locations
Regional Airports
Ideal for:
Ground support operations
Small aircraft servicing
Training aircraft maintenance
Frequently Asked Questions
What is a 28V DC Aircraft Ground Power Unit?
A 28V DC Aircraft Ground Power Unit provides external DC power for aircraft maintenance, battery charging and electrical testing without relying on onboard batteries.
Is GPU28200 suitable for helicopters?
Yes. The compact trolley-mounted structure makes GPU28200 suitable for helicopter maintenance and small aircraft ground operations.
Can GPU28200 be customized?
Yes. ACSOON supports OEM customization including output specifications, connectors, mechanical structure and communication options.
What is the difference between 28V DC GPU and 400Hz GPU?
A 28V DC GPU supplies direct current power mainly for aircraft battery systems and DC equipment, while a 400Hz GPU provides AC aircraft power for larger aircraft electrical systems.
If you need it,Contact us at Email: acpower@acsoonpower.com
ACSOON GPU28200 GPU Main Features
1. Reliable 28.5V DC Output
GPU28200 delivers stable DC power with:
Low ripple output
High voltage stability
Continuous operation capability
This helps protect sensitive aircraft electrical systems during maintenance.
The ADCW series provides 28.5V DC aircraft power with low ripple and excellent voltage stability under line and load changes.
2. High Efficiency Solid-State Technology
The static solid-state rectifier design provides:
Higher efficiency
Lower energy consumption
Reduced maintenance requirements
Reliable long-term operation
The ADCW series uses static solid-state rectifier technology designed for aircraft daily testing and maintenance applications.
3. Intelligent Monitoring and Protection
Built-in digital monitoring allows operators to check:
Output voltage
Output current
Power status
Operating conditions
Protection functions include:
Over current protection
Overload protection
Over temperature protection
Short circuit protection
The ADCW specification includes digital display monitoring and complete protection and alarm functions.
Why Choose ACSOON 28V DC Aircraft Ground Power Solution?
ACSOON specializes in aviation power equipment including:
28V DC Aircraft Ground Power Supply
400Hz Aircraft Ground Power Unit
Static Frequency Converter
Customized aviation power systems
Customer advantages:
19+ years manufacturing experience
OEM customization support
Aviation power engineering capability
International export experience
Professional technical support
Why GPU28200 Fits Southeast Asia and Middle East Markets?
Southeast Asia Aviation Applications
Many airports and aviation operators require compact equipment because of:
Limited maintenance space
High aircraft utilization
Regional airport development
Frequent helicopter operations
GPU28200 provides a practical mobile DC power solution for these environments.
Middle East Aviation Applications
For airports and aviation bases in hot climates, reliability and easy maintenance are important.
GPU28200 is suitable for:
Airport maintenance facilities
Business aviation service centers
Military and government aviation support
Remote aviation operations
Quality Control
Cold chamber test – Every unit runs at -30°C for 2 hours. Heater must hold internal temp above 0°C.
Hot chamber test – 55°C for 4 hours at full load. No over‑temp alarms.
IP56 water test – High‑pressure spray from all directions for 10 minutes. No water inside.
Sand test – Blown sand against the intake for 30 minutes. Filter catches it.
R&D Results
Heater placement – First unit had heater near the top. Heat rose, bottom stayed cold. Moved to the bottom. Much better.
Filter design – Original filter clogged fast in heavy dust. Switched to a cyclonic pre‑filter. Lasts 10x longer.
Door seals – Used automotive‑grade bulb seals. Stays flexible down to -40°C. No cracking.
Customer feedback – An Arctic operator wanted a way to check internal temp without opening the door. Added a display on the outside.
Packaging and Transportation
Shipped from Xi'an – On a heavy skid, bolted down, covered with a breathable waterproof cover.
No crate needed for domestic – The unit itself is the crate. For export, add a wooden crate.
Documentation – Laminated cold weather quick start, full manual on USB.
Extra filter – One spare filter included.
After‑Sales Service
1‑year warranty – Covers electronics, heater, fans. Filters are consumable.
Spare parts (heater element, fans, control board) kept in Xi'an.
Email support – We answer within one business day. Include temperature readings.
Qualification Certification
CE – LVD and EMC.
MIL‑STD‑810 – Environmental test report available.
ISO 9001:2015 – Our Xi'an facility.
FAQ
Q1: Do I need a separate power source for the heater?
A: No. The heater runs off the input power when the unit is plugged in. No extra connection.
Q2: Can I use this in a cold climate without the heater?
A: Not recommended. Electrolytic capacitors lose capacitance below -10°C. The heater keeps them warm. Without it, the unit may fail to start.
Q3: Is the filter washable?
A: The primary foam filter is washable. The secondary paper filter is not – replace it. We include one spare.
Q4: What's the difference between IP56 and IP54?
A: IP54 is dust‑protected and splashing water. IP56 is dust‑tight and high‑pressure water jets (hose down). This unit can be pressure‑washed from a distance.
Q5: Lead time from Xi'an?
A: 5‑6 weeks. The heater and sealed enclosure are built to order.
Contact ACSOON for GPU28200 28V DC Aircraft Ground Power Solution
If you are looking for a reliable 28V DC Aircraft Ground Power Unit manufacturer, ACSOON provides compact and customized DC power solutions for airports, MRO companies, helicopter operators and aviation service providers.
