Ground Power Unit (GPU) Airport

1.Power Configuration: 115V/200V 400Hz AC & 28.5VDC simultaneous output
2.AC Power Capacity: 90KVA to 180KVA, airport-grade power supply
3.DC Power Capacity: 28.5VDC 600A to 1000A
4.Input Power: 400-480V, three-phase, 50Hz/60Hz airport grid supply
5.Mobility System: Heavy-duty towable chassis with aircraft-grade tires and lighting
6.Environmental Rating: IP54 protection for all-weather airport operation
7.Key Features: Automatic aircraft recognition, remote monitoring, fault diagnostics
8.Brand: ACSOON (support OEM)
9.Compliance Standards: IATA AHM Chapter 10, ISO 6858, MIL-STD-704F.

Send Inquiry Download

Product Description

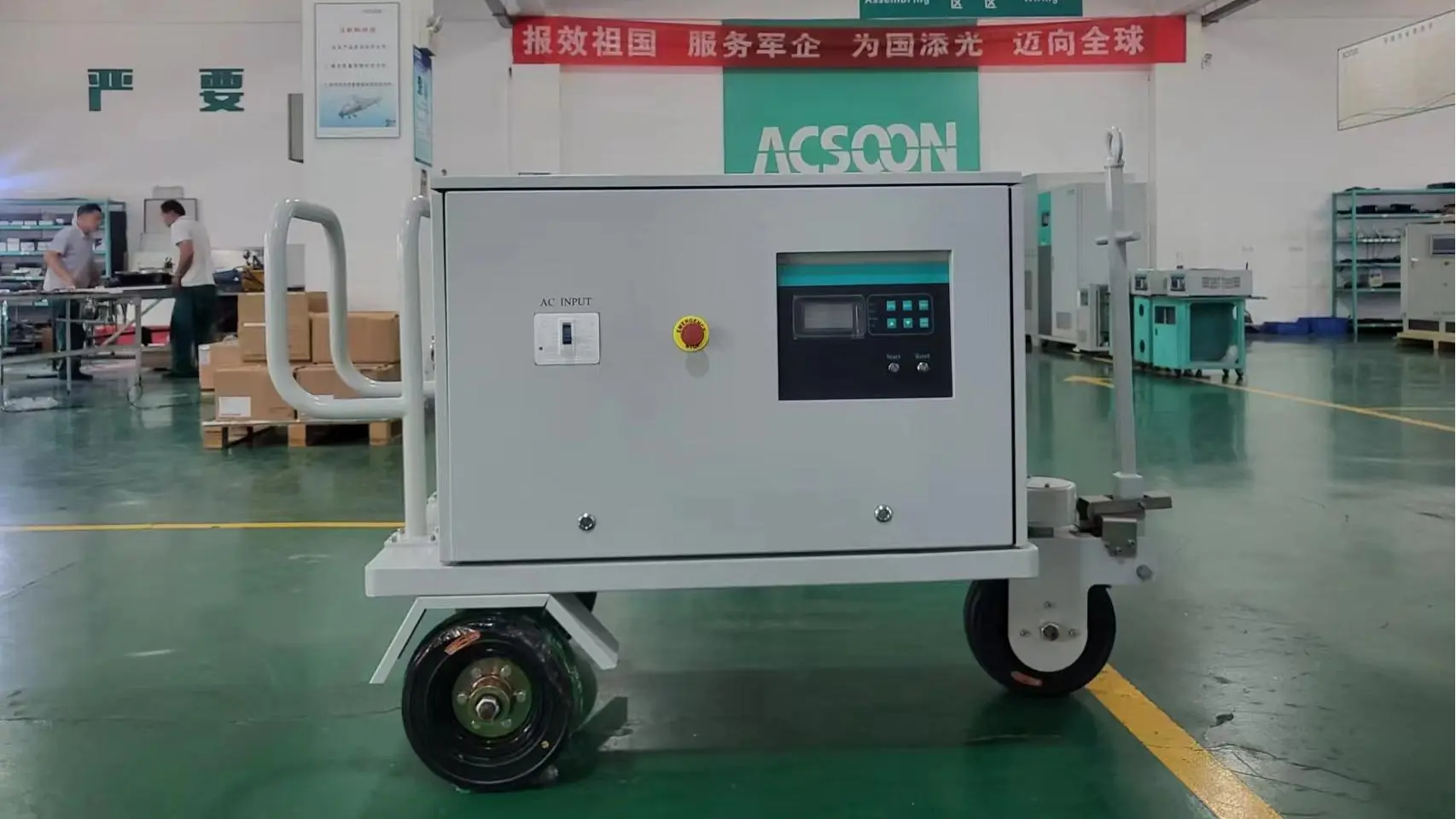

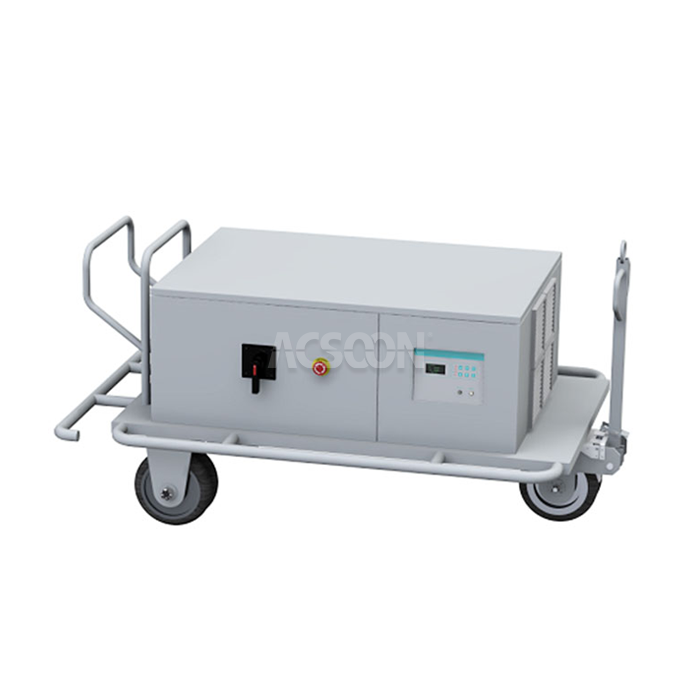

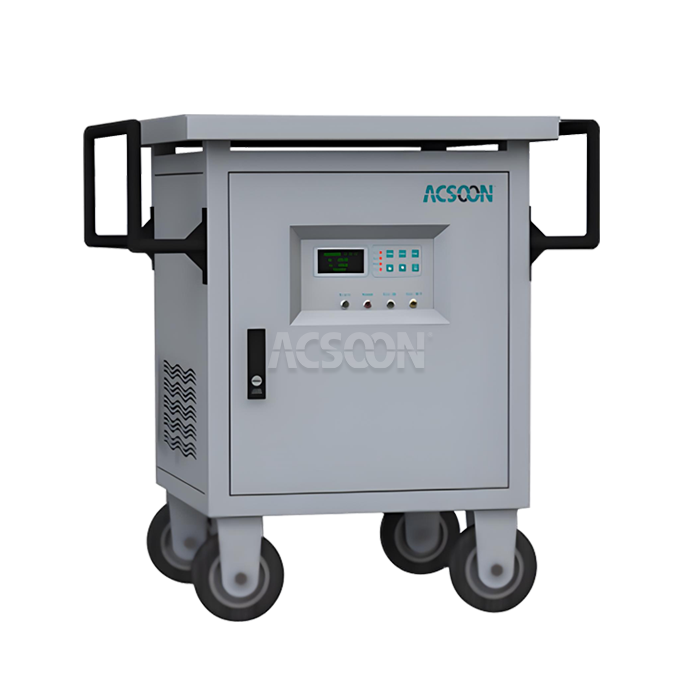

Ground Power Unit (GPU) Airport | Advanced Airport Ground Power System

XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the advanced Ground Power Unit (GPU) Airport, specifically engineered for modern airport ground operations. Our Ground Power Unit (GPU) Airport provides reliable and efficient ground power supply for commercial aircraft during turnaround operations, maintenance, and testing procedures, ensuring seamless airport operations and aircraft service continuity.

Feature	Specification
Input	Three Phase: 200-440VAC (L-L) ±20%
Frequency	40 - 70HZ
Output Voltage	DC 28.5V (adjustable 24V-32V)
Output Current	50A to 1000A
Voltage Regulation	±1%
Power Factor	≥0.9
Efficiency	≥85%
Ripple	<150mV, max 250mV (rms)
Display	VFD / LCD (Voltage, Current, Power)
Overload Capacity	125% for 10 min, 150% for 60s, 200% for 10s
Protections	Overvoltage, Undervoltage, Current Limiting, Overheating, Short Circuit
Operating Temperature	-10°C to 50°C
Humidity	10% - 95%
Altitude	<1800 meters
MTBF	30,000 hours
MTTR	<30 minutes
Standards Compliance	EN61000-6-2:2005, GJB152A-97, MIL-STD-704F

Auto voltage compensation system, ideal voltage at aircraft connector
Self diagnose system which would show error code on digital display
10 events memory stores
Pure sine wave, sinusoidal output
Completely protection and alarm for over voltage, over current and overheating, etc
Eco-friendly, lower power consumption with high efficiency
With 28VDC military interlock

ACSOON Ground Power Unit (GPU) Airport delivers exceptional performance for airport ground operations:

Airport-Optimized Design: Specifically engineered for high-frequency airport operations and rapid turnaround
Dual Power Output: Simultaneous 400Hz AC and 28VDC supply for comprehensive aircraft support
Enhanced Mobility: Airport-towable design with aviation-grade lighting and safety features
Smart Operation: Integrated aircraft recognition and automatic power management
All-Weather Reliability: Certified for operation in extreme airport environmental conditions

Application Areas

Our Ground Power Unit (GPU) Airport serves critical functions in airport operations:

Passenger Terminals: Aircraft gate operations and turnaround services
Maintenance Hangars: Scheduled maintenance and aircraft system checks
Cargo Operations: Freighter aircraft loading and unloading operations
Remote Stands: Aircraft parking positions without fixed ground power
Emergency Response: Emergency aircraft services and quick turnaround operations
Aircraft Testing: Engine run-up and system testing procedures

Quality Control

Each Ground Power Unit (GPU) Airport undergoes rigorous airport-grade validation:

Airport operation simulation testing
Extreme weather condition performance validation
Aircraft compatibility testing with various aircraft types
Safety and emergency procedure certification
Final airport operational readiness verification

R&D Results

Our technical advancements in Ground Power Unit (GPU) Airport technology include:

Advanced power management for optimal airport energy efficiency
Enhanced connectivity with airport management systems
Improved ergonomics for ground crew operation
Smart predictive maintenance capabilities
Reduced environmental impact with lower emissions and noise levels

Packaging and Transportation

We ensure airport-ready delivery of every Ground Power Unit (GPU) Airport:

Airport-specification packaging and protection
Customized shipping for international airport destinations
Complete documentation including airport compliance certificates
Global logistics coordination for airport equipment delivery

After-Sales Service

We provide comprehensive support for all Ground Power Unit (GPU) Airport installations:

24/7 airport operational support
On-site airport technician training and certification
Scheduled maintenance programs aligned with airport operations
Remote monitoring and diagnostics integration
Airport-specific spare parts inventory management

FAQ
Q1: What aircraft types are compatible with your Ground Power Unit (GPU) Airport?
A: Our units are compatible with all major commercial aircraft including Airbus A320, A330, A350, A380 families and Boeing 737, 777, 787 series aircraft.
Q2: How quickly can your Ground Power Unit (GPU) Airport be deployed at aircraft stands?
A: With optimized mobility and quick-connect systems, our units can be operational within 2 minutes of arrival at aircraft.
Q3: What safety features are specifically designed for airport operations?
A: Airport-specific safety features include aviation-grade lighting, anti-collision protection, emergency stop systems, and ground crew safety interlocks.
Q4: Can your Ground Power Unit (GPU) Airport integrate with airport management systems?
A: Yes, our units support integration with airport FIDS and ground handling management systems for optimized operations.
Q5: What is the maintenance schedule for airport operations?
A: We provide maintenance schedules aligned with airport operational requirements, including daily checks, weekly inspections, and comprehensive monthly maintenance.

For airport ground power solutions or technical specifications: acpower@acsoonpower.com , or submit your requirements using the form at the bottom of our website.
