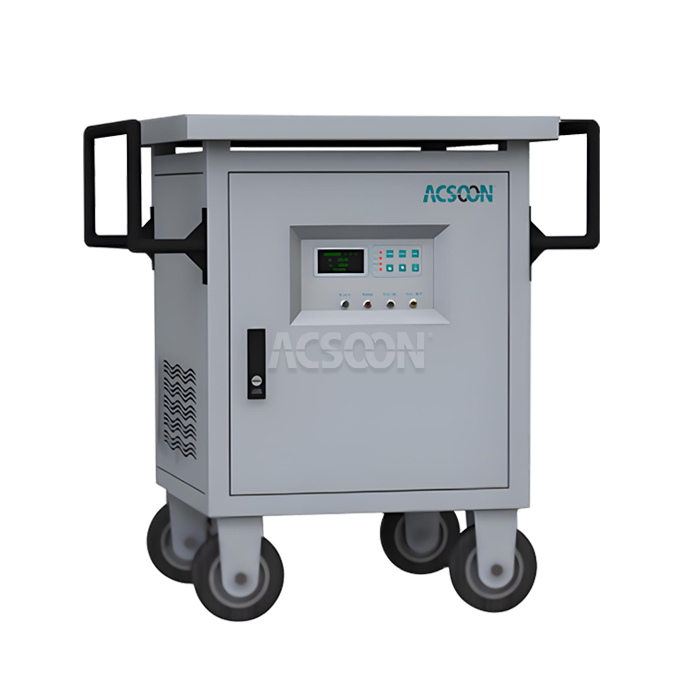

Lightweight 28V DC GPU
2.Technology: High‑frequency switching rectifier, fanless up to 100A
3.Input: 220V single‑phase or 380V three‑phase, 50/60Hz
4.Weight: A person can lift it – no tow bar needed
5.Applications: General aviation, helicopters, small bizjets, museum pieces
6.Key features: Carry handles, quiet operation, simple start/stop, short‑circuit proof
7.Brand: ACSOON (1‑year warranty, built in Xi’an).
- Product Description

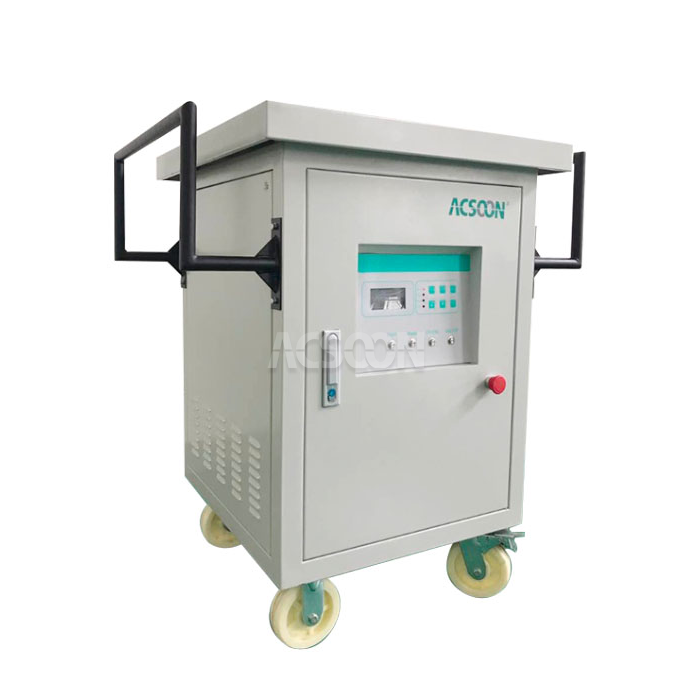

Lightweight 28V DC GPU | Portable DC Ground Power for General Aviation & Helicopters
Most 28V DC GPUs are heavy. They need wheels, a tow bar, and a strong back. But not every aircraft needs 600 amps. A Cessna Caravan, a Robinson helicopter, or an old Beechcraft barely draws 100 amps. So why drag around a 200kg monster?The Lightweight 28V DC GPU was built for smaller aircraft and smaller budgets. It's a compact rectifier with handles. One person can carry it from the bench to the aircraft. Plug it into any wall outlet, connect the NATO plug, and you've got clean 28V DC power. No tug, no trailer, no crane.We sell these to flight schools, private hangars, and museums with old warbirds. They work. And they cost about half what a cart‑style GPU runs.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON ADCW Series |
| Model Number | ADCW‑28200 |
| Input | 220V ±15% single‑phase, 50/60Hz (three‑phase optional) |
| Output | 28.5VDC nominal, adjustable 22‑32V, 200A continuous, 300A for 30 seconds |
| Ripple | ≤ 0.2V RMS |
| Regulation | ±1% line & load |
| Efficiency | ≥88% |
| Display | LED voltmeter and ammeter |
| Protections | Over‑current, short circuit, over‑temp, reverse polarity (fuse) |
| Cooling | Passive up to 100A, variable fan above |
| Output Cable | 3m, NATO plug (MS90355) |
| Compliance | MIL‑STD‑704 (voltage and ripple) |
If you need it,Contact us at Email: acpower@acsoonpower.com
Lightweight 28V DC GPU Main Features
- Adjustable voltage – 22‑32VDC. Set it for 28V for most aircraft, or 25.5V for older 24V systems.
- Current limit – Dial in a limit from 10A to 200A. Protects the aircraft's wiring.
- Short‑circuit proof – Output can be shorted indefinitely. The supply just goes into constant‑current mode.
- Reverse polarity protection – If you hook it up backwards, a diode takes the hit. Replaceable fuse inside.
Why Choose ACSOON Lightweight 28V DC GPU?
- Carry it yourself – Two handles, 18kg. A fit adult can manage. Older units needed a forklift.
- Quiet – No fan below 100A. At full load, a tiny fan spins but you won't notice.
- Works on any 220V outlet – Just plug it into the wall. No need for three‑phase.
- Simple as a battery charger – Turn it on, set the voltage, connect to the aircraft. That's it.

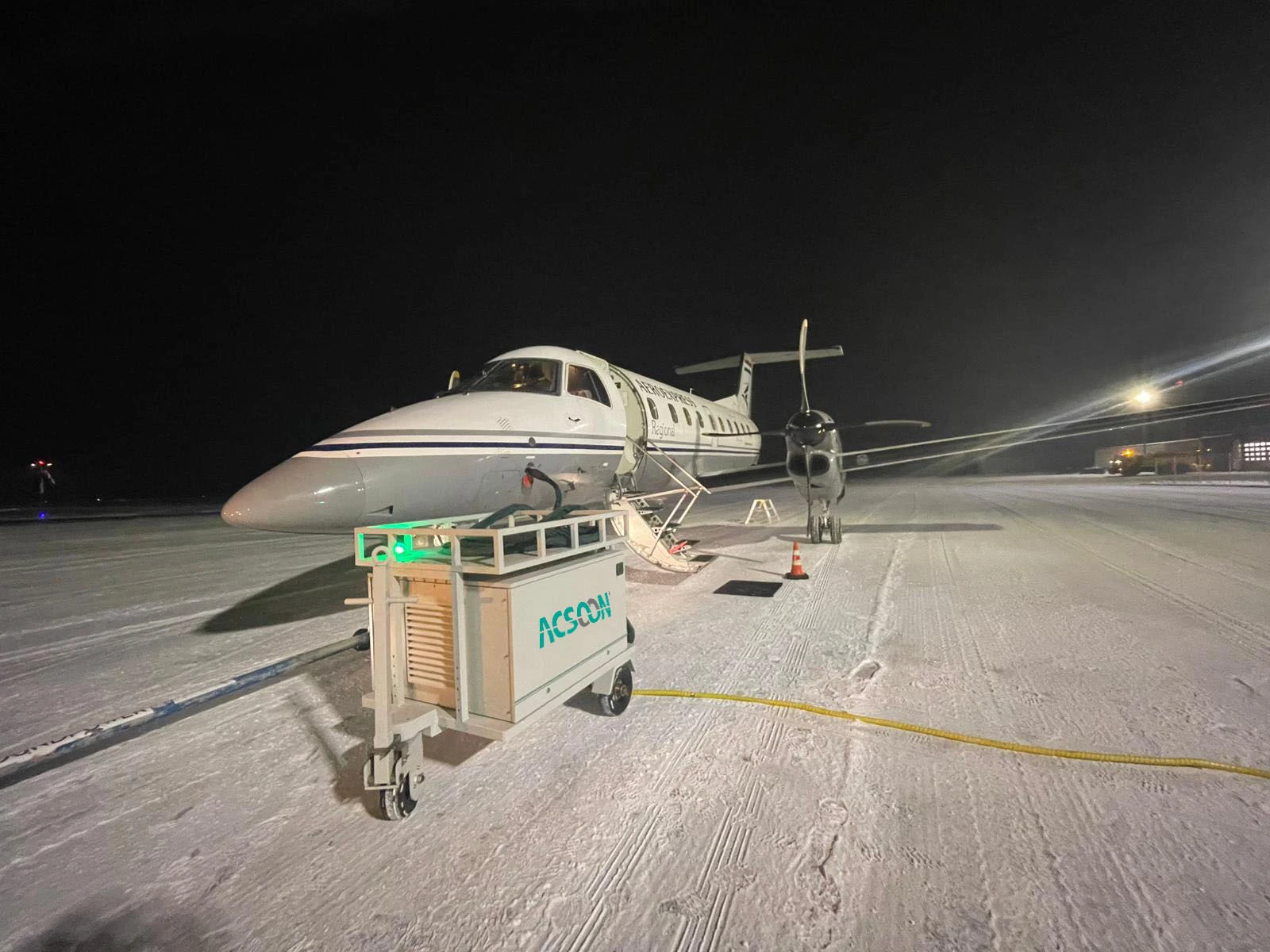

Lightweight 28V DC GPU Application Areas
- Flight schools – Daily pre‑heats and battery charges for Cessna 172, Piper Archer, Diamond DA40.
- Private aircraft hangars – Keep your Mooney or Cirrus battery topped up and ready to go.
- Helicopter operators – Robinson R22/R44, Bell 206. Ground power for avionics and rotor brake.
- Museums and restorations – Power up vintage warbirds without running the engine. Safe for old wiring.
Our Services
Quality Control
- Every unit load tested – 200A for 1 hour. Then 300A for 30 seconds. Thermal camera on it the whole time.
- Ripple measured – At 100A and 200A. Needs to stay under 0.2V RMS.
- Drop test – One from each batch gets dropped from waist height onto concrete. Must still power up.
- Final human check – Someone flips every switch, turns every knob, looks for loose screws.
R&D Results
- Weight reduction – First prototype used a heavy copper transformer. Switched to a high‑frequency ferrite design. Cut weight by more than half.
- Handle placement – Original had handles on the ends. Too awkward. Moved them to the top, centered. Much easier.
- Fan noise – Early version ran the fan all the time. Pilots complained. Now it only spins when needed.
- Added a carry strap – Optional shoulder strap for walking across the ramp. Some customers asked for it.
Packaging and Transportation
- Shipped from Xi'an – Cardboard box with foam. Small, fits in a courier van.
- Included – Power cord (2m), output cable with NATO plug, printed quick guide.
- Manual – Full manual on USB. Also a QR code to a video.
- Spare fuse – A 300A fuse for the reverse polarity protection. One extra.
After‑Sales Service
1‑year warranty – Send it back to Xi'an. We cover parts and labor.
Spare parts (fan, fuse, display board) kept in Xi'an. Ship express.
Email support – One business day. Real people.
Qualification Certification
CE – LVD and EMC tested；ISO 9001:2015 – Our Xi'an facility；MIL‑STD‑704 – Output characteristics tested. Report available.
FAQ |
|---|
| Q1: Can this unit start a jet engine? |
| A: No. 200A is fine for a small turbine APU start on a helicopter or a turboprop. For a 737 or A320 APU, you need 600A. We make bigger units for that. |
| Q2: What's the input current at full load? |
| A: On 220V single‑phase, about 15A. You'll need a dedicated 20A breaker. Don't run it off an extension cord rated for 10A. |
| Q3: Can I charge a 24V lead‑acid battery with it? |
| A: Yes. Set voltage to 28.8V (float) or 29.4V (equalize). Set current limit to the battery's recommended charge rate. The supply will run in constant‑current mode until the battery reaches set voltage. |
| Q4: Is the output isolated from the input? |
| A: Yes. There's a high‑frequency transformer. The output floats – you can ground one side if needed. |
| Q5: What's the lead time from Xi'an? |
| A: 3 weeks. We keep a few in stock for urgent orders – ask sales. |
