Narrow-Body Aircraft GPU
2.Technology: Solid-State Static Frequency Converter with 12-Pulse Rectifier
3.Input: 3-Phase, 400V/480V, 50/60Hz Airport Grid
4.Output: 115V/200V, 400Hz, MIL-STD-704 Compliant
5.Applications: Boeing 737, Airbus A320 Family, Regional Jets, Cargo Aircraft
6.Core Features: High Reliability, Compact Apron Footprint, Easy Operation, Low Maintenance
7.Brand: ACSOON (Fixed Pit or Mobile Cart Configuration).
- Product Description

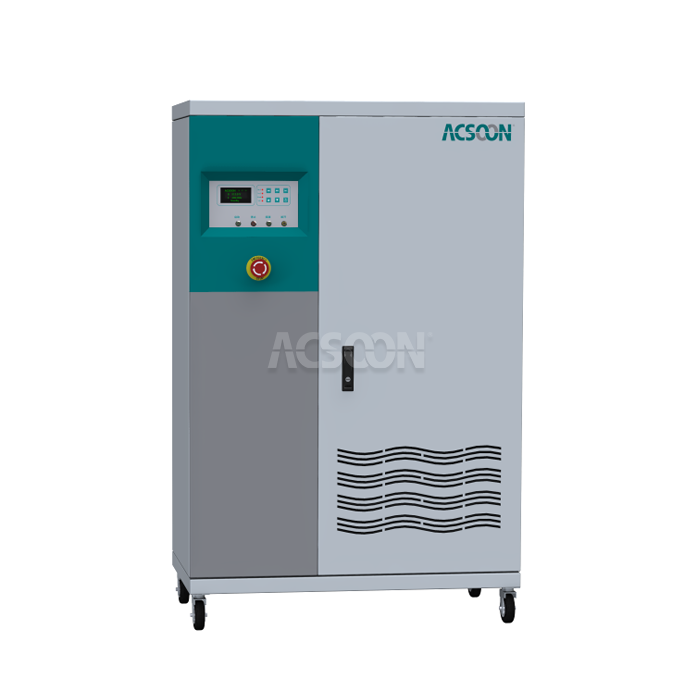

Narrow-Body Aircraft GPU | 400Hz Ground Power for Single-Aisle Aircraft
XI'AN JERRYSTAR INSTRUMENT CO., LTD delivers the reliable Narrow-Body Aircraft GPU, engineered to meet the high-cycle demands of the world's most common commercial aircraft. This robust 400Hz ground power unit provides the essential electrical power for Boeing 737 and Airbus A320 family aircraft during turnarounds, maintenance, and testing. Designed for durability and ease of use, it ensures efficient operations at busy gates and hangars.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON GPU400 Series |
| Input | 3-Phase 400V/480V ±15%, 50/60Hz |
| Output | Voltage: 115V/200V, 400Hz Power: 90kVA, 120kVA THD: <2% @ linear load |
| Compliance | MIL-STD-704F, ISO 6858 |
| Efficiency | ≥93% |
| Cooling | Forced Air (IP54 protected fans) |
| Control | VFD Display, Keypad Operation |
| Enclosure | Free-standing or Pit-Mount, IP54 |
Narrow-Body Aircraft GPU Main Features
- High Efficiency 12-Pulse Design: Reduces input harmonics and improves grid compatibility while achieving excellent efficiency.
- Rugged Industrial Construction: Steel cabinet with IP54 rating protects internal components from weather, dust, and jet blast.
- User-Friendly Control Panel: Clear VFD display and simple controls enable quick operation by ground crew with minimal training.
- Comprehensive Safety Systems: Includes over-voltage, over-current, short-circuit, and phase-loss protection with audible/visual alarms.
Why Choose ACSOON Narrow-Body Aircraft GPU?
- Optimized for High-Volume Operations: Built for the rapid turnaround schedule of single-aisle aircraft, with fast connection and reliable performance.
- Perfect Power Match: Delivers the precise 90kVA or 120kVA power profile required by narrow-body aircraft, preventing under or over-power situations.
- Low Total Cost of Ownership: High efficiency (≥93%) and durable design minimize energy costs and reduce maintenance downtime.

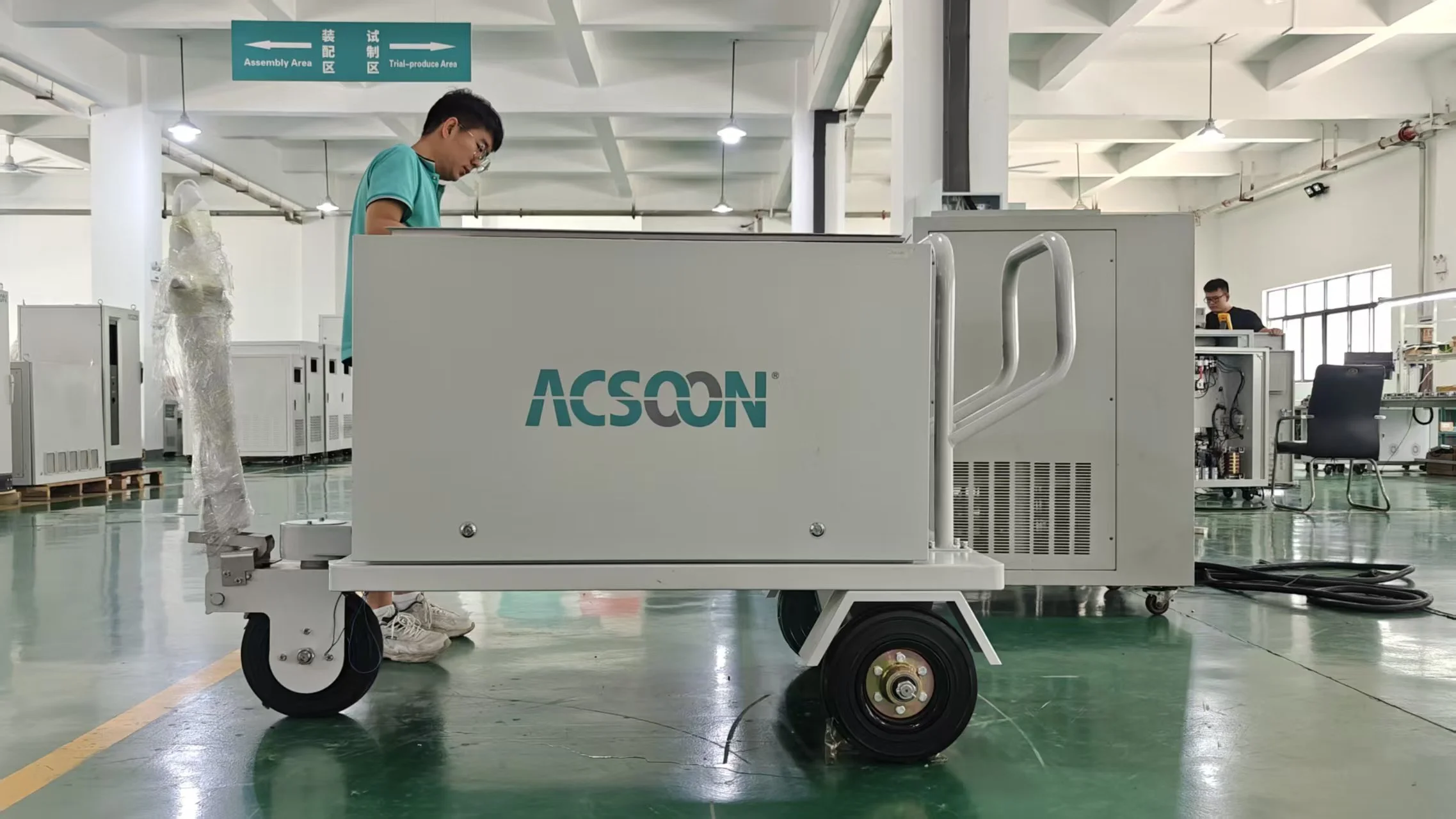

- Flexible Deployment: Available as a fixed pit unit for permanent gates or as a mobile cart for flexible apron operations.
Narrow-Body Aircraft GPU Application Areas
- Commercial Airport Gates: Primary ground power source for high-frequency short and medium-haul flight operations.
- Low-Cost Carrier (LCC) Terminals: Supporting fast turnarounds with reliable, easy-to-operate power.
- Cargo Aircraft Operations: Powering narrow-body freighters like the Boeing 737-800BCF during loading and unloading.
- Line Maintenance & Hangars: Essential tool for overnight checks, component testing, and routine aircraft servicing.
Our Services
Quality Control
- Full-Power Load Testing: Each unit undergoes extended testing at 100% and 125% load to verify thermal performance and stability.
- MIL-STD Waveform Validation: Output waveform purity, voltage accuracy, and frequency stability are verified against aircraft standards.
- Environmental Sealing Test: The IP54 enclosure is tested for dust and water spray resistance to ensure apron durability.
- Final Functional & Safety Audit: All control functions, displays, and protection circuits are thoroughly tested and documented.
R&D Results
- Optimized Cooling for High Ambient Temperatures: Enhanced thermal management system maintains performance in hot climate airport operations.

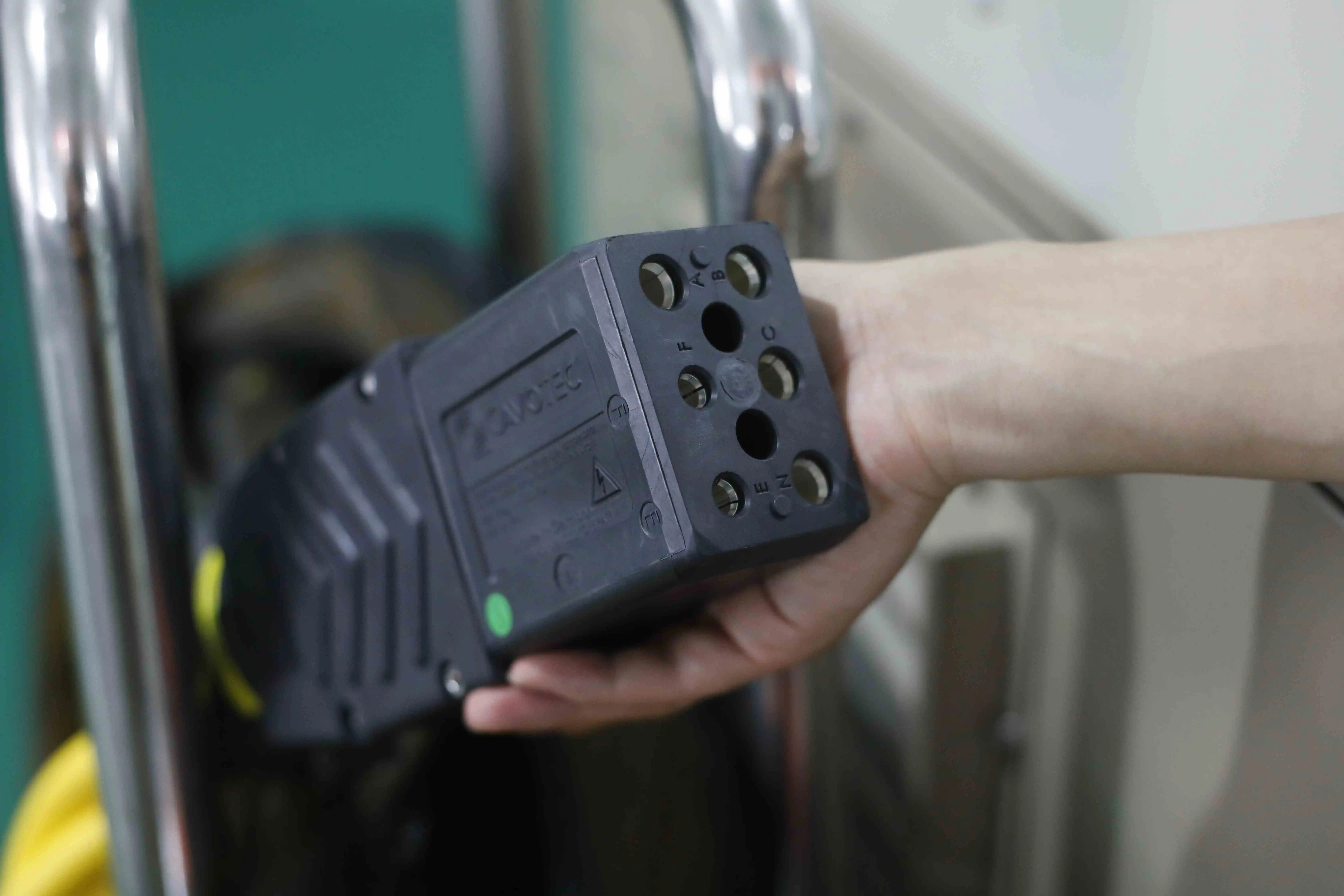

- Quick-Connection Interface: Developed a robust, foolproof aircraft connector interface that reduces connection time and prevents damage.
- Advanced Power Management Logic: Implemented intelligent sequencing to manage inrush currents and ensure smooth power application to the aircraft.
- Modular Design for Serviceability: Key components like IGBT modules and control boards are easily accessible and replaceable to minimize repair time.
Packaging and Transportation
Airport-Ready Packaging: The unit is securely mounted in a heavy-duty export crate designed for direct delivery to airport operations areas.
Complete Installation Kit: Includes all necessary cables, connectors, mounting hardware, and detailed site installation drawings.
Turnkey Documentation: Pack contains multilingual manuals, compliance certificates, spare parts list, and warranty information.
Global Airport Logistics: We coordinate specialized freight to airports worldwide, handling customs and airport authority documentation.
After‑Sales Service
We offer a 24-month warranty, 24/7 technical support hotline, on-site maintenance training for customer engineers, and guaranteed availability of critical spare parts.
Qualification Certification
ISO 9001:2015 Certified manufacturing quality system;CE Marked (where applicable for commercial components);Design & Test Verification: Full documentation package supporting compliance with MIL-STD-704 and MIL-STD-461 requirements;Test Reports: Comprehensive performance and environmental test reports are provided with each unit.
FAQ |
|---|
| Q1: What is the difference between 90kVA and 120kVA for narrow-body aircraft? |
| A: Most current Boeing 737 and Airbus A320 aircraft require 90kVA. The 120kVA rating is becoming more common for newer, more electrically demanding models (like the 737 MAX or A320neo with more electric systems) and provides future-proofing for fleet upgrades. |
| Q2: Can one GPU unit power two narrow-body aircraft at the same time? |
| No. Each aircraft requires its own dedicated GPU connection. The power system is designed to connect to one aircraft at a time to ensure proper power quality and safety. |
| Q3: How long does it take to install a fixed pit unit? |
| A: With proper site preparation (concrete pit, power conduit), installation and commissioning typically take 3-5 days with our technical supervision. |
| Q4: What maintenance is required? |
| A: Regular maintenance includes visual inspections, cleaning of air filters, checking electrical connections, and annual performance verification. We provide a detailed maintenance schedule. |
| Q5: Can this GPU be used with a 400Hz cable reel? |
| A: Yes, it is compatible with standard aircraft 400Hz cable reels. We can provide the unit with an integrated reel or interface with your existing apron infrastructure. |
