GPU 115V 400Hz
2.Power Capacity: 45KVA to 180KVA, scalable power options
3.Input Requirements: 380V-480V, three-phase, 50Hz/60Hz industrial supply
4.Voltage Stability: ±1% under varying load conditions
5.Frequency Precision: ±0.01% with digital frequency control
6.Primary Applications: Commercial aircraft ground power, airport gate operations
7.Key Features: Pure sine wave output, auto voltage compensation, mobile trolley design
8.Brand: ACSOON (support OEM)
9.Compliance Standards: MIL-STD-704F, ISO6858, EN61000
- Product Description
GPU 115V 400Hz | Aircraft Ground Power Unit 400Hz AC Supply
XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in manufacturing high-performance GPU 115V 400Hz systems for commercial aviation applications. Our GPU 115V 400Hz provides reliable 400Hz ground power for aircraft operations, delivering clean and stable power that meets the stringent requirements of modern commercial aircraft during turnaround, maintenance, and testing procedures.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input Voltage (Three Phase) | 200Vac, 208Vac, 380Vac, 400Vac, 415Vac, 440VAC (L-L) ±20% |
| Input Frequency | 40 - 70HZ |
| Output Voltage (Three Phase) | 200VAC / 208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300HZ - 500HZ adjustable |
| Voltage Regulation | ±1% |
| Frequency Stability | ≤0.1% |
| VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| Noise Level | <65dB at 1 meter |
GPU 115V 400Hz Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON GPU 115V 400Hz?
ACSOON GPU 115V 400Hz systems offer distinct advantages for commercial aviation ground operations:
Aircraft-Grade Power Quality: Pure sine wave output with THD<2% for sensitive avionics systems

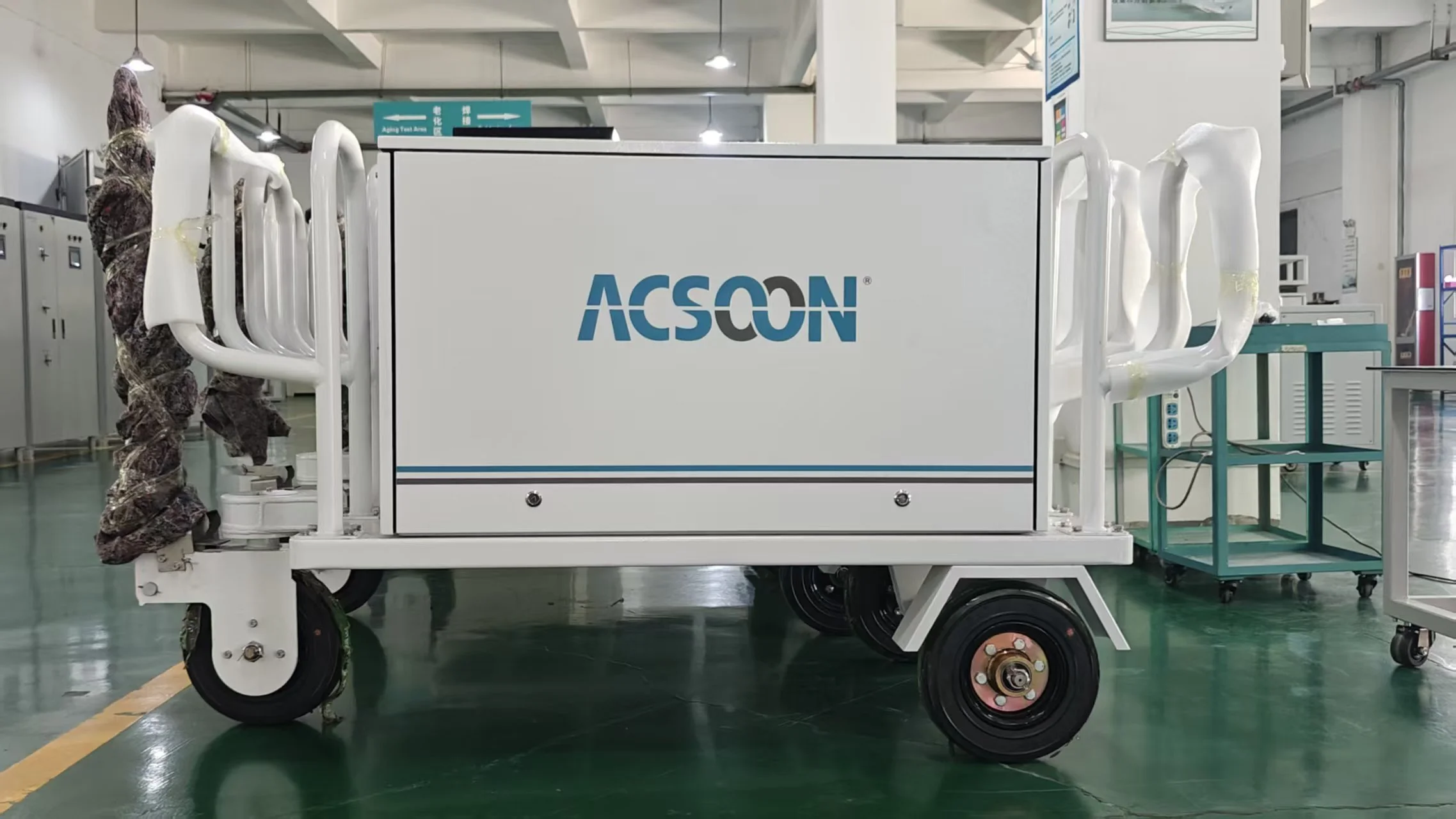

Robust Mobility: Heavy-duty trolley design with all-terrain wheels for airport operations
Intelligent Control: Auto voltage compensation and self-diagnosis system with error code display
Weather Resistance: IP54 protection for reliable operation in various weather conditions
Quick Connectivity: Standard aircraft plugs for rapid connection and disconnection
Application Areas
Our GPU 115V 400Hz serves essential functions in commercial aviation operations:
Airport Gate Operations: Aircraft power during passenger boarding and turnaround
Maintenance Hangars: Power supply for aircraft maintenance and system checks
Cargo Operations: Ground power for freighter aircraft loading and unloading
Aircraft Testing: Avionics testing and system validation procedures
Regional Airports: Compact power solutions for smaller airport operations
Emergency Support: Backup power for aircraft in emergency situations
Our Services
Quality Control
Every GPU 115V 400Hz unit undergoes comprehensive quality assurance:
Aviation-grade component selection and testing
Full-power endurance testing with simulated aircraft loads
Environmental testing for temperature, humidity, and vibration resistance
Safety interlock verification and protection system validation
Final certification against international aviation standards
R&D Results
Our technical innovations in GPU 115V 400Hz technology include:
Enhanced power conversion efficiency through advanced IGBT technology
Improved thermal management for continuous full-load operation
Smart monitoring algorithms for predictive maintenance capabilities
Reduced acoustic noise for improved airport working environment
Modular power architecture for flexible capacity expansion
Packaging and Transportation
We ensure secure delivery of every GPU 115V 400Hz system:
Heavy-duty export crating with reinforced corner protection
Custom foam inserts for component protection during transit
Complete documentation including operation manuals and certificates
Global logistics support with specialized aviation equipment handling
After-Sales Service
We provide comprehensive support for all GPU 115V 400Hz installations:
24/7 technical support for critical airport operations
On-site operator training and maintenance workshops
Scheduled maintenance programs and performance optimization
Software updates with enhanced functionality
Worldwide spare parts network for minimum downtime
Qualification Certification
FAQ |
|---|
| Q1: What aircraft types are compatible with your GPU 115V 400Hz? |
| A: Our systems are compatible with most commercial aircraft including Boeing and Airbus models that require 115V/200V 400Hz ground power. |
| Q2: How quickly can your GPU 115V 400Hz be deployed at aircraft? |
| A: With mobile trolley design and quick-connect aircraft plugs, our units can be operational within 2-3 minutes of arrival at aircraft. |
| Q3: What safety features are included in your GPU 115V 400Hz? |
| A: Safety features include over voltage protection, over current protection, short circuit protection, thermal overload protection, and safety interlocks. |
| Q4: Can your GPU 115V 400Hz operate in extreme weather conditions? |
| A: Yes, our units feature IP54 protection and are tested for operation in temperatures from -20°C to 50°C with humidity resistance. |
| Q5: What is the typical maintenance schedule for your GPU 115V 400Hz? |
| A: We recommend quarterly inspections and annual comprehensive maintenance, with detailed schedules provided in our operation manuals. |
