Frequency Converter 50Hz 60Hz: Efficiency and Loss Analysis
Frequency converters are very important in power systems because they change the frequency of electricity from one type to another. The frequency converter 50Hz 60Hz is a specialized device designed to convert power between these two common frequencies used worldwide. An in-depth look at the loss and effectiveness of these converters is given in this blog post. If there are any problems with them, they are looked at along with how they work. Inverting power is faster and wastes less energy when these devices are used. They also help the system work better as a whole. People who work with cross-border industrial automation systems or other jobs that need precise frequency control need to understand how frequency converters work. Let us walk you through the difficult process of going from 50Hz to 60Hz and show you how it changes different areas.
What are the key factors affecting the efficiency of a 50Hz to 60Hz frequency converter?
Power Rating and Load Conditions
The efficiency of a frequency converter 50Hz 60Hz is significantly influenced by its power rating and the load conditions under which it operates. For instance, the AF60W-330060 model, with a power rating of 60kVA, is designed to handle specific load ranges optimally. When operating within its rated capacity, the converter maintains high efficiency levels. However, efficiency can decrease when the converter is underloaded or overloaded. It's crucial to select a frequency converter with a power rating that closely matches the intended application's requirements. Additionally, the converter's efficiency varies depending on the load type – resistive, inductive, or capacitive – and how closely it matches the converter's design parameters.
Input Voltage and Frequency Stability
The stability of the input voltage and frequency plays a vital role in the efficiency of a frequency converter 50Hz 60Hz. The AF60W-330060 model, for example, is designed to handle a wide input voltage range of 208V-480V at 60Hz. However, fluctuations in the input voltage or frequency can lead to increased losses and reduced efficiency. Stable input conditions allow the converter to operate at its optimal point, minimizing switching losses and harmonics. Moreover, the converter's ability to handle voltage sags or surges without compromising output quality is crucial for maintaining high efficiency. Advanced features like real-time monitoring and bidirectional frequency adjustment contribute to better handling of input variations, thus enhancing overall efficiency.
Converter Topology and Switching Technology

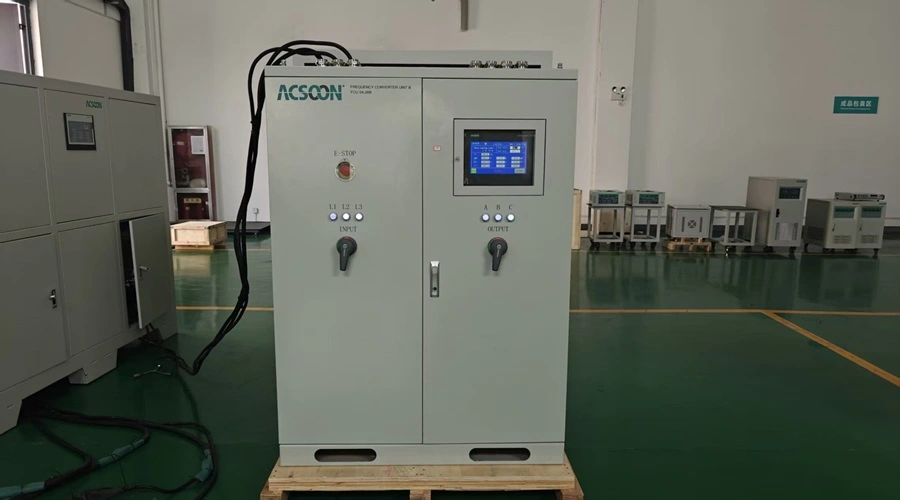

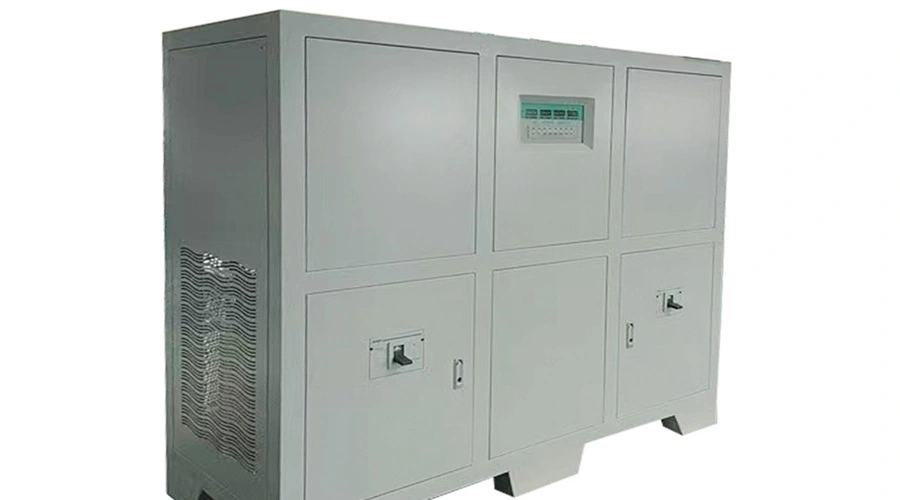

The topology and switching technology employed in a frequency converter 50Hz 60Hz significantly impact its efficiency and loss characteristics. Static frequency converters, like the AF60W-330060, utilize solid-state components for frequency conversion, offering higher efficiency compared to rotary converters. The switching devices used, such as IGBTs or MOSFETs, and their control algorithms determine the converter's switching losses. Advanced topologies with soft-switching techniques can further reduce these losses. The filtering parts of the converter and how they are built also affect harmonic distortion and power quality, which in turn affects how well the whole system works. The AF60W-330060's upright form with wheels also helps with cooling, which is important for keeping it running at a high level of efficiency.
How does a frequency converter 50Hz 60Hz minimize power losses?
Advanced Control Algorithms
Frequency converters 50Hz 60Hz employ sophisticated control algorithms to minimize power losses during the conversion process. These algorithms find the best ways for power electronics to switch on and off, which lowers switching losses and raises total efficiency. For instance, the AF60W-330060 model likely incorporates advanced pulse width modulation (PWM) techniques that adjust the switching frequency and duty cycle based on load conditions. The translator will be able to do a good job no matter how busy they are with this method. You can fix the power factor this way, too, which lowers reactive power and fluctuations that use up energy in the system.
Thermal Management and Cooling Systems
Effective thermal management is crucial for minimizing power losses in frequency converters 50Hz 60Hz. The AF60W-330060 model, with its IP21 ingress protection grade, is designed to balance protection against environmental factors with efficient heat dissipation. Modern cooling systems, like heat sinks, fans, or liquid cooling for higher power ratings, help keep the temperature at the right level for best performance. A cool converter keeps important parts from losing their strength and makes them last longer. There are also ways to control the conversion that change how it works based on the temperature. It works better and stays stable now.
Power Quality Improvement Features
Frequency converters 50Hz 60Hz often incorporate power quality improvement features to minimize losses and enhance overall system efficiency. One of these features could be active harmonic filters, which lower the amount of harmonic distortion in both the input and output currents. The converter lowers harmonics, which in turn lowers the losses in the system's lines, transformers, and other parts. Voltage drops and rises can also be fixed with dynamic voltage restore. This keeps the output stable and doesn't put too much stress on the devices that are attached. The AF60W-330060 model's ability to change frequency in both directions probably helps improve power quality by letting you finetune the output frequency and lower losses in the connected load even more.
What are the potential applications and benefits of using a 50Hz to 60Hz frequency converter?
Cross-Border Industrial Automation Systems
Frequency converters 50Hz 60Hz find extensive application in cross-border industrial automation systems, where equipment designed for different frequency standards needs to operate seamlessly. The AF60W-330060 model, with its ability to convert between 50Hz and 60Hz, enables manufacturers to use machinery from various global sources without compatibility issues. When making things like cars, technology, and clothes, where factories may use tools from more than one country, these adaptability benefits are very helpful. A frequency converter can help businesses improve their global supply chain, cut down on equipment costs, and get more out of their output. This is because it lets them work around regional power frequency standards.
Marine and Offshore Applications
The marine and offshore industries benefit significantly from frequency converters 50Hz 60Hz. Ships and offshore platforms often need to connect to shore power supplies with different frequencies when docked in various international ports. A converter like the AF60W-330060 allows vessels to utilize local power sources efficiently, reducing the need for onboard power generation and minimizing fuel consumption and emissions. Some military equipment was made to work with a certain frequency, and these converters make it possible for that equipment to work with any power source. Being able to change this makes things run more smoothly and makes it easier to handle power on ships and in offshore installations.
Testing and Research Facilities
Research laboratories and testing facilities frequently utilize frequency converters 50Hz 60Hz to simulate various power conditions for equipment testing and validation. In these situations, the AF60W-330060 model's ability to offer accurate frequency control is very useful. Engineers can try products in a variety of frequency environments to make sure they work with devices sold in all over the world. Electricity and computer companies can use this feature a lot because it lets them check how well their products work with different power sources. Professionals can also use these adapters to do tests that need a certain frequency range. It helps with the study of materials science, electromagnetics, and power systems.
Conclusion
Frequency converters 50Hz 60Hz, exemplified by models like the AF60W-330060, play a crucial role in bridging power frequency differences across global markets. Some of the things that determine how efficient and lossy a converter is are its power level, how stable its input is, and its topology. These converters' power quality, control systems, and heat management have all been improved. They work better and lose less power because of this. Some of the many things they can be used for are study, automating the workplace, and working at sea. You can use different types of equipment, do what you want, and have more testing choices when you work for them. As the world's connections get stronger, frequency conversion technology that works well and is dependable will become even more important. This will lead to more fresh thoughts in this area.
For more information on frequency converters and power solutions, contact Xi'an Jerrystar Instrument Co., Ltd, specialists in ACSOON brand power converters for aviation, industry, marine, and lab testing applications. Reach out to them at acpower@acsoonpower.com for custom solutions and expert advice.
FAQ
Q: What is the primary function of a 50Hz to 60Hz frequency converter?
A: It converts electrical power from 50Hz to 60Hz frequency, enabling equipment designed for one frequency to operate with power sources of another frequency.
Q: How does the power rating affect a frequency converter's efficiency?
A: The power rating determines the optimal load range for the converter. Operating within this range ensures maximum efficiency, while under or overloading can reduce efficiency.
Q: Can a 50Hz to 60Hz converter handle voltage conversion as well?
A: Yes, many models like the AF60W-330060 can handle a range of input and output voltages alongside frequency conversion.
Q: What are the key features to look for in a high-efficiency frequency converter?
A: Look for features like advanced control algorithms, effective cooling systems, power quality improvement capabilities, and bidirectional frequency adjustment.
Q: Are there any limitations to using frequency converters in industrial settings?
A: While highly versatile, considerations include power capacity limits, potential for harmonic distortion if not properly managed, and the need for proper sizing and installation.
Q: How do frequency converters contribute to energy savings in marine applications?
A: They allow ships to use shore power efficiently, reducing reliance on onboard generators, thereby saving fuel and reducing emissions.
