How does a 400 Hz frequency converter support ground power units?
While 400 Hz frequency converters are crucial in many industries, ground power units (GPUs) play a particularly pivotal role in the marine and aviation industries. These specialized converters are designed to transform standard 50/60 Hz power from the grid into the high-frequency 400 Hz power required by many aircraft and marine systems. Ground power units' 400 Hz frequency converters are crucial because they provide a consistent and trustworthy power source for essential machinery. Aircraft maintenance, pre-flight preparations, and other critical processes rely on ground power units, which are made possible by these devices that provide the required frequency conversion. The AF400M-330050 model, with its 50kVA power rating and ability to convert 3 Phase 208-480V, 60Hz input to 3 Phase 208-480V, 400Hz output, exemplifies the capabilities of modern frequency converters in supporting ground power units across various industries.
What are the key features of a 400 Hz frequency converter for marine applications?
High Frequency Stability
For uses at sea, nothing is more important than a 400 Hz frequency converter's exceptionally stable frequency output. The AF400M-330050 model, for instance, boasts a frequency stability of ±0.1% FS, ensuring optimal performance for marine equipment. An exceptionally stable power supply is critical for sensitive onboard systems. Because it does not alter in response to variations in load, the 400 Hz frequency converter's stability is of paramount importance in the dynamic marine environment. Marine power systems are more resistant to equipment failures, component wear and tear, and other issues thanks to these converters, which provide a constant and precise frequency output.
Robust Design for Marine Environments

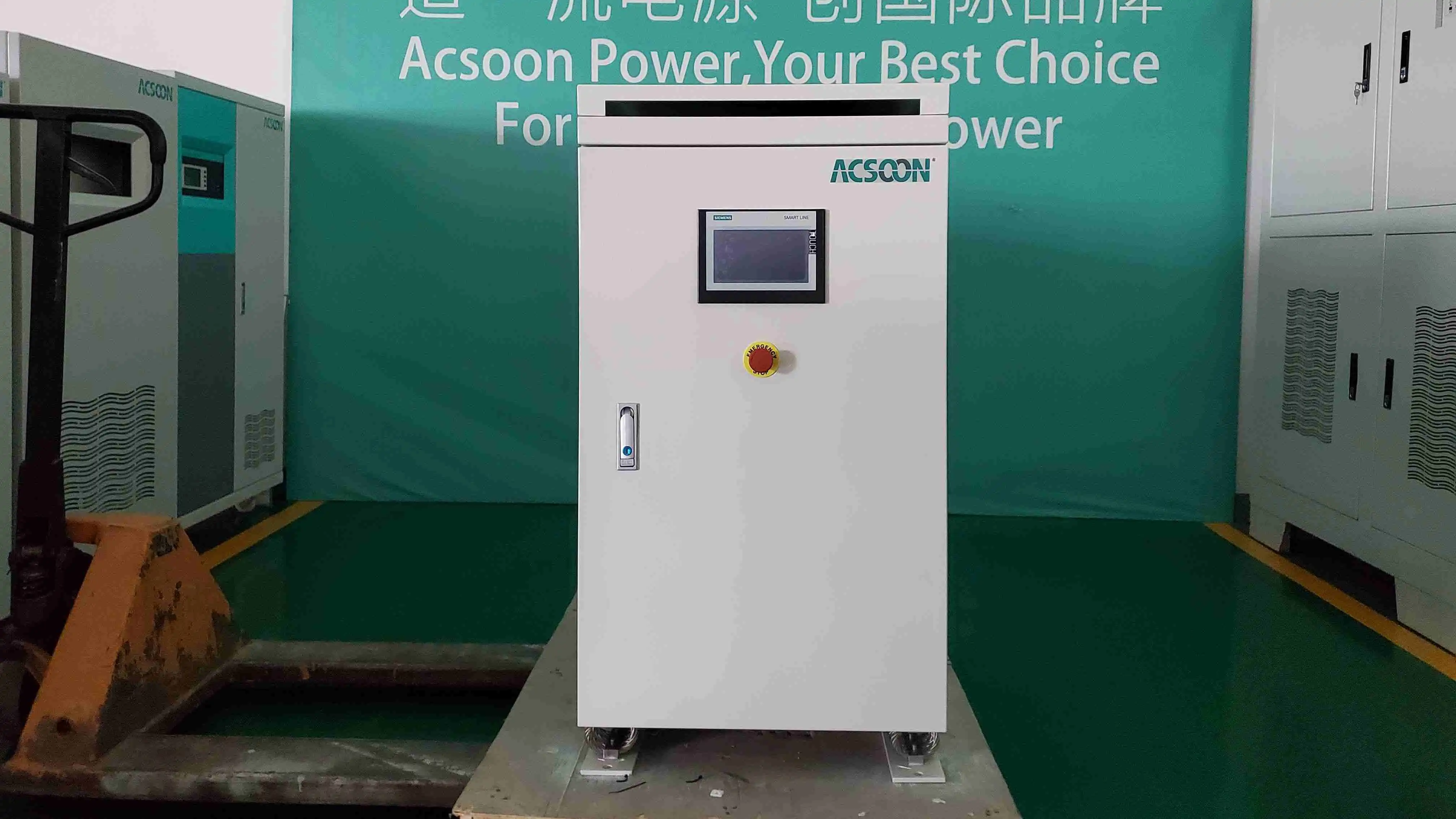

400 Hz frequency converters designed for marine applications must be built to withstand harsh maritime conditions. The AF400M-330050 model, with its IP21 ingress protection grade, exemplifies this robust design. Designed to withstand corrosion, high humidity, and salt spray, these converters will provide dependable performance for a long time even in the most extreme marine environments. The upright-mounted design with wheels offers both stability and mobility, allowing for easy positioning and relocation as needed on marine vessels. In addition, converters made of high-quality materials are more effective and resilient in difficult maritime settings since they can endure the typical vibrations and shocks seen in such environments.
Flexible Input and Output Capabilities
A key feature of advanced 400 Hz frequency converters for marine applications is their flexible input and output capabilities. The AF400M-330050 model, for example, can handle a wide range of input voltages (208-480V) and convert them to the required 400 Hz output. In maritime settings, where power supplies can fluctuate between ports or onboard generators, this adaptability is of the utmost importance. The ability to adapt to different input voltages without compromising output quality ensures that the frequency converter can provide consistent 400 Hz power across various scenarios. This converter's adjustable output voltage within the 208-480V range makes it ideal for a broad range of marine applications and ensures that it can satisfy the demands of varied marine equipment.
Why is frequency stability important in 400 Hz converters for ground power units?
Ensuring Equipment Performance
Frequency stability is paramount in 400 Hz converters for ground power units as it directly impacts the performance of connected equipment. The AF400M-330050 model's ±0.1% FS frequency stability ensures that sensitive aviation and marine equipment receives consistent power. This degree of dauntlessness is vital for the legitimate operation of the ship's mission-critical gear, counting its communication and navigational frameworks. Recurrence vacillations give a risk of wrong readings, framework disappointments, or indeed component harm. With a steady 400 Hz yield, these converters guarantee that all hardware works as planning, advertising the most extreme in constancy, security, and execution for oceanic and flying applications.
Preventing Damage to Sensitive Electronics
Protecting delicate electronics is just one more reason why frequency stability is so important in 400 Hz converters. Many aviation and marine systems are designed to operate specifically at 400 Hz, and deviations from this frequency can cause stress on components, leading to premature wear or failure. The AF400M-330050's precise frequency control helps prevent such issues by delivering a clean, stable power supply. Avionics, which depend on precise timing signals generated by the power source, are especially sensitive to this kind of stability. Because these converters keep the 400 Hz output constant, operators in the marine and aviation sectors can save money on repairs and downtime while extending the life of expensive and crucial equipment.
Compliance with Industry Standards
Frequency stability in 400 Hz converters is not just a matter of equipment performance but also of compliance with industry standards. Frequency stability is one of the many power quality standards enforced by the aviation and maritime sectors. The AF400M-330050 model's high stability (±0.1% FS) ensures compliance with these standards, making it suitable for use in certified ground power units. Meeting operating requirements specified by regulatory agencies, passing inspections, and maintaining safety standards all depend on this compliance. Using very stable frequency converters, operators may guarantee that their ground power units are up to par with or better than industry requirements, which helps with regulatory compliance and runs smoothly in airports and marine ports.
How do 400 Hz frequency converters enhance the efficiency of ground power units?
Reduced Power Loss
400 Hz frequency converters significantly enhance the efficiency of ground power units by reducing power loss during conversion and distribution. Because of the smaller transformers and power distribution components made possible by the higher frequency of 400 Hz, the power system as a whole is smaller and lighter. Because of the decrease in size and weight, the resistive losses in the cables and connectors are reduced. The AF400M-330050 model, with its static frequency conversion technology, further minimizes losses compared to rotary converters. These 400 Hz converters improve the efficiency of ground power units in aviation and marine applications by delivering a higher percentage of input power to the end equipment. This results in less energy waste and lower operational expenses.
Improved Power Quality
400 Hz frequency converters play a crucial role in enhancing the power quality delivered by ground power units. The AF400M-330050 model, for instance, not only provides stable frequency but also ensures clean, low-distortion power output. The proper functioning of delicate avionics and maritime electronics relies on this enhanced power quality. These converters aid in the prevention of problems like electromagnetic interference, which can impact the performance of vital equipment, by lowering harmonic distortion and keeping the voltage output steady. As a result of reduced stress on components and overall increased power quality, linked equipment lasts longer, and systems powered by these ground power units in airplanes and marine vessels are more reliable and require less maintenance.
Flexibility in Power Distribution
400 Hz recurrence converters improve the proficiency of ground control units by advertising adaptability in control conveyance. The AF400M-330050's capacity to handle a wide extend of input voltages and give movable yield voltages makes it flexible for different applications. This adaptability permits ground control units to proficiently serve diverse sorts of flying machine or marine vessels with shifting control necessities without the require for different specialized units. The inactive plan of these converters moreover empowers fast reaction to stack changes, guaranteeing steady control conveyance indeed amid fluctuating request. This flexibility not as it were progresses operational proficiency but too diminishes the generally hardware impression and capital speculation required for assorted control needs in flying and marine situations.
Conclusion
Any modern ground power unit would be incomplete without a 400 Hz frequency converter, which is an indispensable tool for aviation and maritime uses .Their ability to supply reliable power at the required 400 Hz frequency ensures that sensitive equipment will continue to operate optimally for an extended period of time. The AF400M-330050 model stands out among these converters because to its robust construction, flexible input/output options, and excellent frequency stability. These converters boost efficiency, enhance power quality, and provide versatile alternatives, making them crucial for supporting critical processes in a wide range of sectors. These specialist converters will play an increasingly important part in the future of aviation and maritime operations as the need for dependable and efficient 400 Hz power conversion in ground support equipment increases with the further evolution of technology.
For more information on 400 Hz frequency converters and ground power units, please contact Xi'an Jerrystar Instrument Co., Ltd. Specializing in ACSOON brand power converters for aviation, industry, marine, and lab testing applications, they offer a range of solutions including variable frequency converters, 400 Hz static frequency converters, voltage and frequency stabilizers, and ground power units. As a manufacturer and trading company with a 5,000-10,000 square meter factory in Xi'an, China, they provide custom-made solutions and maintain adequate inventory for quick delivery. For inquiries, please email acpower@acsoonpower.com.
