How does frequency converter 400Hz handle vibration on drilling rigs?
Frequency converters play an essential role in the oil and gas industry, particularly on drilling rigs that are subjected to extreme vibration and other harsh conditions. To reliably and steadily convert power in these harsh settings, the frequency converter 400hz was custom-built. The purpose of this research is to ensure that drilling rigs continue to function properly and to protect delicate equipment by delving into the specifics of how these converters deal with vibration. We will delve into the unique features of 400Hz frequency converters, such as the ACSOON AF400M-33075, that yields accurate output with remarkably minimal distortion and has been authorized for usage in aircraft. In order to maximize efficiency and prevent accidents during the rigorous onshore and offshore drilling operations, it is essential to understand the converters' capabilities.
What are the key features of 400Hz frequency converters that make them suitable for drilling rig environments?
Robust Construction and Vibration Resistance
400Hz frequency converters, such as the ACSOON AF400M-33075 model, are engineered with robust construction to withstand the harsh conditions present on drilling rigs. The strengthened chassis and components provide these converters the strength to endure vibration. The internal components are securely mounted and often utilize shock-absorbing materials to minimize the impact of continuous vibrations. Thanks to its IP21 ingress protection grade housing, which prevents dust and water, the converter becomes even more tough in hostile environments. There are fewer moving parts in these frequency converters' static architecture, making them more resistant to vibration. This is in contrast to rotary converters, which are more prone to mechanical problems caused by continual shaking.
Advanced Control Systems and Monitoring
Modern frequency converter 400hz incorporate advanced control systems that continuously monitor and adjust their operation to maintain stable output despite external disturbances. These systems use intricate algorithms that track input power and load conditions to quickly compensate for fluctuations caused by vibrations. The ACSOON AF400M-33075, for example, features precision 400Hz output with ultra-low distortion, ensuring that sensitive equipment receives clean and stable power even in the presence of intense vibration. Because it can react in milliseconds to changes in temperature, current, or voltage, the converter can identify and fix issues before they affect the rig's operations.
Flexible Mounting Options and Isolation

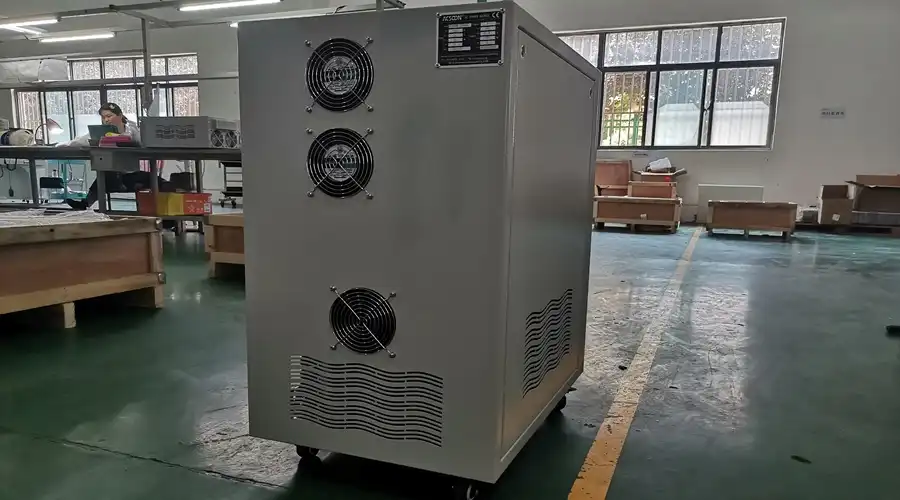

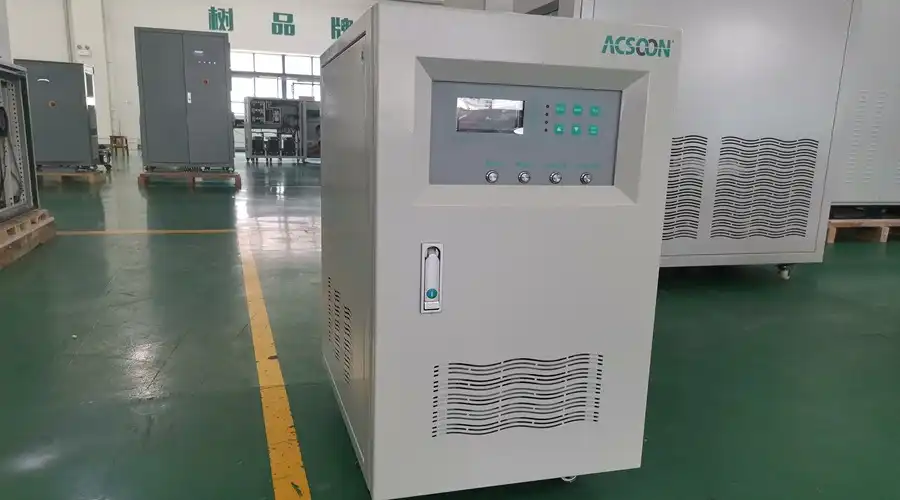

To further enhance their ability to handle vibration, 400Hz frequency converters often come with flexible mounting options. The ACSOON AF400M-33075 model, for instance, is a free-standing unit equipped with wheels, allowing for easy positioning and relocation as needed. The ability to move the converter around allows operators to find the sweet spot when vibration is at its lowest. Moreover, many installations incorporate vibration isolation mounts or platforms that absorb and dissipate mechanical energy before it reaches the converter. For more stable operation and longer equipment life, these isolation devices can greatly decrease vibration transfer from the rig structure to the frequency converter.
How do 400Hz frequency converters contribute to the reliability of drilling rig power systems?
Consistent Power Supply for Critical Equipment
Drilling rigs rely on 400Hz frequency converters to keep essential equipment powered up at all times. Several specialized tools and systems utilized in drilling operations rely on high-frequency power, which is provided by these converters, which change the conventional 50/60Hz electricity to 400Hz. The ACSOON AF400M-33075, with its 75kVA power rating and ability to handle input voltages from 208V to 480V, ensures that a wide range of equipment receives the precise power they require. Drilling equipment, including sensitive instruments, control systems, and communication devices, relies on this consistency to function reliably and efficiently.
Enhanced Power Quality and Stability
One of the key advantages of frequency converter 400hz is their ability to enhance power quality and stability on drilling rigs. These converters, certified for aviation standards, produce a clean sine wave output with minimal harmonic distortion. To avoid disruptions to electrical systems and minimize the possibility of equipment failure or damage, this high-quality electricity is crucial. The ACSOON AF400M-33075, with its ultra-low distortion output, ensures that even the most sensitive equipment operates reliably under challenging conditions. In order to prevent power surges, sags, and other electrical anomalies from interfering with drilling operations, these converters assist keep voltage and frequency levels steady.
Adaptability to Varying Load Conditions
Drilling rig power systems often face varying load conditions as different equipment is activated or deactivated during operations. To provide a consistent supply of electricity despite variations in demand, 400Hz frequency converters are engineered to swiftly adjust to such shifts. The static design of converters like the ACSOON AF400M-33075 allows for rapid response to load variations, maintaining output stability even during sudden changes. In the event of power outages or other quality problems, the reliability of drilling operations depends on this adaptability. With their wide input voltage and frequency handling capabilities, these converters accept a broad variety of power sources and improve the electrical system's stability.
What are the long-term benefits of using 400Hz frequency converters in drilling rig applications?
Extended Equipment Lifespan and Reduced Maintenance
Among the several long-term benefits of installing 400Hz frequency converters on drilling rigs are the reduction of maintenance requirements and the extension of equipment lifespan. Electric motors and other electrical components endure less strain and wear and tear thanks to these converters, which supply clean, steady power at the right frequency. The ACSOON AF400M-33075, with its precision output and low distortion, helps prevent premature equipment failure caused by power quality issues. Reduced operational expenses are the end consequence of fewer breakdowns and fewer maintenance interventions. These frequency converters will continue to work reliably for a long time even in the most extreme drilling conditions because of their sturdy build.
Improved Energy Efficiency and Operational Flexibility
Drilling rigs can benefit from frequency converter 400hz since they optimize power conversion and distribution, leading to greater energy efficiency. Due to the high-frequency output, smaller and lighter motors and transformers can be used in a variety of applications, which in turn reduces the overall weight and power consumption. The ACSOON AF400M-33075, with its static design, offers high efficiency in power conversion, minimizing energy losses. Because of its efficiency, the rig consumes less fuel and has lower operating costs. One aspect that contributes to the converters' field-flexibility is its capacity to accept a wide range of input voltages and frequencies. A rig's adaptability to varied operating circumstances is enhanced when it has a 400Hz converter, which allows it to interact with renewable energy systems or adapt to changing power sources more easily.
Enhanced Safety and Regulatory Compliance
The utilize of 400Hz recurrence converters like the ACSOON AF400M-33075 contributes essentially to upgraded security and administrative compliance on penetrating rigs. These converters are regularly certified to meet rigid flying and mechanical measures, guaranteeing they work securely in unsafe situations. By giving steady, high-quality control, they diminish the hazard of electrical deficiencies or hardware breakdowns that seem lead to security episodes. The accuracy control and observing capabilities of these converters moreover encourage way better in general control administration on the fix, permitting administrators to rapidly distinguish and address potential issues some time recently they heighten. In the long term, this proactive approach to control quality and security can lead to progressed administrative compliance, diminished protections costs, and a way better security record for the boring operation.
Conclusion
Drilling rigs rely heavily on frequency converter 400hz like the ACSOON AF400M-33075 to manage vibration and provide a steady power source. They are culminate for utilize in challenging areas due to their durable construct, modern control frameworks, and versatile mounting choices. By improving vitality proficiency, reacting to changing stack circumstances, and providing imperative hardware with steady, high-quality control, these converters offer assistance make penetrating operations more solid as a entirety. Expanded working adaptability, less support costs, longer hardware life expectancy, and superior security compliance are a few of the long-term focal points. Solid control transformation arrangements, such as 400Hz recurrence converters, will gotten to be progressively critical in the ever-changing oil and gas industry. These converters guarantee that penetrating operations in troublesome settings be conducted proficiently and securely.
Get in touch with Xi'an Jerrystar Instrument Co., Ltd. if you want to know more about the ACSOON brand of power converters and how they are used in the aviation, industrial, marine, and laboratory testing sectors. Their extensive product catalog includes voltage and frequency stabilizers, ground power units, 400 Hz static frequency converters, variable frequency converters, and more. The company is a specialized manufacturer and trader. With a factory size of 5,000-10,000 square meters located at 1688 Chama Avenue, Jinghe New Town, Xixian New District, Xi'an City, Shaanxi Province, China, they have the capacity to handle custom orders and maintain adequate inventory for quick delivery. For inquiries, please email acpower@acsoonpower.com.
