How Does Shore Power Supply to Ships Integrate With Port Grids?
Shore power supply to ships, also known as cold ironing or alternative maritime power (AMP), is an innovative technology that has revolutionized the maritime industry by providing a cleaner and more efficient power solution for vessels docked at ports. This system allows ships to connect to the local electricity grid while berthed, enabling them to shut down their auxiliary engines and reduce emissions. The integration of shore power supply with port grids is a complex process that involves careful planning, infrastructure development, and technological advancements. As ports worldwide strive to reduce their environmental impact and comply with increasingly stringent regulations, the adoption of shore power systems has become a crucial aspect of sustainable port operations. This blog will explore the intricacies of how shore power supply to ships integrates with port grids, discussing the challenges, benefits, and future prospects of this transformative technology.
What Are the Key Components of a Shore Power Supply System?
Power Distribution Infrastructure
The power distribution infrastructure is a critical component of the shore power supply system, serving as the backbone for delivering electricity from the port grid to docked ships. This infrastructure typically includes high-voltage substations, transformers, and underground cable networks designed to handle the substantial power requirements of vessels. Shore power systems often utilize a rated power of 600kVA or higher, with the ability to customize power capacity based on specific port and vessel needs. The distribution system must be capable of providing a stable 3-phase mains supply, with frequencies of 50Hz or 60Hz, depending on regional standards and ship requirements. To ensure seamless integration with port grids, the power distribution infrastructure must be carefully planned and implemented, taking into account factors such as load balancing, voltage regulation, and fault protection.
Frequency Conversion Equipment
Shore power supply to ships relies on frequency conversion equipment, which plays a vital role in shore power supply systems, enabling the adaptation of grid power to meet the specific electrical requirements of various ships. Many vessels operate on different frequencies than those provided by local power grids, necessitating the use of static frequency converters. These converters typically employ 6-pulse or 12-pulse rectifying circuits to transform the input voltage and frequency to the desired output. For instance, a shore power system might need to convert a 50Hz grid supply to a 60Hz output suitable for ship systems. The frequency conversion process ensures precise output voltage and frequency stability, which is crucial for the safe and efficient operation of onboard electrical systems. Additionally, these converters often feature containerized outdoor protection with an IP65 rating, allowing for reliable operation in harsh marine environments.
Connection Interfaces and Safety Systems
The connection interfaces and safety systems are essential components that facilitate the physical link between ships and shore power supply infrastructure while ensuring the safety of personnel and equipment. These systems typically include standardized power connectors, cable management systems, and interlocking mechanisms to prevent accidental disconnection during power transfer. Safety features such as grounding systems, circuit breakers, and emergency shutdown mechanisms are integrated to protect against electrical faults and overloads. The shore power supply system must also incorporate advanced monitoring and control systems to manage power flow, detect anomalies, and ensure seamless synchronization between ship and shore power sources. These interfaces and safety systems are designed to comply with international standards and regulations, such as IEC/IEEE 80005-1, which governs the requirements for high-voltage shore connection systems.
How Do Ports Upgrade Their Infrastructure to Accommodate Shore Power?
Grid Capacity Assessment and Upgrades
Before implementing a shore power supply system, ports must conduct a thorough assessment of their existing grid capacity to determine if it can handle the additional load demanded by docked vessels. This evaluation involves analyzing the current power distribution network, identifying potential bottlenecks, and projecting future energy requirements based on expected ship traffic and power needs. In many cases, ports find it necessary to upgrade their electrical infrastructure, which may include installing new substations, increasing transformer capacity, or reinforcing transmission lines. The upgrades often require close collaboration with local utility companies to ensure that the port's power demands can be met without compromising the stability of the regional grid. Additionally, ports may need to implement smart grid technologies and load management systems to optimize power distribution and prevent overloads during peak usage periods.
Installation of Shore-Side Power Systems

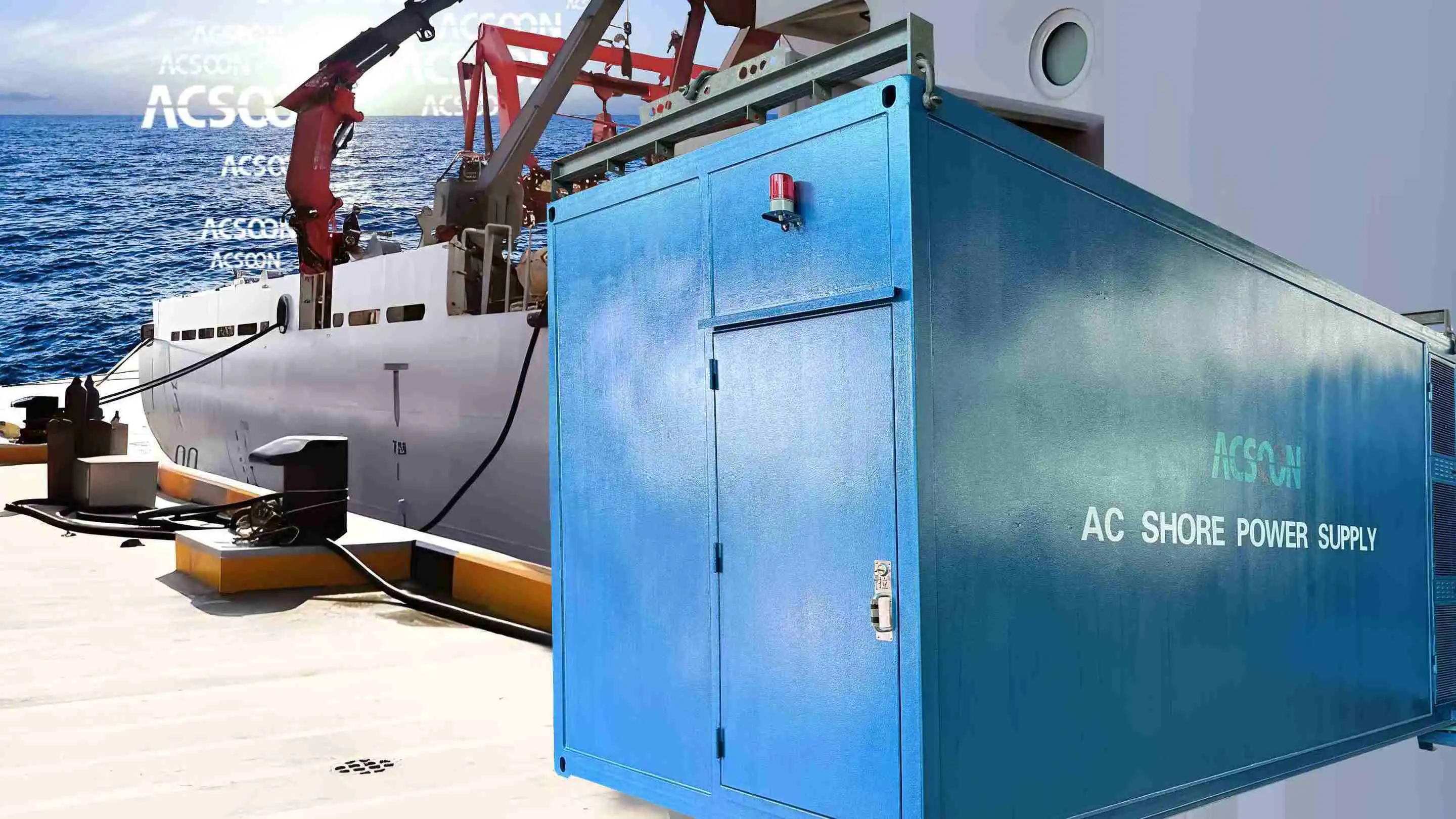

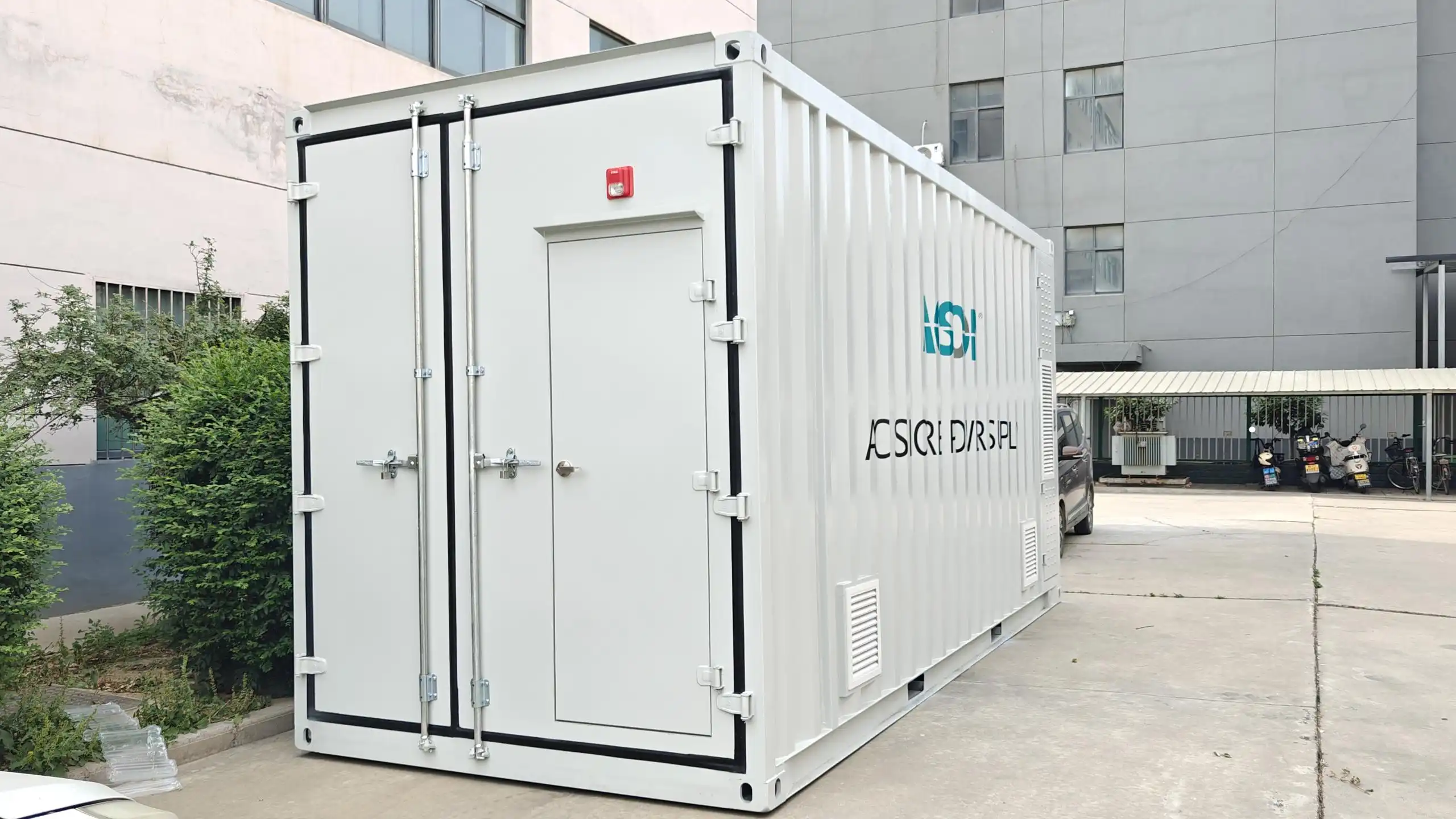

Shore power supply to ships involves the installation of shore-side power systems, which is a complex process that involves careful planning and execution to ensure seamless integration with existing port infrastructure. This process typically begins with the construction of dedicated power supply points along the quayside, which may include underground vaults or above-ground connection boxes. These points house the necessary electrical equipment, such as transformers, switchgear, and frequency converters. The shore power supply system must be designed to accommodate various vessel types and sizes, often requiring multiple connection points with different voltage and frequency capabilities. Installation also involves laying high-capacity cables from the main substation to the connection points, ensuring proper insulation and protection against the corrosive marine environment. Ports may opt for modular, containerized solutions that offer flexibility and ease of installation, such as those with IP65 protection ratings suitable for outdoor use in maritime settings.
Regulatory Compliance and Standardization
Ensuring regulatory compliance and standardization is crucial when upgrading port infrastructure to accommodate shore power supply systems. Ports must adhere to a range of international, national, and local regulations governing electrical safety, environmental protection, and maritime operations. This includes compliance with standards such as IEC/IEEE 80005-1 for high-voltage shore connections and ISO/IEC/IEEE 80005-3 for low-voltage shore connections. Standardization efforts are essential to ensure interoperability between different shore power systems and vessels from various regions. Ports must also consider environmental regulations, such as those outlined in the International Maritime Organization's (IMO) MARPOL Annex VI, which aims to reduce air pollution from ships. By implementing standardized shore power solutions, ports can facilitate easier adoption by shipping companies and ensure that their infrastructure remains compatible with evolving technologies and regulations in the maritime industry.
What Are the Environmental and Economic Benefits of Shore Power Integration?
Reduction in Greenhouse Gas Emissions
One of the primary environmental benefits of integrating shore power supply systems with port grids is the significant reduction in greenhouse gas emissions. When ships connect to shore power, they can shut down their auxiliary engines, which typically run on heavy fuel oil or diesel, and instead draw electricity from the local grid. This shift dramatically reduces the emission of pollutants such as carbon dioxide (CO2), nitrogen oxides (NOx), sulfur oxides (SOx), and particulate matter. The extent of emission reduction depends on various factors, including the energy mix of the local grid and the duration of ship stays at port. However, studies have shown that shore power can lead to emission reductions of up to 98% compared to running auxiliary engines. This substantial decrease in air pollution not only contributes to global efforts to combat climate change but also improves air quality in port cities, benefiting local communities and ecosystems.
Energy Efficiency and Cost Savings
Shore power supply to ships contributes to the integration of shore power supply systems with port grids, offering significant energy efficiency improvements and potential cost savings for both ports and shipping companies. Shore power systems, typically rated at 600kVA or higher, can be more efficient in converting and delivering electricity compared to the auxiliary engines of ships. This efficiency translates to reduced fuel consumption and lower overall energy costs. While the initial investment in shore power infrastructure can be substantial, the long-term operational savings can offset these costs. Shipping companies can benefit from reduced fuel expenses and lower maintenance costs for auxiliary engines. Additionally, as environmental regulations become stricter and carbon pricing mechanisms are implemented, the economic advantages of shore power are likely to increase. Ports can also potentially generate revenue by selling electricity to ships, creating a new income stream while promoting sustainable practices.
Improved Port Competitiveness and Sustainability
The integration of shore power supply systems with port grids can significantly enhance a port's competitiveness and sustainability profile. As environmental considerations become increasingly important in the shipping industry, ports equipped with shore power capabilities are better positioned to attract eco-conscious shipping lines and cargo owners. This can lead to increased port traffic and revenue. Moreover, the implementation of shore power aligns with global sustainability initiatives and can help ports meet environmental targets set by local and national governments. The reduced noise and vibration from ships using shore power also contribute to improved working conditions for port staff and better relations with nearby communities. By demonstrating a commitment to sustainable practices, ports can enhance their reputation, potentially leading to preferential treatment in terms of funding, permits, and expansion opportunities. The adoption of shore power technology also positions ports at the forefront of maritime innovation, preparing them for future developments in green shipping and port operations.
Conclusion
Shore power supply to ships is an essential aspect of the integration of shore power supply systems with port grids, which represents a significant step towards sustainable and efficient maritime operations. By enabling ships to connect to local electricity grids while berthed, this technology dramatically reduces emissions, improves energy efficiency, and offers long-term economic benefits. As ports worldwide upgrade their infrastructure to accommodate shore power, they not only comply with increasingly stringent environmental regulations but also enhance their competitiveness in the global shipping industry. The successful implementation of shore power systems requires careful planning, substantial investment, and collaboration between ports, shipping companies, and regulatory bodies. As the maritime sector continues to evolve towards greener practices, shore power integration will play a crucial role in shaping the future of sustainable port operations.
For more information on shore power supply systems and other power conversion solutions, please contact Xi'an Jerrystar Instrument Co., Ltd. As specialists in ACSOON brand power converters for various applications including marine and industrial use, we offer a range of products such as Variable Frequency Converters, 400 Hz Static Frequency Converters, and Voltage and Frequency Stabilizers. Our manufacturing facilities in Xi'an, China, span 5,000-10,000 square meters, allowing us to provide custom-made solutions and maintain adequate inventory for quick delivery. To learn more about our products and services, please email us at acpower@acsoonpower.com.
References
1. International Maritime Organization. (2020). "Prevention of Air Pollution from Ships."
2. IEEE. (2019). "IEEE/ISO/IEC 80005-1:2019 - Utility connections in port - Part 1: High Voltage Shore Connection (HVSC) Systems - General requirements."
3. Innes, A., & Monios, J. (2018). "Identifying the unique challenges of installing cold ironing at small and medium ports – The case of Aberdeen." Transportation Research Part D: Transport and Environment, 62, 298-313.
4. Zis, T. P. V. (2019). "Prospects of cold ironing as an emissions reduction option." Transportation Research Part A: Policy and Practice, 119, 82-95.
5. Ballini, F., & Bozzo, R. (2015). "Air pollution from ships in ports: The socio-economic benefit of cold-ironing technology." Research in Transportation Business & Management, 17, 92-98.
6. Winkel, R., Weddige, U., Johnsen, D., Hoen, V., & Papaefthimiou, S. (2016). "Shore Side Electricity in Europe: Potential and environmental benefits." Energy Policy, 88, 584-593.
