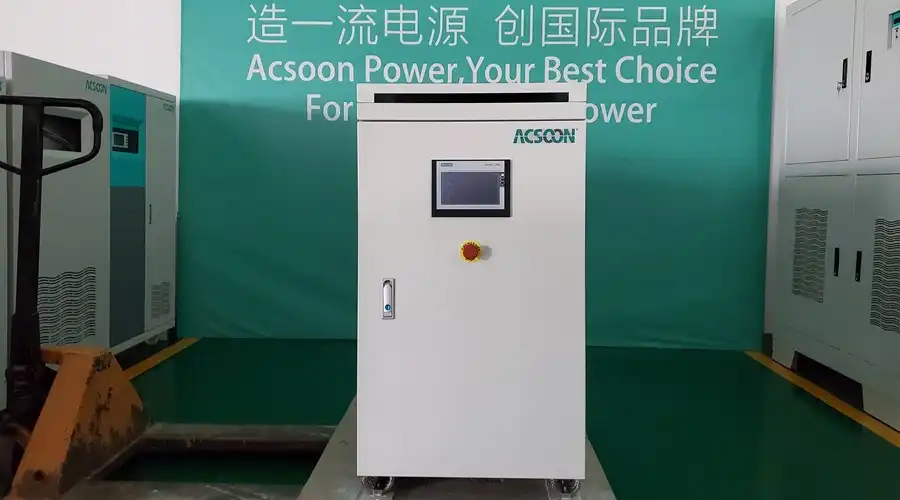

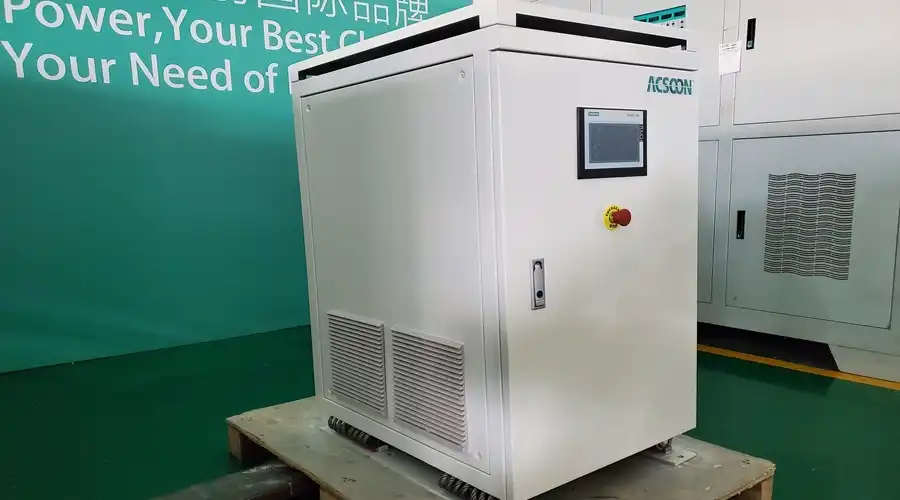

Lightweight solid state 400Hz Converter for Business and General Aviation
Power conversion is a very important part of making sure that aircraft systems work smoothly in both business and general flying. The Lightweight solid state 400Hz Converter has become a game-changing device that has changed the way power is distributed in modern airplanes. This new technology provides a small, effective, and dependable way to change normal 50/60Hz power to the 400Hz frequency needed by most aircraft systems. These converters are better than standard rotary converters because they use solid-state components, which make them lighter and more durable. The introduction of small, light solid state 400Hz converters has greatly improved the power management of both business and general aviation aircraft. This has led to higher operating efficiency, lower maintenance costs, and better overall flight safety.
What are the key benefits of using a solid-state 400Hz converter in aviation?
Improved Efficiency and Reliability
For flight uses, solid state 400Hz converters are much better in terms of efficiency and dependability. High power transfer efficiency (usually over 90%) is achieved by these converters by using advanced semiconductor technology. This higher level of efficiency means less heat production and less energy waste, which saves money for operators. The solid state design gets rid of all the moving parts, which makes it much more reliable and lessens the need for regular upkeep. Solid state 400Hz converters protect against overvoltage, overcurrent, overload, and overheating, and they also accurately control the AC voltage (±1% FS). This makes sure that important aircraft systems always have a safe and stable power supply. These converters are more reliable, which makes planes more available and cuts down on downtime, which is important for both business and general flying.
Compact Design and Weight Reduction
When compared to standard rotary converters, solid state 400Hz converters are smaller and lighter, which is one of their best features. When big mechanical parts are taken out, the structure becomes more streamlined and lighter. This is especially helpful in aviation uses where every kilogram counts. One example is the GPU400-33500 model, which has a power level of 500kVA and a pretty small size. This weight loss helps planes use less fuel and carry more cargo. Solid state converters are also easier to install and integrate into current aircraft systems because they are small. This gives you more options for where to put them and how they are set up. Also, because these converters are smaller and lighter, they work great in smaller general aviation planes that have to deal with more space and weight issues.
Versatility and Adaptability
Solid state 400Hz converters are incredibly flexible and can be used in a wide range of aviation uses. These converters can work with a lot of different voltages and speeds (208V to 480V and 50Hz to 60Hz), so they can be used in many places and with many different power sources. Being able to provide a stable 400Hz output across 208V to 480V voltage levels makes it compatible with many different flight systems. Because they are so flexible, they can be used in a wide range of aviation situations, from small private planes to bigger business jets. Solid state converters are also great for use on the ground, like powering radar systems and other important airport equipment. Models like the GPU400-33500 have an IP54 ingress protection grade that makes sure they work reliably in a wide range of weather conditions. This makes them even more flexible. Also, some makers, like ACSOON, let you customize their converters so they fit the needs of your aircraft and your operations.
How does a solid state 400Hz converter enhance aircraft performance and safety?
Stable Power Supply for Critical Systems
Solid state 400Hz converters are very important for improving the performance and safety of aircraft because they provide a stable and reliable power source to important systems on board. These converters offer exact voltage regulation (±1% FS), which makes sure that sensitive avionics, navigation equipment, and other important systems always get power without any changes that could affect how they work. Modern planes depend a lot on complicated electrical systems for safety features, communications, and flight control. This stability is very important for those systems. The 400Hz frequency that these converters provide is best for airplane systems and makes motors, pumps, and other electrical parts work more efficiently. Solid state 400Hz converters help make sure that there is a steady and clean power source. This makes aircraft operations safer and more reliable by lowering the chance that systems will fail or malfunction during important parts of the flight.
Reduced Electromagnetic Interference
One of the best things about solid state 400Hz converters for improving the performance and safety of airplanes is that they can reduce electromagnetic interference (EMI). EMI from old-style rotary converters can be very strong and mess up critical communication and aviation electronics. Solid state converters, on the other hand, make a lot less EMI because they use modern electronic switching technology and filtering systems. This lower level of EMI helps make conversations clearer, navigation more accurate, and aircraft systems work better overall. The lower EMI also helps meet strict aviation rules about electromagnetic compatibility, which makes sure that the converter doesn't mess up other electronic systems on board or communications with the outside world. Solid state 400Hz converters help keep important aircraft systems working properly by giving them a cleaner power source with less electromagnetic noise. This makes the whole flight safer.
Improved Fault Detection and Protection
Solid state 400Hz converters have improved fault detection and protection features that make planes safer in a big way. There are advanced tracking systems built into these converters that can quickly find and fix a number of electrical problems, including overvoltage, overcurrent, overload, and overheating. Solid state technology has fast response times that let it shut down or lower the power right away if something goes wrong. This keeps airplane systems from getting damaged and lowers the risk of electrical fires and other dangerous situations. There are a lot of current solid state converters that can also diagnose themselves. This lets you do preventative maintenance and find problems early on, before they get worse. Adding this better fault protection and detection system not only makes flying safer, but it also helps keep repair costs low and makes more planes available. In the event of a partial converter failure, the ability to quickly isolate and fix electrical problems keeps important systems running, making the total safety and reliability of aircraft power systems even better.
What are the future trends in solid state 400Hz converter technology for aviation?
Integration of Advanced Power Electronics
Better power electronics will have a big impact on the future of solid state 400Hz converter technology in flight. GaN and silicon carbide (SiC), which have wide bandgaps, are two examples of more advanced semiconductor materials that will likely be used in more advanced electronics. Compared to silicon-based electronics, these materials are more efficient, switch faster, and work better at high temperatures. When these new semiconductors are used in solid state 400Hz converters, designs will be even smaller, power density will be better, and the system as a whole will work more efficiently. More advanced control formulas and digital signal processing methods will also make it possible to fine-tune power conversion, which will make the output even more stable and accurate. These improvements will make solid state 400Hz converters even better at what they do, which will make them even more appealing for use in flight, where size, weight, and efficiency are all very important.
Enhanced Connectivity and Smart Features
As the aviation industry moves toward smarter and more connected systems, it's possible that future solid state 400Hz converters will have better smart and connected features. This could include adding Internet of Things (IoT) features that let you watch in real time, do diagnostics from afar, and plan maintenance ahead of time. These smart converters might give useful information about how much power is being used, the health of the system, and performance measures. This could make managing the fleet and planning maintenance easier. We might also see the creation of adaptive converters that can change their output automatically based on the power needs of various aircraft systems or operating situations. Adding AI and machine learning algorithms to the converter could make it even better at distributing power efficiently, spotting possible problems, and adapting to changing environmental conditions. These smart features will not only make aircraft power systems more reliable and efficient, but they will also help lower running costs and raise safety by preventing problems before they happen.
Increased Focus on Sustainability and Energy Efficiency
As the aircraft industry is put under more and more pressure to have less of an effect on the environment, future trends in solid state 400Hz converter technology are likely to put a lot of emphasis on being environmentally friendly and saving energy. To do this, converters with even better efficiency ratings, maybe even more than 95%, may need to be made. More work on finding new power-conversion materials and topologies could help cut down on energy waste and heat production even more. There may also be energy recovery systems built into these converters that can take energy that would have been lost during the change and use it again. There may also be a greater focus on using materials and production methods that are better for the earth when making these converters. As more electric planes are made, solid state 400Hz converters may become even more important for managing and spreading power efficiently across different aircraft systems. More and more bi-directional converters that can handle both AC and DC power distribution could be made. This would be in line with the move toward more flexible and efficient power architectures in future aircraft designs.
Conclusion
The Lightweight solid state 400Hz Converter has become an important tool in both business and general aviation, providing big benefits in terms of performance, dependability, and efficiency. As we've seen, these converters keep vital systems' power stable, lower electromagnetic interference, and offer advanced fault protection, all while keeping their small and light design. In the future, we can expect power electronics to get even better, connectivity to get better, and a bigger focus on being environmentally friendly. These changes will keep pushing the boundaries of solid state 400Hz converter technology, which will ultimately lead to better aircraft performance, safety, and operational efficiency in the aviation business.
For those seeking high-quality, solid state 400Hz converters and other power solutions for aviation applications, Xi'an Jerrystar Instrument Co., Ltd offers a range of products under the ACSOON brand. With expertise in aviation and military power systems, they provide custom solutions and quick delivery from their 5,000-10,000 square meter facility in Xi'an, China. For more information or inquiries, please contact them at acpower@acsoonpower.com.
FAQ
Q: What is the main advantage of a solid state 400Hz converter over a rotary converter?
A: Solid state converters offer higher efficiency, improved reliability, reduced size and weight, and lower maintenance requirements compared to rotary converters.
Q: Can solid state 400Hz converters handle different input voltages?
A: Yes, many models can handle a wide range of input voltages, typically from 208V to 480V, making them versatile for various power sources.
Q: How do solid state 400Hz converters contribute to aircraft safety?
A: They provide stable power supply, reduce electromagnetic interference, and offer advanced fault detection and protection features.
Q: Are solid state 400Hz converters suitable for all types of aircraft?
A: These converters are versatile and can be used in various aircraft types, from small general aviation planes to larger business jets.
Q: What future developments can we expect in solid state 400Hz converter technology?
A: Future trends include the integration of advanced power electronics, enhanced connectivity and smart features, and increased focus on sustainability and energy efficiency.
Q: How do solid state 400Hz converters impact aircraft maintenance?
A: They generally require less maintenance than traditional converters due to their solid state design, and some models offer self-diagnostic capabilities for proactive maintenance.
