Selecting a 115v 400hz inverter for Ground Support Equipment
Getting the right 115v 400hz inverter is very important for flight companies that need to power ground support equipment. These specialized inverters are very important because they change regular grid power to the exact voltage and frequency that airplanes and other related equipment need. You need to think about a lot of things when choosing an inverter, such as the power level, the input and output specs, and the needs of the application. When picking a 115v 400hz generator for ground support equipment, this article will talk about the most important things to keep in mind. It will talk about the technical side, the perks, and how it can be used in real life. A person who works at an airport or in aviation can make smart decisions about how to make sure that the power source for their ground support operations is stable and effective if they know how these inverters work.
What are the key features to consider when choosing a 115v 400hz inverter?
Power Rating and Capacity
When selecting a 115v 400hz inverter for ground support equipment, one of the primary considerations is the power rating and capacity. The inverter must be capable of handling the power requirements of the equipment it will be supplying. For instance, the AF400M-310003 model from ACSOON offers a power rating of 3kVA, which is suitable for many ground support applications. It's essential to assess the total power consumption of all connected devices and choose an inverter with a capacity that exceeds this requirement by at least 20% to ensure stable operation and allow for potential future expansion. Additionally, the inverter should be able to handle peak loads without compromising performance or safety.
Input and Output Specifications
The input and output specifications of a 115v 400hz inverter are critical factors in its selection process. The AF400M-310003 model, for example, accepts a wide range of input voltages (3 Phase 208-480V) and frequencies (50Hz/60Hz), making it versatile for various power sources. On the output side, it delivers the required 1 Phase 115V at 400Hz, which is the standard for most aircraft and ground support equipment. When picking an inverter, it's important to make sure that its input specifications match the power source you have access to and that its output specifications match the needs of your equipment. Some inverters may have extra features, such as the ability to control voltage or correct power factor, which can be useful in some situations.
Design and Form Factor

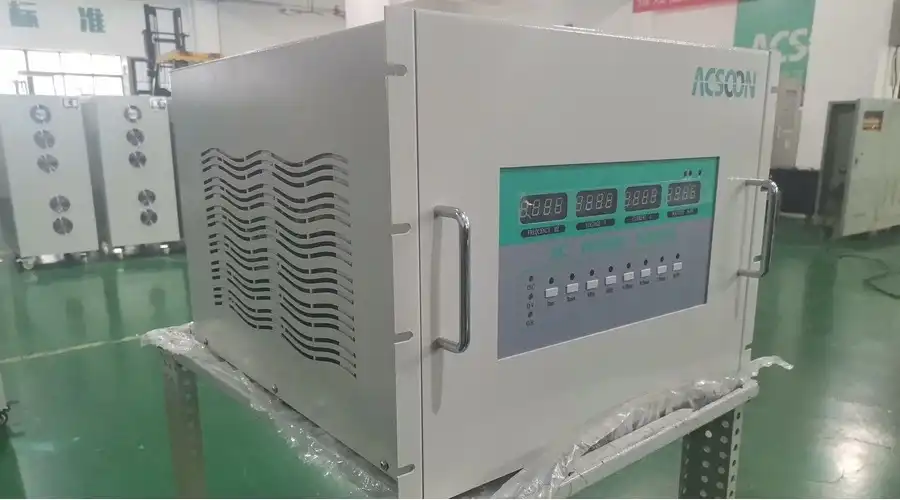

The 115v 400hz inverter's physical design and form factor are important things to think about, especially in places with limited room. The AF400M-310003 is a static frequency converter with a rack-mounted design, making it suitable for integration into existing power distribution systems or equipment racks. When selecting an inverter, consider factors such as size, weight, and cooling requirements. The ingress protection grade (IP21 for the AF400M-310003) indicates the level of protection against dust and water ingress, which is important for outdoor or harsh environment applications. Additionally, consider the ease of installation, maintenance access, and any specific mounting requirements for your particular ground support equipment setup.
How does a 115v 400hz inverter improve ground support equipment performance?
Consistent Power Quality
A high-quality 115v 400hz inverter plays a crucial role in improving the performance of ground support equipment by providing consistent and stable power. These inverters are made to give off a clean sine wave with little harmonic distortion. This keeps sensitive electronics running smoothly and efficiently. For aircraft equipment, the stable 400Hz frequency is very important because it lets smaller and lighter transformers and motors be used on board. By providing a stable power source, the inverter helps keep things running right. This makes the whole process safer and lowers the chance of hurting sensitive parts.
Enhanced Efficiency and Reliability
The use of a 115v 400hz inverter can significantly enhance the efficiency and reliability of ground support equipment. Modern inverters, like those offered by ACSOON, often incorporate advanced features such as power factor correction, voltage regulation, and overload protection. There is less waste and more safety with these features because they help make the best use of power.Because inverters like the AF400M-310003 are static, they don't have any moving parts. This means they are easier to maintain and last longer than standard motor-generator sets. Now that things are more reliable, airports and other flight sites will have less downtime and lower costs to run.
Flexibility and Adaptability
One of the key advantages of using a 115v 400hz inverter for ground support equipment is the flexibility and adaptability it offers. Most of the time, these inverters can work with many different voltages and speeds. So, they can be used with a lot of different power sources, like the grid, engines, and even green energy systems. This adaptability is very helpful for temporary or moving ground support setups. A lot of the new inverters also have features that can be programmed and tracking options that can be used from a distance. This lets workers change settings, check performance, and fix issues all from one place. Because it is flexible, the power supply can be made to work best with different kinds of equipment and different working situations.
What are the common applications of 115v 400hz inverters in aviation ground support?
Aircraft Servicing and Maintenance
One of the primary applications of 115v 400hz inverters in aviation ground support is for aircraft servicing and maintenance. These inverters give different ground power units (GPUs) the power they need to run aircraft systems when the engines are off. This includes keeping the electronics, lighting, and air conditioning on board running while they are being fixed or while the plane is in the air. The stable 400Hz power supplied by inverters like the AF400M-310003 ensures that sensitive avionics and other aircraft systems can be tested and calibrated accurately without the need to run the aircraft's engines or auxiliary power unit (APU), resulting in fuel savings and reduced emissions.
Passenger Boarding Bridges
115v 400hz inverters play a crucial role in powering passenger boarding bridges at airports. For all of these bridges' systems to work, like the lights, climate control, and the moving parts that let them open and close, they need a steady power source. With the help of inverters, the boarding bridges can work easily and quickly, making the trip from the terminal to the plane safe and comfortable for passengers. The compact design of inverters like the AF400M-310003 allows for easy integration into the bridge structure, while their reliable operation minimizes the risk of delays or disruptions during the boarding process.
Test and Simulation Equipment
Another important application of 115v 400hz inverters in aviation ground support is in test and simulation equipment. These inverters power a number of test benches and simulators that imitate the electrical systems of aircraft for training, repair, and research. Because these inverters give off exact frequencies and voltages, they can accurately simulate power conditions on board, which lets technicians and engineers test and fix aircraft systems and parts. Inverters like the AF400M-310003 are used in more than just aircraft. For example, they are used to power medical imaging equipment that needs stable, clean 400Hz power for the best performance and diagnostic accuracy.
Conclusion
Choosing the right 115v 400hz inverter for ground support equipment is a very important choice that affects how well, reliably, and safely aviation activities run. Operators can make sure they get the right inverter for their needs by looking at things like power rating, input/output specs, and design features. When you use high-quality inverters like the ACSOON AF400M-310003, your technology will work better, be more efficient, and you will have more control over how power is used. As the aviation industry changes, reliable power conversion options will continue to be very important for keeping things running smoothly on the ground and in the air.
For more information on 115v 400hz inverters and other power conversion solutions for aviation and industrial applications, please contact Xi'an Jerrystar Instrument Co., Ltd. As a company that only makes ACSOON brand power converters, they have a lot of different goods for many different fields, such as aviation, marine, and lab testing. Because they are skilled and can make things just for you, they are the perfect partner for your power switching needs. For inquiries, please email acpower@acsoonpower.com.
FAQ
Q: What is the difference between 60Hz and 400Hz power?
A: 400Hz power has a higher frequency than standard 60Hz power, allowing for smaller and lighter transformers and motors in aircraft systems.
Q: Can a 115v 400hz inverter be used for non-aviation applications?
A: Yes, these inverters can be used in other industries requiring 400Hz power, such as medical imaging equipment.
Q: What is the importance of ingress protection (IP) rating for inverters?
A: The IP rating indicates the level of protection against dust and water ingress, which is crucial for outdoor or harsh environment applications.
Q: How does a static frequency converter differ from a rotary converter?
A: Static converters have no moving parts, offering higher reliability and lower maintenance compared to rotary converters.
Q: What safety features should I look for in a 115v 400hz inverter?
A: Look for features such as overload protection, short circuit protection, and thermal shutdown to ensure safe operation.
Q: Can 115v 400hz inverters be used with renewable energy sources?
A: Yes, many modern inverters can accept input from various sources, including renewable energy systems, provided they meet the input specifications.
