Static vs Rotary 400 Hz Power Converter: Which Suits Your Setup?
In aircraft and some industrial settings, picking between static and rotary 400 Hz power converters is a very important choice that can have a big effect on how well and how efficiently the system works. These power converters are very important because they change regular power from the grid into the 400 Hz frequency that many airplane systems and other specialized equipment need. There is still some disagreement between static and rotating converters, but as technology improves, both types have their own pros and cons. This blog post will go into detail about both static and rotating 400 Hz power converters, looking at their features, how they can be used, and the things that might affect your choice. When we look at the pros and cons of each type, we can help you make the right choice about which converter will work best for your setup and operations.
What are the key differences between static and rotary 400 Hz power converters?
Operational Principles

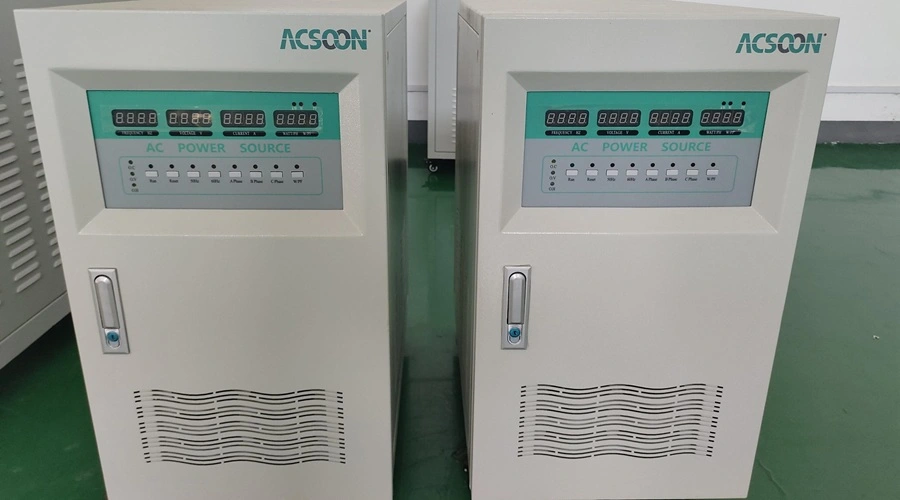

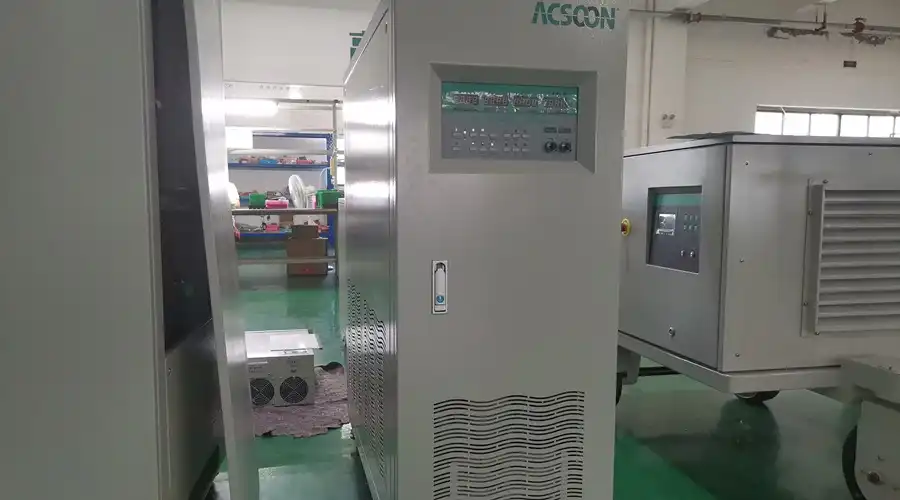

Static and rotary 400 Hz power converters differ significantly in their operational principles. To change the input power frequency, static converters like the ACSOON AF400M-33025 type use solid-state electronics. In this process, the entering AC power is first turned into DC, and then it is turned back into AC at a frequency of 400 Hz. Static converters are more reliable and don't need as much upkeep because they don't have any moving parts. Rotary converters, on the other hand, use a motor-generator set, which is made up of an electric motor that powers a generator that makes the 400 Hz output. Even though this mechanical method has been used for a long time, it needs more upkeep because it has moving parts. Often, the decision between static and rotary converters is based on things like the amount of power needed, the amount of space available, and the specific application, like aircraft training systems that don't have an engine or APU.
Efficiency and Power Quality
Efficiency and power quality are very important when looking at 400 Hz power adapters. Most of the time, static converters like the AF400M-33025 are more efficient. In current designs, they often have rates above 85%. This higher level of economy means lower running costs and less heat production. Static converters also offer better power quality with less harmonic distortion, which is very important for sensitive electronics in airplanes. Static converters make sure that the power source is stable by carefully controlling the output voltage and frequency. This is very important for things like aircraft training systems. Even though rotary converters have been used for a long time, they tend to be less efficient because of mechanical losses. But they can be helpful when it comes to overloading and being able to handle quick changes in load. In the end, the choice between static and rotary converters comes down to the needs of your setup, taking into account things like load characteristics, power quality, and economy.
Size, Weight, and Installation Considerations
The way 400 Hz power adapters are built has a big impact on how well they work in different situations. Similar to the AF400M-33025 model, static converters usually take up less space and weigh less than their rotary versions. Because they are small, static converters are perfect for places with limited room, like airplane hangars or mobile ground power units. A lot of static converters are fixedly mounted, and their IP21 ingress protection grade lets you choose how to place them while still protecting them from the environment. Because they are mechanical, rotary converters tend to be bigger and heavier, which can make it harder to place them. But they might be better in some workplace settings where toughness and the ability to handle rough conditions are very important. When choosing between static and rotary converters, it's important to think about not only the room you have, but also how you want to install them, how you want to cool them, and how you might be able to expand your power system in the future.
How do static and rotary 400 Hz power converters compare in terms of maintenance and longevity?
Maintenance Requirements
Maintenance needs for 400 Hz power transformers are very different for static and rotary types. Because they are solid-state, static converters like the ACSOON AF400M-33025 don't need to have their moving parts serviced on a frequent basis. This means less downtime and lower ongoing repair costs. Checking the cooling systems, electrical connections, and control electronics on static converters on a regular basis is usually part of their routine upkeep. Rotary converters, on the other hand, need more frequent and thorough repair because they have mechanical parts. This includes keeping the bearings and motor-generator aligned and lubricating them regularly. Because they need more maintenance, rotary converters can make operations more expensive and cause power source problems. It's important to think about these maintenance differences when you think about the long-term effects of the power converter you choose. This is especially important for mission-critical uses like aircraft training systems, where reliability is very important.
Longevity and Reliability
The general value of 400 Hz power converters depends on how long they last and how reliable they are. With their solid-state technology, static converters usually offer better dependability and longer useful lives. Because static converters like the AF400M-33025 don't have any moving parts that can break, they last longer. With proper care, they can last over 15 to 20 years. Because it is so strong, it is great for systems that need to last a long time, like those in factories or airplane hangars. More so, static converters tend to have longer mean time between failures (MTBF) rates. This means they are less likely to stop working without notice. Even though rotating converters are strong, the mechanical parts wear out over time, so they don't last as long. On the other hand, they can be useful in tough environments or when it's best to be able to fix things. If you want to know how effective your power conversion system will be over time, you should think about what your application needs and how time-consuming converters could be for your business.
Cost Considerations Over Time
When looking at 400 Hz power converters, it's important to think about both the original cost and the costs that will come up in the future. Most of the time, static converters like the ACSOON AF400M-33025 cost more up front than rotating converters. But lower running costs over time usually make up for this one-time cost. Because static converters are more efficient, they use less energy, which means that your power bills will be lower. Static converters also need very little upkeep, which means that service costs are lower and parts need to be replaced less often. Even though rotary converters might be cheaper at first, they can end up costing more to run because they use more energy, need more upkeep, and need to have mechanical parts replaced more often. Take these long-term costs into account along with the initial purchase price when you figure out the total cost of ownership for your power exchange system. When steady and stable power is needed, like in aircraft training systems without an engine or APU, static converters often pay for themselves over time, even though they cost more at first.
What are the specific applications and scenarios where static or rotary 400 Hz power converters excel?
Aviation and Aerospace Applications
In the aircraft and aviation industries, picking between static and rotary 400 Hz power converters is very important for getting the best performance and dependability. In aircraft ground support equipment (GSE) uses, static converters like the ACSOON AF400M-33025 work very well. They are great for use in airports and airplane hangars because they are small, work well, and don't need much upkeep. Static converters work great for aircraft training systems that don't have an engine or APU because they provide a stable, clean 400 Hz power source that works like the electrical systems on board. Static converters make sure that sensitive electronic and avionic systems can work with them by giving them precise control over voltage and frequency. Even though rotary converters aren't used as much in modern aircraft, they may still be useful in some situations where they need to be able to handle sudden changes in load or have a high overload capacity. When choosing an aviation converter, you should think about things like power quality, dependability, and the unique needs of the aircraft systems it will be supporting.
Industrial and Manufacturing Settings
400 Hz power converters are used for more than just aircraft in factories and other manufacturing settings. More and more, static converters like the AF400M-33025 are being used in these situations because they are flexible and work well. They are especially helpful for precise industrial processes that need stable, high-frequency power for CNC machines, laser cutting systems, and motors that move very quickly. Static converters help cut down on electromagnetic radiation by giving off clean power. This is very important in sensitive industrial settings. Rotary converters are not as popular in new installations, but you can still find them in older industrial setups or places that value durability and the ability to work in harsh conditions. When looking at a 400 Hz power converter for commercial use, it's important to think about how much power you need, the conditions of the area, and how your power needs might change in the future. Static converters are a good choice for many modern industry settings because they are flexible and can be scaled up or down.
Military and Naval Applications
Power converters that work at 400 Hz face special problems in military and naval settings. They need to be able to handle harsh circumstances and still work reliably. More and more, static converters like those in the ACSOON line are being used in these areas because they are small, efficient, and well-built. Static converters work well on ships because they provide stable 400 Hz power for radar systems, communication equipment, and other important technology. Because they don't shake easily and can work in small areas, they are perfect for naval ships. Static converters are often used in tactical operations centers, mobile command centers, and field hospitals for the military on the ground. Static converters are useful in harsh or remote places where it can be hard to service equipment because they are reliable and don't need much upkeep. Since the beginning, rotary converters have been used in some combat situations. However, static converters are becoming more popular because they work better and take up less space.
Conclusion
Finally, picking between static and rotary 400 Hz power converters depends on a number of things unique to your application and operational needs. Static converters, such as the ACSOON AF400M-33025, are great for current military, industrial, and aviation uses because they are efficient, reliable, and easy to maintain. Because they are small, don't need much upkeep, and put out high-quality power, they work well for aircraft training systems and other sensitive electronics. Even though rotor converters may still be useful in some situations, most 400 Hz power needs are now being met by static converters. Think about things like power needs, room limitations, long-term costs, and the specific needs of your operational environment when making your choice.
For more information on ACSOON brand power converters and their applications in aviation, industry, marine, and lab testing, please contact Xi'an Jerrystar Instrument Co., Ltd. at acpower@acsoonpower.com. With their expertise in manufacturing and trading power conversion solutions, including variable frequency converters, 400 Hz static frequency converters, and ground power units, they can provide tailored solutions to meet your specific needs.
FAQ
Q: What is the main advantage of static 400 Hz power converters over rotary converters?
A: Static converters offer higher efficiency, lower maintenance requirements, and better power quality due to their solid-state design.
Q: Are static converters suitable for all 400 Hz power applications?
A: While static converters are versatile, some specialized applications may still benefit from rotary converters, particularly where high overload capacity is required.
Q: How does the lifespan of static converters compare to rotary converters?
A: Static converters generally have a longer lifespan due to the absence of mechanical wear, often lasting 15-20 years or more with proper maintenance.
Q: Can static converters handle sudden load changes in aircraft systems?
A: Yes, modern static converters are designed to handle load changes efficiently, making them suitable for aircraft training systems and ground support equipment.
Q: What are the space considerations when choosing between static and rotary converters?
A: Static converters typically have a smaller footprint, making them ideal for installations where space is limited.
Q: How do environmental factors affect the choice between static and rotary converters?
A: Static converters generally perform better in a wider range of environmental conditions due to their sealed design and lack of moving parts.
