What Cable Length Options Exist for Cable Coil GPU Models?
When it comes to ground power units (GPUs) in the aviation industry, cable coil models have become increasingly popular due to their efficiency and convenience. One crucial aspect of these GPUs is the cable length, which plays a significant role in their functionality and versatility. In this comprehensive blog post, we will explore the various cable length options available for cable coil GPU models, delving into the factors that influence cable length selection, the advantages of different lengths, and how they impact the overall performance of the unit. Understanding these options is essential for airport operators, maintenance crews, and aviation professionals who rely on these power units to ensure smooth operations on the ground. We'll examine how cable length affects mobility, power delivery, and ease of use, as well as discuss the latest innovations in cable coil technology that are shaping the future of ground power solutions in the aviation sector.
What factors influence the choice of cable length for cable coil GPUs?
Aircraft Size and Parking Configuration

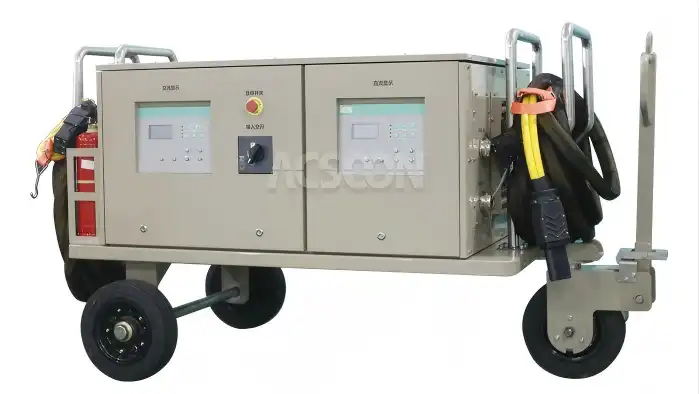

The choice of cable length for cable coil GPUs is significantly influenced by the size of the aircraft and the parking configuration at the airport. Larger aircraft typically require longer cables to reach their power connection points, especially when parked at a distance from the GPU. For instance, the GPU400L-330090 model, with its 26-meter cable length, is designed to accommodate various aircraft sizes and parking scenarios. This cable coil GPU ensures that power can be delivered efficiently to aircraft, regardless of their position on the tarmac. Airport layouts and gate designs also play a crucial role in determining the optimal cable length, as GPUs need to be versatile enough to service different areas without compromising on power delivery or safety.
Operational Flexibility and Mobility Requirements
Operational flexibility and mobility requirements are key factors in selecting the appropriate cable length for cable coil GPUs. Airports with diverse aircraft types and frequently changing gate assignments benefit from GPUs with longer cables, as they provide greater flexibility in positioning the unit. The cable coil design, as seen in models like the GPU400L-330090, allows for easy extension and retraction, enhancing mobility and reducing tripping hazards on the tarmac. This feature is particularly valuable in busy airports where ground equipment needs to be quickly repositioned or stored. The 26-meter cable length of this cable coil GPU strikes a balance between reach and manageability, ensuring that ground crews can efficiently service aircraft without the need for frequent GPU relocation.
Power Loss and Voltage Drop Considerations
When selecting cable lengths for cable coil GPUs, power loss and voltage drop are critical considerations. Longer cables can lead to increased resistance and, consequently, power loss along the cable's length. This is particularly important for high-power units like the 90kVA GPU400L-330090. The cable coil GPU design helps mitigate some of these issues by allowing for optimal cable management and reducing unnecessary cable exposure. Manufacturers like ACSOON take these factors into account when designing their cable coil GPUs, ensuring that even with a 26-meter cable, the unit can maintain its output of 3×200VAC at 400Hz with minimal loss. The phase angle symmetry of 120°±1° for balanced loads and 120°±2° for 30% unbalanced loads demonstrates the precision engineered into these systems to compensate for potential power degradation over longer cable lengths.
How do different cable lengths affect the performance of cable coil GPUs?
Impact on Power Delivery and Efficiency
The length of cables in cable coil GPUs has a direct impact on power delivery and overall efficiency. Longer cables, while providing greater reach, can potentially result in increased voltage drop and power loss due to resistance. However, advanced cable coil GPU models like the GPU400L-330090 are designed to minimize these effects. With its 26-meter cable length, this unit strikes a balance between extended reach and maintaining power integrity. The cable coil design allows for efficient power transmission by reducing unnecessary exposure and potential damage to the cable. This results in consistent power delivery of 3×200VAC at 400Hz, even at the cable's full extension, ensuring that aircraft receive the necessary power without significant loss or fluctuation.
Maneuverability and Ease of Use
Cable length significantly affects the maneuverability and ease of use of cable coil GPUs. Shorter cables may limit the unit's reach but can be easier to handle and store. On the other hand, longer cables, like the 26-meter option in the GPU400L-330090, provide greater flexibility in positioning the GPU relative to the aircraft. The cable coil design is crucial here, as it allows for easy extension and retraction, reducing the risk of cable tangles and tripping hazards on the tarmac. This feature enhances the overall safety and efficiency of ground operations. The IP54 ingress protection grade of this cable coil GPU ensures that it can withstand various environmental conditions, making it suitable for use in different climates and situations, further enhancing its usability across various airport settings.
Compatibility with Different Aircraft Types
The cable length of cable coil GPUs plays a crucial role in their compatibility with different aircraft types. A GPU with a versatile cable length, such as the 26-meter option in the GPU400L-330090, can accommodate a wide range of aircraft sizes and configurations. This flexibility is essential in busy airports that handle various aircraft types, from small regional jets to large wide-body planes. The cable coil GPU design allows for precise positioning of the power connection, ensuring that it can reach the appropriate connection points on different aircraft models without the need for additional extension cords or adapters. This versatility not only improves operational efficiency but also reduces the need for multiple GPU units with different cable lengths, potentially leading to cost savings for airport operators.
What are the latest innovations in cable length technology for cable coil GPUs?
Smart Cable Management Systems
Recent innovations in cable coil GPU technology have led to the development of smart cable management systems. These advanced systems incorporate sensors and electronic controls to optimize cable extension and retraction. For example, in models like the GPU400L-330090, smart systems can automatically adjust the cable length based on the aircraft's position and power requirements. This not only enhances safety by reducing tripping hazards but also improves efficiency by ensuring that only the necessary length of cable is exposed. Some cable coil GPU designs now feature motorized reels that can quickly and smoothly extend or retract the cable, reducing physical strain on ground crew and minimizing the risk of cable damage. These smart systems often include safety features that prevent overextension or sudden retraction, further enhancing the reliability and longevity of the cable coil GPU.
Advanced Materials for Lightweight and Durable Cables
The latest cable coil GPU models are benefiting from advancements in cable materials, resulting in lighter and more durable options. Manufacturers like ACSOON are incorporating high-strength, low-weight materials that allow for longer cable lengths without significantly increasing the overall weight of the GPU unit. These advanced materials also offer improved resistance to wear, tear, and environmental factors, enhancing the longevity of the cable coil GPU. For instance, the 26-meter cable on the GPU400L-330090 is designed to withstand frequent use and harsh conditions typically encountered on airport tarmacs. Some innovative cable designs now include self-healing properties, where minor cuts or abrasions in the cable's outer layer can automatically seal, maintaining the cable's integrity and safety features. This technology is particularly valuable for cable coil GPUs that are subjected to constant movement and potential hazards in busy airport environments.
Integration of Power Quality Monitoring in Cables
A significant innovation in cable coil GPU technology is the integration of power quality monitoring directly within the cables. This advancement allows for real-time monitoring of power delivery along the entire length of the cable, ensuring consistent and high-quality power supply to the aircraft. In models like the GPU400L-330090, which delivers 90kVA of power, these monitoring systems can detect voltage fluctuations, phase imbalances, or other power quality issues before they affect the aircraft's systems. The cable coil GPU can then automatically adjust its output or alert operators to potential problems, maintaining the critical 120°±1° phase angle symmetry for balanced loads and 120°±2° for 30% unbalanced loads. Some advanced systems even incorporate fiber optic sensors within the cable structure, providing detailed data on temperature, strain, and other factors that could impact power delivery or cable integrity, further enhancing the reliability and safety of these essential ground power units.
Conclusion
In conclusion, the cable length options for cable coil GPU models are diverse and tailored to meet various operational needs in the aviation industry. From the standard 26-meter cable found in models like the GPU400L-330090 to innovative designs incorporating smart management systems and advanced materials, these options provide flexibility, efficiency, and reliability in ground power operations. The choice of cable length significantly impacts power delivery, operational versatility, and compatibility with different aircraft types. As technology continues to advance, we can expect further innovations in cable coil GPU designs, enhancing their performance and adaptability to the evolving needs of modern airports and aircraft.
For more information on cable coil GPU models and their specifications, please contact Xi'an Jerrystar Instrument Co., Ltd., specialists in ACSOON brand power converters for aviation, industry, marine, and lab testing applications. Their expertise in manufacturing and trading high-quality ground power units ensures that customers receive products tailored to their specific needs. For inquiries, please email acpower@acsoonpower.com.
