What Standards Govern 400Hz Aircraft Power Generation?
Control generation is an vital portion of the flight industry since it keeps plane hardware running. One of the most significant aspects of 400hz aircraft power generation is the use of 400Hz electrical systems, which differ from the standard 50/60Hz power used in most ground-based applications. The avionics, lighting, and environmental control systems all rely on this specific frequency to function. For this reason, familiarity with the regulations governing the production of electricity by 400hz aircraft power systems is prerequisite. Aircraft and ground support equipment compatibility, safety, and dependability are guaranteed by these standards. The primary aviation regulations controlling 400hz aircraft power systems, the uses for this frequency in airplanes, and the requirements for on-board generators and ground-based GPUs will all be covered in this article. Aircraft electrical systems are complicated and must fulfill strict criteria to guarantee safe and efficient air travel; a greater grasp of these standards and their ramifications will help with this.
Key Aviation Standards: MIL-STD-704 & DO-160 Compliance for 400Hz Power Systems
MIL-STD-704: Military Standard for Aircraft Electric Power Characteristics
MIL-STD-704 is a crucial military standard that defines the requirements for aircraft electric power characteristics. For 400Hz aircraft power systems to work together and be reliable, this standard is very important. It tells both onboard generators and ground power units what voltage, frequency, and power quality parameters they need to meet. Numerous facets of power quality are addressed by the standard. For aircraft power at 400Hz, MIL-STD-704 imposes stringent regulations on voltage regulation, frequency stability, and phase balance. Many systems, including sensitive electronics, rely on clean, consistent electricity, which is why these regulations are necessary. Problems with harmonic content, frequency fluctuations, and voltage transients are among them. Compliance with MIL-STD-704 is mandatory for military aircraft and is often adopted by commercial aviation as well, ensuring a high level of reliability and safety across the industry.
DO-160: Environmental Conditions and Test Procedures for Airborne Equipment
Another important aviation standard, DO-160 details how to test equipment in different flying environments. Although DO-160 is not a power systems-only manual, it does provide critical information on airplane power at 400 Hz. Hardware that will be installed aboard aircraft, such as power distribution and generation systems, may be tested according to this standard. DO-160 lists tests for electromagnetic compatibility, voltage spikes, and frequency changes for power systems that run at 400Hz. These tests make sure that the power systems can work properly even in difficult situations like those that come up during flying. DO-160 must be followed in order for electrical parts in airplanes to be certified. This includes parts that generate and distribute 400Hz power.
IEEE 519: Harmonic Control in Electrical Power Systems
While not specifically an aviation standard, IEEE 519 plays a significant role in regulating the quality of 400Hz aircraft power. Harmonic distortion in electrical power systems is limited by this standard. This is especially important for airplane power generation because harmonics can mess up sensitive electronics and make electrical parts heat up more. For 400Hz aircraft power systems, adherence to IEEE 519 ensures that the power quality remains high, with minimal harmonic content. With the growing reliance on complex electronic equipment in contemporary airplanes, this is of the utmost importance for preserving the efficiency and dependability of their electrical systems. Equipment failure, overheating, and decreased efficiency in 400Hz power systems are all things that may be avoided by compliance with IEEE 519.
Why 400Hz? The Electrical Advantages for Aircraft vs. Standard 50/60Hz Power
Reduced Size and Weight of Electrical Components
One of the primary advantages of using 400Hz power in aircraft is the significant reduction in size and weight of electrical components. This is especially critical in aviation, where every pound counts in terms of fuel economy and aircraft performance. The higher frequency allows for the use of smaller transformers, motors, and generators without losing power output. In 400Hz systems, the magnetic components can be designed with fewer turns of wire and smaller cores, resulting in more compact and lightweight equipment. For example, a 400Hz transformer can be up to 25% smaller and lighter than its 60Hz counterpart while delivering the same power output. This weight drop translates directly into fuel savings and increased cargo capacity for aircraft, making 400Hz electricity an important aspect in current aviation.
Improved Power Quality and Stability
400hz aircraft power systems offer superior power quality and stability compared to standard 50/60Hz systems, which is critical for the sensitive electronic equipment used in aircraft. Avionics systems rely on clean, steady power to operate precisely and consistently, therefore this increased power quality is very crucial for them. When electricity has to be delivered over long distances, 400hz aircraft power systems are better since they are less affected by voltage dips. This is especially helpful for big airplanes. The overall dependability of aircraft electrical systems is enhanced by the stability of 400hz aircraft power, which minimizes the chances of equipment malfunction or failure caused by power fluctuations. Greater power delivery smoothness and less ripple are the results of the higher frequency, which reduces the need for additional filtering and power conditioning equipment.
Enhanced Efficiency in Power Distribution
400Hz power systems offer enhanced efficiency in power distribution throughout the aircraft. You may save weight and have more freedom in cable routing because to the higher frequency, which enables the use of thinner gauge wires without increasing power losses. This is especially helpful in the construction of aeroplanes, as there is limited room for complicated wiring systems. Additionally, electrical efficiency is often better in 400Hz power systems than in 50/60Hz systems because of the reduced reactive power losses. Particularly important in the cramped quarters of an aircraft, where thermal management is difficult, this enhanced efficiency means that electrical components produce less heat. In the end, airplane electrical systems benefit most from 400Hz power since it reduces weight, increases efficiency, and ensures dependable operation.
Ground Power Units (GPUs) vs. Onboard Generators: 400Hz Power Quality Requirements
Voltage and Frequency Stability Standards for GPUs

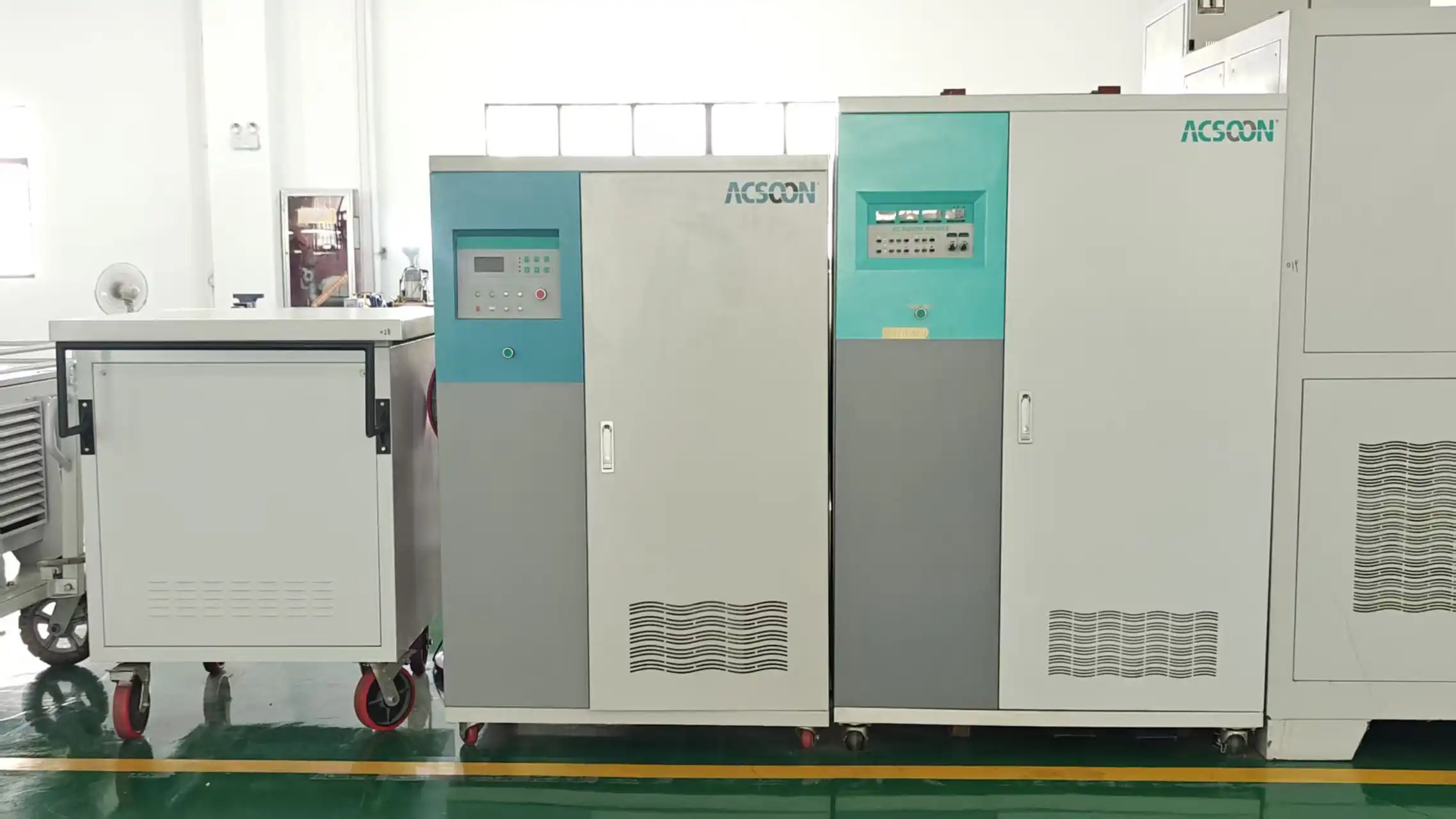

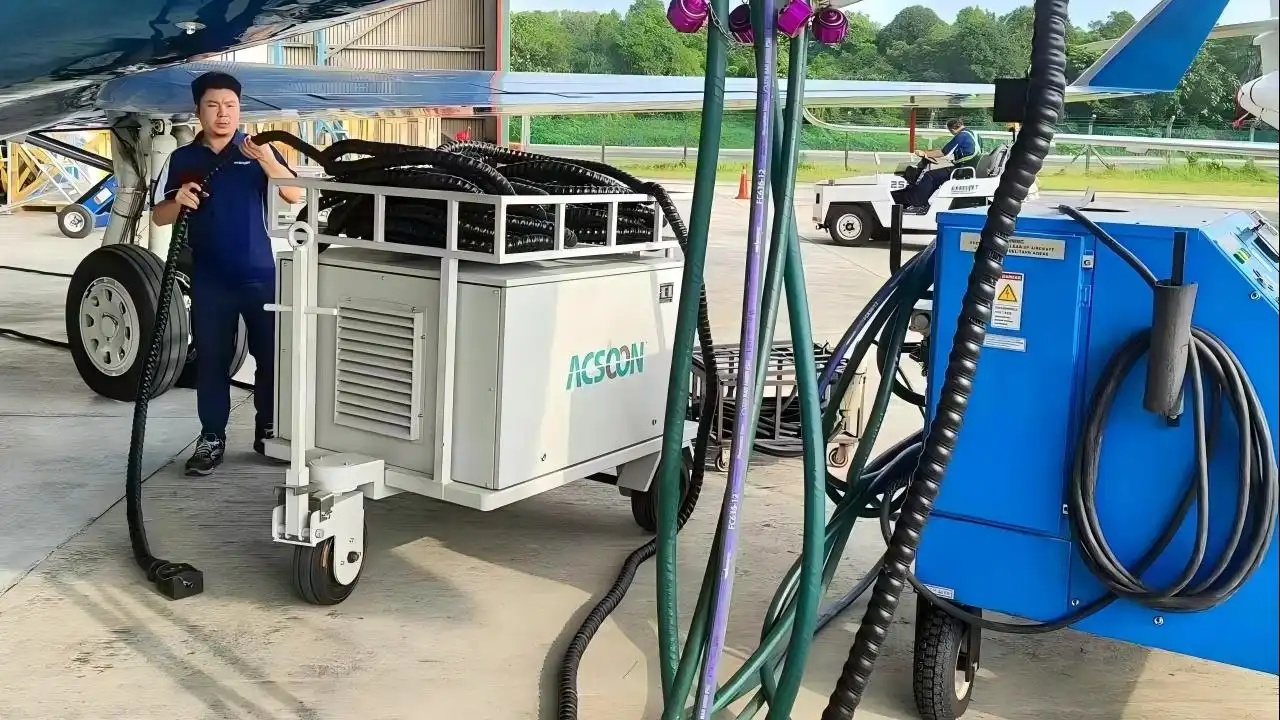

Ground Power Units (GPUs) play a crucial role in providing 400Hz power to aircraft during ground operations, and they must meet stringent voltage and frequency stability standards. These standards ensure that the power supplied to the aircraft is of the same quality as that generated by onboard systems. For voltage stability, GPUs typically must maintain output within ±1% of the nominal voltage (usually 115V or 200V) under varying load conditions. Frequency stability is equally critical, with most standards requiring GPU output to remain within ±0.1% of 400Hz. These tight tolerances are essential to prevent damage to sensitive avionics equipment and ensure seamless transition between ground and onboard power sources. GPUs like the ACSOON AF400W-330050 model are designed to meet these exacting standards, providing 50kVA of power with precise voltage and frequency control.
Power Quality Parameters for Onboard Generators
Onboard generators in 400hz aircraft power systems must adhere to even more stringent power quality parameters than GPUs, as they are responsible for providing reliable power throughout the flight. These generators must maintain voltage stability within ±0.5% of the nominal value and frequency stability within ±0.05% of 400hz aircraft power under all flight conditions. Additionally, onboard generators must meet strict requirements for harmonic distortion, typically limited to less than 5% total harmonic distortion (THD). Transient response is another critical parameter, with generators required to recover from load changes within milliseconds to maintain stable power supply. These rigorous standards ensure that the 400hz aircraft power generated onboard is clean, stable, and suitable for powering all aircraft systems, from critical flight controls to passenger amenities.
Compatibility and Interoperability Between GPUs and Onboard Systems
For operations to run smoothly and safely, it is essential that Ground Power Units and onboard systems be compatible and work together. Both GPUs and onboard generators must adhere to common standards to allow for smooth transition of power sources during ground operations and takeoff. Things like power quality parameters, control interfaces, and connector types are all part of this compatibility. For example, the ACSOON AF400W-330050 GPU is designed to be fully compatible with a wide range of aircraft systems, featuring standard output voltages of 115V (L-N) and 200V (L-L) at 400Hz. The dependability and interoperability with aviation systems are enhanced by the solid-state architecture of contemporary GPUs, which eliminates moving components. Additionally, both GPUs and onboard systems must be capable of load sharing and synchronization to prevent power interruptions during source transitions. Aircraft can reduce fuel consumption and generator wear with this degree of compatibility by safely and efficiently using ground power when it is available.
Conclusion
The efficiency, dependability, and safety of contemporary aviation depend on the regulations controlling the 400hz aircraft power generation of aircraft. From military standards like MIL-STD-704 to industry guidelines such as DO-160 and IEEE 519, these regulations shape the design and operation of both onboard generators and ground power units for 400hz aircraft power systems. Due to its many benefits, such as smaller components, higher quality power, and more efficient distribution, 400hz aircraft power is essential in aviation electrical systems. It is basic to keep progressing 400hz aircraft power frameworks and remaining in compliance with these guidelines so that the flying machine segment can keep up with its ever-changing requests, particularly given the rate of advancement in flying innovation.
ACSOON by Jerrystar: Reliable 400Hz Power Solutions for Every Industry
For those seeking high-quality 400Hz power solutions, Xi'an Jerrystar Instrument Co., Ltd offers a range of products under the ACSOON brand. To learn more about the power converters offered by acpower, please email acpower@acsoonpower.com. Many other industries make use of their wares, including aerospace, manufacturing, transportation, and R&D. Their significant understanding of flying and military control frameworks shapes the premise of their custom fitted arrangements. And since they continuously have sufficient of stock on hand, they guarantee provoke conveyance.
References
1. Department of Defense. (2004). MIL-STD-704F: Aircraft Electric Power Characteristics. Washington, DC: U.S. Government Printing Office.
2. RTCA, Inc. (2010). DO-160G: Environmental Conditions and Test Procedures for Airborne Equipment. Washington, DC: RTCA, Inc.
3. IEEE. (2014). IEEE Std 519-2014: IEEE Recommended Practice and Requirements for Harmonic Control in Electric Power Systems. New York: IEEE.
4. Moir, I., & Seabridge, A. (2008). Aircraft Systems: Mechanical, Electrical, and Avionics Subsystems Integration. Chichester, UK: John Wiley & Sons.
5. Tooley, M., & Wyatt, D. (2017). Aircraft Electrical and Electronic Systems: Principles, Maintenance and Operation. London: Routledge.
6. Kularatna, N. (2014). Power Electronics Design Handbook: Low-Power Components and Applications. Woburn, MA: Butterworth-Heinemann.
