What Voltage Levels Are Used in Shore Power Supply to Ships Systems?
Shore power supply to ships, also known as cold ironing or alternative maritime power (AMP), is a crucial aspect of modern maritime operations. This technology allows vessels to connect to land-based electricity while docked, reducing emissions and noise pollution in port areas. The voltage levels used in shore power supply systems are a critical consideration for both port authorities and ship operators. These levels can vary depending on factors such as the size of the vessel, regional standards, and specific power requirements. Understanding the various voltage levels used in shore power supply is essential for ensuring compatibility between ships and port infrastructure, maximizing energy efficiency, and maintaining safety standards. This blog post will explore the different voltage levels commonly employed in shore power supply systems, their applications, and the factors that influence their selection. We'll also discuss the importance of standardization efforts and the future trends shaping this vital maritime technology.

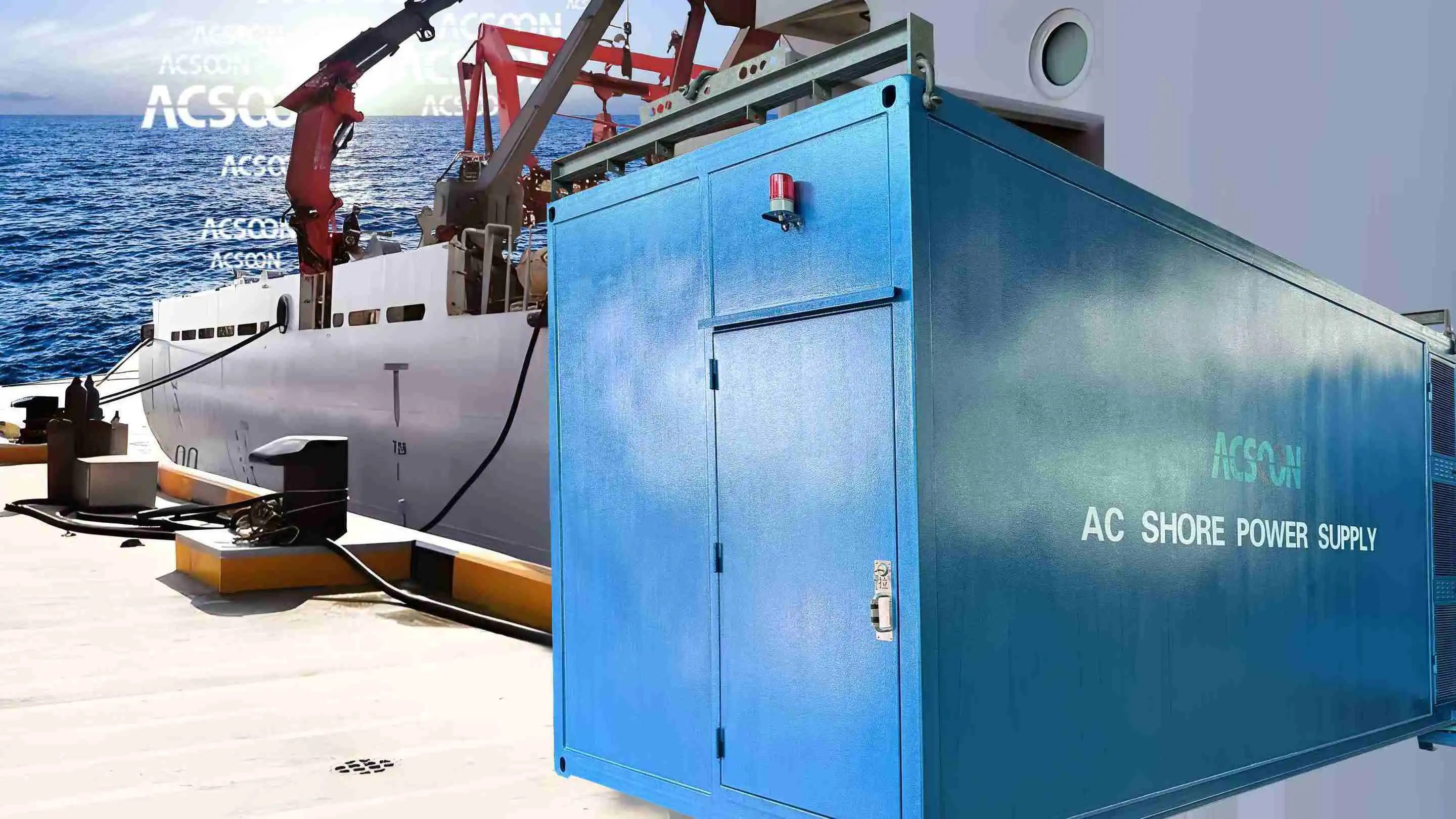

What are the Common Voltage Standards for Shore Power Supply?
Low Voltage Shore Power Connections
Low voltage shore power connections typically operate at 400V or 440V, three-phase AC. These voltage levels are commonly used for smaller vessels, such as yachts, fishing boats, and some coastal traders. The shore power supply to ships in this voltage range is relatively straightforward to implement and doesn't require extensive infrastructure modifications. However, the power capacity is limited, typically ranging from 100kVA to 500kVA. Despite these limitations, low voltage connections are widely used due to their simplicity and cost-effectiveness. They are particularly suitable for vessels with lower power demands or those that spend limited time in port.
Medium Voltage Shore Power Systems
Medium voltage shore power systems operate at higher voltage levels, typically 6.6kV or 11kV. These systems are designed to meet the power requirements of larger vessels, such as container ships, cruise liners, and tankers. The shore power supply to ships at medium voltage levels can deliver significantly higher power capacities, often exceeding 1MVA and reaching up to 20MVA or more. This increased capacity allows for the operation of all onboard systems without relying on the ship's generators. Medium voltage systems require more sophisticated infrastructure, including transformers and switchgear, but offer greater efficiency and reduced transmission losses compared to low voltage systems.
High Voltage Shore Power Connections
High voltage shore power connections, operating at levels of 22kV and above, are less common but are becoming increasingly relevant for the largest vessels and high-power applications. These systems can deliver enormous power capacities, sometimes exceeding 50MVA. The shore power supply to ships at high voltage levels is particularly suitable for large cruise ships, LNG carriers, and other vessels with exceptional power demands. While high voltage systems require substantial infrastructure investments and specialized equipment, they offer unparalleled efficiency and power delivery capabilities. As ships continue to grow in size and power requirements, high voltage shore power connections are likely to become more prevalent in major ports worldwide.
How Do International Standards Affect Shore Power Voltage Levels?
IEC/ISO/IEEE 80005-1 Standard
The IEC/ISO/IEEE 80005-1 standard plays a crucial role in defining the voltage levels and technical specifications for shore power supply to ships. This international standard aims to ensure compatibility and safety across different ports and vessels worldwide. It specifies voltage levels of 6.6kV and 11kV as the primary standards for high-voltage shore connections, while also acknowledging the use of low voltage systems. The standard covers various aspects of shore power systems, including equipment ratings, protection measures, and communication protocols. By adhering to this standard, ports and ship operators can ensure interoperability and streamline the implementation of shore power solutions across different regions.
Regional Variations in Shore Power Standards
Despite efforts towards international standardization, there are still regional variations in shore power voltage levels and standards. For instance, some North American ports use 6.6kV systems, while European ports may favor 11kV connections. These regional differences in shore power supply to ships can pose challenges for vessels operating on international routes. To address this, some ships are equipped with onboard frequency converters and transformers to adapt to different shore power systems. Additionally, some ports offer multiple voltage options to accommodate a wider range of vessels. Understanding these regional variations is crucial for ship operators and port authorities when planning shore power installations and upgrades.
Future Trends in Shore Power Standardization
The future of shore power supply to ships is likely to see increased efforts towards global standardization of voltage levels and connection systems. This trend is driven by the need for greater interoperability and the growing importance of reducing maritime emissions. We may see a convergence towards specific voltage levels, such as 11kV, as a global standard for medium to large vessels. Additionally, there's growing interest in developing modular and flexible shore power systems that can adapt to different voltage requirements. These systems could potentially use power electronics to convert between different voltage levels, offering greater versatility in port operations. As environmental regulations become stricter, the adoption of standardized shore power solutions is likely to accelerate, driving innovation in voltage level management and power delivery systems.
What Factors Influence the Choice of Voltage Level for Shore Power?
Vessel Size and Power Requirements
The size and power requirements of a vessel are primary factors in determining the appropriate voltage level for shore power supply to ships. Smaller vessels with lower power demands can typically be served by low voltage systems (400V or 440V), while larger ships require medium or high voltage connections. For instance, a large cruise ship might require a shore power connection capable of delivering over 10MVA at 11kV, while a small coastal trader might only need a 400V connection providing less than 1MVA. The choice of voltage level must ensure that the shore power system can meet the vessel's peak power demand, including all onboard systems and hotel loads, without overloading the electrical infrastructure.
Port Infrastructure and Capacity
The existing infrastructure and electrical capacity of the port significantly influence the choice of voltage level for shore power supply to ships. Upgrading a port to support high voltage shore power connections requires substantial investment in transformers, switchgear, and cabling. Smaller ports or those with limited resources may opt for lower voltage systems that are easier and less costly to implement. However, larger ports handling frequent visits from high-power vessels may find it more efficient to invest in medium or high voltage systems. The decision also depends on the port's long-term strategy and the types of vessels it expects to serve in the future. Some ports choose to install flexible systems that can accommodate multiple voltage levels to cater to a diverse range of vessels.
Regulatory Requirements and Environmental Considerations
Regulatory requirements and environmental considerations play an increasingly important role in determining shore power voltage levels. Many regions are implementing stricter emissions regulations for ships in port, driving the adoption of shore power systems. These regulations may specify minimum power capacities or preferred voltage levels for shore power supply to ships. Environmental considerations also influence the choice of voltage level, as higher voltage systems generally offer better efficiency and lower transmission losses, resulting in reduced overall emissions. Additionally, the growing focus on renewable energy integration in ports may impact voltage level choices, as ports seek to balance shore power demands with local renewable generation capabilities.
Conclusion
The voltage levels used in shore power supply to ships systems vary widely, ranging from low voltage (400V/440V) to high voltage (22kV and above) connections. The choice of voltage level depends on factors such as vessel size, power requirements, port infrastructure, and regulatory standards. As the maritime industry continues to prioritize environmental sustainability, the adoption of shore power solutions is likely to increase, driving further standardization and innovation in voltage level management. Understanding these voltage considerations is crucial for ship operators, port authorities, and equipment manufacturers to ensure efficient, compatible, and sustainable shore power implementations.
