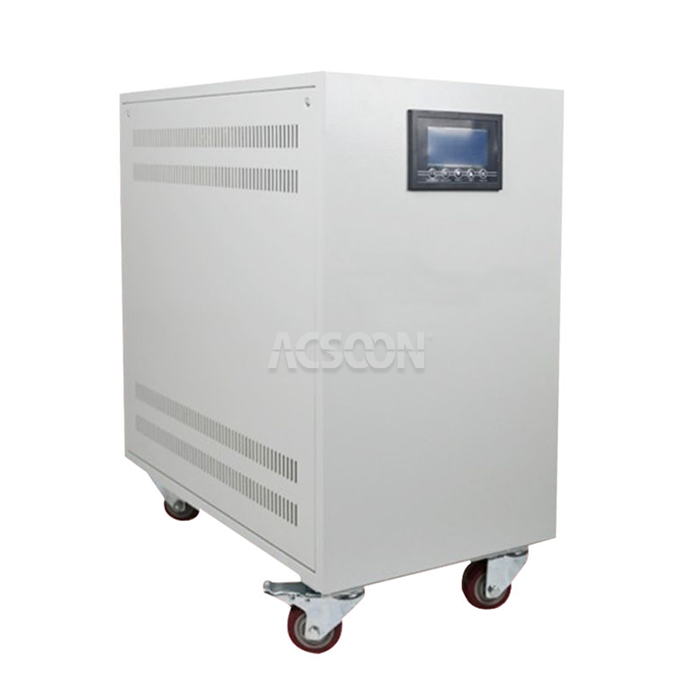

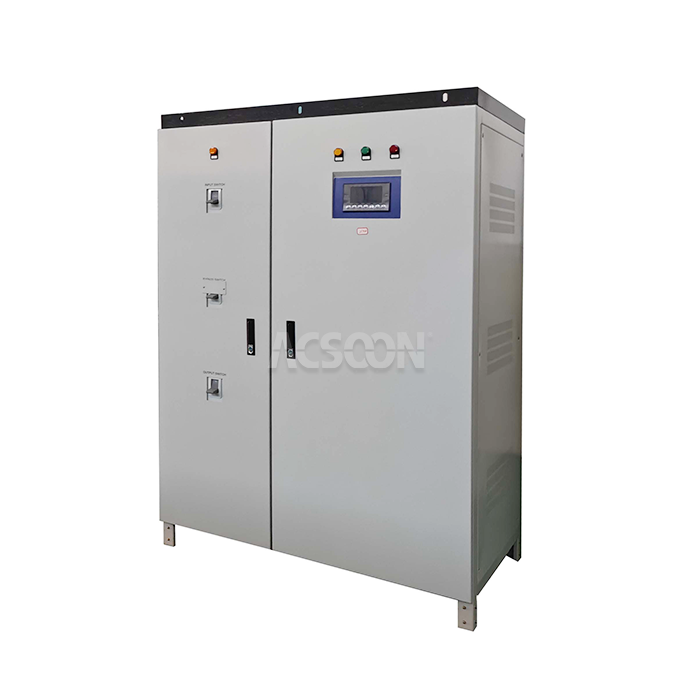

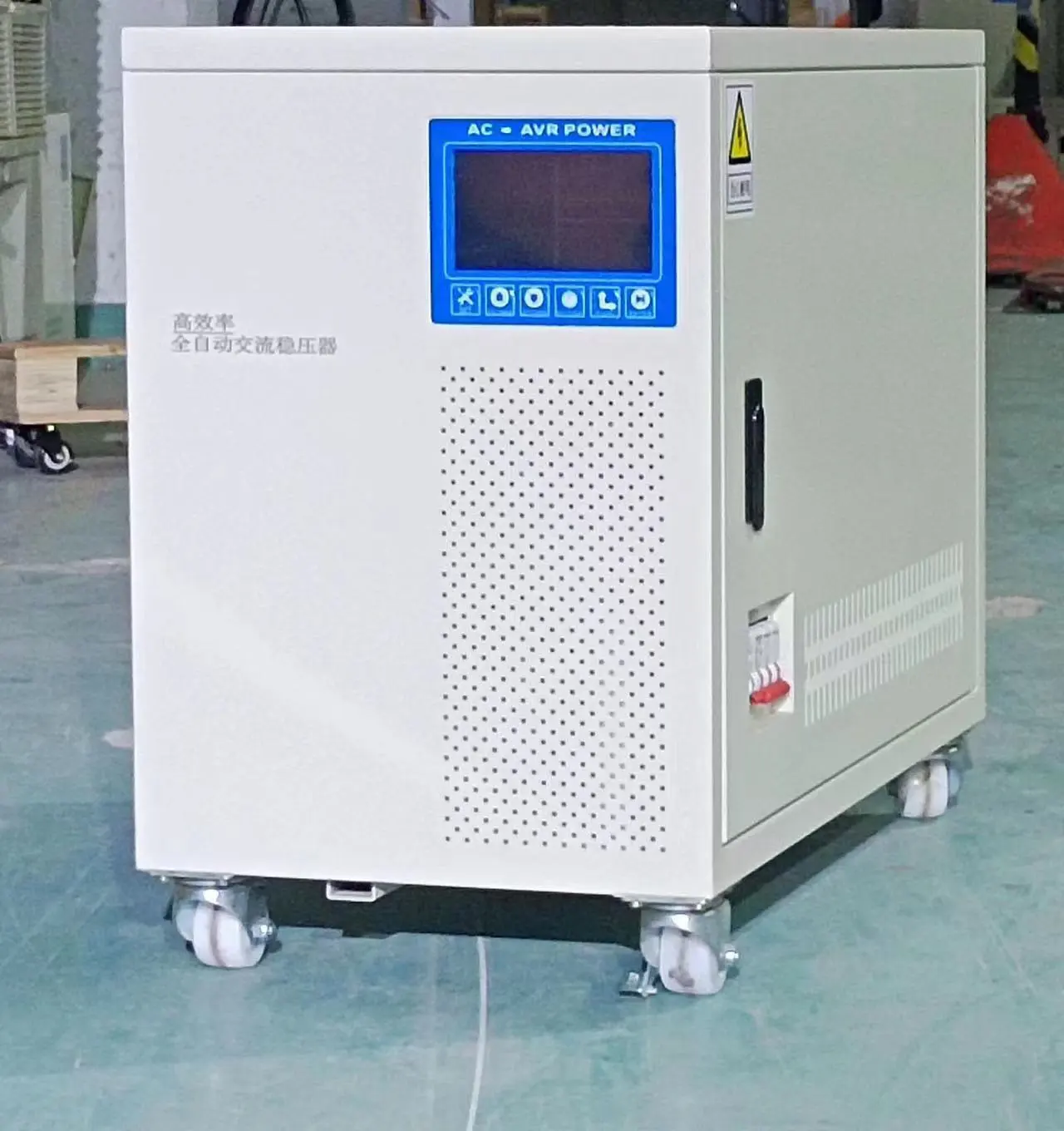

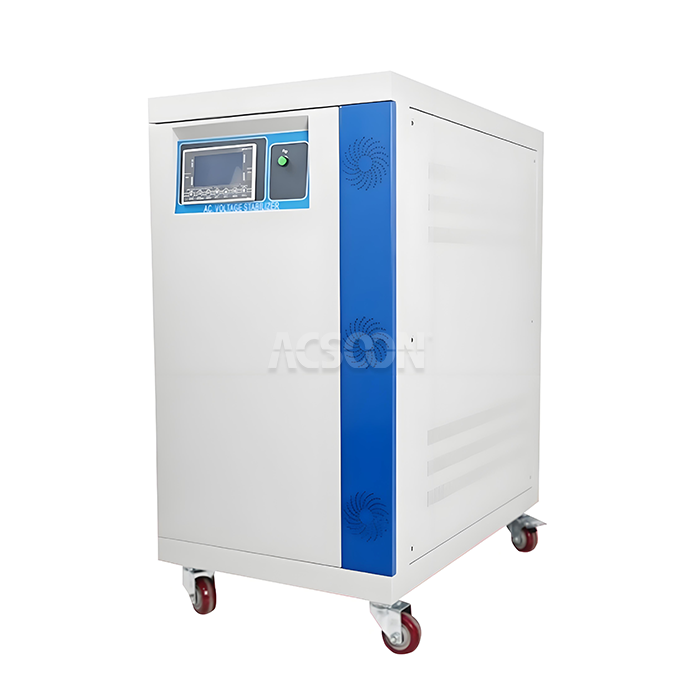

AC Inverter Stabilizer
1.Power Range: 1 kVA to 200 kVA, scalable for single-phase and three-phase systems.
2.Technology: Dual-conversion (AC-DC-AC) inverter technology with IGBT and SPWM modulation.
3.Input: Wide input range (±30% voltage variation, 40-70Hz frequency range).
4.Output: Pure sine wave output with stable voltage (±1%) and frequency (±0.1%).
5.Core Application: Critical facilities requiring both voltage stabilization and frequency regulation, such as medical labs, data centers, and precision manufacturing.
6.Key Advantages: Complete isolation, zero transfer time, frequency conversion capability, and high reliability.
7.Brand: ACSOON – a trusted provider of advanced power conditioning solutions.
2.Technology: Dual-conversion (AC-DC-AC) inverter technology with IGBT and SPWM modulation.
3.Input: Wide input range (±30% voltage variation, 40-70Hz frequency range).
4.Output: Pure sine wave output with stable voltage (±1%) and frequency (±0.1%).
5.Core Application: Critical facilities requiring both voltage stabilization and frequency regulation, such as medical labs, data centers, and precision manufacturing.
6.Key Advantages: Complete isolation, zero transfer time, frequency conversion capability, and high reliability.
7.Brand: ACSOON – a trusted provider of advanced power conditioning solutions.
- Product Description
AC Inverter Stabilizer | Dual-Conversion Voltage & Frequency Stabilizer for Sensitive Equipment
XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces its advanced AC Inverter Stabilizer, a high-performance power conditioning system that combines voltage stabilization and frequency regulation in one robust unit. Utilizing double-conversion inverter technology, it completely isolates connected equipment from grid anomalies—including voltage sags, surges, harmonics, and frequency fluctuations—delivering clean, stable, and reliable AC power. Ideal for mission-critical environments where power quality is non-negotiable.
Technical Summary
| Parameter | Specification |
|---|---|
| Input (AC) | |
| Voltage | 1-Phase: 120V/220V ±30%; 3-Phase: 208V/380V/415V ±30% |
| Frequency | 50Hz / 60Hz (40-70Hz range) |
| Output (AC) | |
| Voltage | 1-Phase: 120V/220V; 3-Phase: 208V/380V/415V (Adjustable) |
| Voltage Regulation | ±1% |
| Frequency | 50Hz or 60Hz (45-65Hz adjustable) |
| Frequency Stability | ±0.1% |
| Performance | |
| Waveform | Pure Sine Wave |
| THD | <3% (Linear Load) |
| Efficiency | ≥85% |
| Response Time | Instantaneous (Zero Transfer Time) |
| General | |
| Display | LED/LCD for V, A, Hz, kW, Status |
| Communication | Optional RS232 / RS485 |
| Protection | OVP, UVP, OCP, OLP, SCP, OTP |
| Overload Capacity | 125% for 1 second |
| Cooling | Forced Air |
| Operating Temp. | -10°C to 45°C |
| Standards | EN60204-1, IEC 62321, EN61000-6-3 |
AC Inverter Stabilizer Main Features
- True double-conversion (online) topology: AC-DC-AC.
- Galvanic isolation via internal transformer; protects against surges and ground loops.
- Pure sine wave output with low harmonic distortion (THD <3% at linear load).
- Wide adjustable output voltage and frequency ranges.
- Built-in protections: Over voltage, under voltage, overload, short circuit, and over temperature.
- Compact design with high power density due to advanced IGBT technology.
- Compatible with generator input and unstable grid conditions.
- Meets international standards including EN60204-1 and IEC 62321.
Why Choose ACSOON AC Inverter Stabilizer?
The ACSOON AC Inverter Stabilizer represents a superior approach to power protection. Here’s why it stands out:
- Complete Power Conditioning: Unlike traditional stabilizers, it rebuilds the output waveform, providing full isolation from all input power disturbances (noise, spikes, frequency shifts).
- Uninterrupted Protection: With zero transfer time, it ensures seamless operation of sensitive equipment without any interruption during voltage or frequency corrections.
- Frequency Flexibility: Can stabilize and, if needed, convert the output frequency (e.g., 50Hz to 60Hz or vice versa), making it perfect for international equipment use.
- High Efficiency & Reliability: Advanced IGBT and DSP control ensures high efficiency (≥85%) and stable operation with a proven MTBF of 50,000 hours.
- Comprehensive Monitoring: Features a clear digital display for real-time parameters and optional communication ports (RS232/RS485) for remote management.

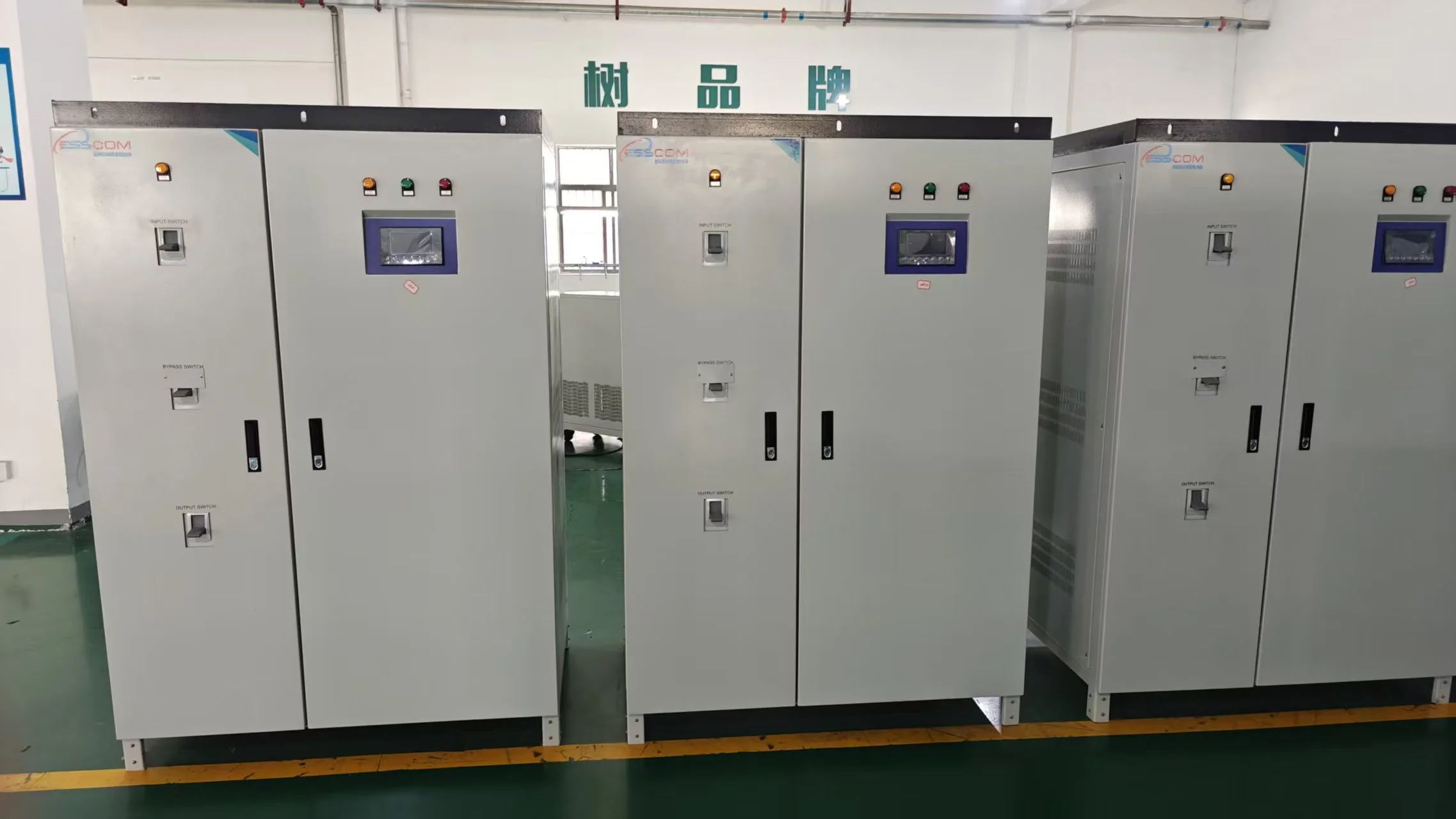

Application Areas
The AC Inverter Stabilizer is indispensable for protecting sensitive and critical loads:
- Medical & Healthcare: MRI machines, CT scanners, laboratory analyzers, and surgical suites.
- Data Centers & Server Rooms: Protecting servers, storage, and network infrastructure from power quality issues.
- Industrial Automation & CNC: Ensuring the precise operation of PLCs, robotic arms, and computer-controlled machinery.
- Telecommunications: Base stations and communication hubs requiring clean, stable power.
- Broadcasting & Audio-Visual Studios: High-fidelity equipment protection against electrical noise.
- Research & Testing Laboratories: Powering sensitive instruments, microscopes, and environmental chambers.
- Financial Institutions: Securing trading floors, servers, and ATM networks.
Our Services
01
Quality Control
Every AC Inverter Stabilizer is validated through a rigorous process:
- Incoming inspection of IGBT modules, transformers, and control boards.
- Full-load performance testing under simulated unstable input conditions.
- Waveform analysis to verify THD and sine wave purity.
- Burn-in testing to ensure long-term reliability.
- Final safety and functional certification.
02
R&D Results
Our R&D continuously improves the AC Inverter Stabilizer:
- Development of advanced DSP-based control for enhanced dynamic response and efficiency.
- Optimization of magnetic components for reduced losses and quieter operation.
- Implementation of user-friendly interfaces and programmable set-points for customized operation.
03
Packaging and Transportation
- Unit is housed in a sturdy, sheet steel cabinet with a protective finish (RAL7035).
- Securely packaged in a wooden crate with foam cushioning.
- Shipped with complete documentation, including user manual, test report, and certificates.
04
After-Sales Service
- 12-month comprehensive warranty.
- Access to detailed technical manuals and wiring diagrams.
- Remote troubleshooting support via communication interface.
- Available on-site service and maintenance contracts.
- Guaranteed supply of spare parts.
Qualification Certification
CE Certification (EMC & LVD)；ISO 9001:2015 Quality Management System；Compliance with EN61000 series for EMC
FAQ |
|---|
| Q1: How is an AC Inverter Stabilizer different from a standard servo or SCR stabilizer? |
| A1: A standard stabilizer only corrects voltage by adjusting a transformer tap. An AC Inverter Stabilizer completely regenerates the power through a double-conversion process, correcting both voltage and frequency and providing full isolation from all input anomalies. |
| Q2: Does it provide backup power like a UPS? |
| A2: No, it is not a UPS. It conditions incoming power but does not contain a battery for backup. However, it can be seamlessly paired with a UPS or generator for a complete power protection system. |
| Q3: Can it handle non-linear loads like computer SMPS? |
| A3: Yes, it is designed to handle non-linear loads effectively, maintaining a low output THD for connected equipment. |
| Q4: What is the typical efficiency, and does it consume power in standby? |
| A4: Efficiency is typically ≥85% at full load. Like all online systems, it does consume power while operating, as it is constantly conditioning the output. |
| Q5: Is remote monitoring and control possible? |
| A5: Yes, with the optional RS232/RS485 communication interface, you can monitor parameters and control the unit remotely via SCADA or building management systems. |
