Voltage Regulators Stabilizers
1.Power Range: 1 kVA to 2000 kVA, customizable for single-phase and three-phase systems.
2.Technology: Advanced servo motor control with automatic voltage regulation (AVR).
3.Input: Wide input voltage range (±20%), compatible with 50Hz/60Hz mains.
4.Output: Stable voltage output with ±2% regulation accuracy.
5.Core Applications: Industrial machinery, medical equipment, data centers, railway systems, and commercial facilities.
6.Key Advantages: High efficiency (≥98%), fast response, manual bypass, comprehensive protection.
7.Brand: ACSOON (support OEM).
2.Technology: Advanced servo motor control with automatic voltage regulation (AVR).
3.Input: Wide input voltage range (±20%), compatible with 50Hz/60Hz mains.
4.Output: Stable voltage output with ±2% regulation accuracy.
5.Core Applications: Industrial machinery, medical equipment, data centers, railway systems, and commercial facilities.
6.Key Advantages: High efficiency (≥98%), fast response, manual bypass, comprehensive protection.
7.Brand: ACSOON (support OEM).
- Product Description

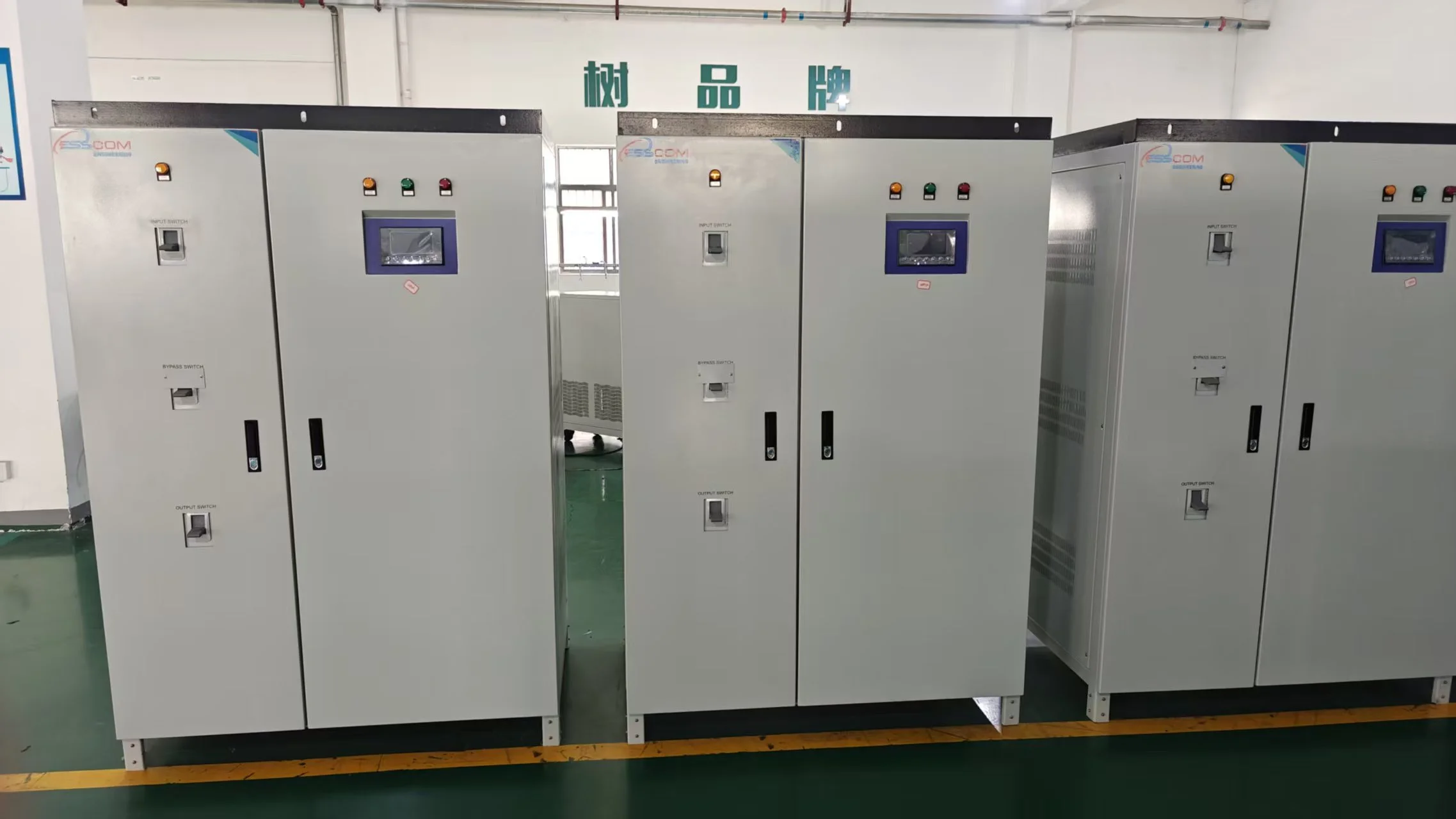

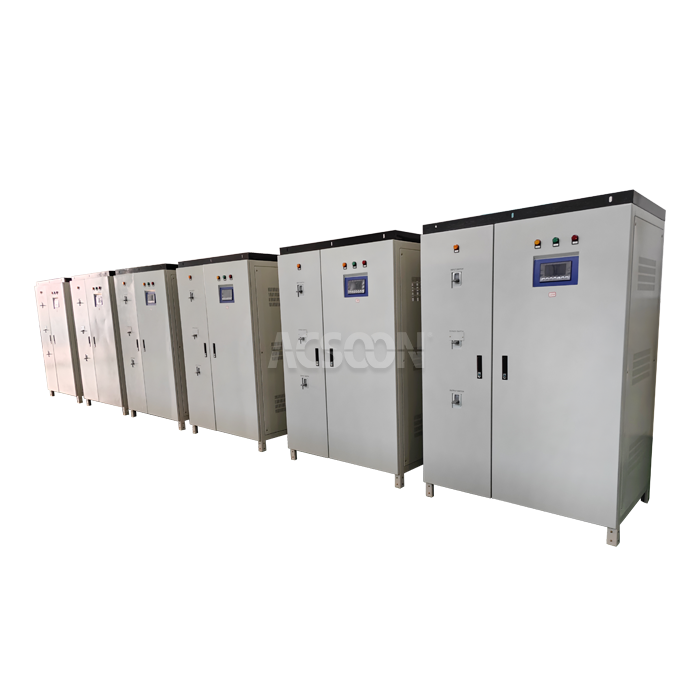

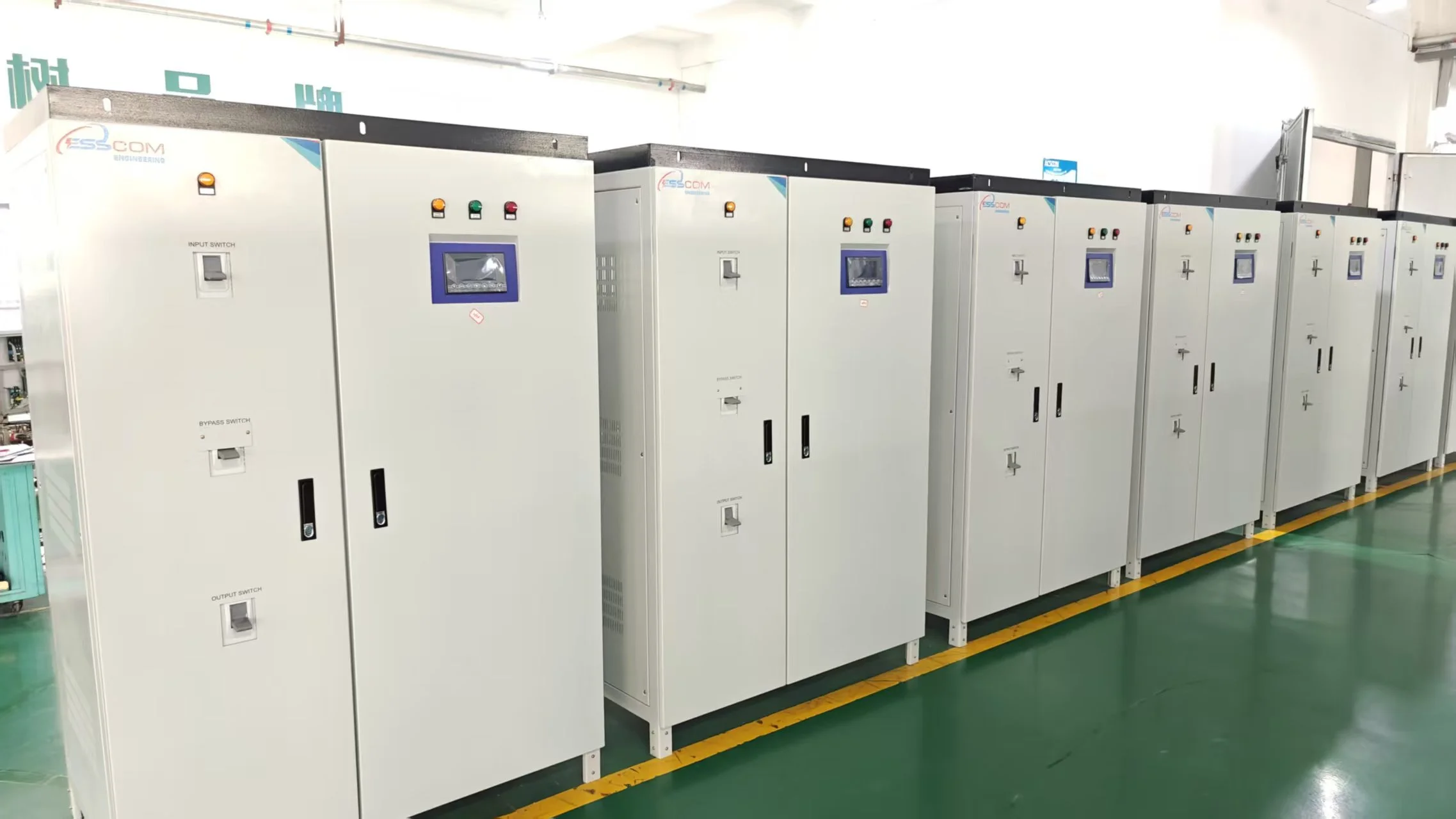

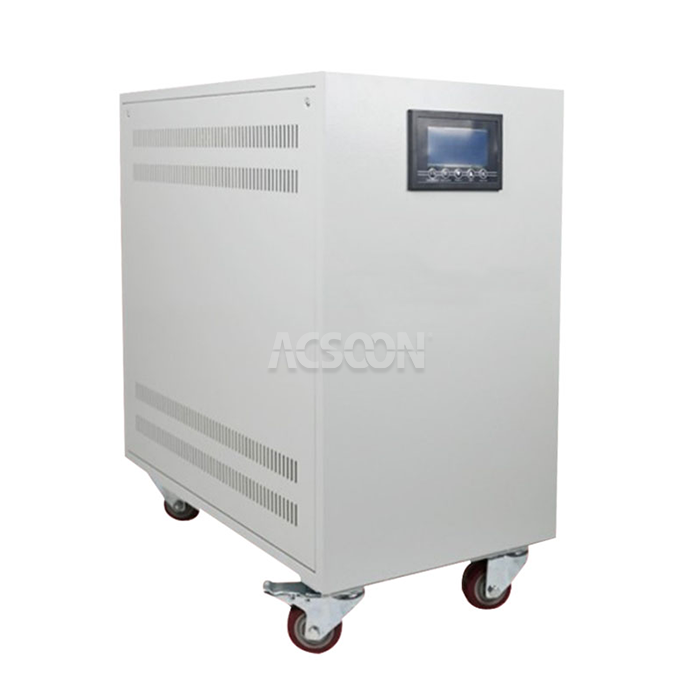

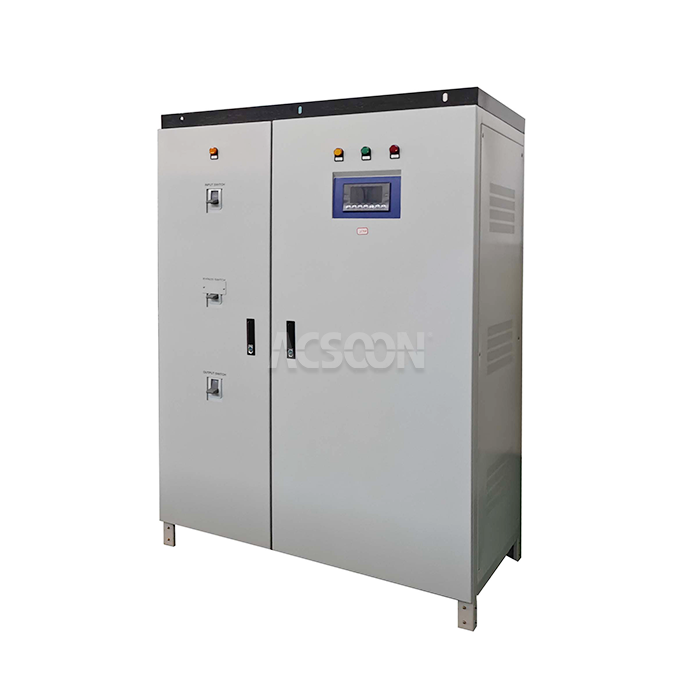

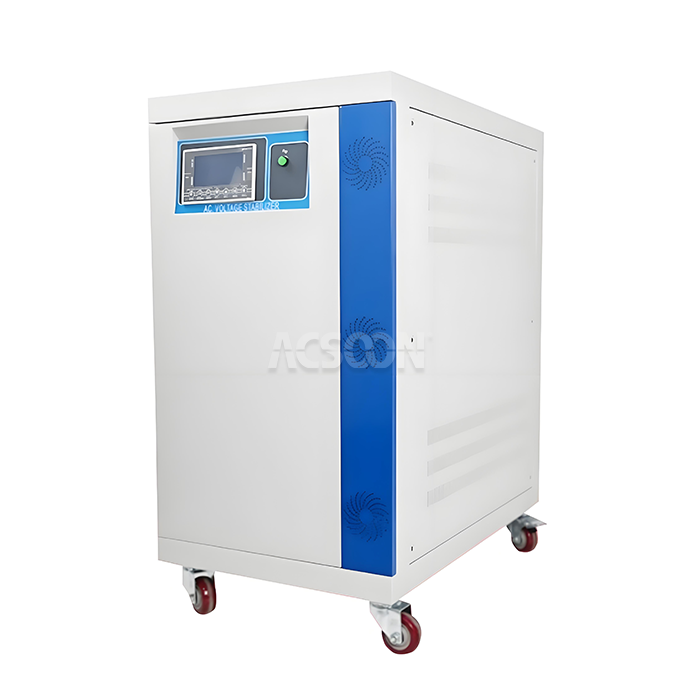

Voltage Regulators Stabilizers | High-Efficiency Servo Voltage Stabilizer for Industrial & Commercial Use
XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in manufacturing high-performance Voltage Regulators Stabilizers designed to deliver consistent and reliable power in demanding environments. Utilizing advanced servo-motor technology, our stabilizers automatically correct voltage fluctuations, protect sensitive equipment, and ensure operational continuity. Ideal for industrial, medical, and infrastructure applications, ACSOON stabilizers combine precision, durability, and energy efficiency.
Technical Summary
| Parameter | Specification |
|---|---|
| Input | |
| Voltage | Single-phase: 220V ±20%; Three-phase: 380V ±20% |
| Frequency | 50Hz / 60Hz |
| Output | |
| Voltage | Single-phase: 220V; Three-phase: 380V (customizable) |
| Regulation Accuracy | ±2% (adjustable 1%–5% optional) |
| Performance | |
| Efficiency | ≥98% |
| Response Time | <1 second |
| Overload Capacity | 120% for 30 seconds |
| General | |
| Display | LCD for voltage, current, status |
| Communication | Optional RS485 |
| Protection | Over/under voltage, overload, short-circuit, over-temperature |
| Operating Temperature | -10°C to +50°C |
| Humidity | 10–95% (non-condensing) |
| Noise Level | <65 dB at 1 meter |
| Standards | CE, ISO compliant |
Voltage Regulators Stabilizers Main Features
- Wide input voltage range: ±20% (e.g., 160V–250V for single-phase, 304V–456V for three-phase).
- High adjustment speed: <1 second per 10% input voltage change.
- Digital LCD display for real-time monitoring of input/output voltage, current, and status.
- Optional RS485 communication interface for remote monitoring and control.
- CE certified and compliant with international electrical standards.
- Silent operation with no waveform distortion (THD-free).
- Designed for continuous duty in temperatures from -10°C to +50°C.
Why Choose ACSOON voltage regulators stabilizers?
- ACSOON Voltage Regulators Stabilizers are engineered for superior performance and reliability. Here’s what sets our products apart:
- Exceptional Voltage Accuracy: Maintains output voltage within ±2% under varying input conditions.
- Rapid Response: Corrects voltage fluctuations in less than 1 second for seamless operation.
- High Efficiency & Energy Savings: ≥98% efficiency reduces power loss and operating costs.
- Robust Protection: Integrated safeguards against overload, short-circuit, over-temperature, and surges.
- User-Friendly Design: Features manual bypass for easy maintenance and continuous operation.
Application Areas
- ACSOON Voltage Regulators Stabilizers are versatile and essential across multiple sectors:
- Manufacturing Plants: Protect CNC machines, motors, and automation systems from voltage instability.
- Healthcare Facilities: Ensure uninterrupted power for MRI machines, surgical equipment, and diagnostic devices.
- Data Centers & Server Rooms: Maintain consistent voltage for servers, storage, and network infrastructure.
- Railway & Transportation: Stabilize power for signaling systems, station equipment, and tunnel lighting.
- Commercial Buildings: Safeguard elevators, HVAC systems, and office electronics.
- Renewable Energy Integration: Condition unstable grid or generator supply for hybrid power systems.
- Laboratories & Research Centers: Provide clean power for precision instruments and sensitive experiments.
Our Services
01

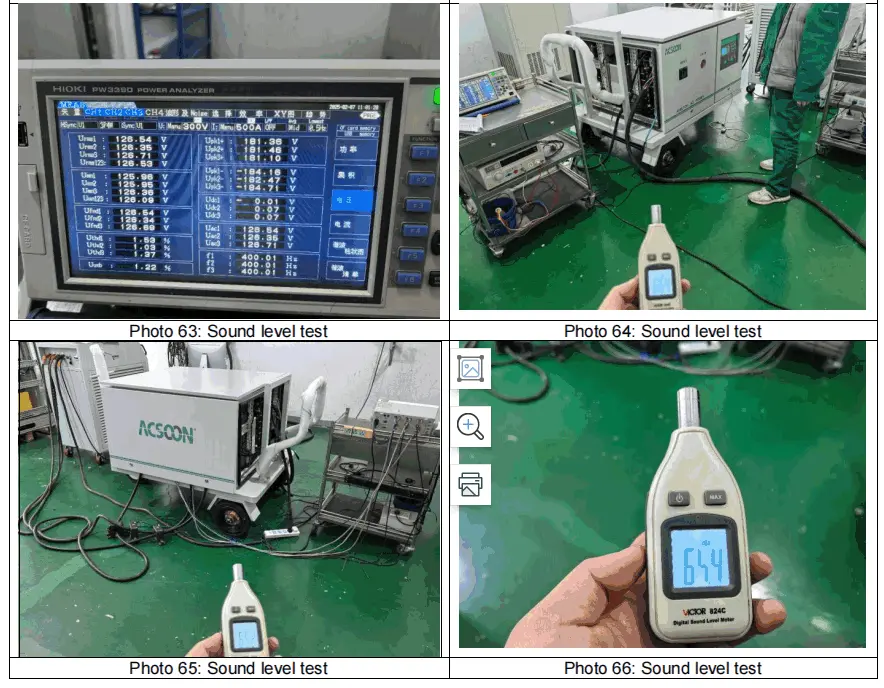

Quality Control
- Every Voltage Regulators Stabilizers unit undergoes stringent quality checks:
- Component-level inspection and testing before assembly.
- Full-load performance validation under simulated real-world conditions.
- Safety and protection function tests, including surge and overload scenarios.
- Final certification against CE and relevant industry standards.
02

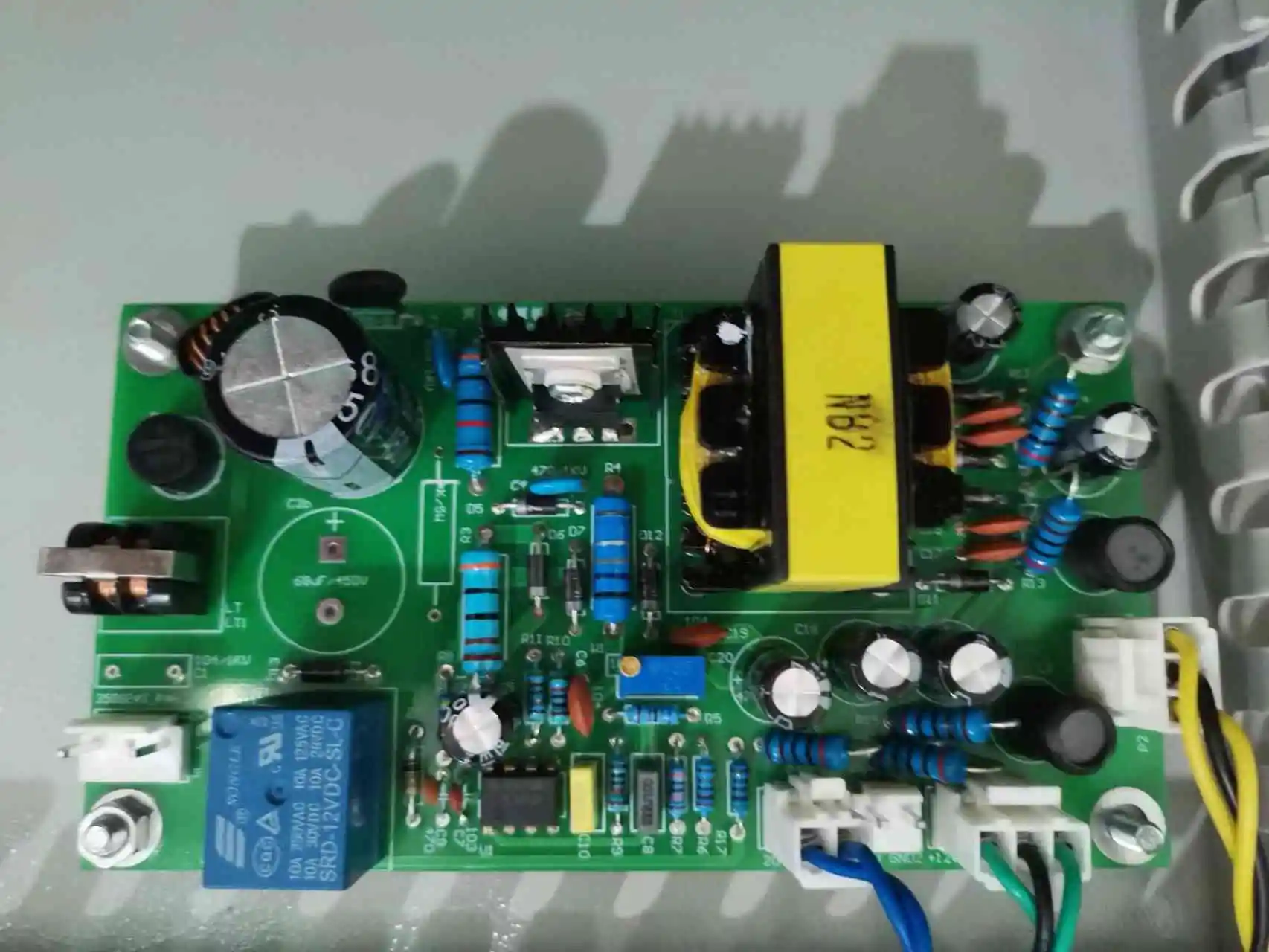

R&D Results
- Our ongoing research has enhanced the Voltage Regulators Stabilizers with:
- Optimized servo-motor control algorithms for smoother and faster correction.
- Improved thermal management for extended component lifespan.
- Smart communication capabilities for integration into IoT-based power management systems.
03
Packaging and Transportation
- Units are securely mounted in robust, powder-coated steel enclosures.
- Packed in wooden crates with shock-absorbent and waterproof materials.
- Clearly labeled with handling instructions and safety information.
- Shipped globally via reliable logistics partners.
04

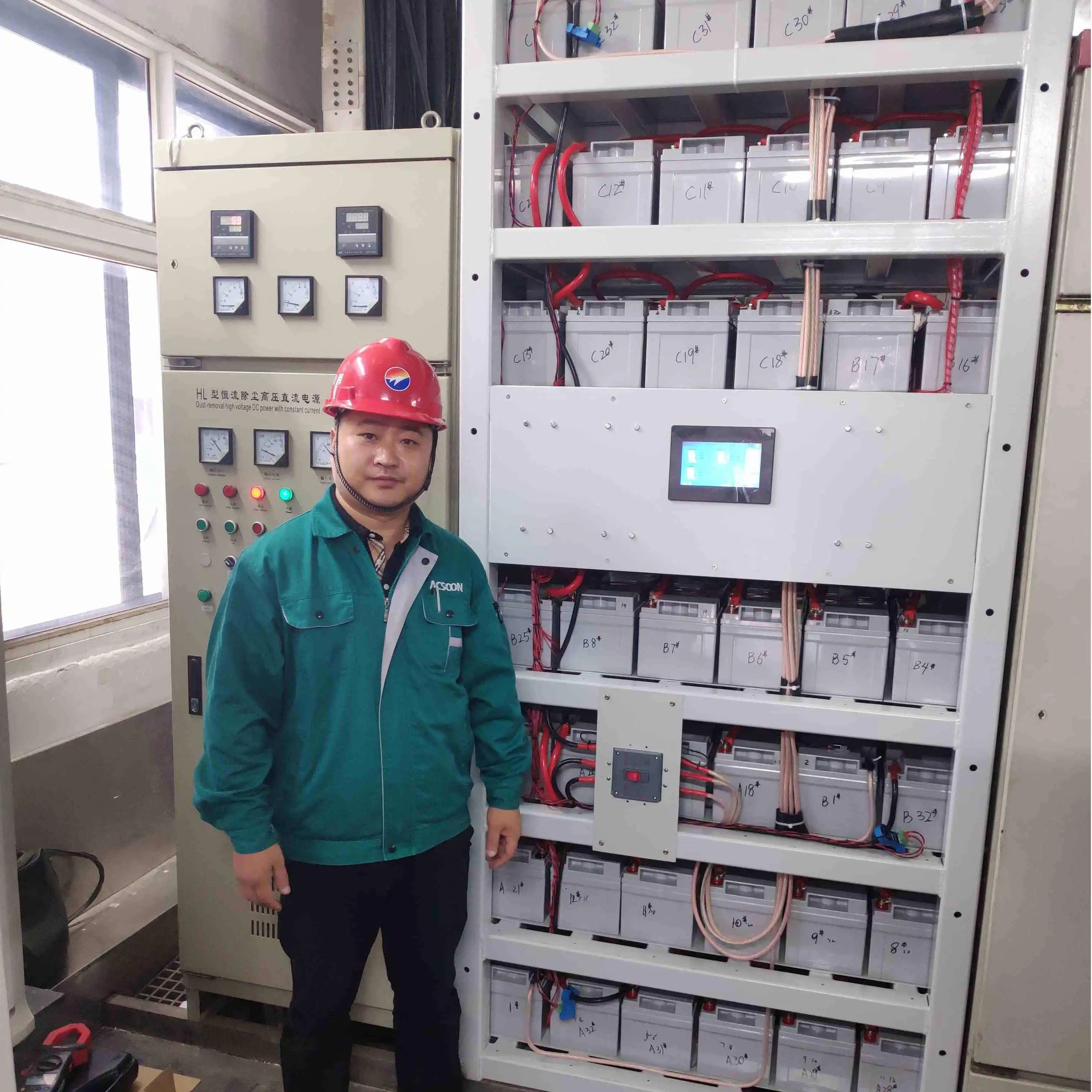

After-Sales Service
- 12-month warranty with optional extension.
- Remote technical support and troubleshooting.
- On-site maintenance and repair services available.
- Access to comprehensive user manuals and wiring diagrams.
- Spare parts availability for long-term support.
Qualification Certification
CE Certification (EMC & LVD Directives)；ISO 9001:2015 Quality Management System；National Quality and Technical Supervision Bureau certification.
FAQ |
|---|
| Q1: What is the main benefit of using a servo-based voltage stabilizer? |
| A: It provides precise, rapid, and wear-resistant voltage correction compared to traditional relay-based stabilizers, ensuring longer service life and higher reliability. |
| Q2: Can these stabilizers be used with generators? |
| A: Yes, they are ideal for stabilizing generator output, which often fluctuates under varying loads. |
| Q3: Is remote monitoring possible? |
| A: Yes, with the optional RS485 interface, you can integrate the stabilizer into a SCADA or building management system for real-time monitoring. |
| Q4: What is the typical installation requirement? |
| A: Installation requires a dry, well-ventilated area with adequate clearance for cooling and maintenance. Electrical connections must follow local codes. |
| Q5: Can I customize the output voltage? |
| A: Yes, we offer customized output voltages (e.g., 400V, 415V) to meet specific regional or equipment requirements. |
