115volt 400hz Power Supply

1.Rated Power: 15KVA to 60KVA aircraft-grade power
2.Output Specification: 115V/200V 400Hz, three-phase four-wire
3.Input Power: 208V/400V/480V, three-phase, 50Hz/60Hz
4.Frequency Stability: ±0.01% crystal-controlled precision
5.Voltage Regulation: ±1% under varying load conditions
6.Key Applications: Aircraft systems testing, avionics, ground power
7.Cooling System: Intelligent temperature-controlled forced air cooling
8.Brand: ACSOON (support OEM).

Send Inquiry Download

Product Description

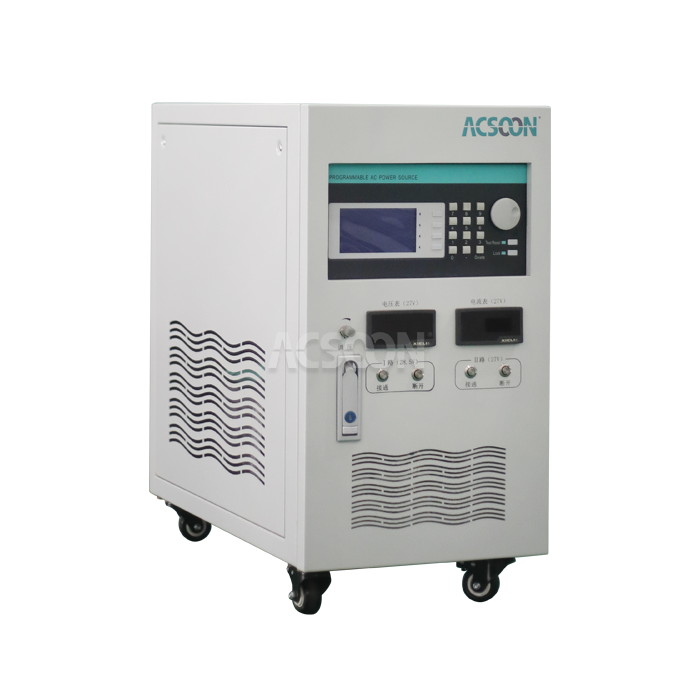

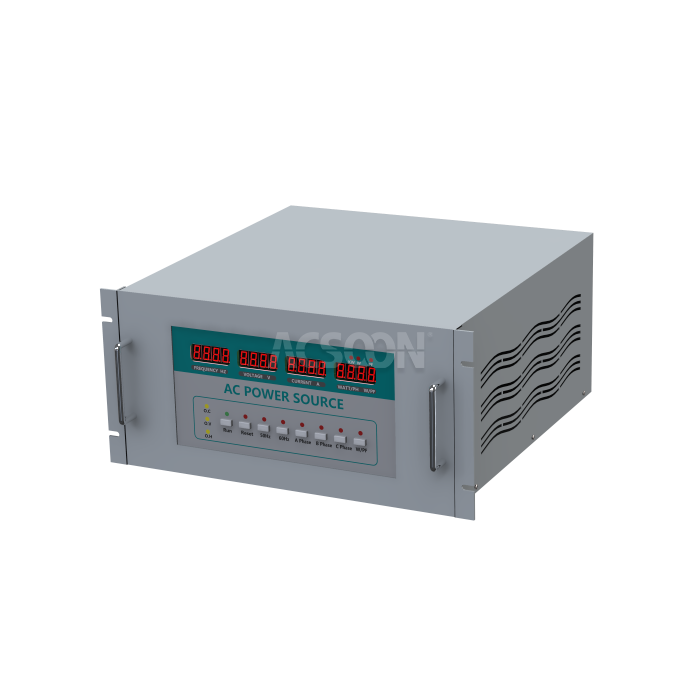

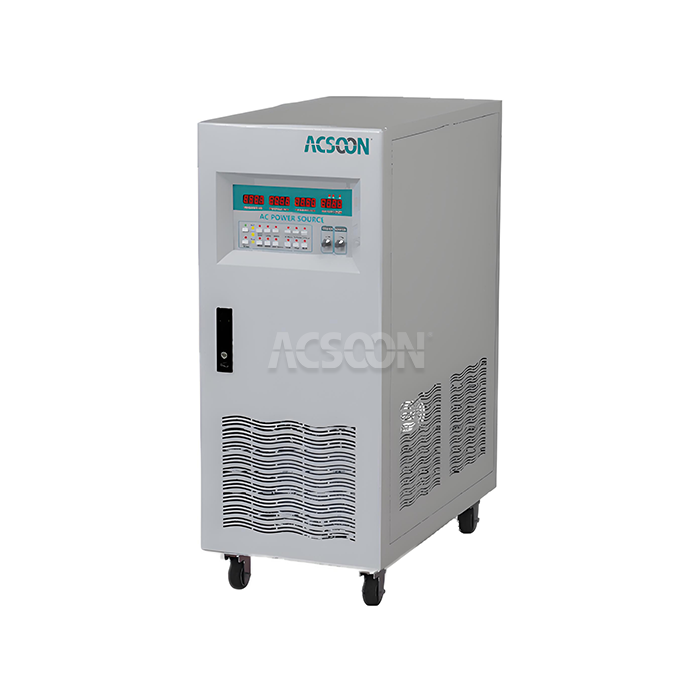

115volt 400hz Power Supply | Aviation Grade Power System

XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the specialized 115volt 400hz Power Supply, engineered specifically for aviation and aerospace applications requiring precise 400Hz power. Our 115volt 400hz Power Supply delivers stable and clean 400Hz power that meets stringent aviation standards, ensuring reliable operation of aircraft systems and avionics equipment.

Technical Specification

PARAMETER	SPECIFICATION
INPUT
Voltage	208V/400V/480V ±15%
Frequency	50Hz/60Hz ±5%
Phase	Three-phase + Neutral
OUTPUT
Voltage	115V/200V ±1%
Frequency	400Hz ±0.01%
Waveform	Pure Sine Wave THD<2%
PERFORMANCE
Efficiency	≥92% at full load
Response Time	<15ms for load changes
Load Regulation	±1% (0-100% load)
PROTECTION
Input	Over/under voltage, phase loss
Output	Overload, short circuit, over temperature
ENVIRONMENTAL
Operating Temperature	-20°C to 50°C
Protection Grade	IP21 (IP54 optional)

115volt 400hz Power Supply Main Features

Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
EMC compatible
Compatible with both 50Hz and 60Hz power supply network
Low harmonic distortion
Pure sine wave,sinusoidal output
Completely protection and alarm for over voltage, over current and overheating, etc
Display real-time data: voltage,current,frequency, power / power factor

Why Choose ACSOON 115volt 400hz Power Supply?

ACSOON 115volt 400hz Power Supply provides exceptional advantages for aviation power applications:

Aviation Standard Compliance: Meets MIL-STD-704F aircraft power quality requirements

High Precision Output: Excellent frequency and voltage stability for sensitive avionics

Pure Sine Wave: Clean power with THD<2% for aircraft systems

Robust Construction: Industrial-grade components for reliable operation

Advanced Monitoring: Comprehensive digital display and remote control capability

Application Areas

Our 115volt 400hz Power Supply serves critical functions in aviation and related industries:

Aircraft Ground Power: Power supply during aircraft maintenance and testing

Avionics Testing: Development and testing of aircraft electronic systems

Aerospace Manufacturing: Production testing of aircraft components

Military Applications: Ground power for military aircraft operations

Research Laboratories: Aerospace research and development facilities

Maintenance Facilities: Aircraft system verification and maintenance procedures

Our Services

Quality Control

Each 115volt 400hz Power Supply undergoes rigorous aviation-grade testing:

Frequency accuracy and stability validation

Load performance testing with aviation-grade equipment

Environmental testing for operational temperature range

Safety certification to international aviation standards

Final calibration with precision measurement instruments

R&D Results

Our technical innovations in 115volt 400hz Power Supply technology include:

Enhanced frequency stability through advanced control algorithms

Improved power conversion efficiency

Smart thermal management for continuous operation

Reduced electromagnetic interference

Modular design for easy maintenance and service

Packaging and Transportation

We ensure secure delivery of every 115volt 400hz Power Supply:

Aviation-grade packaging with adequate protection

Custom packaging solutions for international shipping

Comprehensive documentation including calibration certificates

Global logistics support with professional handling

After-Sales Service

We provide dedicated support for all 115volt 400hz Power Supply installations:

Technical assistance for aviation applications

Calibration services to maintain precision performance

Remote troubleshooting and diagnostic support

Operator training for optimal system utilization

Rapid response for critical technical requirements

Qualification Certification

FAQ
Q1: What aircraft types are compatible with your 115volt 400hz Power Supply?
A: Our systems are compatible with most commercial and military aircraft requiring 115V/200V 400Hz power, including Boeing and Airbus models.
Q2: How does your 115volt 400hz Power Supply ensure power quality for sensitive avionics?
A: We maintain frequency stability within ±0.01% and voltage regulation within ±1%, ensuring clean power for sensitive aircraft systems.
Q3: What safety features are included in your 115volt 400hz Power Supply?
A: Standard protections include over voltage, over current, short circuit, overload, and thermal protection with comprehensive alarm systems.
Q4: Can your 115volt 400hz Power Supply operate in extreme environmental conditions?
A: Yes, our units are designed for operation in temperatures from -20°C to 50°C with proper environmental protection.
Q5: What is the typical delivery time for the 115volt 400hz Power Supply?
A: Standard units are typically available within 3-4 weeks, with expedited options available for urgent aviation requirements.

Contact Us

For 115V 400Hz power supply solutions or technical specifications: acpower@acsoonpower.com , or submit your requirements using the form at the bottom of our website.
