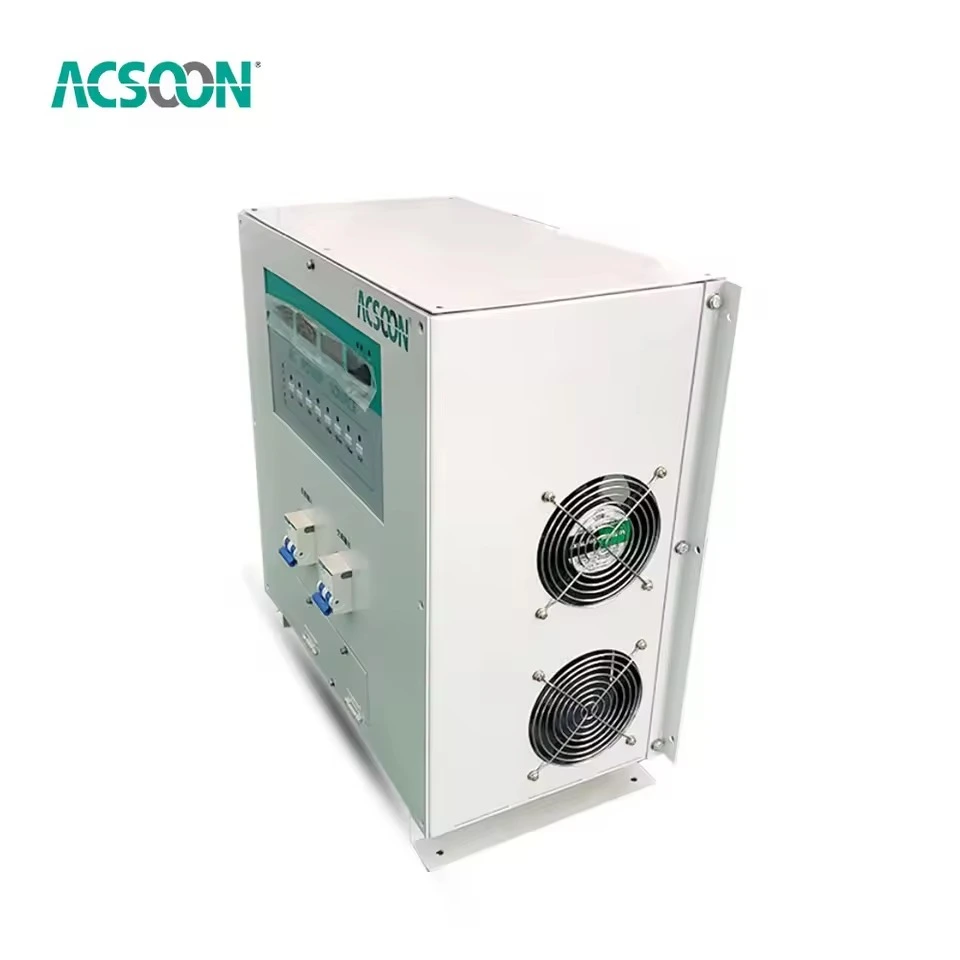

3 Phase AC Frequency Converter 400Hz

1.Output: 0‑300V adjustable, 45‑200Hz adjustable, pure sine wave
2.Power: 1kVA, 2kVA, 3kVA, 5kVA, single‑phase
3.Input: 220V ±15% single‑phase, 50/60Hz
4.Key specs: ±1.5% voltage regulation, THD <3.5%, isolation transformer
5.Applications: Basic lab work, small repair shops, school demos, DIY projects
6.Features: Simple analog controls, overload protection, compact metal case
7.Brand: ACSOON (1‑year warranty, built in Xi’an).

Send Inquiry Download

Product Description

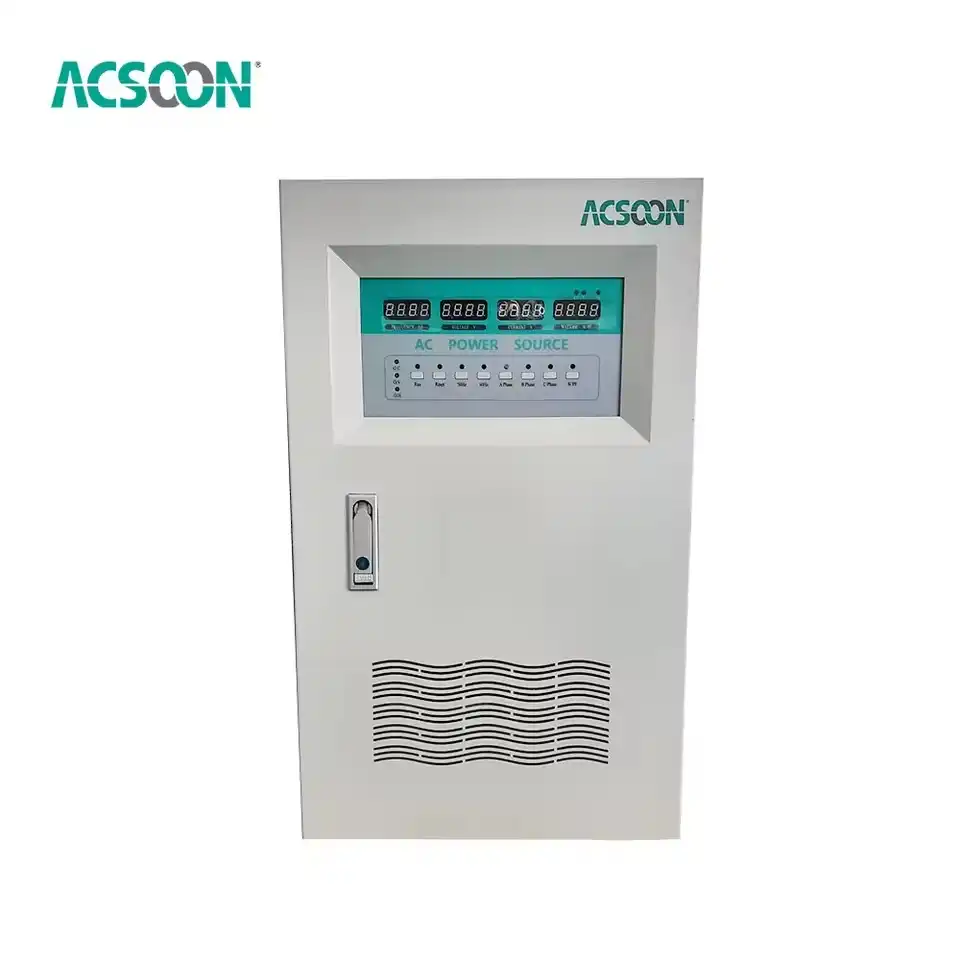

AF400M Static Frequency Converter – Short High-Converting Description

What Static Frequency Converter is designed to solve？

In practice, customers usually face these issues:

Aircraft systems require 400Hz power, but site power is 50/60Hz
Test results are unstable due to waveform distortion
Rotary converters are noisy and require frequent maintenance
Sensitive avionics react to voltage fluctuation
Lab setups need both single-phase and three-phase flexibility

ACSOON AF400M is an industrial-grade 400Hz static frequency converter designed for aircraft ground power, aerospace testing, and aviation maintenance applications. It converts standard 50Hz/60Hz utility power into stable 400Hz pure sine wave output with low harmonic distortion and high voltage stability, ensuring reliable performance for sensitive avionics and test equipment.

Built with IGBT technology and isolated transformer design, AF400M delivers clean, regulated AC power with full protection and real-time monitoring, making it a dependable solution for MRO facilities, airports, and aerospace laboratories worldwide.

Datasheet

Item	Specification
Product Name	AF400M Static Frequency Converter
Output Frequency	400Hz (adjustable 300–500Hz)
Output Voltage	115V / 120V / 200V / 208V / 380V (configurable)
Output Waveform	Pure sine wave
Power Range	1kVA – 60kVA (single phase) / up to 300kVA (three phase)
Input Voltage	110V–240V single phase / 380V–415V three phase
Input Frequency	50Hz / 60Hz ±15%
Voltage Regulation	±1%
Total Harmonic Distortion (THD)	<3% (linear load)
Efficiency	≥85%
Power Factor	≥0.8
Isolation	Built-in isolation transformer
Display	LED real-time monitoring (V / A / Hz / kW / PF)
Protection Functions	Over-voltage / Over-current / Overload / Over-temperature / Short-circuit
Cooling System	Forced air cooling (industrial fan system)
Operating Temperature	-10°C to 45°C
Protection Class	IP20 / IP21 (optional higher protection)
Application Standard	EN60204-1 / IEC 62321 / EN61000-6-3

If you need it,Contact us at Email: acpower@acsoonpower.com

Static Frequency Converter Main Features

IGBT-based static frequency conversion (no moving parts)
Built-in isolation transformer for load separation
Pure sine wave output suitable for avionics and sensitive loads
Real-time measurement of electrical parameters
Modular internal structure for easier maintenance
Designed for continuous industrial operation

✅ Why Choose ACSOON AF400M

Aviation-grade 400Hz output stability
Designed for aircraft ground power and aerospace testing with stable frequency control and low fluctuation.
Low harmonic distortion (<3%)
Pure sine wave output ensures safe operation for sensitive avionics and test equipment.
Industrial IGBT + isolated transformer design
Improves reliability, reduces electrical noise, and supports unbalanced loads.
Wide application compatibility
Supports single-phase and three-phase systems for aviation, MRO, and lab testing environments.
Built for continuous industrial operation
Stable performance in long-hour testing with strong protection functions (OVP/OCP/OTP/SCP).
Lower maintenance vs rotary systems
No mechanical parts, reducing failure rate and lifecycle cost.

AF400M Static Frequency Converter Application Areas

Aircraft maintenance and MRO workshops
Airport ground power supply systems
Aerospace and avionics test benches
Defense and military equipment testing
Shipboard or onboard 400Hz power systems
Electrical labs in universities and training centers
Transformer and motor testing environments

ABOUT US

·28,698+ long-term repeat clients globally with stable repeat orders

·19+ years domestic & export manufacturing experience for aviation ground power equipment

·7,000+ sq.m modern production factory

·24/7 customer service:＜30 mins quick response + lifetime after-sales support

·60+ independent patented technologies

·Certified as China National High-Tech Enterprise

·Multiple provincial awards, including Shaanxi AAAAA-Level Credibility Enterprise certification

28,696

Long Standing

Customer

19+

Over 19 years

experience

7,000㎡

Factory Area

30min

7/24H

High-Quality

Efficiency Service

Our Services

Quality Control

Every unit tested – 2 hours at 80% load. Check for overheating.
Output verified – Voltage accuracy at five set points. Record kept.
Isolation test – 2kV between input and output for 1 minute. No breakdown.
Knob cycle – 500 full rotations on each potentiometer. No scratchy spots.

R&D Results

Cost reduction – Replaced digital display with analog meters. Cut cost by 20%.
Transformer – Used a standard toroid instead of custom wound. Still meets specs.
Enclosure – Painted steel instead of powder coat. Same protection, lower cost.
User feedback – Hobbyists wanted bigger knobs. Added large rubberized knobs.

Packaging and Transportation

Shipped from Xi'an – Cardboard box with foam inserts. Fits a courier.
Included – Power cord (1.5m), output cable with universal socket, printed quick start.
Manual – One sheet of paper. Double‑sided. No USB.
Pallet – 8 units per pallet for dealers.

After‑Sales Service

1‑year warranty – Return to Xi'an for repair. Parts and labor.
Spare parts (transformer, fan, meters) kept in Xi'an. Express shipping.
Email support – We answer within one business day. Simple questions only.

Qualification Certification

CE – LVD and EMC tested.
ISO 9001:2015 – Our Xi'an facility.
RoHS – Compliant.

FAQ

Q1: Is this suitable for aircraft maintenance use?
Yes. It is commonly used in MRO environments where 400Hz aircraft power is required.

Q2: Can it simulate aircraft power conditions accurately?
Yes, it provides stable 115V/120V 400Hz output with low harmonic distortion.

Q3: Does it support both single-phase and three-phase output?
Yes, both configurations are available depending on system size.

Q4: What kind of load can it handle?
It is designed for linear and mixed industrial loads with isolated transformer support.

Q5: Is it suitable for continuous operation?
Yes, it is designed for industrial duty cycles with long-term operation in mind.

Q6:How can I get more details?

A:Click here.Send inquiry get price and specification.
