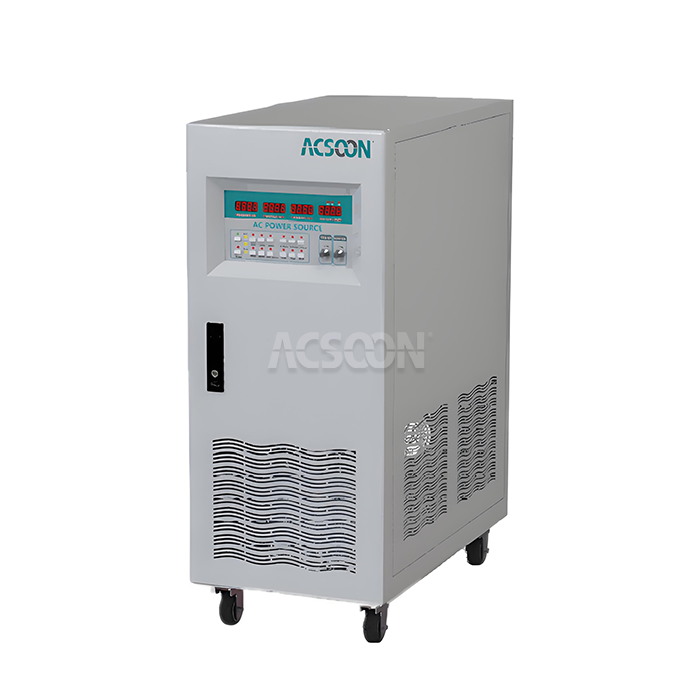

3KVA Converter

1.Rated Power: 3KVA continuous output capacity
2.Input Voltage: 110V/220V/380V, single or three phase, 50Hz/60Hz
3.Output Options: 115V/120V/220V/230V/240V selectable, 45Hz-500Hz adjustable
4.Voltage Stability: ±1% under varying load conditions

5.Frequency Accuracy: ±0.1% with digital precision control

6.Primary Applications: Laboratory testing, industrial equipment, research facilities
7.Key Features: Compact design, pure sine wave output, multiple protection functions
8.Brand: ACSOON (support OEM)
9.Efficiency Rating: ≥85% with advanced power conversion technology.

Send Inquiry Download

Product Description

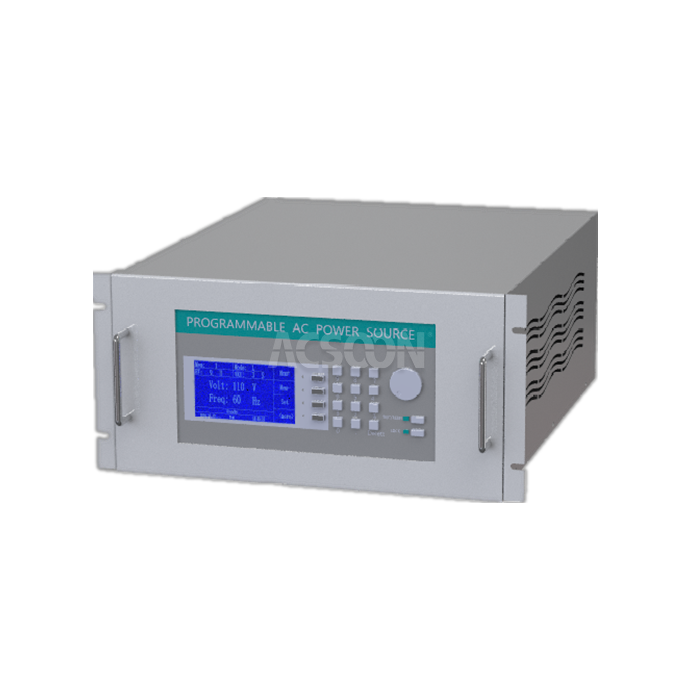

3KVA Converter | Compact AC Power Supply for Testing Applications

XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the versatile 3KVA Converter, designed for applications requiring reliable power conversion in a compact form factor. Our 3KVA Converter delivers stable and clean AC power with adjustable voltage and frequency, making it an ideal solution for testing, research, and industrial applications where space and flexibility are important considerations.

Technical Specifications

Feature	Specification
Capacity (Single Phase Output)	1kVA - 200kVA
Capacity (Three Phase Output)	1kVA - 2000kVA
Input Voltage (Single Phase)	110-230VAC ±20%
Input Voltage (Three Phase)	200-440VAC ±20%
Input Frequency	50/60HZ or 40HZ - 70HZ
Output Voltage (Single Phase)	0-300Vac
Output Voltage (Three Phase)	0-520Vac
Output Frequency	50/60/100/200/400HZ or 40-800HZ adjustable
Frequency Stability	≤0.1%
Voltage Stability	±1%
Output VTHD	<3% @ Linear load
Response Time	≤2ms
Power Factor	≥0.8 (Standard), ≥0.9 (12 Pulse Optional)
Overall Efficiency	≥85%
Overload Capacity	125% for 60s, 150% for 30s
Communication Protocol	Modbus RS232 / RS485 (Optional)
Working Temperature	-10℃ to 50℃
Altitude	<1800m

3KVA Converter Main Features

Isolated output transformer,suitable for any unbalance loads.Every single phase can be used independently
EMC compatible
Compatible with both 50Hz and 60Hz power supply network
Galvanically isolated, low harmonic distortion
Pure sine wave,sinusoidal output
Variable frequency and voltage
Display real-time data: voltage,current,frequency, power / power factor

Why Choose ACSOON 3KVA Converter?

ACSOON 3KVA Converter offers exceptional value and performance for diverse power conversion needs:

Compact Design: Space-saving enclosure suitable for limited workspace environments
Flexible Output: Adjustable voltage and frequency for versatile application requirements
Clean Power Quality: Pure sine wave output with THD<3% for sensitive equipment
Comprehensive Protection: Complete safeguards including overload, short circuit, and thermal protection
Easy Operation: User-friendly controls with clear digital display and preset functions

Application Areas

Our 3KVA Converter serves a wide range of testing and operational requirements:

Laboratory Testing: R&D laboratories and quality assurance testing facilities
Industrial Equipment: Powering and testing industrial control systems and machinery
Educational Institutions: Engineering laboratories and technical training centers
Medical Equipment: Power supply for medical testing and diagnostic devices
Telecommunications: Testing communication equipment and network devices
Manufacturing: Production line testing and equipment validation

Our Services

Quality Control

Each 3KVA Converter undergoes thorough quality validation:

Component-level testing and verification
Full-load performance testing for extended periods
Environmental testing for temperature and humidity tolerance
Safety certification testing to international standards
Final calibration and performance verification

R&D Results

Our engineering innovations in 3KVA Converter technology include:

Enhanced power density through optimized circuit design
Improved thermal management for reliable continuous operation
Advanced control algorithms for better transient response
Reduced electromagnetic interference for cleaner power output
Modular design approach for easier maintenance and service

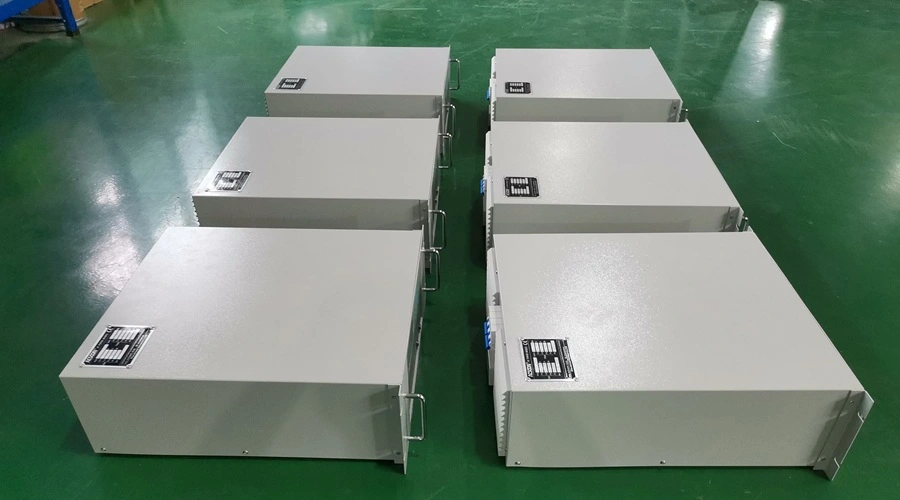

Packaging and Transportation

We ensure secure delivery of every 3KVA Converter:

Robust packaging with custom protective materials
Comprehensive documentation including user manuals
Worldwide shipping options with tracking services
Special handling for international customers

After-Sales Service

We provide dedicated support for all 3KVA Converter installations:

Technical assistance for application-specific configurations
Calibration services to maintain performance accuracy
Remote troubleshooting and diagnostic support
Operator training for optimal system utilization
Rapid response for technical inquiries and support

Qualification Certification

FAQ
Q1: What input power sources does your 3KVA Converter support?
A: Our converter supports both single-phase and three-phase input power from 110V to 380V, 50Hz/60Hz.
Q2: Can your 3KVA Converter generate different output frequencies?
A: Yes, our converter offers adjustable output frequency from 45Hz to 500Hz to meet various application requirements.
Q3: What protection features are included in your 3KVA Converter?
A: Standard protections include over voltage, over current, short circuit, overload, and thermal protection with audible and visual alarms.
Q4: How compact is your 3KVA Converter system?
A: Our converter features a compact design with dimensions optimized for easy integration into various workspace environments.
Q5: What is the typical delivery time for the 3KVA Converter?
A: Standard units are typically available within 2-3 weeks, with expedited options available for urgent requirements.
