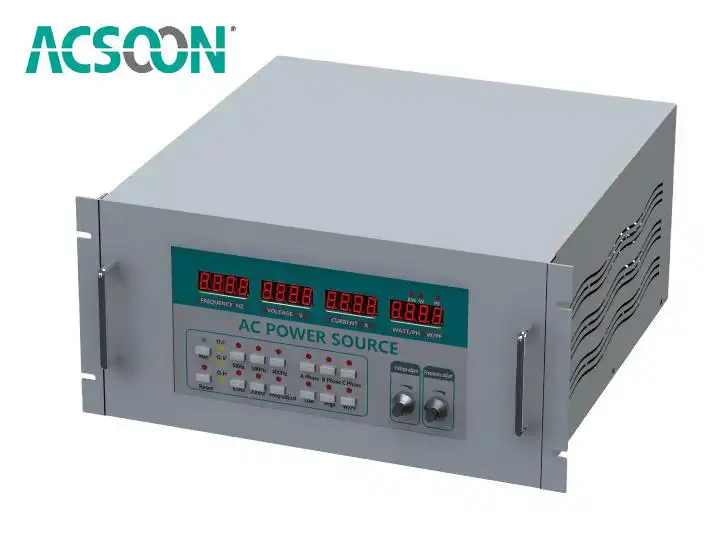

3kVA Electronic Frequency Converter

Output: 115V / 120V / 220V / 230V AC selectable, 50Hz / 60Hz / 400Hz adjustable, pure sine wave output, frequency adjustable 45–400Hz, low distortion (THD <3%)
Power: 1kVA, 2kVA, 3kVA (AF400-110003 standard model), 5kVA, single-phase / three-phase optional (series scalable up to 300kVA)
Input: 220V / 230V ±15% single-phase or 380V / 400V / 415V three-phase, 50/60Hz compatible input
Key specs: ±1% voltage regulation & stability, ±0.1% frequency stability, isolated output transformer design, crest factor 1.414±0.1, THD <3% (linear load), efficiency ≥85%
Applications: Aircraft avionics testing, aviation ground support simulation, MRO maintenance workshops, aerospace laboratory power supply, radar and communication equipment testing
Features: IGBT + SPWM technology, pure sine wave output, isolated transformer design, multi-protection system (over-voltage / over-current / over-temperature / short circuit), real-time LED display (V/A/Hz/W/PF), compact industrial metal enclosure
Brand: ACSOON AF400M Series (Xi’an Jerrystar Instrument Co., Ltd., 15+ years aviation power experience, 1-year warranty, OEM/ODM available, designed and manufactured in Xi’an, China)
For higher power aviation ground applications, see AF400M GPU series (10kVA–300kVA)

Send Inquiry Download

Product Description

⚡ AF400-110003 3kVA 400Hz Frequency Converter

⚠️ IMPORTANT: NOT FOR FULL AIRCRAFT POWER SUPPLY

This model is designed for testing & simulation only.

For aircraft ground operation, please refer to:

✔ GPU 30–90kVA series

✔ GPU 90–180kVA airport-grade systems

👉 Designed for real aircraft power supply at airports

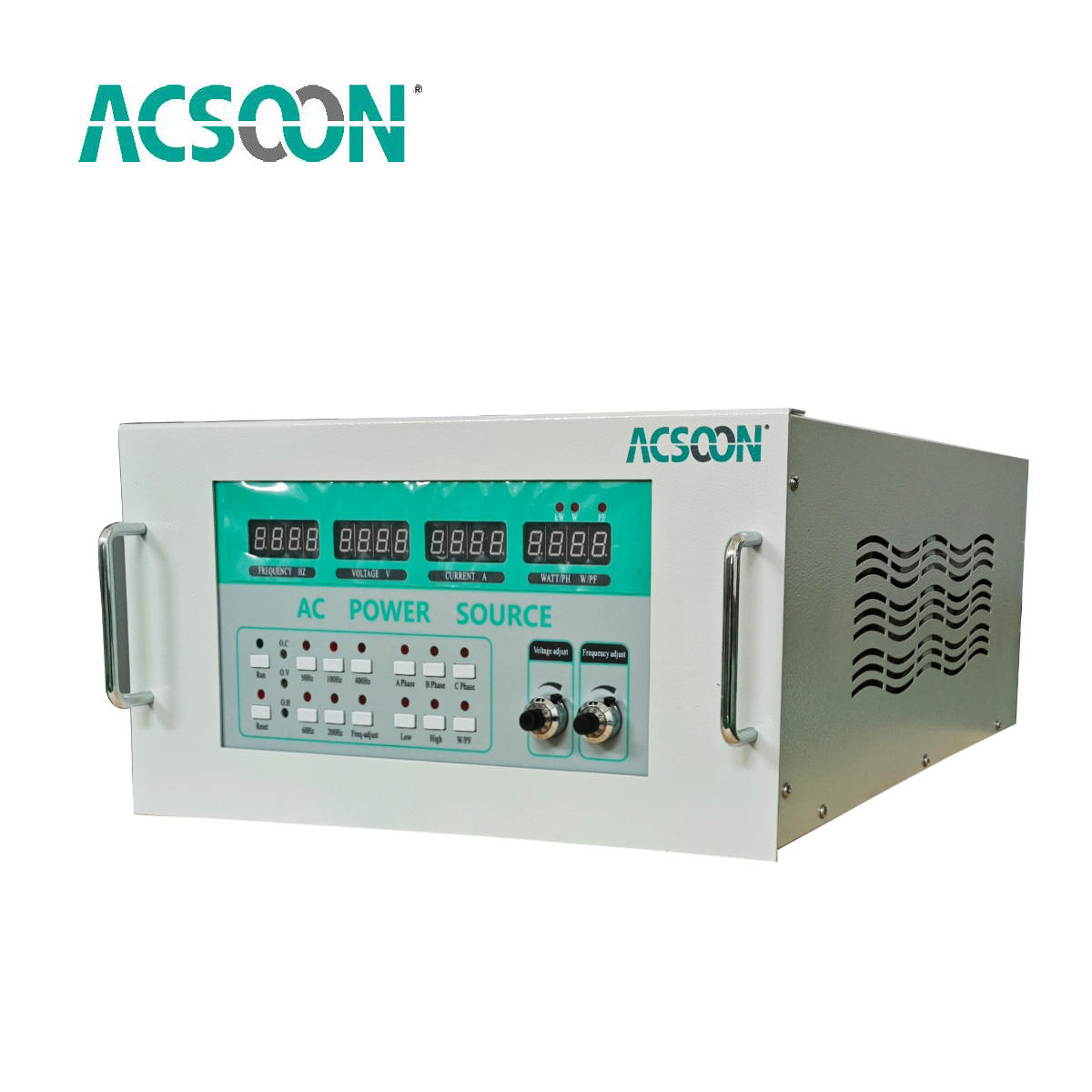

1263.1828 1245.2134 1473.8566 1375.464 3kVA Electronic Frequency Converter

The AF400-110003 3kVA 400Hz frequency converter is designed for aviation equipment testing, laboratory simulation, and light maintenance applications.

It provides stable 115V / 200V 400Hz AC output, simulating real aircraft electrical conditions for avionics validation and system testing.

👉 This is an entry-level aviation power solution, not for full aircraft ground operation.

📊 Technical Specification

Model: AF400-110003

Power: 3kVA

Output: 115V / 200V AC

Frequency: 400Hz adjustable

Waveform: Pure sine wave

THD: ≤3%

Efficiency: ≥85%

Cooling: Forced air cooling

Item	Specification
Product	AF400M Static Frequency Converter
Output Frequency	400Hz (adjustable 300–500Hz)
Output Voltage	115V / 120V / 200V / 208V / 380V (customizable)
Output Waveform	Pure sine wave
Power Range	1kVA – 60kVA (single-phase), up to 300kVA (three-phase)
Input Voltage	110V–240V single phase / 380V–415V three phase
Input Frequency	50Hz / 60Hz ±15%
Voltage Regulation	±1%
THD	<3% (linear load)
Efficiency	≥85%
Isolation	Built-in transformer
Protection	Over-voltage / Over-current / Overload / Over-temperature

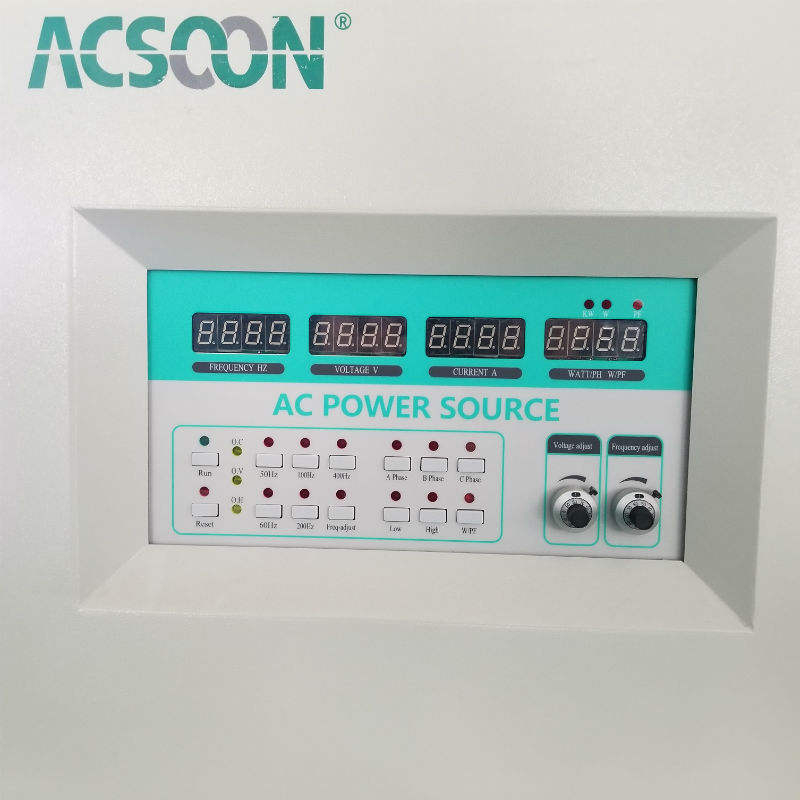

Display	LED real-time V / A / Hz / kW / PF
Cooling	Forced air cooling system
Operating Temperature	-10°C to +45°C

If you need it,Contact us at Email: acpower@acsoonpower.com

Static Frequency Converter Main Features

✔ Stable 400Hz Aircraft Simulation Output

Ensures accurate reproduction of aircraft electrical conditions for testing accuracy.

✔ Pure Sine Wave Output (≤3% THD)

Protects sensitive avionics and electronic instruments.

✔ Industrial IGBT + SPWM Technology

High efficiency conversion with stable waveform control.

✔ Multi-Frequency Input Compatibility

Supports 50Hz / 60Hz grid input systems.

✔ Built-in Protection System

Over-voltage protection

Over-current protection

Short-circuit protection

Over-temperature shutdown

✅ Why Engineers Choose AF400-110003?

This unit is widely selected for:
Equipment calibration
Avionics bench testing
Lab simulation systems
Pre-certification validation
👉 It reduces testing errors caused by unstable commercial power sources.

📦 Procurement & Inquiry Support We support: ✔ Engineering selection assistance ✔ Project-based quotation ✔ Distributor pricing ✔ OEM customization ✔ Fast delivery for standard models 📩 Get Price / Technical Consultation 👉 Request datasheet 👉 Get recommended configuration 👉 Send aircraft or test load requirement Response within 24 hours by engineering team.

AF400M Static Frequency Converter Application Areas

Aircraft avionics testing systems
Aviation electronics laboratories
Maintenance repair workshops (MRO light test benches)
Aerospace training systems
Radar & communication equipment testing

Target Markets

This model is widely used in:

Middle East aviation training centers

Southeast Asia MRO workshops

European aerospace laboratories

Military electronics testing facilities

👉 Especially suitable for hot climate and continuous lab operation environments

🔗 Product Upgrade Path

👉 ① 400Hz Aircraft Frequency Converter Series (AF400M Full Range)

👉 ② Aviation Ground Power Unit 30–60kVA (Light Aircraft Use)

👉 ③ Airport GPU 90kVA Narrow-body Aircraft Power System

👉 ④ Heavy Duty GPU 120–180kVA Wide-body Aircraft Systems

👉 ⑤ Military Aviation Power Systems (High Reliability Grade)

🏭 Why Choose ACSOON Systems

Xi'an Jerrystar Instrument Co., Ltd. provides complete aviation ground power solutions:

400Hz frequency converters

Ground power units (GPU series)

Military-grade aviation power systems

OEM / ODM customization support

ABOUT US

·28,698+ long-term repeat clients globally with stable repeat orders

·19+ years domestic & export manufacturing experience for aviation ground power equipment

·7,000+ sq.m modern production factory

·24/7 customer service:＜30 mins quick response + lifetime after-sales support

·60+ independent patented technologies

·Certified as China National High-Tech Enterprise

·Multiple provincial awards, including Shaanxi AAAAA-Level Credibility Enterprise certification

28,696

Long Standing

Customer

19+

Over 19 years

experience

7,000㎡

Factory Area

30min

7/24H

High-Quality

Efficiency Service

📦 Procurement & Inquiry Support

We support:

✔ Engineering selection assistance
✔ Project-based quotation
✔ Distributor pricing
✔ OEM customization
✔ Fast delivery for standard models

📩 Get Price / Technical Consultation

👉 Request datasheet
👉 Get recommended configuration
👉 Send aircraft or test load requirement

Response within 24 hours by engineering team.

Our Services

Quality Control

Every unit tested – 2 hours at 80% load. Check for overheating.
Output verified – Voltage accuracy at five set points. Record kept.
Isolation test – 2kV between input and output for 1 minute. No breakdown.
Knob cycle – 500 full rotations on each potentiometer. No scratchy spots.

R&D Results

Cost reduction – Replaced digital display with analog meters. Cut cost by 20%.
Transformer – Used a standard toroid instead of custom wound. Still meets specs.
Enclosure – Painted steel instead of powder coat. Same protection, lower cost.
User feedback – Hobbyists wanted bigger knobs. Added large rubberized knobs.

Packaging and Transportation

Shipped from Xi'an – Cardboard box with foam inserts. Fits a courier.
Included – Power cord (1.5m), output cable with universal socket, printed quick start.
Manual – One sheet of paper. Double‑sided. No USB.
Pallet – 8 units per pallet for dealers.

After‑Sales Service

1‑year warranty – Return to Xi'an for repair. Parts and labor.
Spare parts (transformer, fan, meters) kept in Xi'an. Express shipping.
Email support – We answer within one business day. Simple questions only.

Qualification Certification

CE – LVD and EMC tested.
ISO 9001:2015 – Our Xi'an facility.
RoHS – Compliant.

FAQ

Q1: Is this suitable for aircraft maintenance use?
Yes. It is commonly used in MRO environments where 400Hz aircraft power is required.

Q2: Can it simulate aircraft power conditions accurately?
Yes, it provides stable 115V/120V 400Hz output with low harmonic distortion.

Q3: Does it support both single-phase and three-phase output?
Yes, both configurations are available depending on system size.

Q4: What kind of load can it handle?
It is designed for linear and mixed industrial loads with isolated transformer support.

Q5: Is it suitable for continuous operation?
Yes, it is designed for industrial duty cycles with long-term operation in mind.

Q6:How can I get more details?

A:Click here.Send inquiry get price and specification.
