3Phase AC 110V 60Hz Power Source
2.Power Capacity: 3KVA to 100KVA, multiple capacity options
3.Input Compatibility: 220V/380V/480V, 50Hz/60Hz, single or three phase
4.Voltage Stability: ±1% under line and load variations
5.Frequency Accuracy: ±0.1% with crystal reference
6.Primary Applications: Industrial equipment testing, North American standard equipment, manufacturing systems
7.Key Features: Pure sine wave output, unbalanced load capability, compact design
8.Quality Assurance: ISO 9001 certified, CE compliant manufacturing.
- Product Description

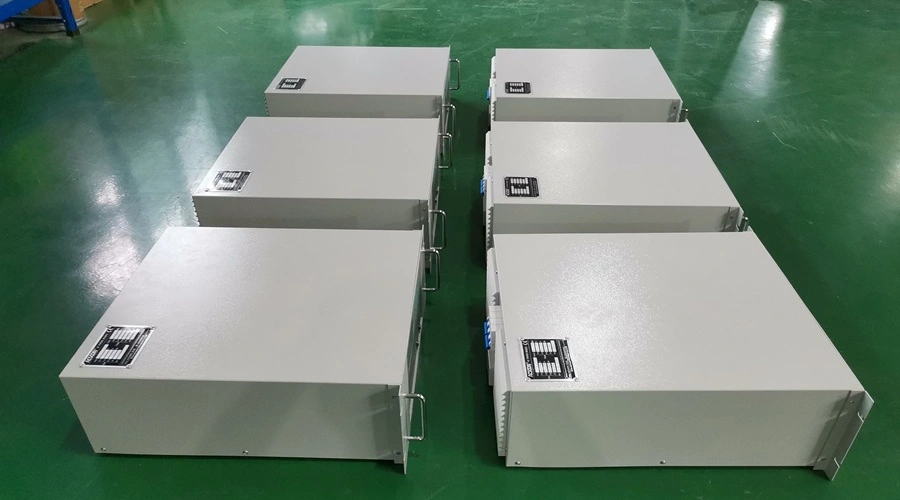

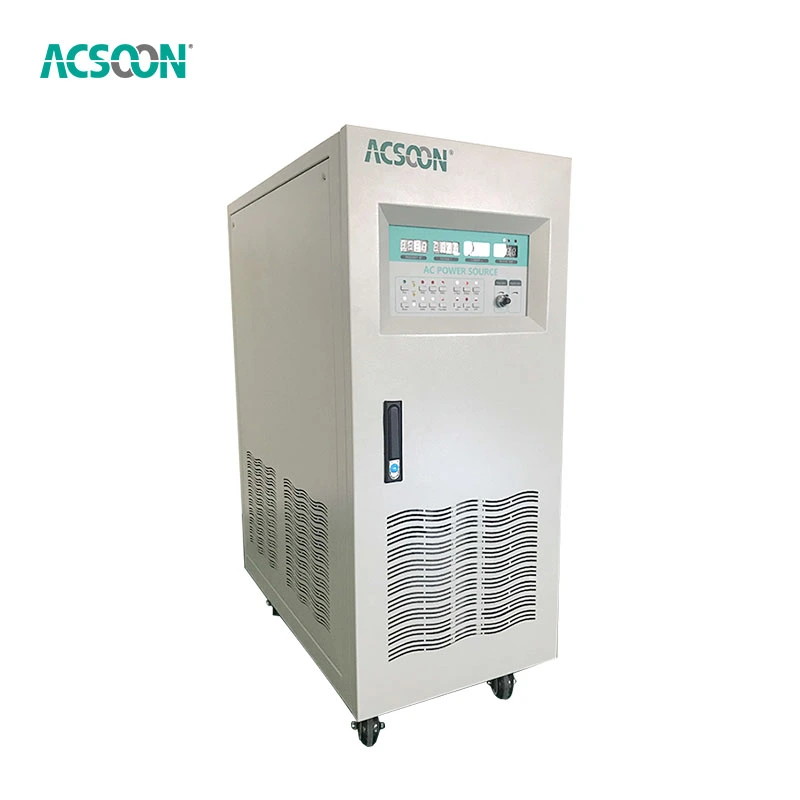

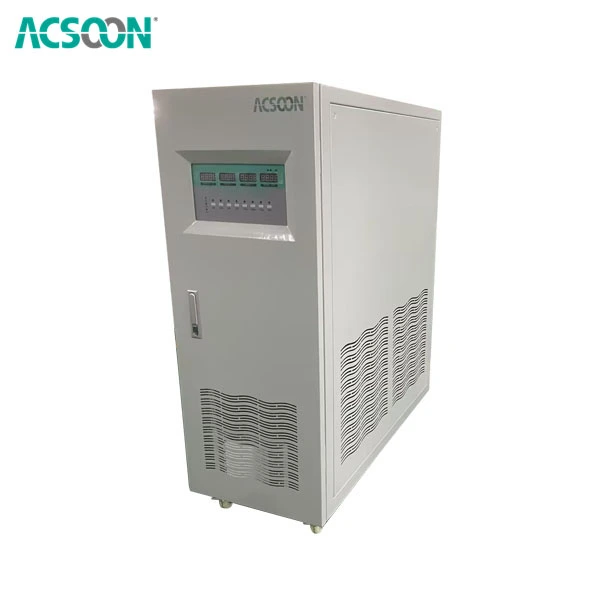

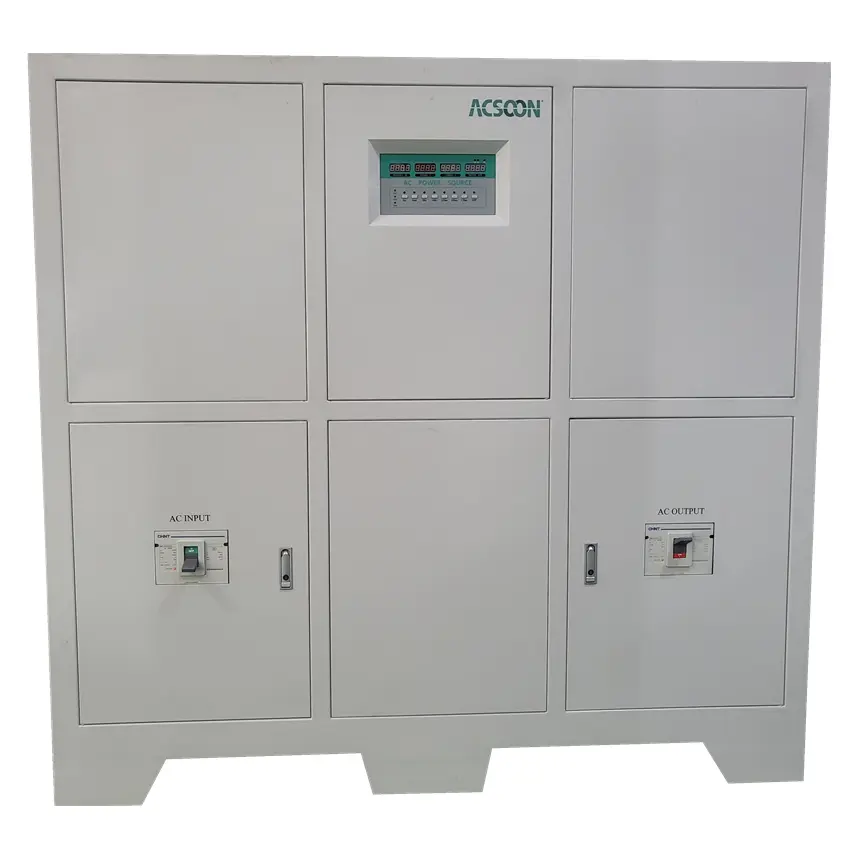

3Phase AC 110V 60Hz Power Source | Industrial Three Phase Power Supply
XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in manufacturing reliable 3Phase AC 110V 60Hz Power Source systems for global industrial applications. Our 3Phase AC 110V 60Hz Power Source provides stable three-phase power compliant with North American standards, ensuring optimal performance for equipment requiring 110V 60Hz three-phase power in various industrial and testing environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Single Phase Output) | 1kVA - 200kVA |
| Capacity (Three Phase Output) | 1kVA - 2000kVA |
| Input Voltage (Single Phase) | 110-230VAC ±20% |
| Input Voltage (Three Phase) | 200-440VAC ±20% |
| Input Frequency | 50/60HZ or 40HZ - 70HZ |
| Output Voltage (Single Phase) | 0-300Vac |
| Output Voltage (Three Phase) | 0-520Vac |
| Output Frequency | 50/60/100/200/400HZ or 40-800HZ adjustable |
| Frequency Stability | ≤0.1% |
| Voltage Stability | ±1% |
| Output VTHD | <3% @ Linear load |
| Response Time | ≤2ms |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 60s, 150% for 30s |
| Communication Protocol | Modbus RS232 / RS485 (Optional) |
| Working Temperature | -10℃ to 50℃ |
| Altitude | <1800m |
3Phase AC 110V 60Hz Power Source Main Features
- Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
- EMC compatible
- Compatible with both 50Hz and 60Hz power supply network
- Low harmonic distortion
- Pure sine wave,sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Display real-time data: voltage,current,frequency, power / power factor
Why Choose ACSOON 3Phase AC 110V 60Hz Power Source?
ACSOON 3Phase AC 110V 60Hz Power Source delivers exceptional performance for demanding applications:
Precision Output: Excellent voltage and frequency stability meeting industrial requirements
Wide Input Range: Compatible with various input voltages and frequencies worldwide
Clean Power Quality: Low distortion sine wave (THD<3%) for sensitive equipment
Robust Protection: Comprehensive safeguards including overload, short circuit, and thermal protection
Flexible Configuration: Multiple capacity options from 3KVA to 100KVA for different applications

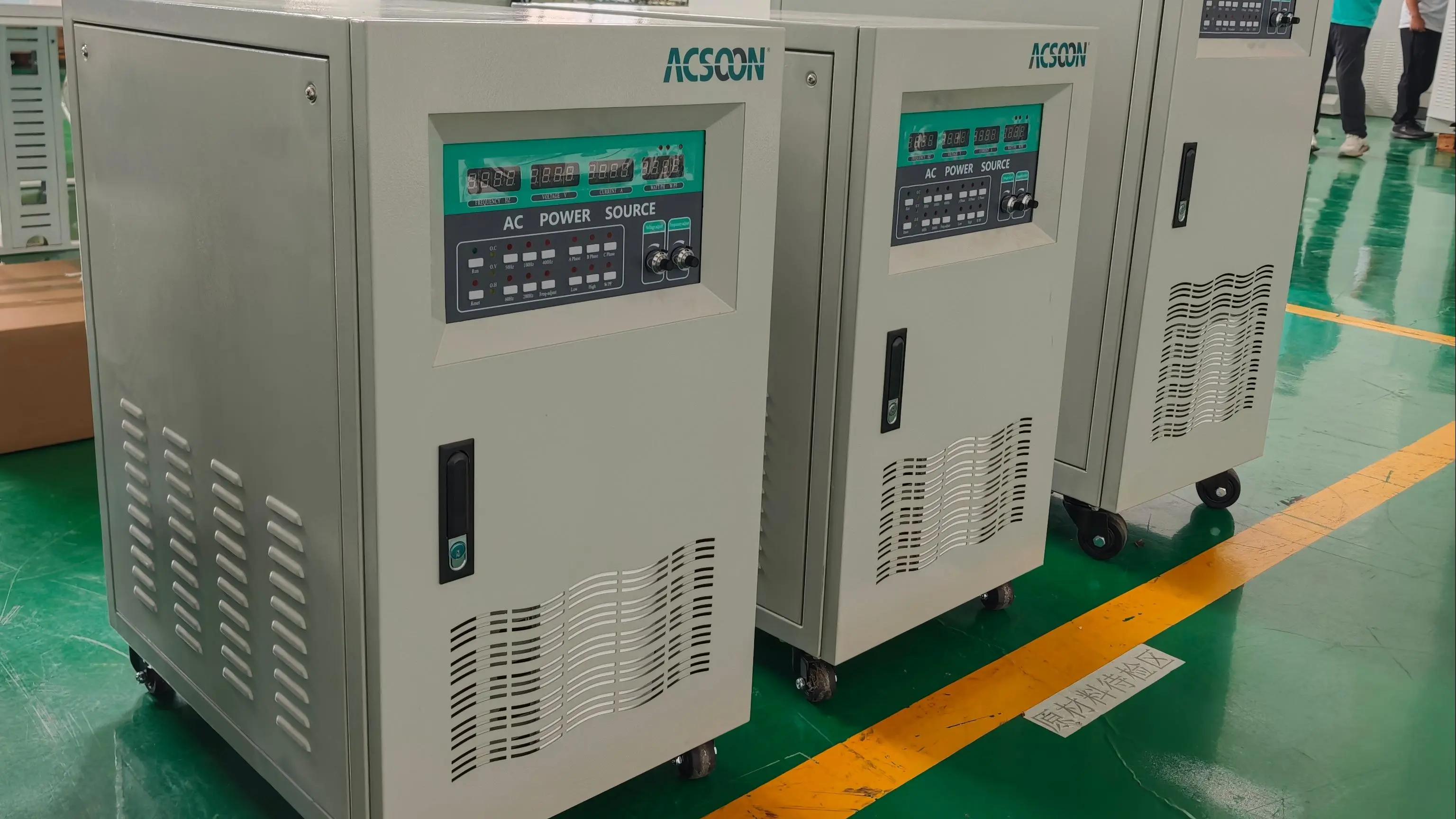

Application Areas
Our 3Phase AC 110V 60Hz Power Source serves diverse industrial and commercial needs:
Industrial Manufacturing: Powering North American standard machinery and production equipment
Testing Laboratories: Equipment validation and quality assurance testing facilities
Research Institutions: Scientific research requiring precise three-phase power conditions
Marine Equipment: Shipboard systems and offshore platform power supply
Data Centers: Backup power systems and equipment testing
Educational Facilities: Engineering laboratories and technical training centers
Our Services
Quality Control
Every 3Phase AC 110V 60Hz Power Source undergoes rigorous quality verification:
Component-level testing and validation
Full-load endurance testing for 24+ hours
Environmental testing under various temperature conditions
Safety certification to international standards
Final performance verification with calibrated instruments
R&D Results
Our continuous innovation in 3Phase AC 110V 60Hz Power Source technology has achieved:
Enhanced efficiency through advanced power conversion topology
Improved thermal management for reliable continuous operation
Smart monitoring capabilities with remote communication interfaces
Reduced electromagnetic interference for cleaner power output
Modular design approach for easier maintenance and service
Packaging and Transportation
We ensure secure delivery of every 3Phase AC 110V 60Hz Power Source:
Heavy-duty packaging with custom protective materials
Comprehensive documentation including operation manuals
Global shipping with professional logistics partners
On-site support available for large installations
After-Sales Service
We provide comprehensive support for all 3Phase AC 110V 60Hz Power Source installations:
Technical assistance for system setup and operation
Maintenance services and performance optimization
Remote monitoring and diagnostic support
Operator training programs
Spare parts availability and rapid response
Qualification Certification
FAQ |
|---|
| Q1: What input power requirements does your 3Phase AC 110V 60Hz Power Source support? |
| A: Our systems support various input voltages including 220V, 380V, and 480V, both single and three-phase, at 50Hz or 60Hz. |
| Q2: Can your 3Phase AC 110V 60Hz Power Source handle unbalanced loads? |
| A: Yes, our design includes an isolation transformer that allows each phase to operate independently with unbalanced loads. |
| Q3: What communication interfaces are available for remote monitoring? |
| A: Standard interfaces include RS485 with Modbus protocol, with optional Ethernet connectivity available. |
| Q4: How stable is the output frequency of your 3Phase AC 110V 60Hz Power Source? |
| A: Our systems maintain frequency stability of ±0.1% with crystal-controlled precision. |
| Q5: Do you offer customized solutions for specific application requirements? |
| A: Yes, we can customize output specifications, control interfaces, and form factors to meet unique application needs. |
Contact Us
For three-phase power solutions or technical specifications: acpower@acsoonpower.com , or submit your requirements using the form at the bottom of our website.
