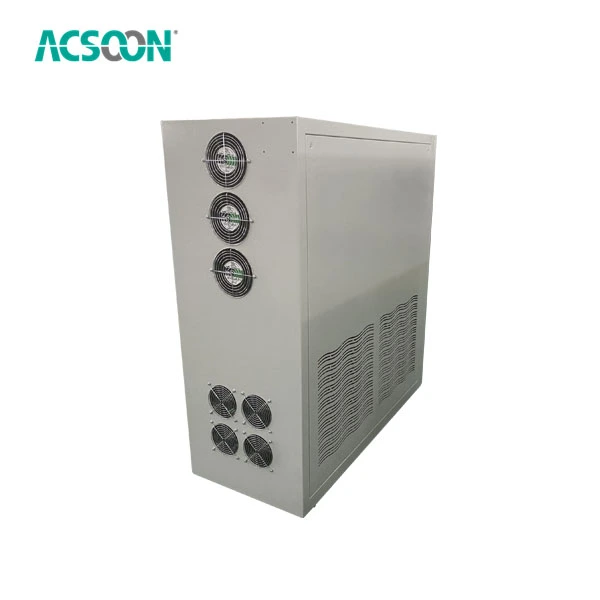

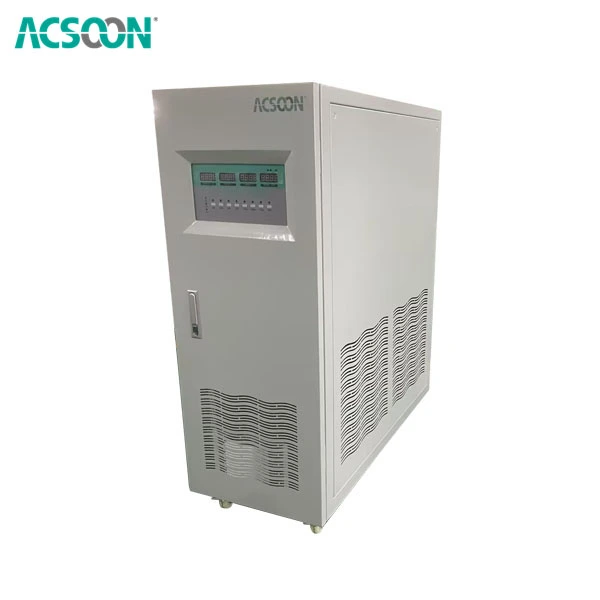

400HZ Static Frequency Converter

1.Model:AF400M-330090
2.2.Power Rating:90kVA
3.Input Voltage & Frequency: 3 Phase 208V-480V, 50HZ/60HZ
4.Output Voltage & Frequency: 3Phase208V-480V,400HZ
5.Type: Static Frequency Converter, fixed-mounted
6.Ingress Protection Grade: IP54
7.Applications:Radar Systems
8.Brand: ACSOON (support OEM)
9.Features:Aircraft training system without APU engine strat

Send Inquiry Download

Product Description

XI'AN JERRYSTAR INSTRUMENT CO., LTD: Your Trusted 400HZ Static Frequency Converter Manufacturer

At XI'AN JERRYSTAR INSTRUMENT CO., LTD, we specialize in designing and manufacturing high-quality products. Our ACSOON brand converters are renowned for their reliability, efficiency, and versatility across various industries. With over 15 years of experience and ISO 9001 certification, we deliver top-notch power solutions tailored to your specific needs.

Technical Specifications

INPUT
Number of Phases	Single Phase / Three Phase
Nominal Input Voltage	110V 120V 220V 230V 240V / Single Phase ; 208, 380V, 400V, 415V, 440V,480V / Three Phase
Voltage Tolerance	± 15%
Nominal Frequency	50Hz / 60Hz
Frequency Tolerance	40Hz - 70Hz
OUTPUT
Number of Phases	Single Phase / Three Phase
Nominal Output Voltage	115V, 120V / Single Phase ; 200, 208V / Three Phase
Voltage Adjustable	0-150V (L-N), 0-300V (L-N); 0-260V (L-L), 0-520V (L-L)
Frequency Adjustable	300Hz - 500Hz or as per customized
Voltage Regulation & Stability +/-1% FS
Frequency Stability	+/-0.1%FS
LED Digital Display	4 digits LED displaying: Frequency, Voltage, Current, Power Factor / Power (watt).
Input Power Factor	≥0.8
Overall Efficiency	≥85%
Crest Factor	1.414+0.1
Overload Capacity	125% 1s
MTBF	50,000 Hrs
MTTR	＜30Min

Application Areas

Aerospace & Aviation:Ground Power、Hangar Power、Avionics Test

Military & Defense:Radar、Comms、Mobile Command

Marine & Offshore:Shipboard Power、Naval Systems、Offshore Equipment

Industrial Testing:Motor/Generator Test、Precision Mfg.、Research Labs

Transportation:Terminal Power、Rail Test、EV Charging

Quality Control

Component Sourcing: Only high-grade, reliable parts are used.

Assembly Inspection: Multi-point checks during production.

Burn-in Testing: Extended operation tests to ensure durability.

Performance Verification: Rigorous testing of all electrical parameters.

Final Quality Assurance: Comprehensive review before shipment.

Why Choose ACSOON 400HZ Static Frequency Converters?

R&D Results

Our commitment to innovation has led to several breakthroughs:

Enhanced Efficiency: Achieved 90%+ efficiency in our latest models.
Reduced Footprint: Compact designs without compromising performance.
Smart Diagnostics: Integrated monitoring and fault detection systems.
Modular Architecture: Scalable solutions for growing power needs.

Packaging and Transportation

We ensure safe delivery of your 400HZ static frequency converter:

Custom-designed packaging for shock absorption
Moisture-resistant wrapping for protection against elements
Secure palletizing for easy handling and transport
Full documentation and handling instructions included

After-sales Service

We provide comprehensive support:

24/7 technical assistance
Remote diagnostics capabilities
Rapid response for on-site service when needed
Regular maintenance programs available

Qualification Certification

Our products meet international standards:

ISO 9001:2015 Certified
CE Marked for European markets
UL Listed for North American compliance
MIL-STD-810 tested for military applications

FAQ
Q1: What's the difference between 50HZ and 400HZ power?
A: 400HZ power allows for smaller, lighter electrical components, crucial in aerospace and military applications where weight and size are critical factors.
Q2: Can your converters handle voltage fluctuations?
A: Yes, our products are designed to manage input voltage variations of ±20% while maintaining stable output.
Q3: Are your converters suitable for outdoor use?
A: Absolutely. We offer models with IP65 ratings for harsh outdoor environments, perfect for shipyards or airfields.
Q4: What's the typical lifespan of your converters?
A: With proper maintenance, our converters have a Mean Time Between Failure (MTBF) of 30,000 hours, ensuring years of reliable service.
Q5: Do you offer custom solutions?
A: Yes, we specialize in tailoring our products to meet specific customer requirements. Contact us to discuss your needs.

Contact Us

Ready to power your operations with our advanced 400HZ static frequency converters? Reach out to our expert team today at acpower@acsoonpower.com.
