50Hz to 600Hz Frequency Converter

1.Output: 0‑520V adjustable (L-L), 45‑200Hz adjustable, pure sine wave
2.Power: 10kVA, 15kVA, 20kVA, 30kVA, 45kVA, 60kVA, three‑phase
3.Input: 380V ±15% three‑phase, 50/60Hz
4.Key specs: ±1% voltage regulation, THD <3%, isolation transformer
5.Applications: Basic lab work, small repair shops, school demos, DIY projects
6.Features: Simple analog controls, overload protection, compact metal case
7.Brand: ACSOON (1‑year warranty, built in Xi’an).

Send Inquiry Download

Product Description

ACSOON 10kVA 50Hz to 600Hz Static Frequency Converter | Wide-Bandwidth Industrial Power Source | High-Precision Testing & Calibration

Engineering Perspective: Why a 50Hz–600Hz Wide-Bandwidth Solution?

In aerospace testing, high-speed motor R&D, and specialized industrial production, standard 50Hz/60Hz power supplies no longer suffice. The ACSOON AF60W-130010 is engineered for engineers who demand testing flexibility. By decoupling the output from the fixed utility grid, this unit provides a tunable frequency range up to 600Hz, allowing you to conduct comprehensive stress tests and performance calibrations without the limitations of local grid bottlenecks.

Why Choose ACSOON for Middle East & Southeast Asia Projects

Wide-Bandwidth Output: The system enables seamless transitions from 50Hz up to 600Hz, supporting high-RPM motors, avionics, and high-frequency inductive loads.
Integrated Isolation Transformer: Standard isolation design effectively filters harmonics and prevents common-mode interference during testing, ensuring pure sine wave output even at high frequencies.
High-Dynamic Response: Powered by IGBT technology and analog signal control, the unit maintains ±1% voltage stability during rapid frequency adjustments, preventing voltage collapse under load.

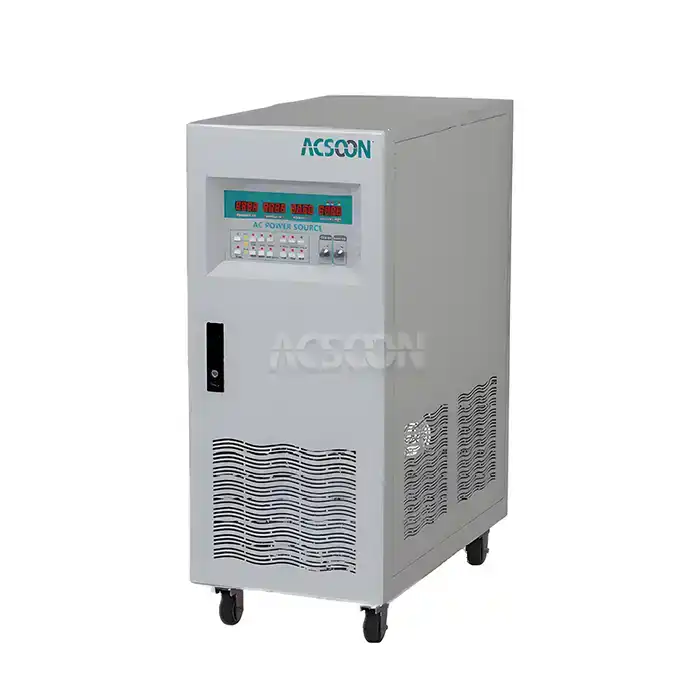

Rugged Industrial Build: Housed in a robust metal enclosure (as seen in "AF60 (1).jpg"), the design optimizes heat dissipation and EMI shielding for demanding factory and laboratory environments.

Technical Specifications Overview

Core Metric	Technical Parameter
Rated Power	10kVA
Output Frequency Range	45Hz – 600Hz (Wide-band adjustable)
Output Waveform	Pure Sine Wave (THD <3% @ Linear loads)
Voltage Regulation	±1% FS
Phase Configuration	Single-Phase Input / Three-Phase Output
MTBF (Industrial Reliability)	50,000 Hours

Feature	Specification
Output Waveform	Clean Sine Wave (THD <3%)
Frequency Range	Adjustable 45Hz–200Hz (Customizable)
Voltage Control	Precision ±1% regulation
Capacity	1kVA to 2000kVA (Scalable)
Reliability (MTBF)	50,000 Hours
Protection	Short-circuit, overload, and over-temperature protection

If you need it,Contact us at Email: acpower@acsoonpower.com

10kVA Variable Frequency Converter Main Features

Isolated Output Transformer: Suitable for any unbalanced loads, and every single phase can be used independently.
EMC Compatibility: Designed for electromagnetic compatibility.
Grid Flexibility: Compatible with both 50Hz and 60Hz power supply networks.
Pure Power Output: Provides clean, pure sine wave output with low harmonic distortion.
Precision Control: Features variable frequency and voltage capabilities.
Real-time Data: Equipped with LED displays for real-time voltage, current, frequency, and power/power factor monitoring.

✅ Why Choose ACSOON AF60W-130010

(Note: Per the model naming convention, the AF60W-130010 represents a unit with Single Phase Input, Three Phase Output, and 10kVA capacity.)

Customized Power Conversion: This model specifically addresses the need for converting single-phase input to a reliable three-phase output, ideal for operating equipment manufactured in regions with different grid standards.
Isolation Integrity: The internal isolation transformer ensures that your sensitive three-phase equipment is protected from grid-side electrical noise or instability.
Industrial Reliability: Built with IGBT technology and analog signal control, the unit is designed for a MTBF of 50,000 hours, ensuring long-term operational continuity.
Flexible Application: It is perfectly suited for laboratory environments, electrical testing, and powering imported machinery that requires a specific three-phase frequency and voltage.
Rugged Design: Housed in a robust metal enclosure (as seen in "AF60 (1).jpg"), the unit is designed to withstand demanding industrial settings while maintaining easy access to components for maintenance.

Field Applications: Solving High-Frequency Testing Challenges

Aerospace Electronics: Provides standardized ground power for 400Hz and high-frequency airborne equipment.
High-Speed Motor R&D: Simulates variable frequency response across the motor’s full operational spectrum for performance evaluation.
High-Frequency Heating & Testing: Supports continuous, stable output for high-frequency induction testing and non-linear loads.
Grid Simulation: Ideal for environments in Southeast Asia or the Middle East where unstable grid power hinders the operation of high-precision, imported high-frequency equipment.

Technical Support & Cooperation (CTA)

High-frequency power conversion requires precise impedance matching. We recommend verifying your load characteristics with our engineering team before procurement.

Request a Technical Proposal: Send your load motor nameplate or specific test requirements to acpower@acsoonpower.com.
Direct Consultation: Our team will calculate capacity requirements and provide a detailed electrical architecture recommendation within 24 hours.
Reference Documents: For full technical details, please refer to "ACSOON AF60W Static Frequency Converter Technical Specification_2.pdf".

ABOUT US

·28,698+ long-term repeat clients globally with stable repeat orders

·19+ years domestic & export manufacturing experience for aviation ground power equipment

·7,000+ sq.m modern production factory

·24/7 customer service:＜30 mins quick response + lifetime after-sales support

·60+ independent patented technologies

·Certified as China National High-Tech Enterprise

·Multiple provincial awards, including Shaanxi AAAAA-Level Credibility Enterprise certification

28,696

Long Standing

Customer

19+

Over 19 years

experience

7,000㎡

Factory Area

30min

7/24H

High-Quality

Efficiency Service

Our Services

Quality Control

Every unit tested – 2 hours at 80% load. Check for overheating.
Output verified – Voltage accuracy at five set points. Record kept.
Isolation test – 2kV between input and output for 1 minute. No breakdown.
Knob cycle – 500 full rotations on each potentiometer. No scratchy spots.

R&D Results

Cost reduction – Replaced digital display with analog meters. Cut cost by 20%.
Transformer – Used a standard toroid instead of custom wound. Still meets specs.
Enclosure – Painted steel instead of powder coat. Same protection, lower cost.
User feedback – Hobbyists wanted bigger knobs. Added large rubberized knobs.

Packaging and Transportation

Shipped from Xi'an – Cardboard box with foam inserts. Fits a courier.
Included – Power cord (1.5m), output cable with universal socket, printed quick start.
Manual – One sheet of paper. Double‑sided. No USB.
Pallet – 8 units per pallet for dealers.

After‑Sales Service

1‑year warranty – Return to Xi'an for repair. Parts and labor.
Spare parts (transformer, fan, meters) kept in Xi'an. Express shipping.
Email support – We answer within one business day. Simple questions only.

Qualification Certification

CE – LVD and EMC tested.
ISO 9001:2015 – Our Xi'an facility.
RoHS – Compliant.

Request Your Custom Solution

Ready to stabilize your power and eliminate grid-related failures?

Don't guess your capacity requirements. Send us your motor/machine nameplate photos and your local grid voltage/frequency. Our engineers will provide a verified technical solution and quote within 24 hours.

Email:

acpower@acsoonpower.com; sales1@acsoonpower.com

WhatsApp/Direct Inquiry: [Click here to contact our expert team]

FAQ

Q1: Is this suitable for aircraft maintenance use?
Yes. It is commonly used in MRO environments where 400Hz aircraft power is required.

Q2: Can it simulate aircraft power conditions accurately?
Yes, it provides stable 115V/120V 400Hz output with low harmonic distortion.

Q3: Does it support both single-phase and three-phase output?
Yes, both configurations are available depending on system size.

Q4: What kind of load can it handle?
It is designed for linear and mixed industrial loads with isolated transformer support.

Q5: Is it suitable for continuous operation?
Yes, it is designed for industrial duty cycles with long-term operation in mind.

Q6:How can I get more details?

A:Click here.Send inquiry get price and specification.
