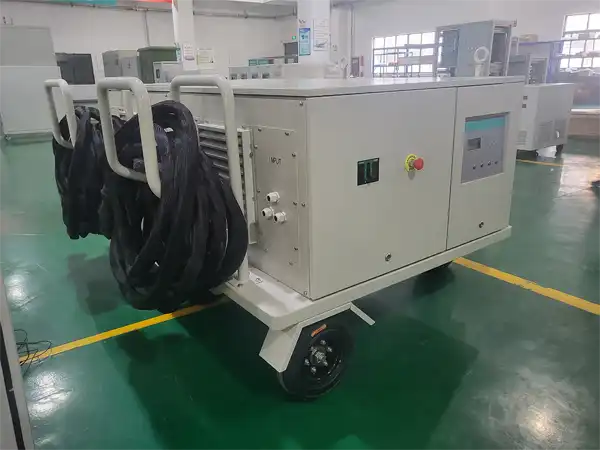

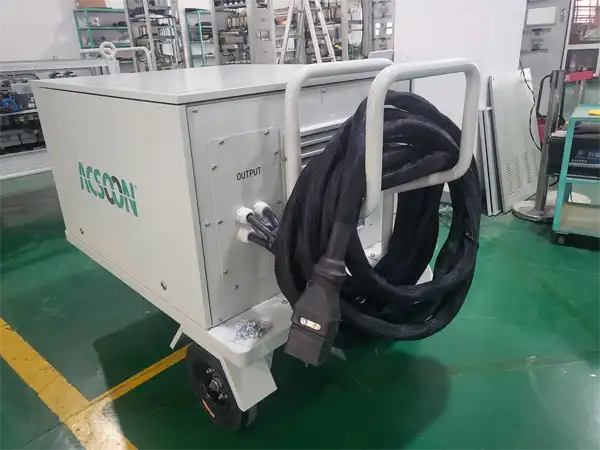

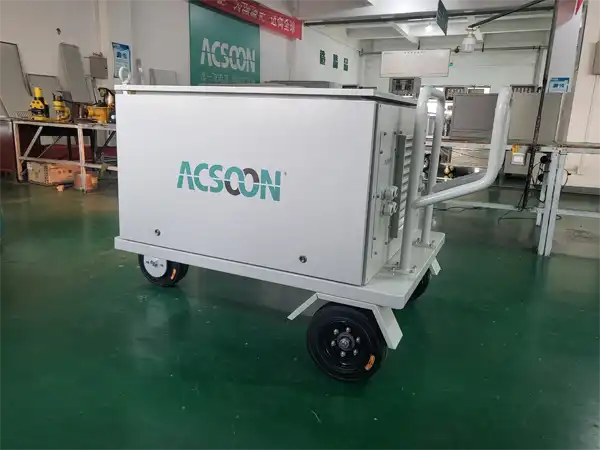

60 HZ To 400 HZ Frequency Converter
2.Power Rating: 90kVA
3.Input Voltage & Frequency: 3 Phase, 440V, 60HZ
4.Output Voltage & Frequency: 3 Phase, 3×200V, 400HZ
5.Type: Solid state GPU,Stationary Static GPU
6.Ingress Protection Grade: IP20/IP32/IP54
7.Applications: Aerospace. Powering aircraft systems via ground power units (GPUs) or onboard systems, as 400HZ reduces component size and weight.
8.Brand: ACSOON (support OEM)
9.Features: be suitable for military equipment, aerospace testing facilities, or ships where space is limited.
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD: Your Trusted 60 HZ to 400 HZ Frequency Converter Manufacturer
XI'AN JERRYSTAR INSTRUMENT CO., LTD is a leading manufacturer and supplier of high-quality 60 HZ to 400 HZ frequency converters. Our advanced technology and commitment to excellence make us the go-to choice for industries requiring precise power frequency adjustments. With our innovative ACSOON brand, we deliver reliable solutions tailored to your specific needs.
Why Choose ACSOON 60 HZ to 400 HZ Frequency Converters?
When it comes to frequency conversion, ACSOON stands out from the competition. Here's why our products are the preferred choice for discerning professionals:
- Unmatched Precision: Our converters maintain a frequency stability of ≤0.1%, ensuring consistent and reliable power output.
- Versatile Capacity Range: From 1kVA to 2000kVA, we offer both single-phase and three-phase options to suit various applications.
- Robust Protection: Built-in safeguards against over/under voltage, overload, overheating, and short circuits ensure longevity and safety.
- High Efficiency: With an overall efficiency of ≥85%, our converters minimize energy loss and operating costs.
- User-Friendly Interface: LED or LCD displays provide real-time monitoring of vital parameters.
- Low Noise Operation: At <65dB within one meter, our converters are ideal for noise-sensitive environments.
- Customization Options: We offer tailored solutions to meet your specific voltage and power requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity (Single Phase) | 1kVA - 200kVA |
| Capacity (Three Phase) | 1kVA - 2000kVA |
| Input Voltage | Single Phase: 110-230VAC ±20% Three Phase: 200-440VAC ±20% |
| Input Frequency | 50/60HZ or 40HZ - 70HZ |
| Output Voltage | Single Phase: 0-300VAC Three Phase: 0-520Vac |
| Output Frequency | 50/60/100/200/400HZ or 40-800HZ adjustable |
| Frequency Stability | ≤0.1% |
| Voltage Stability | ±1% |
| VTHD | <3% @ Linear load |
| Response Time | ≤2ms |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Efficiency | ≥85% |
| Overload Capacity | 125% for 60 seconds, 150% for 30 seconds |
| Working Temperature | -10°C to 50°C |
| Mean Time Between Failure | 30,000H |
Application Areas
Our products find applications in various industries, including:
- Aerospace and Aviation
- Military and Defense
- Marine and Shipbuilding
- Industrial Manufacturing
- Telecommunications
- Renewable Energy Systems
- Testing and Calibration Facilities
- Medical Equipment
- Broadcasting and Entertainment
- Research and Development Labs
These versatile converters are essential for powering sensitive equipment, testing avionics, supplying ground power units, and ensuring consistent power quality in critical applications.
Quality Control
At XI'AN JERRYSTAR INSTRUMENT CO., LTD, quality is our top priority. We maintain strict quality control measures throughout the production process:
- ISO 9001 certified manufacturing facility
- Rigorous component selection and testing
- Multi-stage quality checks during assembly
- Comprehensive final testing before shipment
- Continuous improvement based on customer feedback
R&D Achievements
Our dedicated R&D team constantly pushes the boundaries of frequency converter technology. Recent achievements include:
- Enhanced efficiency algorithms for reduced power loss
- Advanced digital control systems for improved stability
- Compact designs for space-saving installations
- Integration of smart monitoring and diagnostics features
Packaging and Transportation
We ensure that our 60 HZ to 400 HZ frequency converters reach you in perfect condition:
- Robust, shock-absorbing packaging materials
- Custom-designed crates for larger units
- Clear labeling and handling instructions
- Partnering with reliable logistics providers for safe, timely delivery
After-Sales Service
Our commitment to you doesn't end with the sale. We provide comprehensive after-sales support:
- 24/7 technical assistance
- Remote troubleshooting
- On-site service for complex issues
- Regular maintenance guidance
- Firmware updates and upgrades

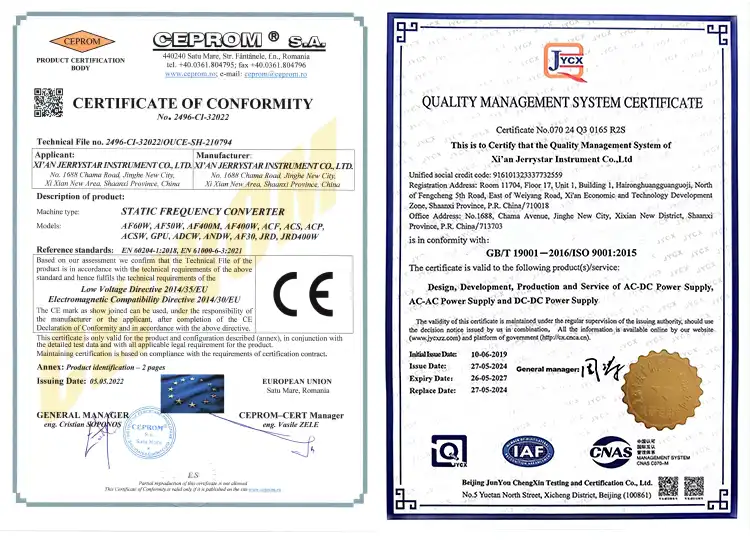

Qualification Certifications
Our products meet or exceed international standards:
- CE Certification
- RoHS Compliance
- ISO 9001:2015 Quality Management System
- UL Listed (for specific models)
Exhibitions
Meet us at these upcoming industry events:
- Power Electronics Exhibition, Shanghai
- Aerospace Electrical Systems Expo, Los Angeles
- European Power Supply Manufacturers Conference, Munich
Frequently Asked Questions
Q: What is the lead time for custom products?
A: Typically, we can deliver custom units within 4-6 weeks, depending on specifications and quantity.
Q: Are your frequency converters suitable for marine applications?
A: Yes, we offer models specifically designed for marine environments with enhanced corrosion resistance.
Q: Can your converters handle fluctuating input frequencies?
A: Absolutely. Our converters can handle input frequencies ranging from 40HZ to 70HZ.
Q: Do you provide installation support?
A: Yes, we offer installation guidance and can arrange on-site support for complex setups.
Q: What is the warranty period for your 60 HZ to 400 HZ frequency converters?
A: We provide a standard 2-year warranty, with options for extended coverage.
Contact Us
Ready to elevate your power conversion capabilities? Contact our expert team at acpower@acsoonpower.com for personalized assistance and quotes.
