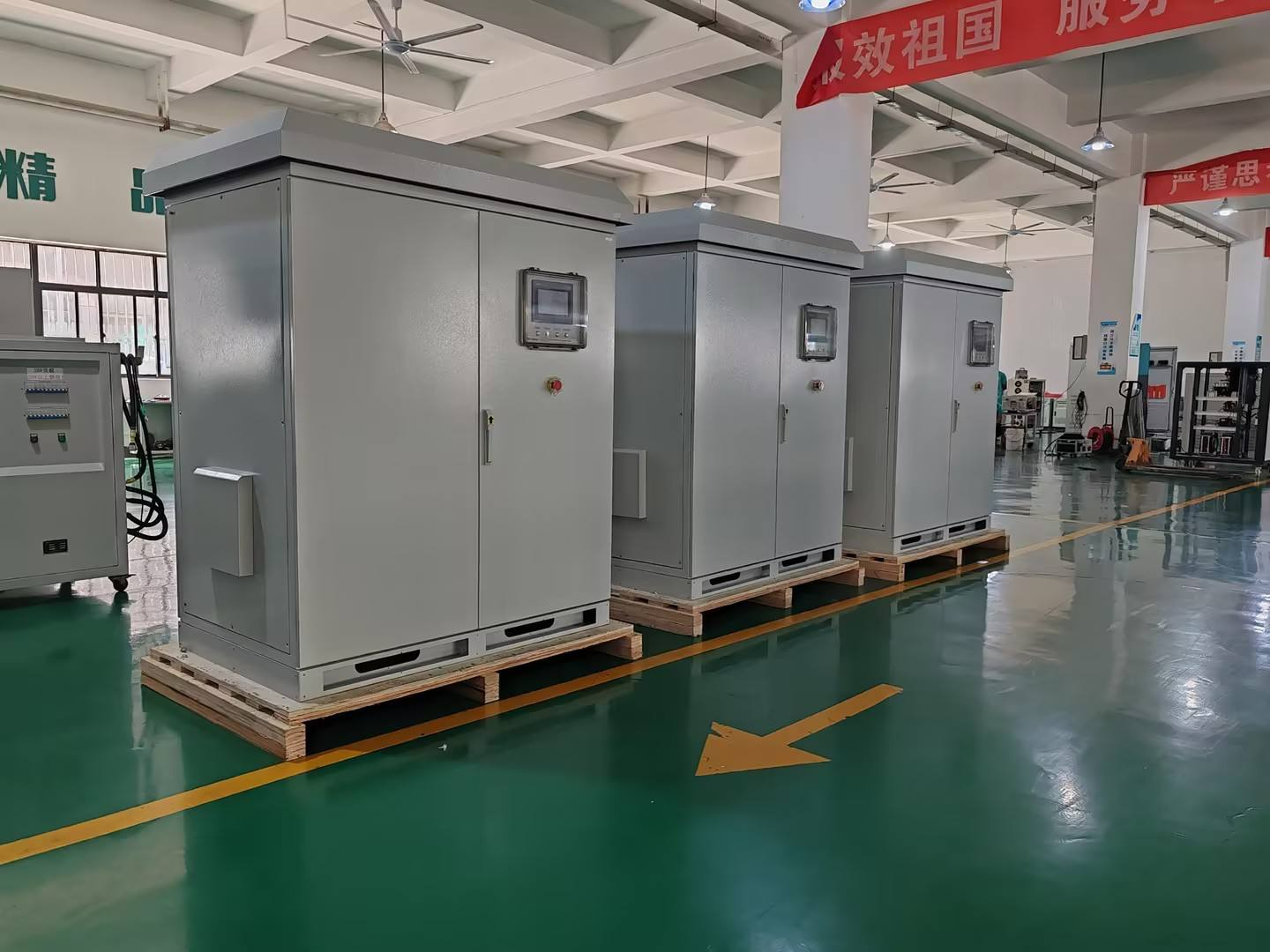

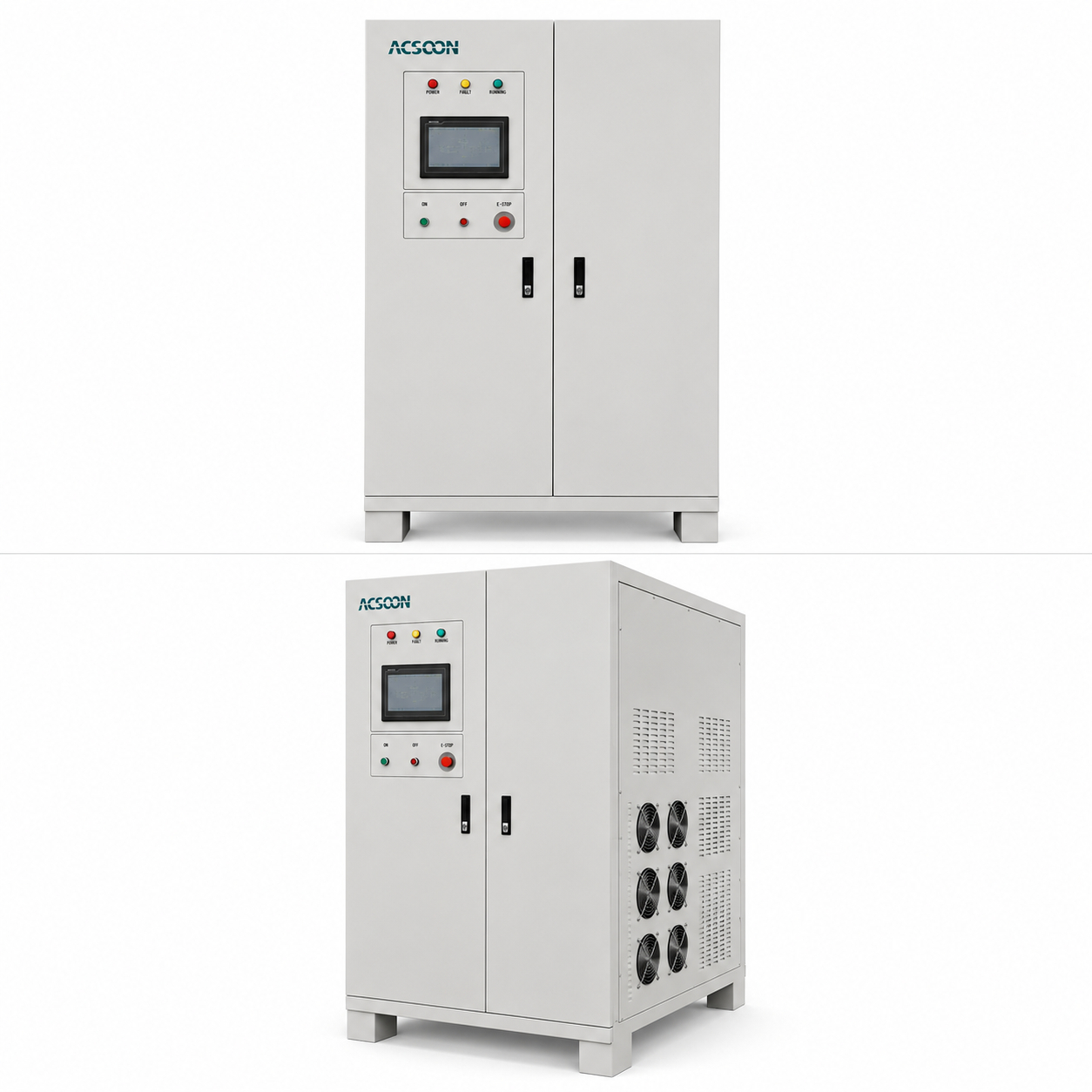

ACSOON ACF60W-330150 150kVA Static Frequency Converter | Three Phase AC Power Supply for Industrial, Aviation and Marine Applications

Product Overview

The ACSOON ACF60W-330150 150kVA Static Frequency Converter is a high-capacity solid-state AC power conversion system designed to provide stable, clean, and adjustable frequency power for industrial equipment, aviation systems, marine applications, laboratories, and international power compatibility testing.

With advanced IGBT power conversion technology, the ACF60W series converts conventional utility power into a controlled AC output with adjustable voltage and frequency, allowing equipment manufactured for different countries or power standards to operate safely and reliably.

The 150kVA frequency converter supports 50Hz and 60Hz input power networks and provides pure sine wave output with low harmonic distortion, excellent voltage regulation, and stable frequency control.

It is widely used as a 150kVA AC power source, industrial frequency converter, aircraft ground power solution, and marine shore power supply where high-quality and reliable AC power is required.

The ACF60W series supports capacities from small laboratory units to large industrial systems, including 150kVA, 200kVA, 300kVA and higher capacity configurations, meeting different power requirements.

Request for Quotation

Why Choose ACSOON ACF60W-330150 150kVA Frequency Converter?

1. Stable Frequency Conversion Between Different Power Standards

Different countries and industries use different electrical standards. Equipment designed for one frequency system may not operate correctly when connected to another power network.

The ACF60W-330150 solves this challenge by converting:

• 50Hz power supply to 60Hz

• 60Hz power supply to 50Hz

• Industrial frequency power to customized frequency output

It enables international equipment operation without replacing existing electrical systems.

The ACF60W series is specifically designed to convert conventional 50Hz or 60Hz electrical energy into other required frequencies for worldwide equipment compatibility.

2. Clean Pure Sine Wave AC Output

Sensitive electrical equipment requires stable and clean power.

The ACF60W-330150 provides:

• Pure sinusoidal AC output

• Low harmonic distortion

• Stable voltage regulation

• Excellent line and load regulation

The output waveform quality helps protect connected equipment and improves operational reliability.

According to the technical specification, the converter provides clean sine wave output with THD less than 3% under linear loads.

3. Designed for Heavy-Duty Industrial Loads

Unlike standard commercial frequency converters, the ACF60W-330150 is designed for continuous industrial applications requiring high power capacity.

Typical applications include:

• Aircraft electrical system testing

• Aviation ground power supply

• Aerospace equipment testing

• Ship electrical equipment power supply

• Industrial motor and transformer testing

• Laboratory AC power systems

The isolated output transformer design allows the system to handle unbalanced loads, with each single phase capable of independent operation.

Applications

Aviation & Aerospace Industry

Aircraft Ground Power Supply

Aircraft electrical systems commonly require specific frequency power, especially 400Hz AC power systems.

The ACF60W-330150 provides a reliable AC power source for:

• Aircraft maintenance facilities

• Aviation testing equipment

• Aerospace laboratories

• Aircraft component manufacturers

It helps engineers test and operate aircraft electrical equipment without relying on airport power infrastructure.

The product specification lists aviation electronic testing power supply and aerospace industries among the main applications.

Marine Industry

Marine Shore Power Supply

Ships often require stable AC power with specific voltage and frequency standards.

The ACF60W-330150 can provide controlled power for:

• Shipboard electrical systems

• Marine equipment testing

• Offshore electrical applications

• Port maintenance facilities

The specification identifies marine ship load power supply as one of the application fields.

Industrial Equipment Testing

Manufacturers exporting electrical equipment worldwide need to verify product performance under different power conditions.

The ACF60W-330150 can simulate international power environments for:

• Motor testing

• Transformer testing

• Electrical equipment validation

• Factory acceptance testing (FAT)

Laboratory AC Power Source

For research institutes and engineering laboratories, power quality directly affects test accuracy.

The converter provides:

• Adjustable voltage output

• Adjustable frequency output

• Real-time electrical parameter monitoring

Suitable for:

• Electrical research laboratories

• Product development testing

• Compliance verification

The product specification includes LV laboratory AC power supply applications.

What Problems Can ACF60W-330150 Solve?

Problem 1:

Equipment Cannot Work Due to Different Frequency Standards

Challenge:

Imported equipment may be designed for 50Hz while the local grid provides 60Hz, or the opposite.

Solution:

ACF60W-330150 provides flexible frequency conversion to match equipment requirements.

Problem 2:

Unstable Power Quality Damages Sensitive Equipment

Challenge:

Voltage fluctuation, frequency variation, and harmonic distortion can affect equipment performance.

Solution:

The converter provides:

• Stable voltage output

• Pure sine wave waveform

• Low harmonic distortion

• Accurate frequency control

Problem 3:

Lack of International Testing Power Environment

Challenge:

Manufacturers need to test equipment for global markets.

Solution:

The ACF60W-330150 can simulate different electrical environments for export product testing.

Problem 4:

High Power Demand for Industrial Applications

Challenge:

Small converters cannot support large motors, aircraft systems, or industrial loads.

Solution:

150kVA capacity provides sufficient power output for demanding industrial applications.

Talk to Engineer

Core Advantages of ACSOON ACF60W-330150

High Reliability Solid-State Design

The ACF60W series combines:

• IGBT power conversion technology

• Analog signal control design

• Compact structure

• High reliability operation

Complete Protection System

The converter includes protection functions for:

• Over voltage

• Over current

• Overload

• Over temperature

• Short circuit

Real-Time Monitoring

The LCD / LED display provides real-time information:

• Output voltage

• Current

• Frequency

• Power

• Power factor

High Conversion Efficiency

Key performance:

• Efficiency ≥85%

• Frequency stability ±0.1% FS

• Voltage regulation ±1% FS

Technical Specifications

Technical specifications are based on the ACSOON ACF60W series specification sheet.

Why Global Customers Choose ACSOON

For international projects, customers need more than just a frequency converter. They need a reliable power solution that can integrate into existing electrical systems.

ACSOON ACF60W-330150 provides:

✔ Industrial-grade 150kVA power capacity
✔ Stable frequency conversion technology
✔ Clean sine wave output
✔ Flexible voltage and frequency customization
✔ Protection system for demanding applications
✔ Support for aviation, marine and industrial industries

Whether used for aircraft ground power, marine electrical systems, laboratory testing, or industrial equipment operation, the ACF60W-330150 provides dependable AC power conversion for global applications.
If you need it,Contact us at Email: acpower@acsoonpower.com ACF60W technical datasheet and quotation today.

​​​​​​​





ABOUT US

·28,698+ long-term repeat clients globally with stable repeat orders

·19+ years domestic & export manufacturing experience for aviation ground power equipment

·7,000+ sq.m modern production factory

·24/7 customer service:＜30 mins quick response + lifetime after-sales support

·60+ independent patented technologies

·Certified as China National High-Tech Enterprise

·Multiple provincial awards, including Shaanxi AAAAA-Level Credibility Enterprise certification



28,696



Long Standing



Customer



19+



Over 19 years



experience



7,000㎡





Factory Area



30min



7/24H



High-Quality



Efficiency Service

Custom Solution & Quotation

Need a reliable 2kVA Frequency Converter Manufacturer?

Contact ACSOON for:

✔ Technical datasheet
✔ Customized voltage/frequency solution
✔ OEM cooperation
✔ Project quotation
📩 Get Price / Technical Consultation

Response within 24 hours by engineering team.

Our Services

01

Quality Control

• Every unit tested – 2 hours at 80% load. Check for overheating.
• Output verified – Voltage accuracy at five set points. Record kept.
• Isolation test – 2kV between input and output for 1 minute. No breakdown.
• Knob cycle – 500 full rotations on each potentiometer. No scratchy spots.

02

R&D Results

• Cost reduction – Replaced digital display with analog meters. Cut cost by 20%.
• Transformer – Used a standard toroid instead of custom wound. Still meets specs.
• Enclosure – Painted steel instead of powder coat. Same protection, lower cost.
• User feedback – Hobbyists wanted bigger knobs. Added large rubberized knobs.

03

Packaging and Transportation

• Shipped from Xi'an – Cardboard box with foam inserts. Fits a courier.
• Included – Power cord (1.5m), output cable with universal socket, printed quick start.
• Manual – One sheet of paper. Double‑sided. No USB.
• Pallet – 8 units per pallet for dealers.

04

After‑Sales Service

• 1‑year warranty – Return to Xi'an for repair. Parts and labor.
• Spare parts (transformer, fan, meters) kept in Xi'an. Express shipping.
• Email support – We answer within one business day. Simple questions only.

05

Qualification Certification

• CE – LVD and EMC tested.
• ISO 9001:2015 – Our Xi'an facility.
• RoHS – Compliant.

FAQ

Q1: Is this suitable for aircraft maintenance use?
Yes. It is commonly used in MRO environments where 400Hz aircraft power is required.

Q2: Can it simulate aircraft power conditions accurately?
Yes, it provides stable 115V/120V 400Hz output with low harmonic distortion.

Q3: Does it support both single-phase and three-phase output?
Yes, both configurations are available depending on system size.

Q4: What kind of load can it handle?
It is designed for linear and mixed industrial loads with isolated transformer support.

Q5: Is it suitable for continuous operation?
Yes, it is designed for industrial duty cycles with long-term operation in mind.

Q6:How can I get more details?

A:Click here.Send inquiry get price and specification.

Q7:Can a 60Hz to 50Hz converter change both frequency and voltage?

Yes. A static frequency converter can adjust frequency and voltage output according to application requirements. The AF60W supports adjustable voltage and frequency configurations for different electrical systems.

Q8：What equipment needs a 60Hz to 50Hz converter?

Common applications include imported industrial machines, motors, pumps, laboratory equipment, testing systems and marine electrical equipment that require a different frequency from the local power grid.

Q9:What is the difference between a transformer and a frequency converter?

A transformer can change voltage but cannot change frequency.

A frequency converter changes the electrical frequency by converting AC power into a controlled AC output.

Q10:Can AF60W convert 50Hz to 60Hz?

Yes. The AF60W series supports bidirectional frequency conversion according to system configuration requirements.
