AF30W-330400 400kVA Static Voltage Stabilizer

SCR Static Automatic Voltage Regulator for Industrial & Sensitive Equipment

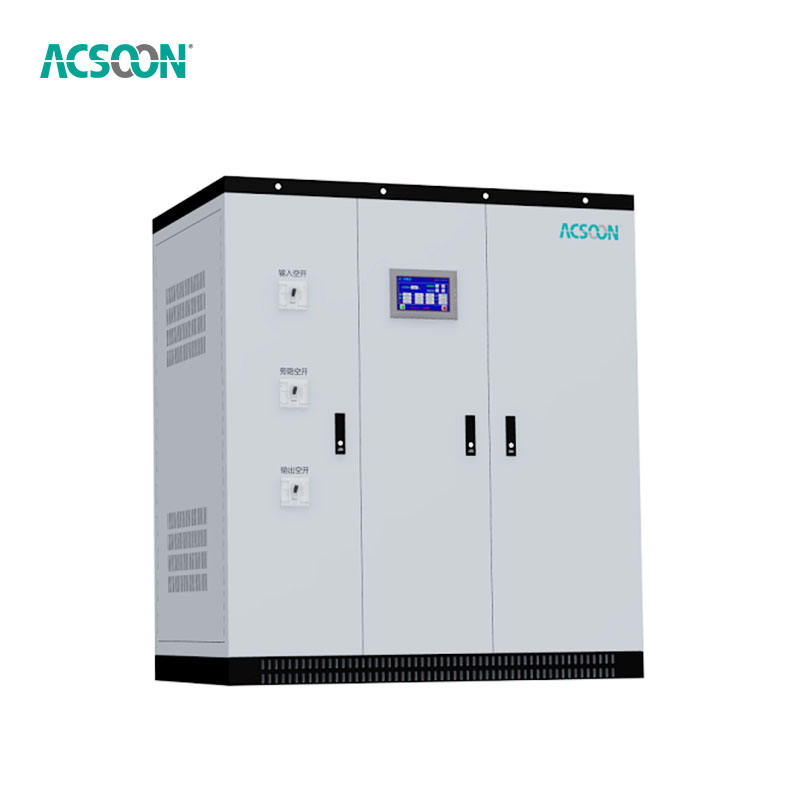

The ACSOON AF30W-330400 is a three-phase 400kVA static voltage stabilizer / automatic voltage regulator (AVR) designed for industrial power systems where stable voltage is critical to equipment performance and production continuity.

Using SCR phase-control technology and intelligent digital control, the AF30 series responds rapidly to input voltage fluctuations and maintains a stable output voltage without mechanical servo motors or carbon brushes.

For facilities dealing with unstable grid voltage, voltage fluctuation, phase imbalance or sensitive electrical loads, the AF30W-330400 provides a practical way to improve power quality and protect connected equipment.

Request for Quotation

Key Specifications

Specifications can be customized according to project voltage, frequency, load and installation requirements.

Why Voltage Stabilization Matters

Industrial electrical equipment does not always receive a stable voltage from the local power grid.

Long-distance transmission, overloaded distribution networks, large motor loads, industrial machinery and unstable local power infrastructure can cause:

• Under-voltage

• Over-voltage

• Voltage fluctuation

• Three-phase imbalance

• Sudden voltage changes

• Equipment shutdowns

• Production interruptions

• Increased electrical component stress

The AF30W-330400 continuously monitors the incoming power and adjusts the output voltage to provide a more stable power supply for connected equipment.

Instead of allowing unstable utility power to directly reach sensitive loads, the static AVR works as a power-quality control point between the grid and the equipment.

How AF30W-330400 Solves These Problems

1. Unstable Input Voltage

When the utility voltage fluctuates within the specified input range, the SCR-based regulation system rapidly adjusts the output.

Result: connected equipment receives a more stable operating voltage.

2. Slow Response from Traditional Mechanical Stabilizers

Traditional servo voltage stabilizers rely on mechanical components such as motors and carbon brushes.

The AF30 series uses solid-state SCR technology, allowing voltage correction within milliseconds and eliminating mechanical adjustment components.

Result: faster voltage correction and less mechanical maintenance.

3. Three-Phase Voltage Imbalance

The three-phase system supports automatic voltage balancing.

Result: more consistent power conditions for three-phase industrial equipment.

4. Equipment Protection During Abnormal Conditions

The AF30 series includes protection against:

• Over-voltage

• Under-voltage

• Phase loss

• Overload

• Short circuit

When the stabilizer encounters a fault condition, the system can automatically switch to bypass operation according to the configured protection mode.

Result: reduced risk of extended equipment downtime caused by stabilizer faults.

Core Advantages

SCR Static Voltage Regulation

The AF30W-330400 uses Silicon Controlled Rectifier (SCR) technology rather than a servo motor mechanism.

There are no carbon brushes or moving voltage-regulation mechanisms.

This solid-state architecture is designed for:

• Fast response

• Stable regulation

• Low maintenance

• Continuous industrial operation

Response Time <0.1 Second

Voltage correction can be completed in less than 0.1 second according to the AF30 technical specification.

For voltage-sensitive production equipment, faster correction can help reduce the impact of short-term voltage fluctuations.

±2% Voltage Regulation Accuracy

The standard regulation accuracy is ±2%, with ±1% to ±5% adjustable options available for customized requirements.

This makes the AF30 suitable for applications where the power supply needs tighter voltage control than ordinary utility power can provide.

≥98% Efficiency

The overall efficiency is specified at ≥98%, helping minimize energy loss during voltage stabilization.

For high-capacity installations, efficiency becomes particularly important because the equipment may operate continuously for long periods.

No Additional Waveform Distortion

The AF30 specification states that the stabilizer produces no additional waveform distortion.

This is important for equipment that requires a stable and clean AC power supply.

Automatic Bypass Function

In the event of a stabilizer failure or abnormal operating condition, the system can change to an automatic bypass mode according to its protection configuration.

This provides an additional layer of operational continuity for critical installations.

Real-Time LCD Monitoring

The LCD display provides operating information including:

• Input voltage

• Output voltage

• Current

• Stabilizer operating status

• Fault indication

RS485 communication is also available as an optional interface for remote monitoring or system integration.

Talk to Engineer

Typical Applications

Industrial Automation

Suitable for production lines, CNC equipment, automated machinery and industrial control systems where unstable voltage can affect machine operation.

Manufacturing Facilities

For factories with large electrical loads, fluctuating utility voltage or sensitive production equipment.

Medical Equipment

The AF30 series is designed for voltage-sensitive environments including medical equipment applications.

Data Centers & Laboratories

A stable power supply is important for servers, laboratory equipment, test systems and other voltage-sensitive electronic loads.

Railway & Tunnel Systems

The AF30 series can be applied to railway and tunnel electrical systems where stable three-phase power is required.

Communication Systems

Suitable for communication equipment and infrastructure requiring stable AC power.

Test Equipment

Useful for electrical testing systems where unstable supply voltage may influence measurement or equipment operation.

Why Choose ACSOON AF30W-330400?

Built for High-Capacity Industrial Power

400kVA capacity makes the AF30W-330400 suitable for high-power three-phase applications rather than small office or household loads.

Solid-State Design

SCR technology eliminates the mechanical wear associated with traditional servo stabilizers.

Fast Voltage Correction

Response time below 0.1 second helps the system react quickly to voltage variations.

High Efficiency

≥98% overall efficiency helps reduce unnecessary energy losses during continuous operation.

Comprehensive Protection

Over-voltage, under-voltage, phase-loss, overload and short-circuit protection are integrated into the system.

Flexible Configuration

Input and output voltage can be customized according to project requirements. The AF30 series supports a wide range of capacities and configurations.

Industrial Project Support

ACSOON provides voltage stabilization solutions for industrial, medical, communication, testing and automation applications.

Engineering & Customization

Every industrial power project has different requirements.

Before selecting an AF30W-330400, we recommend confirming:

Input voltage:
380V / 400V / 415V or customized

Input fluctuation range:
For example, 304–456V

Output voltage:
380V / 400V / 415V or customized

Rated load:
400kVA or project-specific

Frequency:
50Hz / 60Hz

Required regulation accuracy:
±1%, ±2%, ±3%, etc.

Installation environment:
Indoor / electrical room / industrial facility

Communication:
RS485 optional

Our engineering team can review the electrical parameters and recommend the appropriate configuration before quotation.

Request a 400kVA AVR Solution

Looking for a 400kVA static voltage stabilizer, three-phase automatic voltage regulator, or SCR voltage stabilizer for an industrial project?

Send us your input voltage range, required output voltage, load capacity and application.

ACSOON can provide a project-specific configuration and quotation for AF30W-330400.

Request Technical Data | Get a Quote | Discuss Your Project

If you need it,Contact us at Email: acpower@acsoonpower.com AF30W technical datasheet and quotation today.

​​​​​​​
