AF400M-330100 100kVA 50Hz 60Hz Frequency Converter
Power: AF400M-330100 rated power 100kVA three-phase output, AF400M Series supports three-phase output from 1kVA to 300kVA, scalable for customized industrial and aviation power applications.
Input: 115V / 220V / 230V / 240V single-phase input; 200V / 380V / 400V / 415V three-phase input, ±15% voltage tolerance, 50Hz / 60Hz / 400Hz compatible input, frequency tolerance ±5Hz.
Key Specs: ±1% FS voltage regulation & stability, ±0.1% FS frequency stability, isolated output transformer design, crest factor 1.414±0.1, THD <3% pure sine wave output, input power factor ≥0.8, efficiency ≥85%, overload capacity 125% for 1 second.
Applications: Aircraft avionics testing, aviation electronic test power supply, aerospace and aircraft industries, LV laboratory 50Hz/60Hz/400Hz AC power supply, transformers and motors requiring AC power, aircraft and ship 400Hz power supply.
Features: IGBT technology, analog signal control design, pure sine wave output, isolated output transformer suitable for unbalanced loads, EMC compatible design, multi-protection system (over-voltage / over-current / overload / over-temperature / short circuit), LED digital display (Voltage / Current / Frequency / Power / Power Factor), compact industrial metal enclosure.
Brand: ACSOON AF400M Series, Xi’an Jerrystar Instrument Co., Ltd., professional static frequency converter and AC power supply manufacturer, OEM/ODM available, designed and manufactured in Xi’an, China.
- Product Description
AF60W-330006 60Hz to 50Hz Converter for Southeast Asia Industrial Applications
Problems It Solves
1. Lack of 400Hz Aircraft Power on Ground
Aircraft electrical systems commonly require 115VAC 400Hz power, while airport facilities normally provide 50Hz or 60Hz utility power.
The AF400M-330100 solves this problem by converting standard AC power into aircraft-compatible 400Hz power for ground operations and testing.
2. Unstable Power Quality During Avionics Testing
Voltage fluctuation, frequency deviation, and harmonic distortion can affect aircraft electronic equipment testing.
This 100kVA static frequency converter provides stable voltage, accurate frequency control, and low distortion output to improve testing reliability.
3. Need for Ground Simulation of Aircraft Electrical Systems
During aircraft maintenance, using onboard power systems is not always practical.
The AF400M provides an independent aircraft ground power source for avionics testing, maintenance inspection, and electrical system simulation.
4. Different Frequency Requirements Between Countries and Equipment
Industrial power systems vary between regions, with different voltage and frequency standards.
The AF400M-330100 supports 50Hz, 60Hz, and 400Hz conversion, allowing users to operate aviation equipment across different electrical environments.
5. High Power Requirement for Aviation and Industrial Testing
Small power converters cannot meet the requirements of large aircraft equipment and laboratory systems.
The 100kVA three-phase configuration provides sufficient capacity for aviation maintenance centers, aerospace laboratories, and industrial testing applications.
Technical Specifications of AF400M-330100
| Item | Specification |
|---|---|
| Model | AF400M-330100 |
| Rated Power | 100kVA |
| Input Voltage | 200V / 380V / 400V / 415V Three Phase AC |
| Input Frequency | 50Hz / 60Hz compatible |
| Output Voltage | 115VAC / 120VAC / 200VAC / 208VAC / 380VAC / 400VAC |
| Output Frequency | 50Hz / 60Hz / 400Hz selectable |
| Output Phase | Single Phase / Three Phase |
| Frequency Adjustable Range | 50Hz–400Hz |
| Voltage Regulation | ±1% FS |
| Frequency Stability | ±0.1% FS |
| Output Waveform | Pure sine wave |
| Harmonic Distortion | THD <3% @ Linear Load |
| Power Factor | ≥0.8 |
| Efficiency | ≥85% |
| Crest Factor | 1.414±0.1 |
| Technology | IGBT + Analog Signal Control |
| Display | LED Digital Display (Voltage / Current / Frequency / Power / PF) |
| Protection | Over Voltage, Over Current, Over Load, Over Temperature, Short Circuit |
If you need it,Contact us at Email: acpower@acsoonpower.com
Key Features
Stable 115VAC 400Hz Aircraft Power Output
The AF400M-330100 converts conventional 50Hz/60Hz grid power into stable 400Hz AC power, simulating aircraft electrical power supply for ground testing and maintenance applications.
Pure Sine Wave Output with Low Harmonic Distortion
The static frequency converter provides clean sinusoidal output with THD <3%, reducing interference and improving compatibility with sensitive avionics equipment.
High Precision Voltage and Frequency Control
With voltage regulation ±1% FS and frequency stability ±0.1% FS, the system maintains stable output performance during aircraft equipment testing.
Advanced IGBT Conversion Technology
The AF400M series integrates IGBT power conversion technology with reliable control design, providing high efficiency, compact structure, and long-term operating stability.
Isolated Output Transformer Design
The isolated transformer output design supports unbalanced loads, improves electrical safety, and allows independent use of each single-phase output.
Complete Protection System
Built-in protection functions include:
- Over voltage protection
- Over current protection
- Over load protection
- Over temperature protection
- Short circuit protection

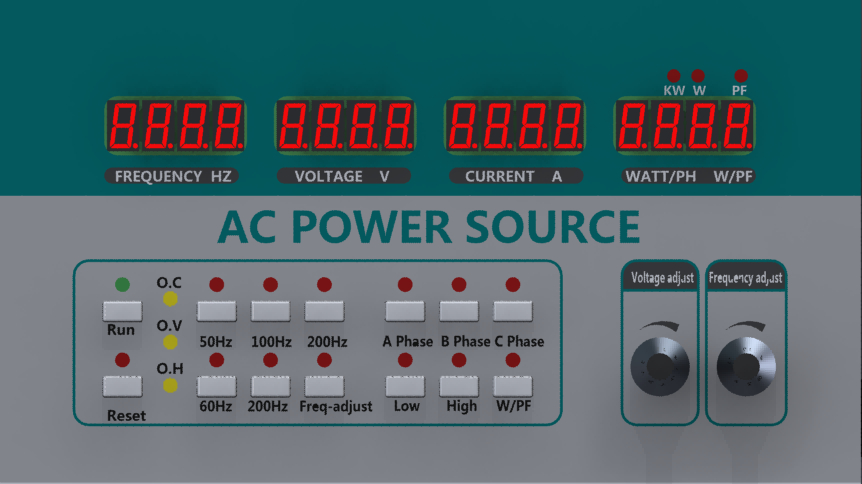

Real-Time Monitoring
The LED digital display provides real-time monitoring of:
- Output voltage
- Output current
- Frequency
- Power
- Power factor
Applications
ACSOON AF400M-330100 100kVA Three Phase Static Frequency Converter is designed to provide stable 400Hz aircraft power from standard 50Hz/60Hz electrical sources. It converts commercial AC power into regulated 115VAC/120VAC 400Hz output for aircraft equipment testing, maintenance, and aviation ground power applications.
The AF400M series is widely used in:
- Aircraft avionics testing and maintenance
- Aviation ground support equipment (GSE)
- Aircraft electrical system simulation
- MRO maintenance facilities
- Aerospace laboratories and research centers
- Aircraft and ship 400Hz power supply systems
- Transformers, motors, and special equipment requiring variable frequency AC power
The converter provides clean pure sine wave output with high voltage stability and low harmonic distortion, ensuring reliable operation of sensitive aviation electronic equipment.
ABOUT US
·28,698+ long-term repeat clients globally with stable repeat orders
·19+ years domestic & export manufacturing experience for aviation ground power equipment
·7,000+ sq.m modern production factory
·24/7 customer service:＜30 mins quick response + lifetime after-sales support
·60+ independent patented technologies
·Certified as China National High-Tech Enterprise
·Multiple provincial awards, including Shaanxi AAAAA-Level Credibility Enterprise certification
Long Standing
Customer
Over 19 years
experience
Factory Area
7/24H
High-Quality
Efficiency Service
Custom Solution & Quotation
Need a reliable 2kVA Frequency Converter Manufacturer?
Contact ACSOON for:
✔ Technical datasheet
✔ Customized voltage/frequency solution
✔ OEM cooperation
✔ Project quotation
📩 Get Price / Technical Consultation
Response within 24 hours by engineering team.
Our Services
Quality Control
- Every unit tested – 2 hours at 80% load. Check for overheating.
- Output verified – Voltage accuracy at five set points. Record kept.
- Isolation test – 2kV between input and output for 1 minute. No breakdown.
- Knob cycle – 500 full rotations on each potentiometer. No scratchy spots.
R&D Results
- Cost reduction – Replaced digital display with analog meters. Cut cost by 20%.
- Transformer – Used a standard toroid instead of custom wound. Still meets specs.
- Enclosure – Painted steel instead of powder coat. Same protection, lower cost.
- User feedback – Hobbyists wanted bigger knobs. Added large rubberized knobs.
Packaging and Transportation
- Shipped from Xi'an – Cardboard box with foam inserts. Fits a courier.
- Included – Power cord (1.5m), output cable with universal socket, printed quick start.
- Manual – One sheet of paper. Double‑sided. No USB.
- Pallet – 8 units per pallet for dealers.
After‑Sales Service
- 1‑year warranty – Return to Xi'an for repair. Parts and labor.
- Spare parts (transformer, fan, meters) kept in Xi'an. Express shipping.
- Email support – We answer within one business day. Simple questions only.
Qualification Certification
- CE – LVD and EMC tested.
- ISO 9001:2015 – Our Xi'an facility.
- RoHS – Compliant.
FAQ
Q1: Is this suitable for aircraft maintenance use?
Yes. It is commonly used in MRO environments where 400Hz aircraft power is required.
Q2: Can it simulate aircraft power conditions accurately?
Yes, it provides stable 115V/120V 400Hz output with low harmonic distortion.
Q3: Does it support both single-phase and three-phase output?
Yes, both configurations are available depending on system size.
Q4: What kind of load can it handle?
It is designed for linear and mixed industrial loads with isolated transformer support.
Q5: Is it suitable for continuous operation?
Yes, it is designed for industrial duty cycles with long-term operation in mind.
Q6:How can I get more details?
A:Click here.Send inquiry get price and specification.
Q7:Can a 60Hz to 50Hz converter change both frequency and voltage?
Yes. A static frequency converter can adjust frequency and voltage output according to application requirements. The AF60W supports adjustable voltage and frequency configurations for different electrical systems.
Q8：What equipment needs a 60Hz to 50Hz converter?
Common applications include imported industrial machines, motors, pumps, laboratory equipment, testing systems and marine electrical equipment that require a different frequency from the local power grid.
Q9:What is the difference between a transformer and a frequency converter?
A transformer can change voltage but cannot change frequency.
A frequency converter changes the electrical frequency by converting AC power into a controlled AC output.
Q10:Can AF60W convert 50Hz to 60Hz?
Yes. The AF60W series supports bidirectional frequency conversion according to system configuration requirements.
