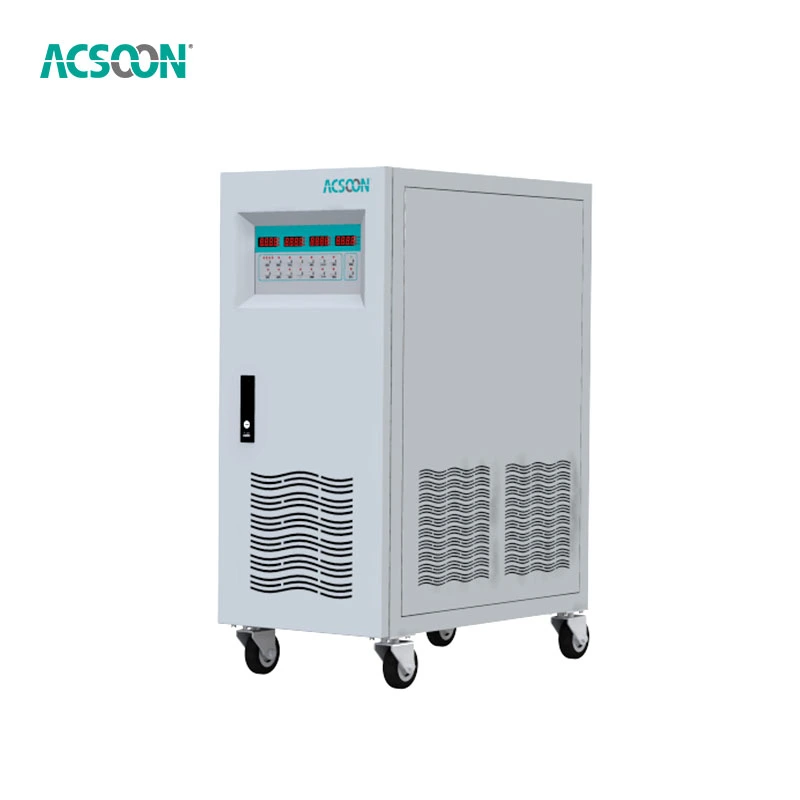

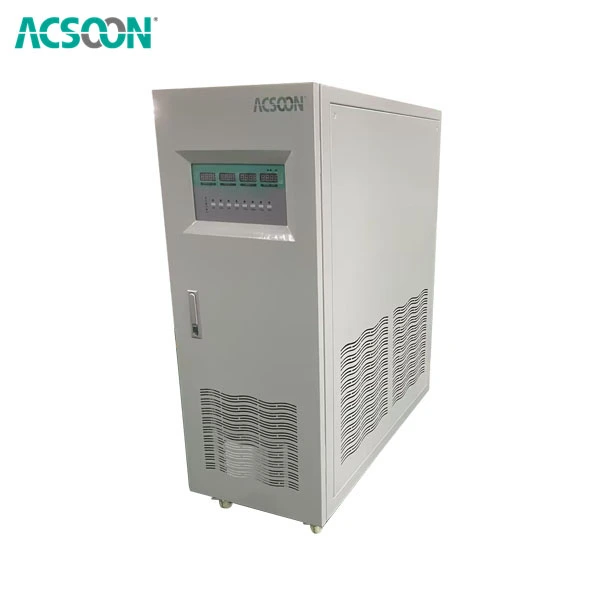

Aircraft Testing AC Power Supply
2. Technology: Solid-state frequency conversion with precision regulation
3.Input: 3-phase 380VAC ±15%, 50/60Hz auto-sensing
4. Output: 115V/200VAC 400Hz, 3-phase 4-wire
5. Key Applications: Aircraft system testing, avionics verification, aerospace equipment
6. Key Features: 400Hz precision output; aviation standards compliance; pure sine wave; test sequencing
7. Ingress Protection Grade: IP21/54
8. Brand: ACSOON (aviation certification available).
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures specialized aircraft testing AC power supplies for aviation and aerospace verification applications. Our systems provide precise 400Hz power for testing aircraft systems, avionics equipment, and aerospace components, ensuring reliable performance validation in accordance with aviation industry standards.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Single Phase Output) | 1kVA - 200kVA |
| Capacity (Three Phase Output) | 1kVA - 2000kVA |
| Input Voltage (Single Phase) | 110-230VAC ±20% |
| Input Voltage (Three Phase) | 200-440VAC ±20% |
| Input Frequency | 50/60HZ or 40-70HZ |
| Output Voltage (Single Phase) | 0-300Vac |
| Output Voltage (Three Phase) | 0-520Vac |
| Output Frequency | 50/60/100/200/400HZ or 40-800HZ adjustable |
| Frequency Regulation | ≤0.1% |
| Voltage Regulation | ±1% |
| Output VTHD | <3% @ Linear load |
| Response Time | ≤2ms |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 60s, 150% for 30s |
| Working Temperature | -10°C to 50°C |
| Altitude | <1800 |
ACSOON Aircraft Testing AC Power Supply Main Features
- Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
- EMC compatible
- Compatible with both 50Hz and 60Hz power supply network
- Low harmonic distortion
- Pure sine wave,sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Display real-time data: voltage,current,frequency, power / power factor
Why Choose ACSOON Aircraft Testing AC Power Supplies?
ACSOON delivers precision power for aviation testing:
Aviation Frequency: Precise 400Hz output for aircraft systems
Testing Capability: Designed for avionics and system verification
Standards Compliance: Meets aviation testing requirements
Stable Performance: Reliable power for accurate testing
Safety Features: Comprehensive protection for test systems
Application Areas
Our aircraft testing AC power supplies are essential for:
Aircraft System Testing: Onboard system verification
Avionics Testing: Flight instrument validation
Aerospace Equipment: Aircraft component testing
Maintenance Verification: System maintenance testing
Manufacturing Testing: Aircraft production testing
Research Facilities: Aviation research applications
Quality Assurance: Aircraft equipment certification
Service Centers: Aviation equipment servicing
Details display
Quality Assurance
Each aircraft testing AC power supply undergoes rigorous testing:
Frequency accuracy verification
Output stability testing
Aviation standard compliance
Environmental testing
Performance validation
Technical Features
Our aircraft testing AC power supply incorporates:
Precision 400Hz generation
Aviation-grade components
Testing-specific features
Protection systems
Monitoring capabilities
Packaging and Delivery
We ensure aviation-grade packaging:
Protective packaging materials
Careful handling procedures
Worldwide shipping services
Installation support
After-Sales Service
Aviation testing support includes:
Technical support services
Maintenance programs
Calibration services
Training programs
Parts availability
Certifications
FAQ |
|---|
| Q1: What are the primary applications for aircraft testing AC power supplies? |
| A: Testing aircraft systems, avionics equipment, and aerospace components requiring 400Hz power. |
| Q2: What standards are met? |
| A: Compliant with aviation industry testing standards and requirements. |
| Q3: How accurate is the 400Hz output? |
| A: High-precision frequency control for accurate testing. |
| Q4: What testing features are included? |
| A: Designed specifically for aviation testing applications. |
| Q5: Can systems be customized for specific aircraft tests? |
| A: Yes, we offer customized solutions for aviation testing needs. |
