Clean AC Power Supply
2.Technology: IGBT-based Static Frequency Converter with Advanced Filtering
3.Input: 1-Phase 220V or 3-Phase 380V, 50/60Hz
4.Output: Pure Sine Wave, Ultra-Low Distortion (THD <1.5%), Adjustable Voltage & Frequency
5.Applications: Sensitive Electronics Testing, Audio Equipment, Medical Instruments, Precision Measurement Labs
6.Core Features: Ultra-Low Harmonic Distortion, High Frequency Stability, Low Noise, Galvanic Isolation
7.Brand: ACSOON (Bench-top or Rackmount Options).
- Product Description

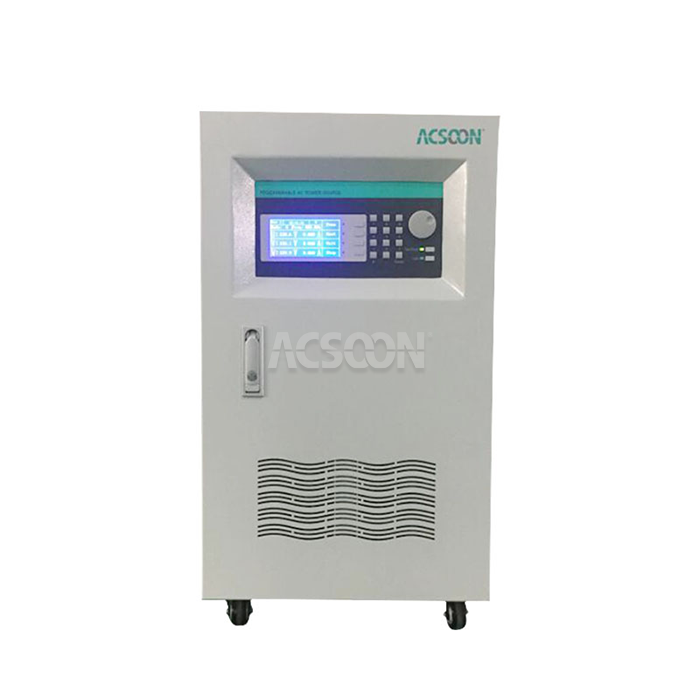

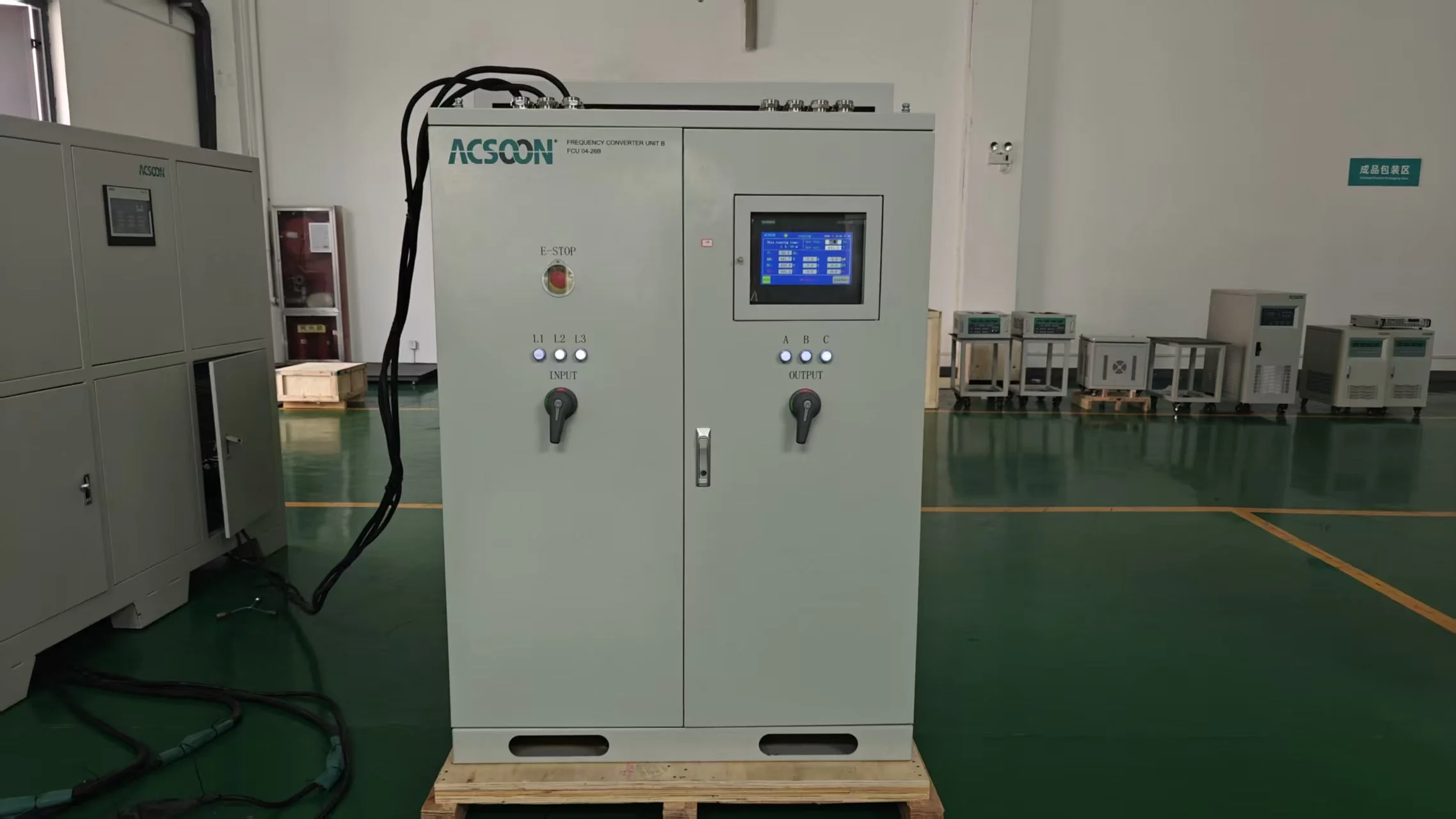

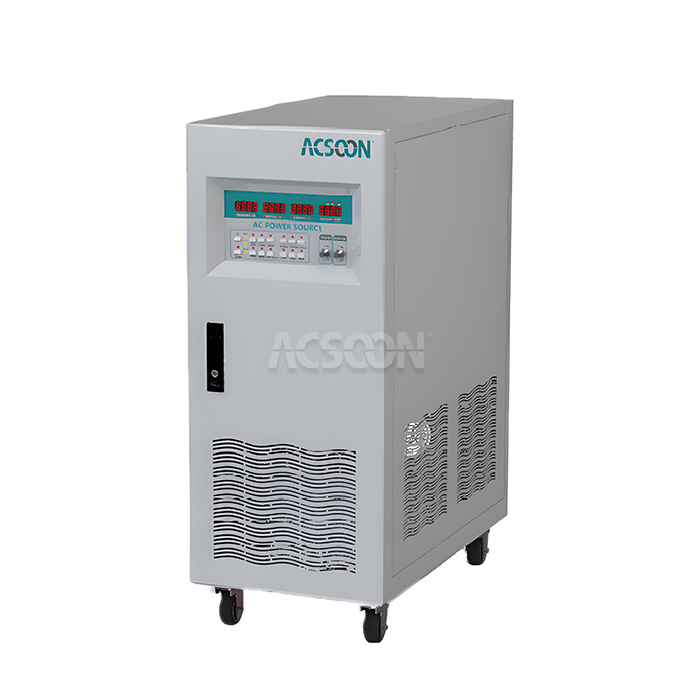

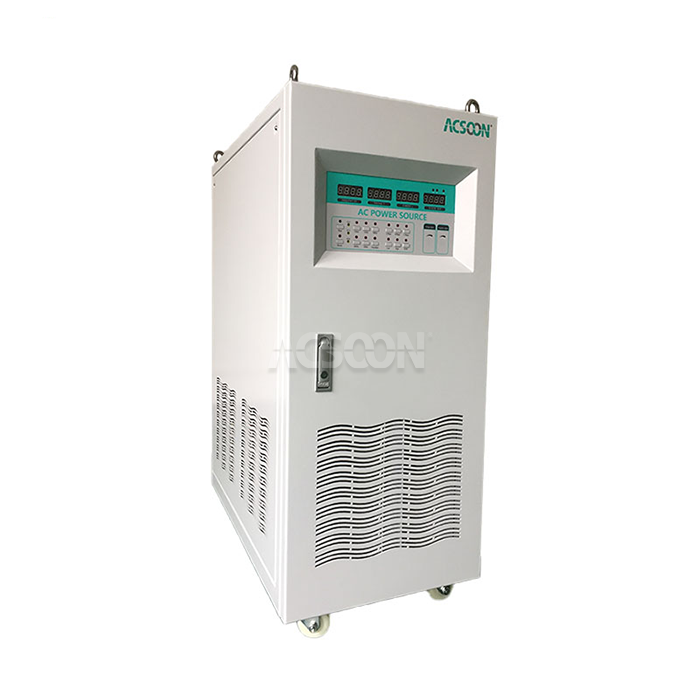

Clean AC Power Supply | Ultra-Low Distortion AC Source for Sensitive Electronics
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the Clean AC Power Supply, a high-purity AC source engineered for applications demanding the highest power quality. This unit delivers a near-perfect sine wave with exceptionally low harmonic distortion, making it ideal for testing sensitive audio equipment, medical devices, precision instruments, and other electronics where power line noise cannot be tolerated. Its advanced filtering and galvanic isolation ensure a pristine output free from grid disturbances.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON ACSW Series |
| Model Number | ACSW-330030 (30kVA Three Phase) |
| Input | 1-Phase 220V or 3-Phase 380V/400V/415V ±15%, 50/60Hz |
| Output | Voltage: 0-300V (L-N) adjustable Frequency: 45-500Hz adjustable Power: 1kVA, 3kVA, 6kVA, 10kVA, 15kVA, 20kVA, 30kVA, 45kVA (Three Phase) |
| Output THD | <2.5% @ linear load (typical <3%) |
| Regulation | Voltage: ≤ ±1% FS, Frequency: ≤ ±0.1% FS |
| Isolation | Galvanic Isolation Transformer |
| Efficiency | ≥85% |
| Display | LCD Digital (V, I, F, P, PF) |
| Communication | RS232, RS485 (Modbus) |
| Protections | Over Voltage, Over Current, Short Circuit, Over Temperature |
| Operating Temp. | -10°C to 45°C |
Clean AC Power Supply Main Features
- Ultra-Low Output Distortion: THD <1.5% (typical <1%) ensures accurate testing of sensitive circuits.
- Adjustable Output: Voltage 0-300V, frequency 45-500Hz for versatile application.
- Comprehensive Filtering: Multi-stage EMI/RFI filters and output transformer for superior noise rejection.
- User-Friendly Interface: Digital display and simple controls with remote communication capability.
Why Choose ACSOON Clean AC Power Supply?
- Ultra-Low Harmonic Distortion: Achieves THD <1.5% at linear loads, delivering a virtually pure sine wave for noise-sensitive applications.
- High Frequency Stability: Maintains frequency accuracy within ±0.1% FS, essential for precision timing and measurement.
- Galvanic Isolation: Integrated output transformer provides complete isolation from the grid, eliminating ground loops and common-mode noise.
- Low Acoustic Noise: Quiet operation with intelligent fan control, suitable for laboratory and audio testing environments.

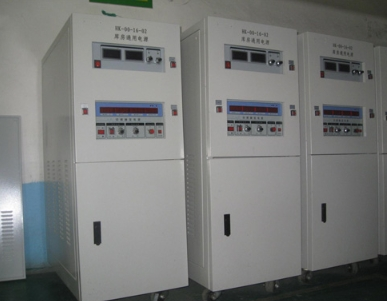

Clean AC Power Supply Application Areas
- Audio Equipment Testing: Powering amplifiers, DACs, and professional audio gear without introducing power line artifacts.
- Medical Instrument Calibration: Supplying clean power for diagnostic imaging, patient monitors, and laboratory analyzers.
- Precision Measurement Laboratories: Providing a reference AC source for calibration of meters and sensors.
- Semiconductor & Sensor Testing: Eliminating power quality variables in performance characterization.
Our Services
Quality Control
- Waveform Purity Verification: Every unit’s output THD is measured and certified at full load.
- Noise Floor Measurement: Conducted in shielded environment to ensure low conducted and radiated emissions.
- Full-Load Stability Test: 8-hour burn-in under worst-case load to verify thermal and electrical performance.
- Calibration Traceability: Output voltage and frequency calibrated against precision reference standards.

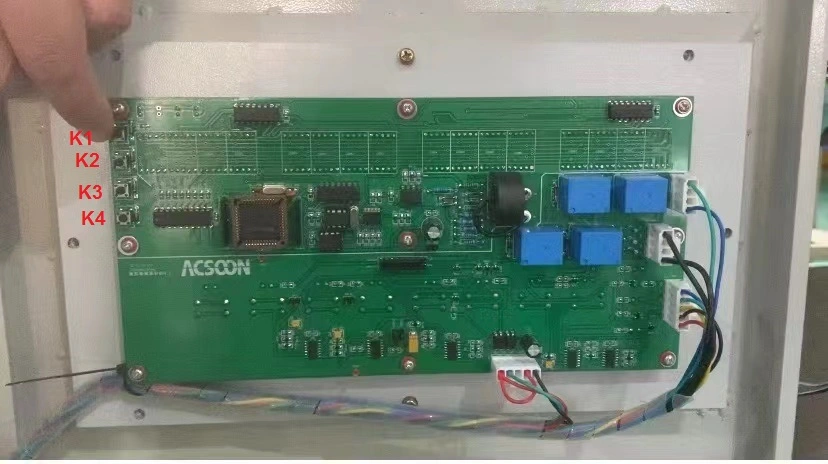

R&D Results
Advanced Filter Topology: Developed multi-stage L-C filter optimized for wide frequency range to maintain low THD across all settings.
Low-Noise Power Stage: Engineered switching circuits to minimize high-frequency noise while preserving efficiency.
Precision Digital Synthesis: Implemented DDS-based waveform generation for exceptional frequency accuracy and stability.
Isolation Design: Optimized transformer design for minimal parasitic capacitance, reducing common-mode noise.
Packaging and Transportation
Laboratory-Grade Packaging: Unit secured in foam-lined double-wall carton with anti-static protection.
Accessory Kit: Includes power cord, communication cable, user manual, and calibration certificate.
Complete Documentation: Test reports, wiring diagrams, and warranty card included.
Global Shipping: Reliable carriers with full tracking and insurance.
After‑Sales Service
We offer an 18-month warranty, technical support for application setup, and availability of firmware updates and spare parts.
Qualification Certification
ISO 9001:2015 Certified manufacturing；CE Marked for safety and EMC compliance；Factory Test Report: Provided with detailed THD and regulation measurements.
FAQ |
|---|
| Q1: Why is low THD important for sensitive electronics? |
| A: High harmonic distortion can cause measurement errors, introduce noise into audio signals, or affect the operation of precision analog circuits. A clean power source ensures the device under test is evaluated on its own merits, not on power quality. |
| Q2: Can this power supply simulate international grid voltages? |
| A: Yes, with adjustable voltage up to 300V and frequency from 45 to 500Hz, it can replicate most world power standards (115V/60Hz, 230V/50Hz) and beyond. |
| Q3: How does the isolation transformer benefit my application? |
| A: It breaks ground loops, reduces common-mode noise, and provides safety isolation, essential for test setups involving sensitive measurement equipment. |
| Q4: Is it suitable for continuous operation? |
| A: Yes, it is rated for 24/7 continuous duty at full rated power within specified operating conditions. |
| Q5: What communication options are available for automated testing? |
| A: Standard RS232 and RS485 Modbus interfaces allow remote control and monitoring via PC or PLC. |
