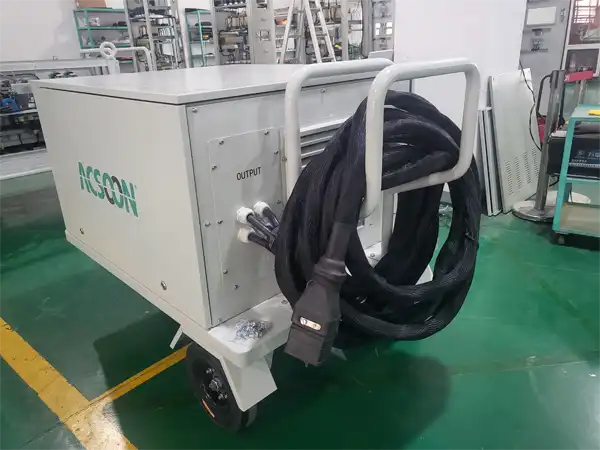

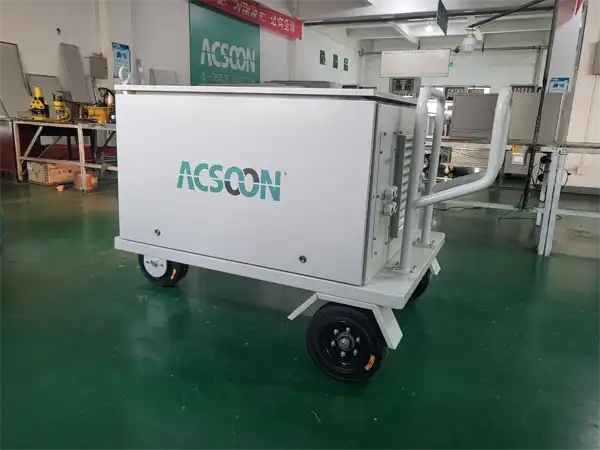

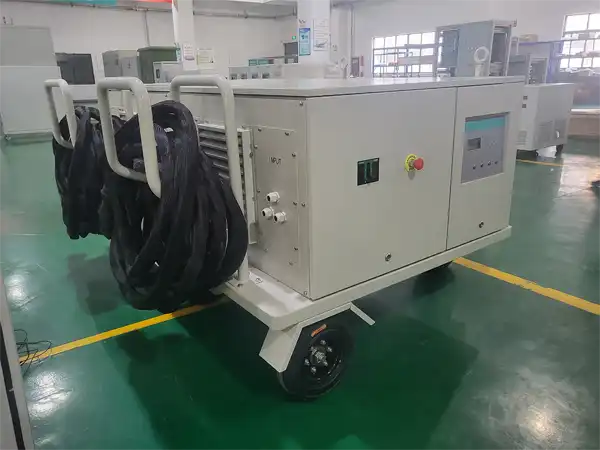

Aircraft AC Ground Power Unit
2. Power Rating: 60kVA
3. Input Voltage & Frequency: 3 Phase 415V, 60HZ
4. Output Voltage & Frequency: 3 Phase 115V/200V, 400HZ
5. Type: Solid state GPU, mobile with trolley
6. Ingress Protection Grade: IP54
7. Applications: Military Systems: Supporting ships, aircraft, and mobile units requiring compact, high-efficiency power；Aerospace Testing: Validating avionics and components under operational 400HZ conditions.
8. Brand: ACSOON (support OEM)
9. Features: Be suitable for aerospace and military where compact and lightweight power systems are essential, testing environments for aerospace components that require 400HZ power
- Product Description
Aircraft AC Ground Power Unit: Power Your Aircraft with Precision
Welcome to XI'AN JERRYSTAR INSTRUMENT CO., LTD, your trusted manufacturer and supplier of high-quality Aircraft AC Ground Power Units (GPUs). Since 2007, we've been at the forefront of power supply innovation, providing reliable solutions for the aviation industry. Our ACSOON brand products are designed to meet the rigorous demands of modern aircraft, ensuring seamless ground operations and optimal performance.
Why Choose ACSOON Aircraft AC Ground Power Units?
At XI'AN JERRYSTAR INSTRUMENT CO., LTD, we pride ourselves on delivering top-tier products that set industry standards. Here's why our GPUs are the preferred choice for airlines, airports, and MRO facilities worldwide:
- Unmatched Reliability: Built to withstand demanding environments
- Superior Performance: Consistent power output for various aircraft types
- Versatile Configurations: Available in multiple capacities to suit your needs
- Energy Efficiency: Optimized designs for reduced operational costs
- Compliance Assured: Meet or exceed international aviation standards
- Customization Options: Tailored solutions for unique requirements
- Comprehensive Support: Expert after-sales service and technical assistance
Technical Specifications
Our products are engineered to deliver exceptional performance across a wide range of applications. Here's a detailed overview of our GPU specifications:
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input (Three Phase) | 200-440VAC (L-L) ±20%, Customizable |
| Input Frequency | 40 - 70HZ |
| Output (Three Phase) | 200/208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300-500HZ adjustable |
| Circuit Breakers | MCCB installed |
| AC Outputs | One terminal strip (standard), Two available (customized) |
| DC Output | Available on Combi GPU (28V) |
| Frequency Regulation | ≤0.1% |
| Voltage Regulation | ±1% |
| Output VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Display | LCD with voltage, current, and frequency indicators |
| Noise Level | <65dB within one meter |
| Protection Features | Comprehensive electrical and thermal safeguards |
| Communication | Modbus RS485 |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| MTTR | < 30 minutes |
| Insulation | 500VDC above 20MΩ |
| Withstand Voltage | 1800Vac/5mA/1 min |
| Max Altitude | <1800m |
Application Areas
Our versatile products are designed to support a wide range of aviation and industrial applications, including:
- Commercial Airlines: Power for parked aircraft during maintenance and between flights
- Military Aviation: Reliable ground power for defense aircraft and support equipment
- Airports: Fixed and mobile power solutions for gates and remote stands
- MRO Facilities: Consistent power supply for aircraft maintenance and testing
- Aerospace Manufacturing: Power for production line testing and quality control
- Executive and Private Aviation: Ground power for business jets and small aircraft
- Cargo Airlines: Support for freighter aircraft during loading and unloading operations
- Emergency Services: Rapid deployment power for air ambulances and rescue aircraft
- Flight Schools: Training aircraft power supply and simulator support
- Aircraft Manufacturers: Final assembly line testing and pre-delivery checks
Quality Control
At ACSOON, quality is paramount. Our rigorous quality control process ensures that every Aircraft AC Ground Power Unit meets the highest standards of performance and reliability. We employ:
- Strict component selection and testing
- Multi-stage production inspections
- Comprehensive final product testing
- Continuous improvement based on customer feedback
R&D Results
Our commitment to innovation drives continuous improvement in our products. Recent R&D achievements include:
- Enhanced energy efficiency protocols
- Advanced thermal management systems
- Improved power factor correction techniques
- Integration of smart diagnostics and remote monitoring capabilities
Packaging and Transportation
We understand the importance of safe and efficient delivery. Our GPUs are:
- Securely packaged to prevent transit damage
- Shipped in robust, weather-resistant crates
- Equipped with shock indicators for quality assurance
- Accompanied by detailed handling instructions
After-Sales Service
Our commitment to your success extends well beyond the sale:
- 24/7 technical support
- Rapid response to service requests
- Comprehensive warranty coverage
- Regular maintenance programs
- Software updates and upgrades
Qualification Certification
ACSOON products are certified to meet global standards:
- ISO 9001:2015 Quality Management System
- CE Certification for European markets
- UL Listed for North American compliance
- RTCA DO-160 Environmental Conditions and Test Procedures for Airborne Equipment
Exhibitions
Meet our team and experience our products at leading industry events:
- InterAirport Europe
- MRO Americas
- Dubai Airshow
- Singapore Airshow
FAQ
Q: What's the typical lead time for a product?
A: Standard models are usually available within 4-6 weeks. Custom units may require 8-10 weeks.
Q: Can your GPUs be integrated with existing airport management systems?
A: Yes, our units feature Modbus RS485 communication, allowing seamless integration with most airport management platforms.
Q: How often should products be serviced?
A: We recommend annual preventive maintenance, with more frequent checks for high-usage environments.
Q: Are your GPUs compatible with all aircraft types?
A: Our range covers most commercial and military aircraft. We can provide customized solutions for specific requirements.
Q: What warranty do you offer on your products?
A: We provide a standard 2-year warranty, with options for extended coverage.
