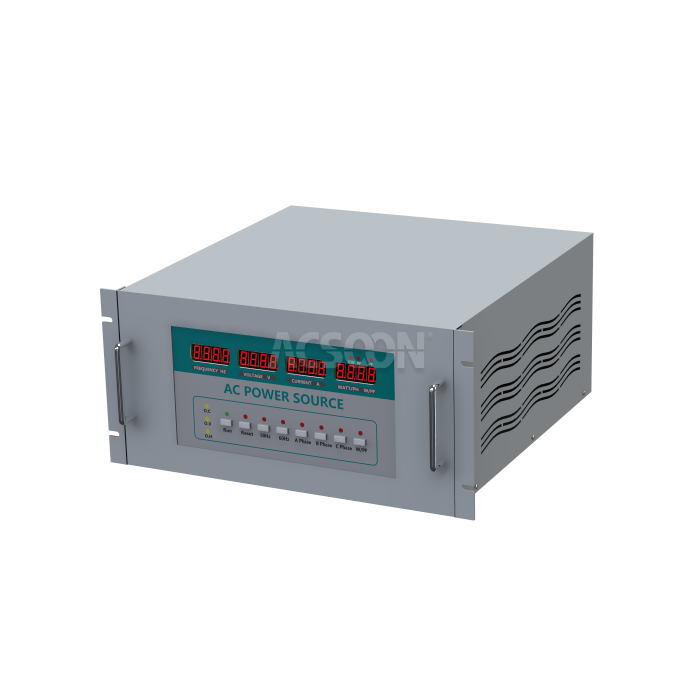

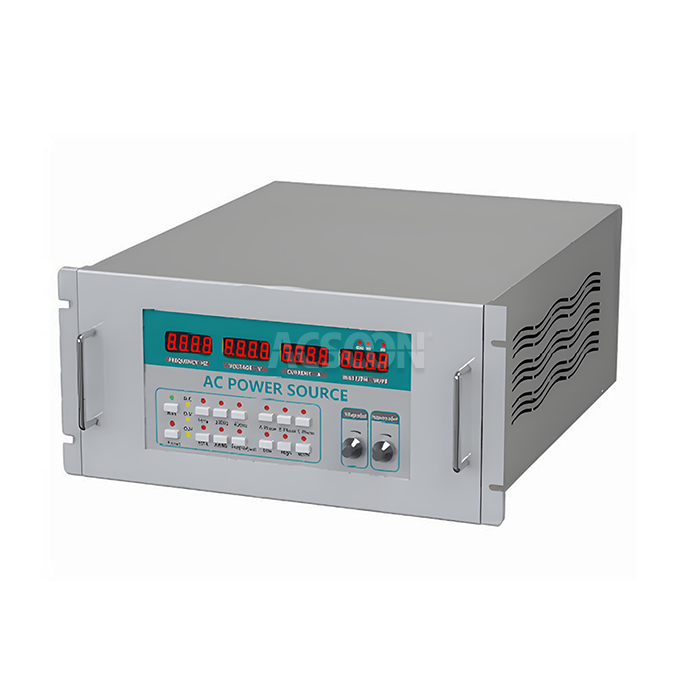

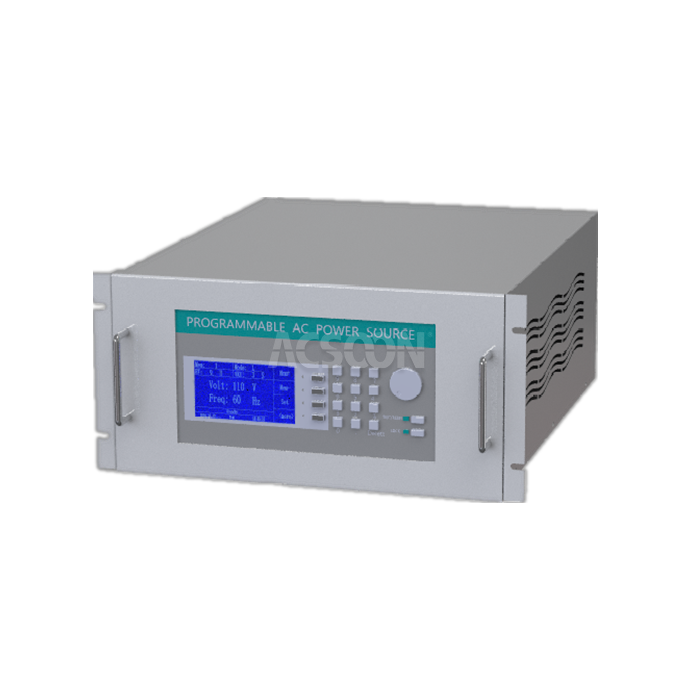

Compact AC Power Source

1.Output: 0‑300V adjustable, 45‑500Hz adjustable, pure sine wave
2.Power: 500VA, 1kVA, 2kVA, 3kVA single‑phase
3.Input: 110V or 220V (rear switch), 50/60Hz ±15%
4.Key specs: ±1% voltage regulation, ±0.1% frequency stability, THD <3%
5.Applications: Small lab benches, field test kits, component evaluation, light manufacturing test
6.Features: Small footprint, carry handle, universal input, output isolation transformer
7.Brand: ACSOON (1‑year warranty, assembled in Xi’an).

Send Inquiry Download

Product Description

Compact AC Power Source | Small Variable Frequency AC Supply for Portable Use

Sometimes you don't need a big heavy supply. You need something you can grab with one hand, stick under your arm, and carry to a different bench or even a different building. That's the Compact AC Power Source.It's our smallest variable AC unit – about the size of a toaster. But don't let the size fool you. Inside is the same IGBT‑based converter and isolation transformer we use in our bigger models, just scaled down. You get clean, regulated AC from 0‑300V and 45‑500Hz, all from a unit that weighs about as much as a laptop bag.We built this for engineers who move around: field service techs, test engineers who share a bench, or anyone who just hates wrestling a 20kg power supply onto a shelf. It works.

Datasheet

Parameter	Specification
Model Series	ACSOON ACSW Series
Model Number	ACSW‑110001 (1kVA)
Input	110V or 220V ±15% (rear switch), 50/60Hz
Output Voltage	0‑150V / 0‑300V (L‑N) switchable
Output Frequency	45‑500Hz, continuous adjustment
Output Power	500VA, 1kVA, 2kVA, 3kVA
Output THD	<3% at linear load (20‑100% of range)
Voltage Regulation	±1% FS
Frequency Stability	±0.1%
Efficiency	80‑85%
Overload	125% for 30 seconds
Display	4‑digit LED (V, A, Hz ,W)
Protections	Over‑current, short circuit, over‑temperature
Cooling	Passive up to 600VA, variable fan above
Carry Handle	Yes, recessed

If you need it,Contact us at Email: acpower@acsoonpower.com

Compact AC Power Source Main Features

Two voltage ranges – 0‑150V and 0‑300V. Toggle on the front.
Frequency from 45 to 500Hz – Covers 50/60Hz mains, 400Hz avionics, and motor test frequencies.
Isolated output – Floating secondary. You can ground one side or leave it floating.
Output enable button – Set your voltage and frequency first, then press output. No accidental spikes.

Why Choose ACSOON Compact AC Power Source?

It's small – Fits in a backpack or a small messenger bag. You won't need a cart.
Quiet – No fan at low loads. At full load, a small fan spins but it's barely noticeable.
Universal input – Works on 110V or 220V. Flip the switch on the back and change the plug. No transformer swapping.
Simple to run – Voltage knob, frequency knob, output button. That's the whole user interface.

Compact AC Power Source Application Areas

Field service – Take it to a job site to power up repaired equipment. No need to guess if the wall power is clean – your source is.
Small R&D labs – When space is tight, this lives under the monitor riser. Pull it out when you need adjustable AC.
Student projects – One unit per team, easy to pass around. Tough enough to survive a semester.
Production test fixtures – Build it into a small test box. Operator plugs the product in, turns the knob, reads the result.

Our Services

Quality Control

Every unit burned in – 2 hours at 80% load. We check thermal rise and output stability.
Isolation test – 2kV between input and output for 1 minute. No breakdown.
Calibration check – Voltage and frequency accuracy verified at 5 points. Sticker on the bottom.
Drop test – One unit from each batch gets dropped from desk height (75cm) onto a concrete floor. Must still work.

R&D Results

Size reduction – First prototype used a standard toroid. Too heavy. We switched to a custom wound C‑core. Saved 30% of the weight.
Handle design – Original had no handle. Customers carried it like a box of books. Added a molded handle on the top.
Input switch – Added the 110/220V selector after a customer in Japan plugged a 110V unit into 220V and let the smoke out.
Fan curve – Early units had the fan on all the time. Too noisy. Now it only spins when internal temp hits 55°C.

Packaging and Transportation

Shipped from Xi'an – woodern box with foam inserts. Small enough for DHL or FedEx.
Included – Power cord (1.5m), output cable with universal socket, printed quick start.
Manual – Full manual on USB. QR code on the unit links to a PDF.
Multi‑pack – 10 units per carton for distributors.

After‑Sales Service

1‑year warranty – Return to Xi'an for repair. We cover parts and labor.
Spare parts (IGBT module, fan, control board) kept in Xi'an. Ship express.
Email support – Usually replies within one business day.

Qualification Certification

CE – LVD and EMC tested；ISO 9001:2015 – Our Xi'an facility；RoHS – All components.

FAQ
Q1: Can this unit really do 500Hz?
A: Yes. But at 500Hz and full voltage, the power rating drops a bit. The 1kVA unit at 500Hz is good for about 700VA. The transformer core losses increase with frequency. For full 1kVA, stay under 200Hz.
Q2: What's the difference between this and your benchtop model?
A: The benchtop model (ACSW‑B series) is a little bigger, has a higher continuous power rating (up to 3kVA), and costs less per VA. This Compact series is smaller and lighter, optimized for portability. If it never leaves your bench, buy the benchtop. If you carry it around, buy this.
Q3: Can I run it from a car inverter?
A: Maybe. It needs a clean sine wave input. Cheap modified‑square‑wave inverters may cause it to fault. Test before you rely on it. We recommend a pure sine wave inverter rated for at least double the unit's input power.
Q4: Is the output isolated?
A: Yes, fully isolated. There's a transformer between the inverter and the output. You can float the output or ground one side. No connection to the input.
Q5: What's the lead time from Xi'an?
A: 3weeks for 1kVA and 2kVA. The 3kVA takes 4 weeks. We stock the smaller ones because they're popular.
