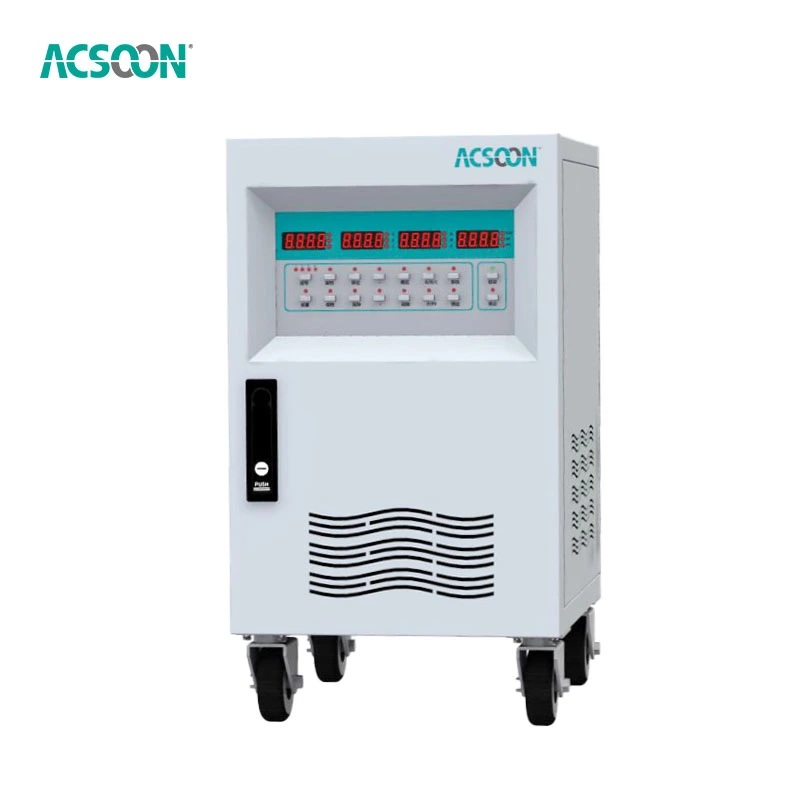

Frequency Converter 50Hz to 60Hz
2.Input Frequency: 50Hz standard (45-55Hz adjustable range)
3.Input Voltage & Frequency: 3 Phase 380V, 60HZ
4.Input Voltage: 220V/380V/400V/415V, single or three phase
5.Output Voltage: Same as input or customizable voltage conversion
6.Frequency Accuracy: ±0.1% with crystal-controlled precision
7.Key Applications: International equipment operation, testing laboratories, manufacturing
8.Brand: ACSOON (support OEM)
9.Conversion Efficiency: ≥92% with minimal power loss.
- Product Description
Frequency Converter 50Hz to 60Hz | International Power Frequency Conversion System
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the advanced Frequency Converter 50Hz to 60Hz, specifically designed to solve international power compatibility issues. Our Frequency Converter 50Hz to 60Hz enables seamless operation of equipment between different power frequency regions, providing stable and precise frequency conversion for various industrial and commercial applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Single Phase Output) | 1kVA - 200kVA |
| Capacity (Three Phase Output) | 1kVA - 2000kVA |
| Input Voltage (Single Phase) | 110-230VAC ±20% |
| Input Voltage (Three Phase) | 200-440VAC ±20% |
| Input Frequency | 50/60HZ or 40-70HZ |
| Output Voltage (Single Phase) | 0-300Vac |
| Output Voltage (Three Phase) | 0-520Vac |
| Output Frequency | 50/60/100/200/400HZ or 40-800HZ adjustable |
| Frequency Regulation | ≤0.1% |
| Voltage Regulation | ±1% |
| Output VTHD | <3% @ Linear load |
| Response Time | ≤2ms |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 60s, 150% for 30s |
| Working Temperature | -10°C to 50°C |
| Altitude | <1800m |
Frequency Converter 50Hz to 60Hz
Main Features
- Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
- EMC compatible
- Compatible with both 50Hz and 60Hz power supply network
- Low harmonic distortion
- Pure sine wave,sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Display real-time data: voltage,current,frequency, power / power factor
Why Choose ACSOON Frequency Converter 50Hz to 60Hz?
ACSOON Frequency Converter 50Hz to 60Hz delivers exceptional performance for international power applications:
Precise Frequency Control: Crystal-controlled accuracy for stable 60Hz output
Wide Voltage Compatibility: Supports multiple input and output voltage configurations
Pure Sine Wave Output: Clean power with THD<3% for sensitive equipment
Automatic Protection: Comprehensive safeguards against frequency and voltage anomalies
Easy Operation: Simple setup with clear monitoring and control interface
Application Areas
Our Frequency Converter 50Hz to 60Hz serves diverse international power needs:
International Manufacturing: Operating 60Hz equipment in 50Hz regions
Testing Laboratories: Equipment validation and compatibility testing
Marine Industry: Powering international vessel equipment in port
Industrial Equipment: Running imported machinery with different frequency requirements
Commercial Applications: Supporting international retail and service equipment
Research Facilities: Scientific research requiring specific frequency conditions
Our Services

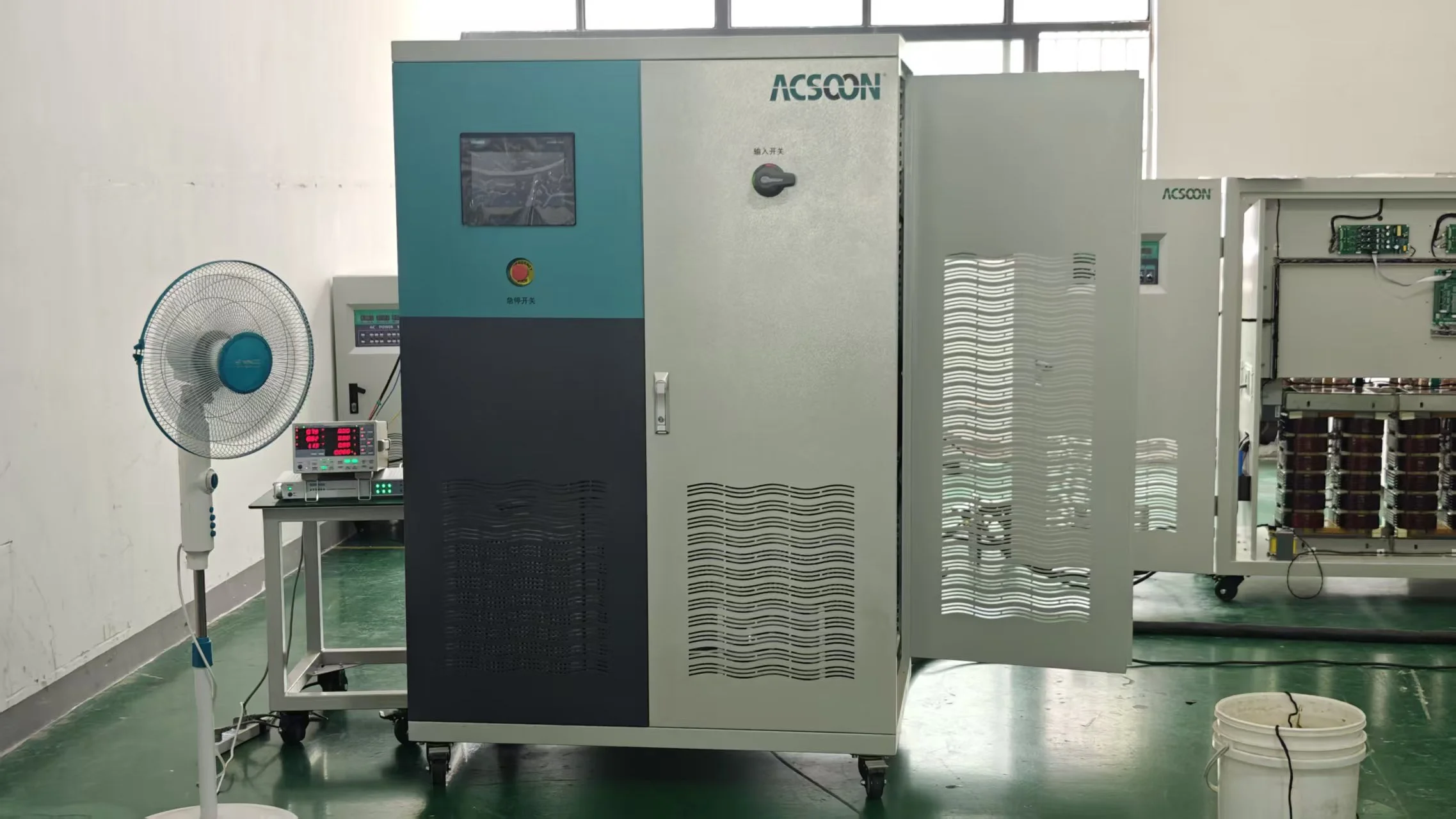

Quality Control
Each Frequency Converter 50Hz to 60Hz undergoes rigorous quality validation:
Frequency accuracy and stability testing
Load performance testing with various equipment types
Thermal management validation under continuous operation
Safety certification to international standards
Final calibration with precision measurement instruments

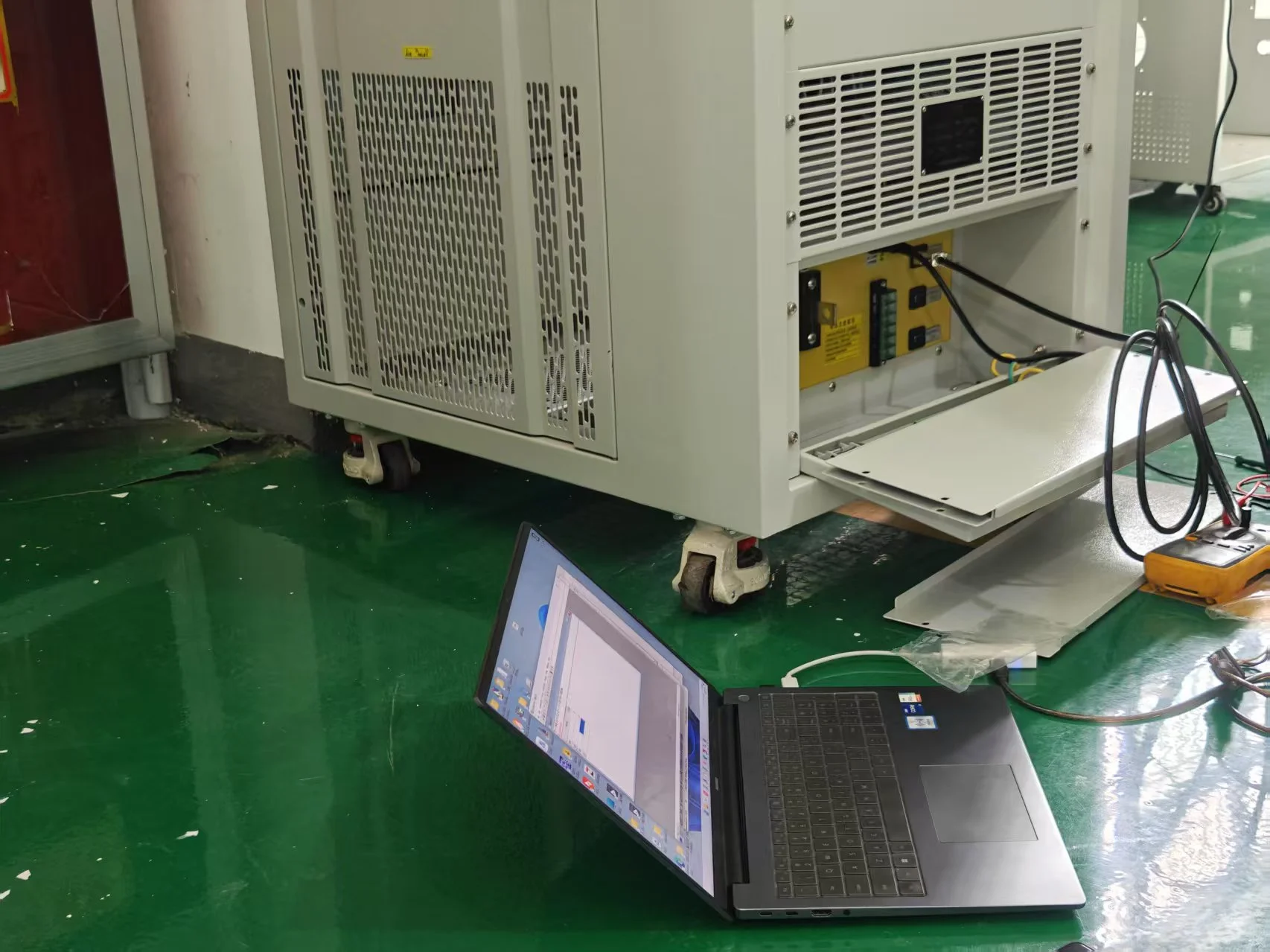

R&D Results
Our technical innovations in Frequency Converter 50Hz to 60Hz technology include:
Advanced DSP control for precise frequency generation
Enhanced power conversion topology for improved efficiency
Smart load adaptation for varying equipment requirements
Reduced electromagnetic interference for cleaner power output
Modular design for easy maintenance and serviceability
Packaging and Transportation
Progressio technologiae telephonicae mobiles per plures aetates ab initio analogi temporis, ad signum digitale aeram, et nunc ad aeram hodiernam invalescit, technologia telephonica mobile pergit ad directionem intelligentiae, miniaturizationis et multi- officium.
After-Sales Service
Progressio technologiae telephonicae mobiles per plures aetates ab initio analogi temporis, ad signum digitale aeram, et nunc ad aeram hodiernam invalescit, technologia telephonica mobile pergit ad directionem intelligentiae, miniaturizationis et multi- officium.
Qualification Certification
FAQ |
|---|
| Q1: What is the main purpose of your Frequency Converter 50Hz to 60Hz? |
| A: It allows operation of 60Hz equipment in regions with 50Hz power supply, solving international power compatibility issues. |
| Q2: Can your converter handle both single-phase and three-phase equipment? |
| A: Yes, we offer both single-phase and three-phase models to suit different equipment requirements. |
| Q3: What is the typical efficiency of your Frequency Converter 50Hz to 60Hz? |
| A: Our converters typically achieve ≥92% efficiency across the operating range, ensuring minimal energy loss. |
| Q4: Can the output frequency be adjusted for specific requirements? |
| A: Yes, the output frequency can be adjusted within 57-63Hz range to meet specific application needs. |
| Q5: What protection features are included in your Frequency Converter 50Hz to 60Hz? |
| A: Standard protections include over voltage, over current, short circuit, overload, and frequency anomaly protection. |
Contact Us
For frequency conversion solutions or technical specifications: acpower@acsoonpower.com , or submit your requirements using the form at the bottom of our website.
