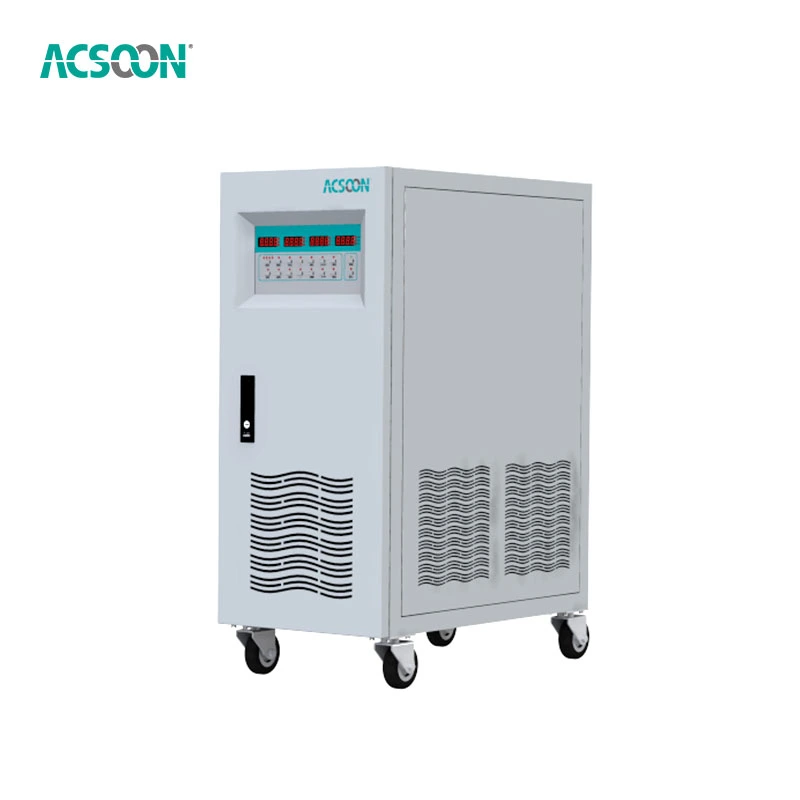

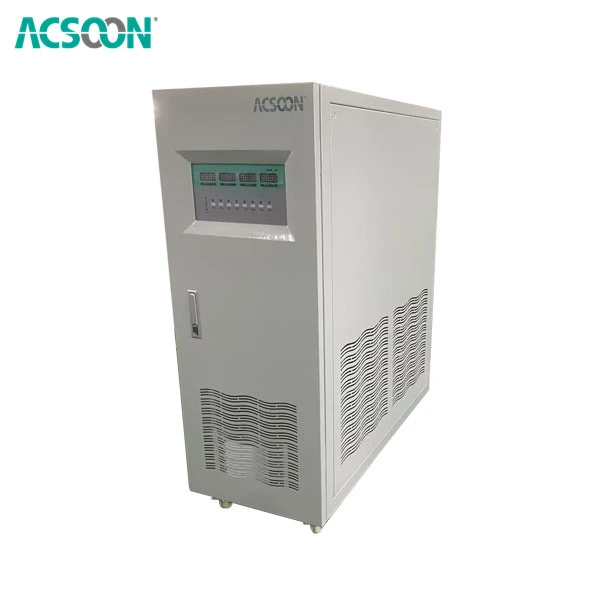

High-Frequency Precision AC Power Source
2.Technology: IGBT SPWM modulation with ARM & DSP dual control
3. Input: 3-phase 380VAC ±15%, 50/60Hz auto-sensing
4. Output: 0-150V (L-N), 0-300V (L-L), 45-800Hz fully programmable
5.Key Applications: Avionics testing, precision instruments, laboratory research
6. Ingress Protection Grade: IP21
7. Key Features: Ultra-low distortion (<2% THD); programmable sequences; fault event storage; RS232/485/Ethernet communication
8. Brand: ACSOON (support OEM).
- Product Description
High-Frequency Precision AC Power Source | Clean Power for Sensitive Electronics Testing
XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in manufacturing high-frequency precision AC power sources for critical testing applications requiring exceptional power quality. With advanced DSP control technology, we deliver solutions that provide ultra-clean power for sensitive electronic equipment testing. Our systems are designed for research laboratories, avionics test facilities, and precision manufacturing applications where power quality is paramount.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Single Phase) | 1kVA - 200kVA |
| Capacity (Three Phase) | 1kVA - 2000kVA |
| Input Voltage | Customizable (110V-440V) |
| Output Voltage | 0-300V (Single), 0-520V (Three) |
| Frequency | 40-800HZ adjustable |
| Voltage Regulation | ±1% |
| VTHD | <3% @ Linear load |
| Overload Capacity | 125% for 60s, 150% for 30s |
| Efficiency | ≥85% |
| Communication | Modbus RS232/RS485 (Optional) |
| Cooling | Forced air |
| MTBF | 30,000H |
ACSOON High-Frequency Precision AC Power Source Main Features
- Isolated output transformer,suitable for any unbalance loads.Every single phase can be used independently
- EMC compatible
- Compatible with both 50Hz and 60Hz power supply network
- Galvanically isolated, low harmonic distortion
- Pure sine wave,sinusoidal output
- Variable frequency and voltage
- Display real-time data: voltage,current,frequency, power / power factor
Why Choose ACSOON High-Frequency Precision AC Power Sources?
ACSOON sets the standard for precision power technology. Our systems offer:
- Exceptional Power Quality: <2% THD pure sine wave output
- Wide Frequency Range: 45-800Hz programmable output
- Advanced Control: 10 sets of programmable voltage/frequency sequences
- Intelligent Monitoring: Real-time data display and fault diagnostics
- Compact Design: Rack-mountable configuration for space-saving installation
Application Areas
Our high-frequency precision AC power sources are essential for:
Avionics Testing: Aircraft electronics and communication systems
Research Laboratories: Scientific instruments and experimental setups
Medical Equipment: Precision medical device testing and validation
Telecommunications: Network equipment power quality testing
Military Electronics: Defense system testing and qualification
Automotive Electronics: ECU and component testing
Renewable Energy: Power converter testing and validation
Quality Assurance: Product certification and compliance testing
Details display

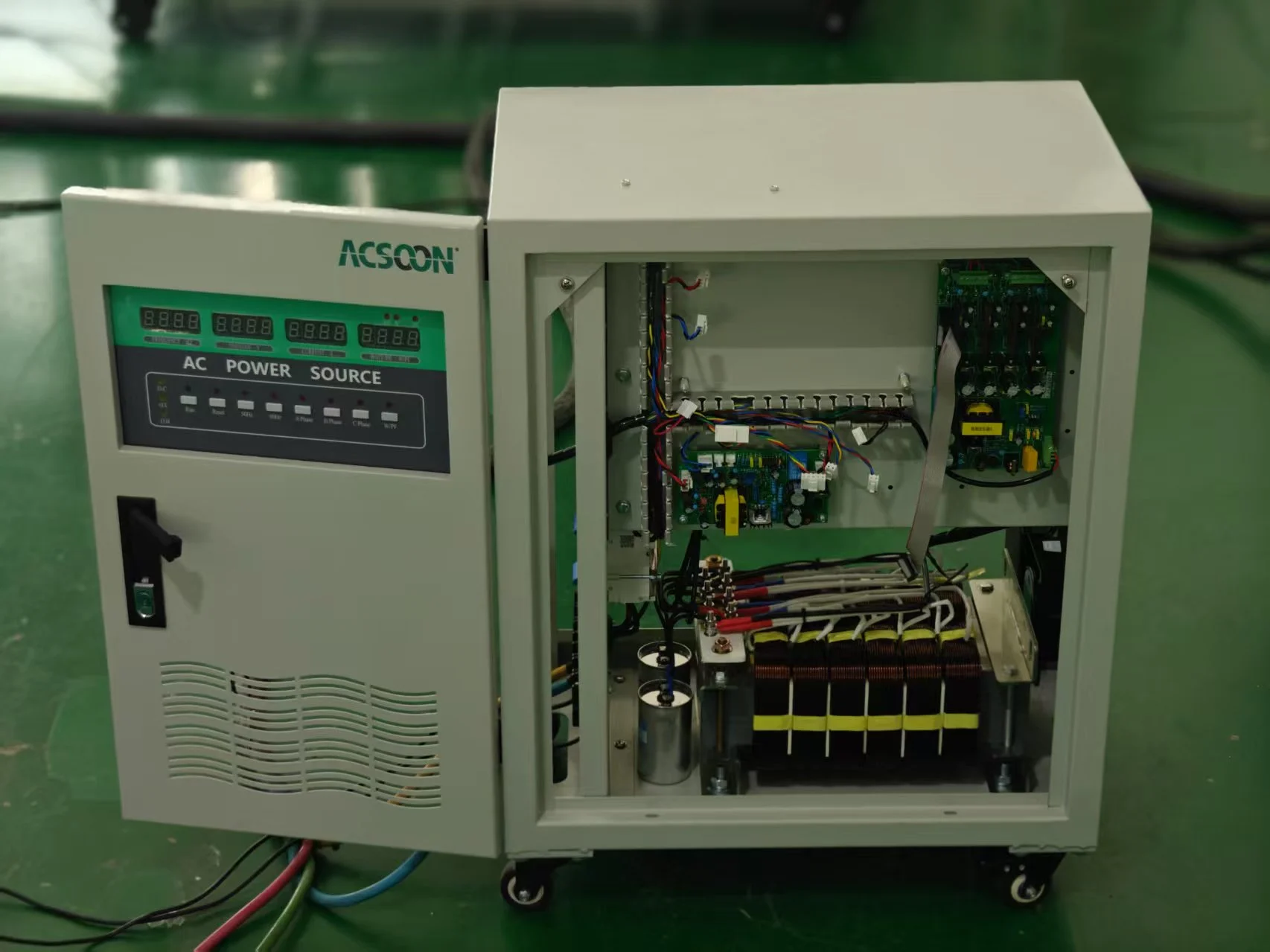

Quality Assurance
Each high-frequency precision AC power source undergoes rigorous validation:
- Component-level screening and testing
- 72-hour continuous full-load testing
- Thermal performance validation
- Safety and EMC compliance testing
- Final calibration and performance verification
Technical Features
Our high-frequency precision AC power source incorporates:
- Advanced ARM & DSP dual control system
- SPWM modulation technology
- Isolated output transformer design
- Comprehensive protection systems
- Intelligent temperature-controlled cooling
Packaging and Delivery
We ensure secure worldwide delivery:
- Industrial-grade protective packaging
- Environmental monitoring during transportation
- Global logistics coordination
- Professional installation support available
After-Sales Service
Comprehensive support package includes:
- 24/7 technical support services
- Preventive maintenance programs
- Firmware update services
- On-site training programs
- Global spare parts availability
Certifications
FAQ |
|---|
| Q1: What distinguishes a high-frequency precision AC power source from standard power supplies? |
| A: Our systems offer superior power quality with <2% THD, wider frequency range up to 800Hz, and advanced programming capabilities for precision testing applications. |
| Q2: Can the system store fault events for analysis? |
| A: Yes, our systems feature fault event storage with time stamping for detailed analysis and troubleshooting. |
| Q3: What communication interfaces are available? |
| A: Standard interfaces include RS232, RS485, and Ethernet for comprehensive remote monitoring and control. |
| Q4: How is cooling managed in the rack-mountable design? |
| A: We use intelligent forced air cooling with temperature-controlled fans for optimal thermal management. |
| Q5: Do you provide custom programming sequences? |
| A: Yes, we offer customized programming and configuration services to meet specific testing requirements. |
Contact Information
For technical specifications or custom solutions: acpower@acsoonpower.com ， or submit your requirements using the form at the bottom of our website.
