High-Performance Marine Shore Power System

1.Rated Power: 90kVA (customizable power capacity available)
2. Rectifying Circuit Type: 6-pulse (12-pulse optional)
3. Input Voltage & Frequency: 3-phase input, 50Hz/60Hz
4.Output Voltage & Frequency: 3-phase output, 60Hz/50Hz (voltage customization supported)
5. Type:Applications: Marine offshore operations, shipyards, shore-to-ship power solutions
6. Ingress Protection Grade: IP21
7. Features: Global dockside power compatibility; exceptional voltage and frequency stability with precise regulation
8. Brand: ACSOON (support OEM)
9. Features: multiple history events memorized in record.

Send Inquiry Download

Product Description

High-Performance Marine Shore Power System: Reliable & Eco-Friendly Shore-to-Ship Electrification

XI'AN JERRYSTAR INSTRUMENT CO., LTD is a premier manufacturer and supplier of advanced high-performance marine shore power systems. With over 15 years of industry expertise, we provide innovative solutions that minimize emissions and ensure adherence to stringent maritime power regulations. Our systems are recognized for their dependability, energy efficiency, and cutting-edge technology, establishing us as a leading partner in global maritime electrification.

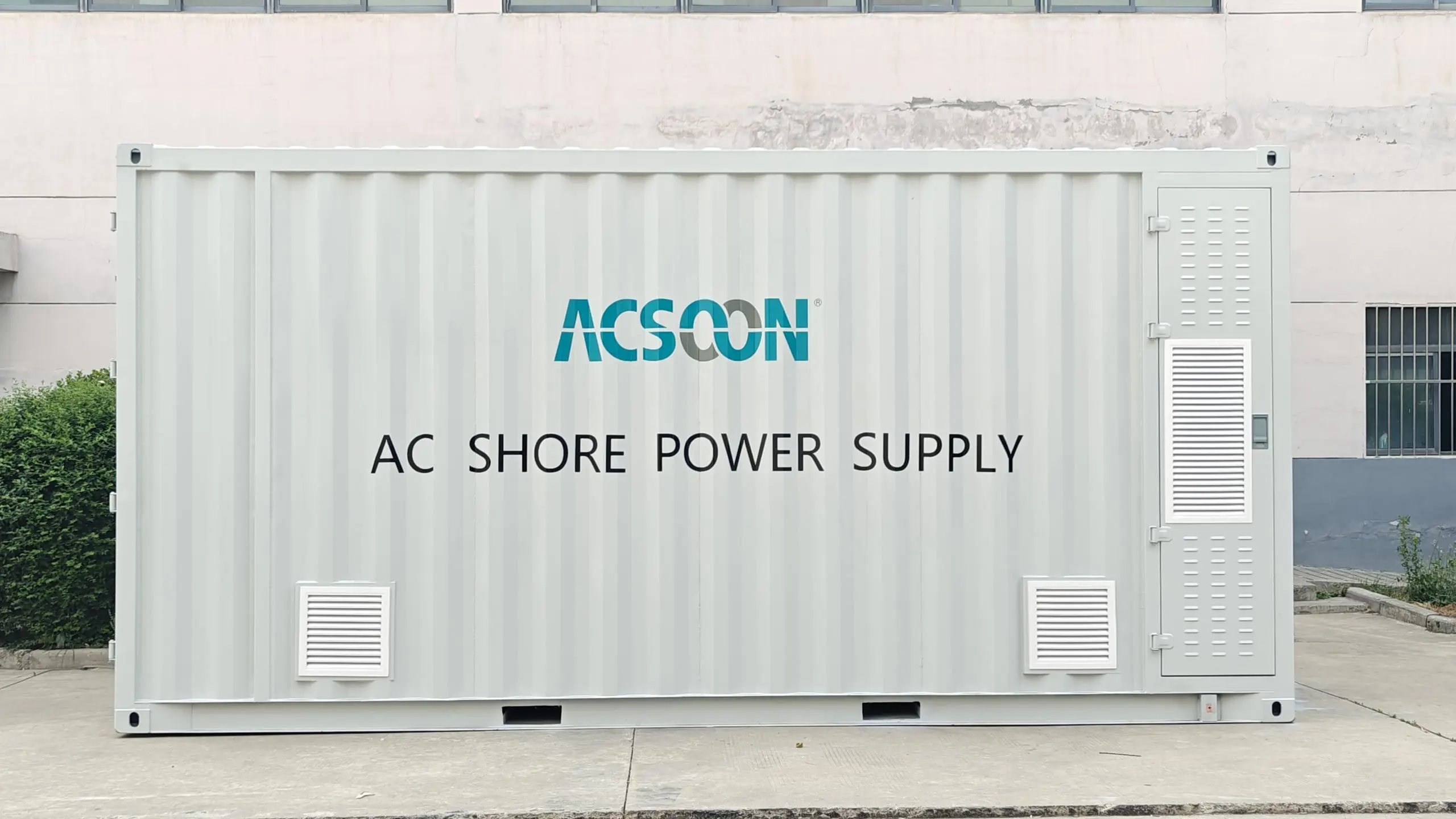

product-496-372

Technical Specifications

Feature	Specification
Power Capacity	Three Phase Output: 1250kVA
Input	Three Phase: 380Vac, 400Vac, 415Vac, 440Vac, 480Vac and 690Vac in ±20% variation. 3 Phase Delta or 3 Phase 4 Wire Wye type
Input Frequency	50/60Hz, 40hz - 70hz
Output	Three Phase: 380Vac, 400Vac, 415Vac, 440Vac, 480Vac and 690Vac etc., 3 Phase Delta or 3 Phase 4 Wire Wye type
Output Frequency	60/50Hz or 400Hz
Circuit Breakers	Input & Output MCCBs circuit breakers
AC Output	One output terminal, with terminal strip inside front panel door
Frequency Regulation	≦0.1%
Voltage Regulation	+/-1%
Output VTHD	<3% @ Linear load
Power Factor	≧0.8 (Standard), ≧ 0.9 (12 Pulse Optional)
Display	LCD digital display: Voltage, Current, Frequency, Power, Run, Stop and Set
Emergency Stop	Included
Protection	Over/under voltage, overload, overheat, short circuit and warning
Overload Capacity	125% for 30 seconds, 150% for 2 seconds
Communication	Modbus mode RS232 / RS485 (Optional)
Cooling	Forced air
MTBF	30,000H
Mean Time to Restoration	< 30 min
Working Temperature	-10℃ to 50℃
IP Grade	IP21 / IP32 / IP54 /IP65 (Alternate enclosures available)
Optional	ATS, seamless transfer between two power units
Standards	EN61000-6-3 &

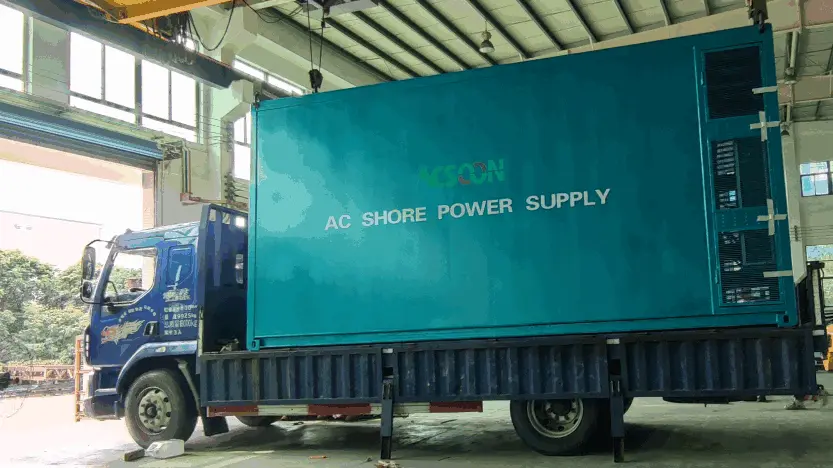

product-753-502

Why Choose ACSOON High-Performance Marine Shore Power Systems?

ACSOON, our flagship brand, offers state-of-the-art solutions designed to address the dynamic demands of the maritime sector. Here’s what sets our systems apart:

Superior Power Stability: Delivers consistent voltage and frequency output for seamless vessel operations.

Regulatory Adherence: Helps ports and ships comply with IMO, MARPOL, and regional environmental standards.

Operational Efficiency: Lowers fuel consumption and reduces maintenance costs while supporting sustainability.

Customizable Designs: Scalable configurations tailored to varying port sizes and power requirements.

Dedicated Expertise: End-to-end support from system design and installation to long-term maintenance.

Application Areas

Our high-performance marine shore power systems are engineered for diverse maritime settings

Commercial Shipping Hubs: Supply reliable power to container ships and cargo vessels during berthing.

Passenger Terminals: Deliver clean energy to cruise ships, improving local air quality and passenger experience.

Naval Infrastructure: Support military docked vessels with secure and efficient shore-side electricity.

Shipbuilding and Repair Yards: Provide safe and stable power for vessels undergoing construction or maintenance.

Offshore Energy Installations: Power operational and residential areas on oil and gas platforms.

Roll-on/Roll-off and Ferry Terminals: Enable rapid power connectivity for short-sea shipping operators.

Inland Ports and Marinas: Protect ecologically sensitive regions with low-emission power alternatives.

Fishing Ports: Promote sustainable fishing practices through clean energy integration.

By deploying our high-performance marine shore power systems, maritime operators can drastically reduce carbon emissions and advance ecological stewardship.

Details display

product-800-450

01

Quality Assurance

Quality is the foundation of our operations. Every high-performance marine shore power system undergoes multi-stage verification:

Incoming Component Validation、Full-Load Performance Testing、Simulated Environmental Stress Testing、Standards and Certification Compliance Checks、Ongoing Production Audits

Innovation and R&D

Our R&D initiatives have driven significant advancements in high-performance marine shore power systems, including:

Enhanced Power Conversion Technologies

Intelligent Grid Synchronization

Remote Operational Monitoring and Diagnostics

Sustainable Material Integration

product-800-450

Packaging and Logistics

We guarantee safe delivery of every system:

Reinforced Custom Crating

Climate-Aware Shipping Protocols

Adaptive Logistics Planning

On-Site Installation Assistance

Certifications

Our company maintains:

ISO 9001:2015 Certification

CE Marking for European Compliance

product-800-450

FAQ
Q1: What are the environmental benefits of using a high-performance marine shore power system?
A: These systems significantly decrease greenhouse gas emissions and noise pollution in port areas by enabling ships to switch off auxiliary engines and connect to land-based electrical grids.
Q2: Can the system be adapted for different electrical standards?
A: Yes, our systems are designed for global compatibility and can be customized to match regional voltage and frequency requirements.
Q3: How do these systems help with evolving environmental regulations?
A: They provide a forward-looking solution to meet and exceed international and regional emissions standards, such as the IMO’s sulfur cap and port-specific air quality directives.
