High Voltage Power Supply

1.Output Voltage Range: 0-520V AC (L-L), 0-300V (L-N), customizable up to 1000V
2.Power Capacity: 1kVA to 500kVA, scalable designs
3.Input Voltage: 110V/220V/380V/480V, 50Hz/60Hz
4.Output Frequency: 45Hz-500Hz adjustable
5.Voltage Stability: ±1% under varying load conditions
6.Applications: Industrial testing, research labs, material science, component aging tests
7.Features: Pure sine wave output, low THD<3%, remote control capability, comprehensive protection
8.Brand: ACSOON (OEM/ODM supported).

Send Inquiry Download

Product Description

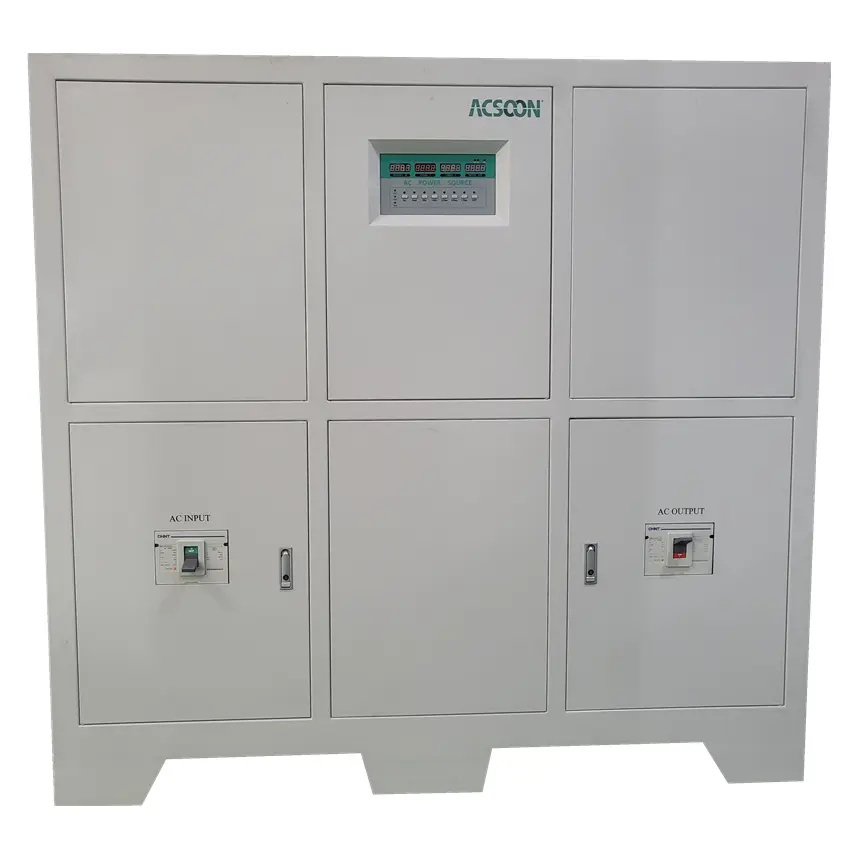

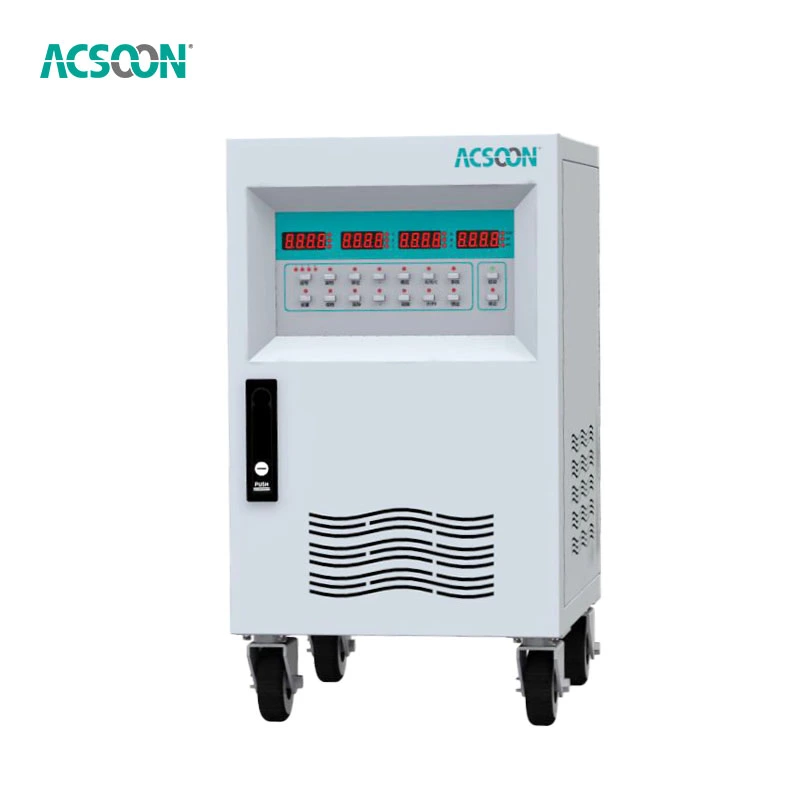

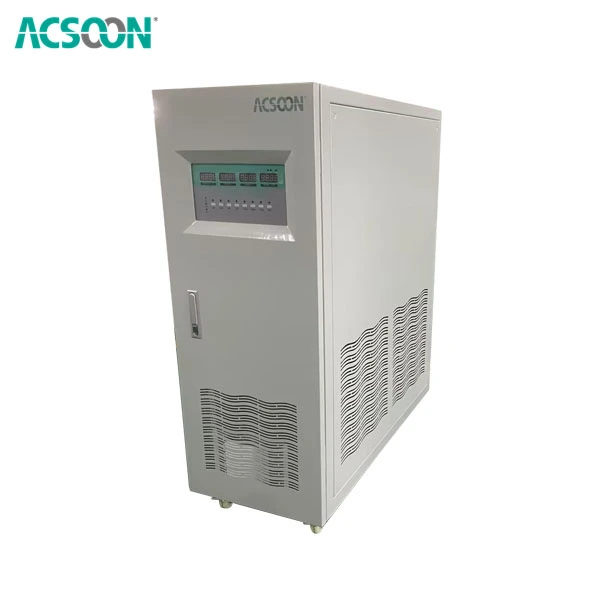

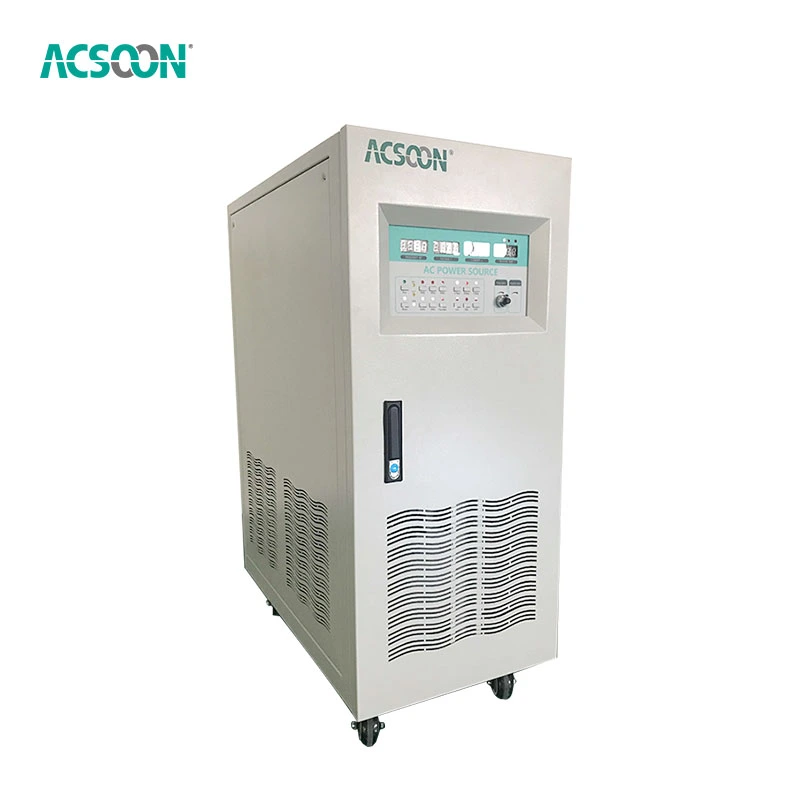

High Voltage Power Supply | Precision High Voltage AC Power Source

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures industrial-grade High Voltage Power Supply systems designed for demanding applications requiring stable and precise high voltage output. Our High Voltage Power Supply solutions incorporate advanced IGBT technology and isolation transformers to deliver clean, reliable power for testing and operational needs across various industries.

Technical Specifications

Feature	Specification
Capacity (Three Phase Output)	1kVA to 2000kVA
Input Voltage	200VAC to 440VAC (L-L) ±20%
Output Voltage	0-260Vac, 0-520VAC (L-L)
Frequency Range	40-800HZ adjustable
Voltage Regulation	±1%
Output VTHD	<3% @ Linear load
Overload Capacity	125% for 60 seconds, 150% for 30 seconds
Efficiency	≥85%
Protection Features	Over/under voltage, overload, overheat, short circuit
Communication	Modbus RS232 / RS485 (Optional)
Operating Temperature	-10°C to 50°C

High Voltage Power Supply Main Features

Abstractam cogitationem crea: Ex alta doctrina, ulterius integrare structuras causales possumus ac cogitare de elementis relatis ad res evenire causandas, vel fabulam ex tempore temporis subnixam formare. Hoc est, AI sapientiam porro genus et rationem intelligere potest.

Inter eas optimae artes sunt, Kumar et Socher retiacula dynamica memoriae meliores ad focum robot sustinendum. Punctum-ad punctum network memoriae nuper ab Weston et al elaboratum est, exemplaribus facultatibus et expressionis capacitatibus dilatatur.

Why Choose ACSOON High Voltage Power Supply?

ACSOON High Voltage Power Supply units are engineered to meet the most stringent requirements for voltage stability and power quality:

Precision Output: Excellent voltage regulation (±1%) and frequency stability (±0.1%)

Wide Voltage Range: Adjustable output from 0-520V AC with higher voltages available

Clean Power Quality: Pure sine wave with THD<3% for sensitive equipment

Robust Protection: Complete safeguards against over voltage, over current, and short circuits

Flexible Control: Local and remote operation via RS485/Modbus interface

Application Areas

Our High Voltage Power Supply systems serve critical functions in multiple sectors:

Industrial Testing: Component stress testing, insulation testing, and equipment validation

Research Laboratories: Physics experiments, material research, and scientific instrumentation

Electronic Manufacturing: Burn-in testing, quality assurance, and production line testing

Educational Institutions: Engineering labs and research facilities requiring high voltage sources

Aerospace & Defense: Testing avionics, radar systems, and military electronics

Medical Equipment: Powering and testing high-voltage medical devices

Our Services

Quality Control

Each High Voltage Power Supply undergoes rigorous quality assurance processes:

Component-level testing and verification
Full-load endurance testing for 24+ hours
High-potential (hipot) testing for insulation integrity
Thermal imaging and temperature rise validation
Compliance with EN60204-1, IEC 62321 safety standards

R&D Results

Our continuous innovation in High Voltage Power Supply technology has achieved:

Enhanced power density through advanced cooling techniques

Improved transient response for better load regulation

Smart monitoring algorithms for predictive maintenance

Reduced electromagnetic interference for cleaner output

Modular designs for easier serviceability and upgrades

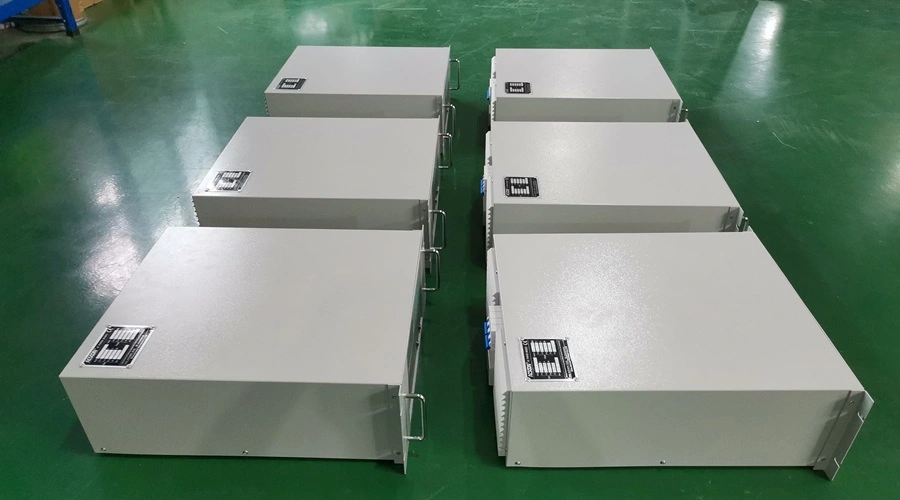

Packaging and Transportation

We ensure safe delivery of every High Voltage Power Supply unit:

Customized shock-absorbent packaging with humidity indicators

Certified wooden crates for international shipping

Comprehensive documentation and installation guides

Global logistics support with real-time tracking

After-Sales Service

We provide comprehensive support for all High Voltage Power Supply products:

24/7 technical support hotline

On-site installation and commissioning services

Regular firmware updates and performance optimization

Training programs for operators and maintenance staff

Extended warranty options available

Qualification Certification

CE Certification

ISO Certification

FAQ
Q1: What safety features are included in your High Voltage Power Supply?
A: Our systems include over voltage protection, over current protection, short circuit protection, and thermal shutdown with audible and visual alarms.
Q2: Can the output voltage and frequency be programmed remotely?
A: Yes, our High Voltage Power Supply supports remote programming and monitoring via RS485/Modbus communication interface.
Q3: What is the typical efficiency of your High Voltage Power Supply?
A: Efficiency typically exceeds 85% across the operating range, with higher efficiency in optimized load conditions.
Q4: Do you offer custom voltage and current ratings?
A: Yes, we can customize output specifications, including special voltage and current combinations to meet specific application requirements.
Q5: What is the lead time for a custom High Voltage Power Supply?
A: Standard units ship within 2 weeks, while custom configurations typically require 4-6 weeks depending on specifications.

Contact Us

Ready to optimize your power conversion systems with our industry-leading High Voltage Power Supply? Our team is here to assist you in finding the perfect solution for your needs. Reach out to us today at acpower@acsoonpower.com for expert guidance and support.
