Marine Variable Frequency AC Power Supply

1.Power Capacity: 75kVA (marine-grade design)
2. Technology: IGBT-based frequency conversion with DSP control
3.Input: 3-phase 440VAC ±15%, 50/60Hz auto-sensing
4.Output: 0-520VAC, 45-65Hz fully programmable
5.Key Applications: Shipboard systems, offshore platforms, port equipment
6.Key Features: Marine environment protection; salt spray corrosion resistance; wide frequency adjustment; remote monitoring
7. Brand: ACSOON (marine certification available).
Send Inquiry Download
  • Product Description


Marine Variable Frequency AC Power Supply | Offshore & Shipboard Power Solutions



XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in manufacturing marine variable frequency AC power supplies for demanding maritime applications. Our systems provide reliable power conversion for shipboard equipment, offshore platforms, and port facilities, ensuring stable operation in harsh marine environments. These power supplies are engineered to meet stringent marine standards and withstand challenging conditions at sea.

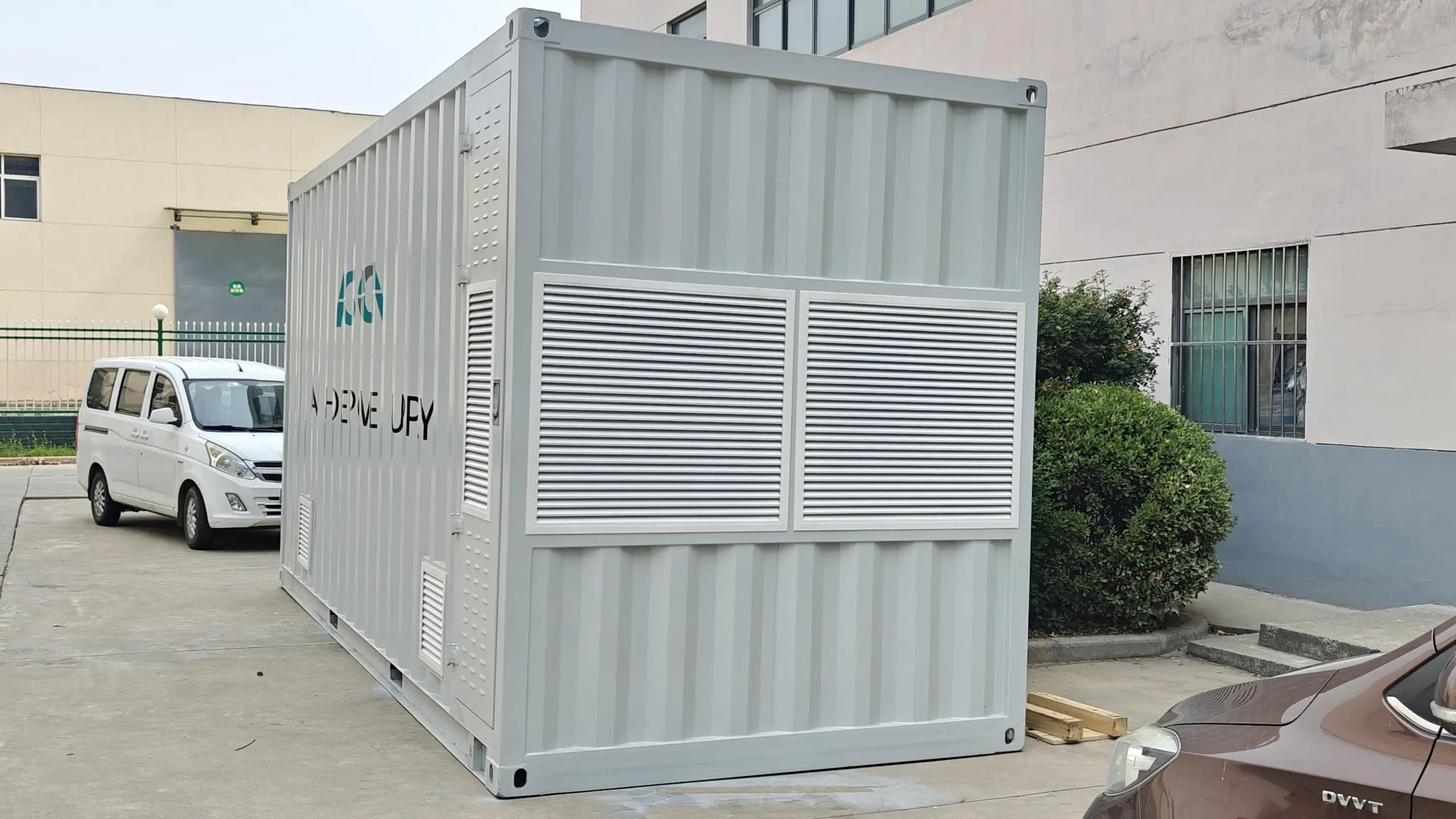

Marine Variable Frequency AC Power Supply

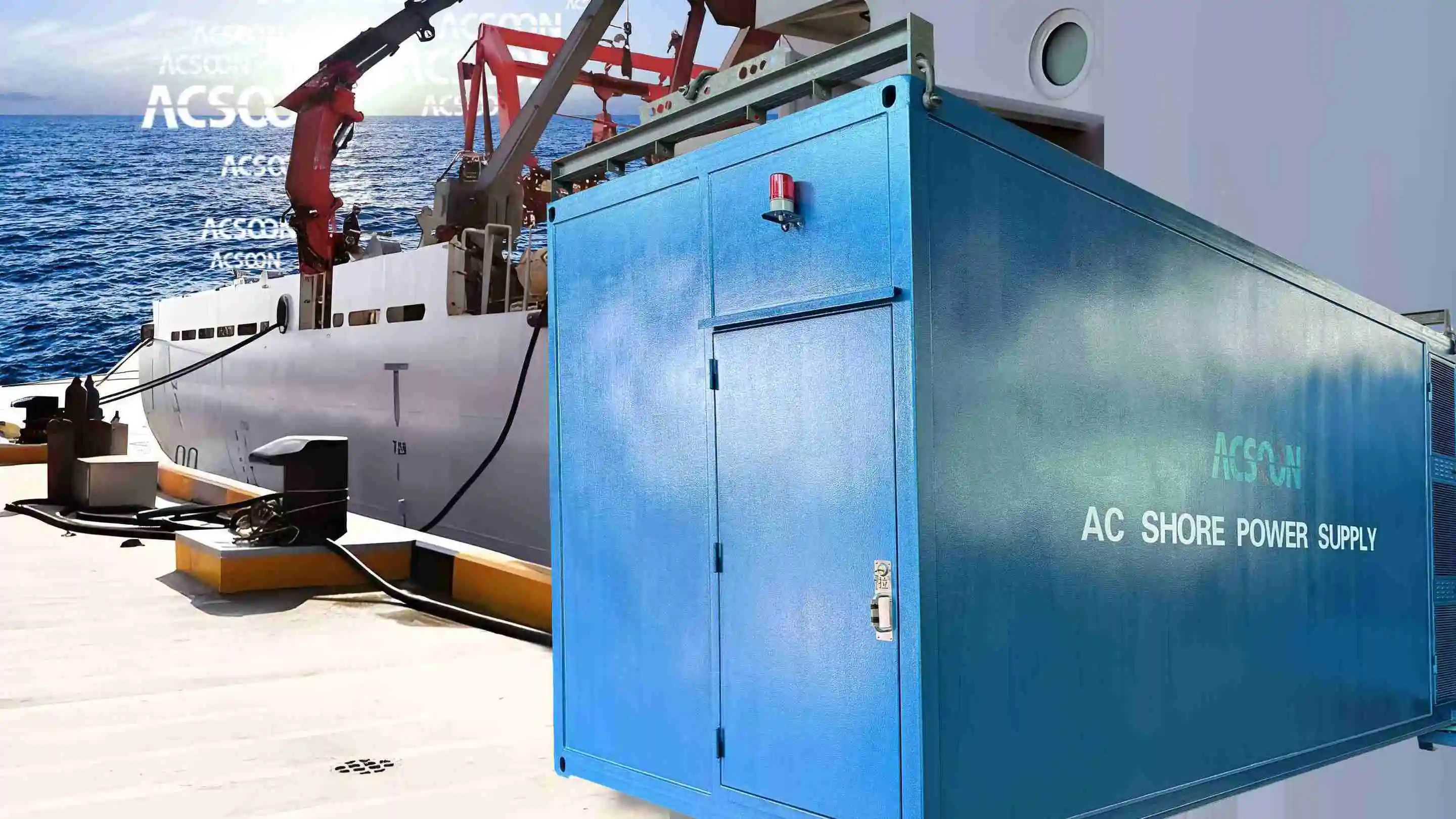

Marine Variable Frequency AC Power Supply

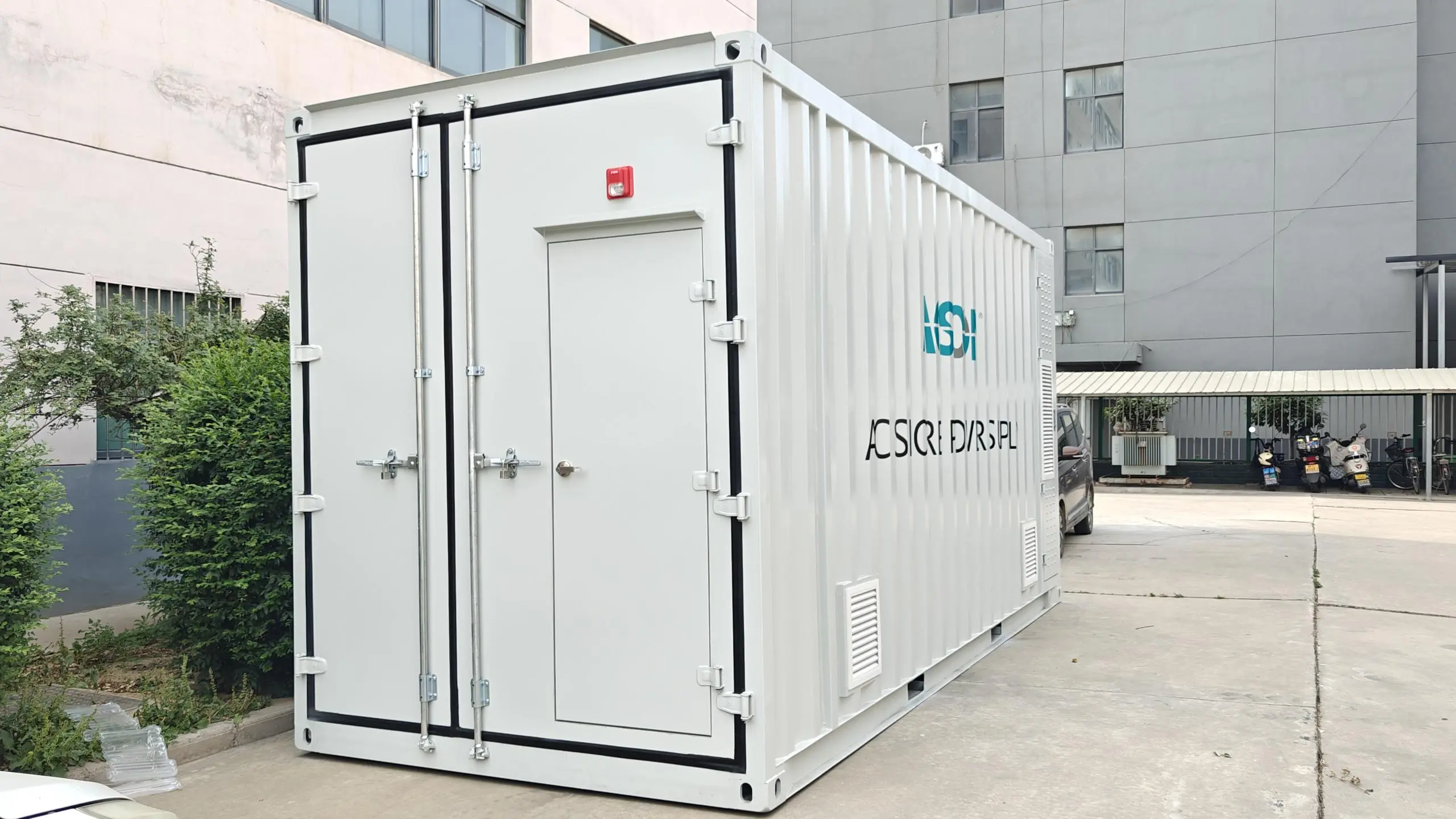

Marine Variable Frequency AC Power Supply


Technical Specifications


FeatureSpecification
Capacity (Single Phase Output)1kVA to 200kVA
Capacity (Three Phase Output)1kVA to 2000kVA
Input Voltage (Single Phase)110-230VAC ±20%
Input Voltage (Three Phase)200-440VAC ±20%
Input Frequency50/60HZ or 40-70HZ
Output Voltage (Single Phase)0-300Vac
Output Voltage (Three Phase)0-520Vac
Output Frequency50/60/100/200/400HZ or 40-800HZ adjustable
Frequency Stability≤0.1%
Voltage Stability±1%
Output VTHD<3% @ Linear load
Power Factor≥0.8 (Standard), ≥0.9 (12 Pulse Optional)
Overall Efficiency≥85%
Overload Capacity125% for 60s, 150% for 30s
CoolingForced air
MTBF30,000H
Operating Temperature-10°C to 50°C

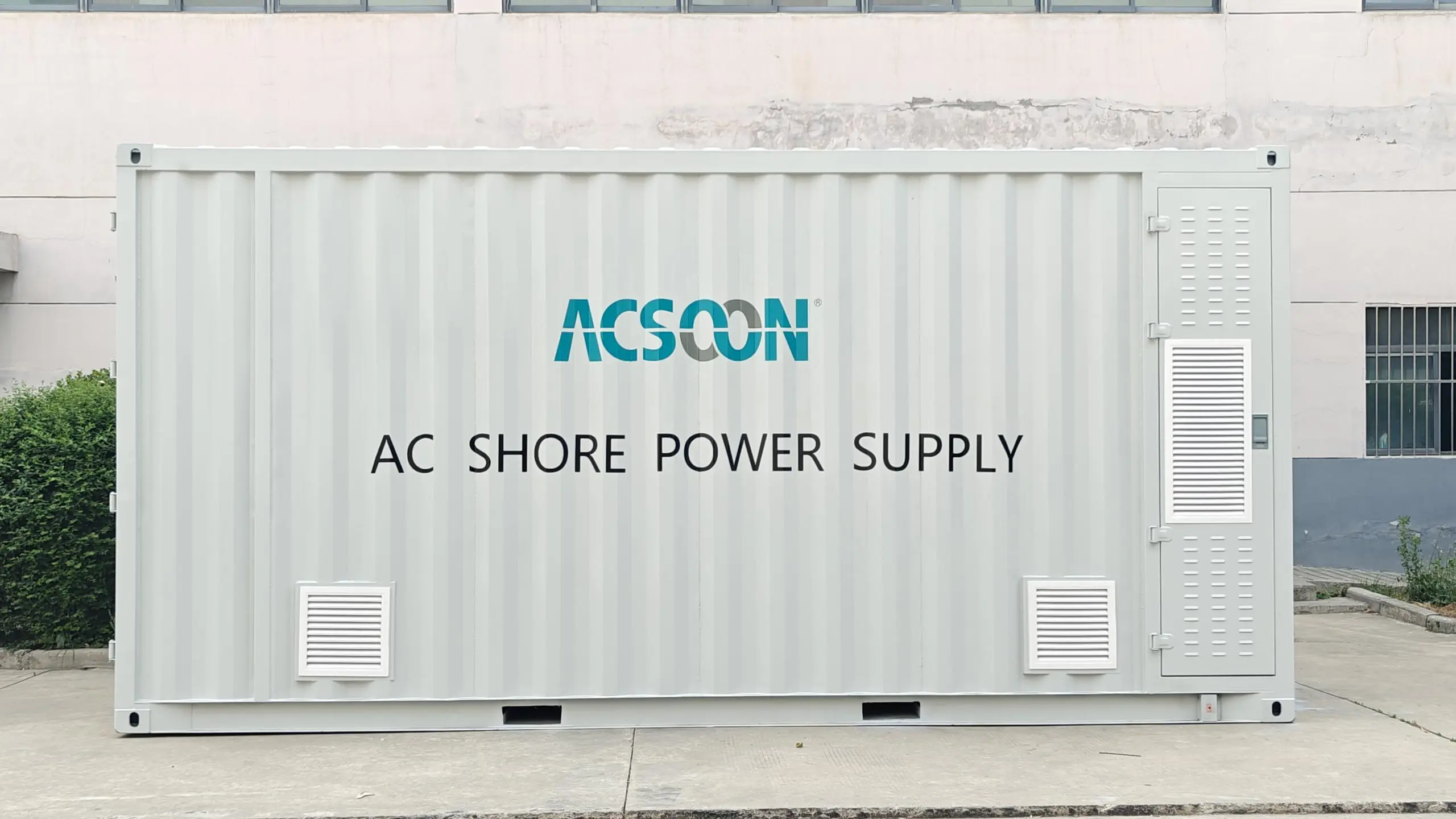

Marine Variable Frequency AC Power Supply



ACSOON Marine Variable Frequency AC Power Supply Main Features

  • Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
  • EMC compatible
  • Compatible with both 50Hz and 60Hz power supply network
  • Low harmonic distortion
  • Pure sine wave,sinusoidal output
  • Completely protection and alarm for over voltage, over current and overheating, etc
  • Display real-time data: voltage,current,frequency, power / power factor
Marine Variable Frequency AC Power Supply

Why Choose ACSOON Marine Variable Frequency AC Power Supplies?



ACSOON delivers robust performance for marine applications:

  • Marine-Grade Protection: IP56 protection against salt spray and moisture

  • Wide Frequency Range: 45-65Hz programmable output frequency

  • High Reliability: Designed for continuous operation in marine environments

  • Advanced Monitoring: Remote control and diagnostics capability

  • Global Compliance: Meets international marine equipment standards

Application Areas



Our marine variable frequency AC power supplies are essential for:

  • Commercial Shipping: Main vessel power systems and equipment
  • Offshore Platforms: Oil and gas platform power supply
  • Naval Vessels: Military shipboard systems and equipment
  • Port Facilities: Dock equipment and shore power
  • Research Vessels: Scientific equipment power supply
  • Cruise Ships: Passenger vessel systems and amenities

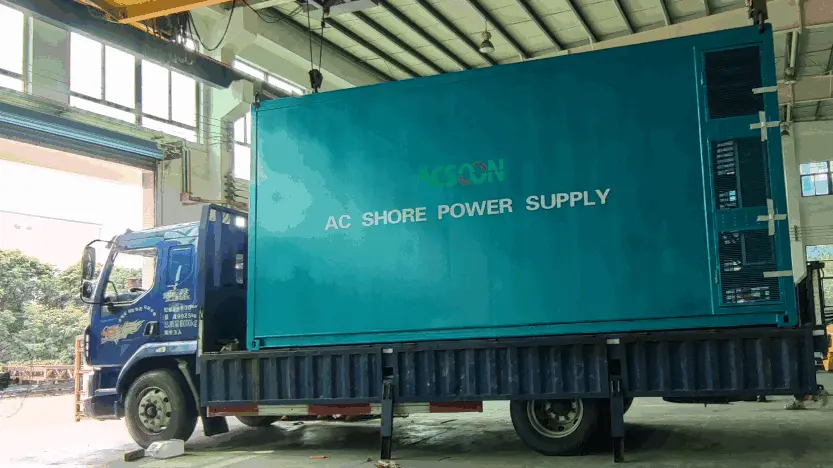

Application Areas
CE Certification
ISO Certification

Q1: What makes marine variable frequency AC power supplies suitable for shipboard use?
A: Our systems feature marine-grade protection, corrosion resistance, and robust construction for reliable operation in marine environments.
Q2: Can the system handle vessel voltage fluctuations?
A: Yes, with ±15% input voltage tolerance and automatic voltage regulation.
Q3: What marine certifications are available?
A: We provide DNV-GL, ABS, and other major marine certification options.
Q4: How is corrosion protection achieved?
A: Through special coatings, stainless steel components, and IP56 protection
Q5: Do you provide custom solutions for specific vessel types?
A: Yes, we offer customized designs for various marine applications and vessel types.

Contact Information

For technical specifications or custom marine solutions: acpower@acsoonpower.com ，or submit your requirements using the form at the bottom of our website.
